Multi Touch Capacitive Touch Screen Monitor Waterproof 17 Inch

Size: 17

10mm front panel, working temperature range:-10°~60°, 365*24 hours whole days operation, IP65 dustproof and waterproof.

Appearance of the color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial monitor


10.1 inch industrial monitor


10.4 inch industrial monitor


11.6 inch industrial monitor


12 inch industrial monitor


15 inch industrial monitor


15.6 inch industrial monitor


17 inch industrial monitor


17.3 inch industrial monitor


19 inch industrial monitor


19.1 inch industrial monitor


21.5 inch industrial monitor

  • product description
  • Product parameters
  • Application
  • OEM/ODM

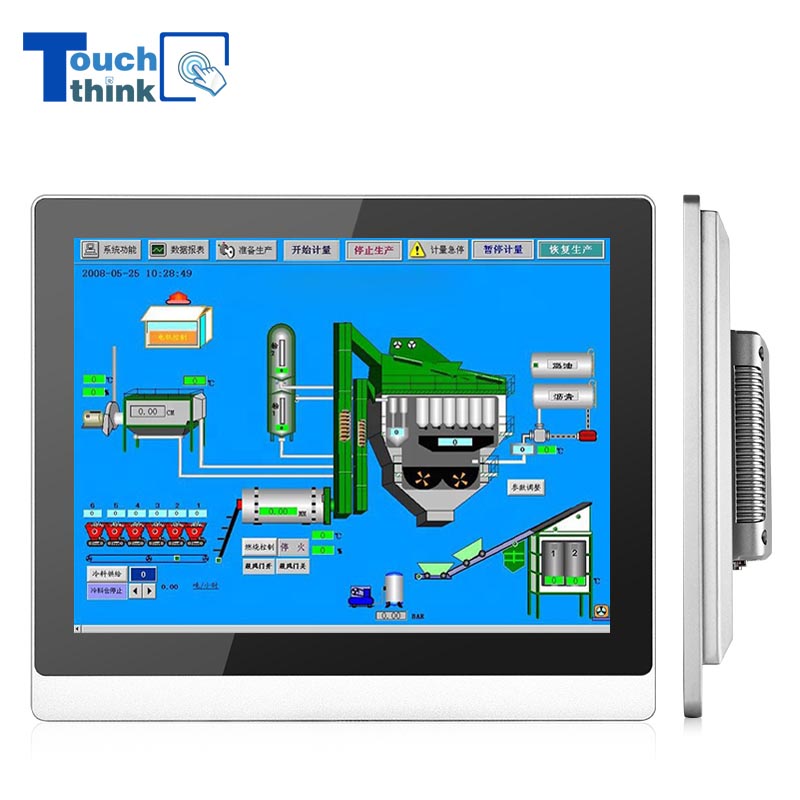

Multi Touch Capacitive Touch Screen Monitor Waterproof 17 Inch

  This 17" multi-point capacitive touch screen displays make factory production processes simpler,

faster and more efficient. All Touch Think industrial monitors come with rich interfaces and support

more I/O interfaces expansion. With excellent performance in all kinds of industrial and commercial

applications. Every touch screen display is manufactured with long service life backlight industrial

LCD screen and 4-wire or 5-wire single-touch resistive touch screens that ship with an anti-glare

coating designed to optimize user experience.

Flat Panel Industrial Monitor

Industrial Monitor

Industrial Monitors Features

1. Touch Think newest industrial touch panels offer multiple interfaces for customers to meet

    needs, support interfaces expansion.

2. Aluminum alloy wiring drawing process technology, presenting professional quality, polishing

   for layer up layer, showing natural texture and luster metal.

3. Strong impact resistance surface, good mechanical properties, modular forming of aluminum

    alloy, one-piece die casting whole monitor body, showing a delicate appearance.

4. Widely used in industrial automation, kiosk, factory production line, self-service vending machines,

    medical self-service devices, public self-help service devices, etc.

5. IP65 rated water-proof and dust-proof for the front panel.

OEM/ODM

Screen Customization for Touch Think Industrial Monitors

1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: industrial monitor, resistive touch screen, capacitive touch screen, IR touch screen.

5. High resolution screen: customize higher resolution than standard LCD screen.

6. Screen size: support to customized screen.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.








Screen parametersScreen size17 inch
ModelTPC170-M41
Resolution1280*1024
Proportion4:3 square size screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight type LED, use length≥50000h
Display color

16.7M

Visual angle160/160 (Customizable 178° full view angle)
Brightness 400cd/m2 (customizable high brightness)
Touch typecapacitive (Resistive/infrared touch screen for optional)
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticcontact 4KV-air 8KV (can be customized ≥16KV)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interference EMC|EMI anti-electromagnetic interference
Dustproof and waterprooffront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, cantilever
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian

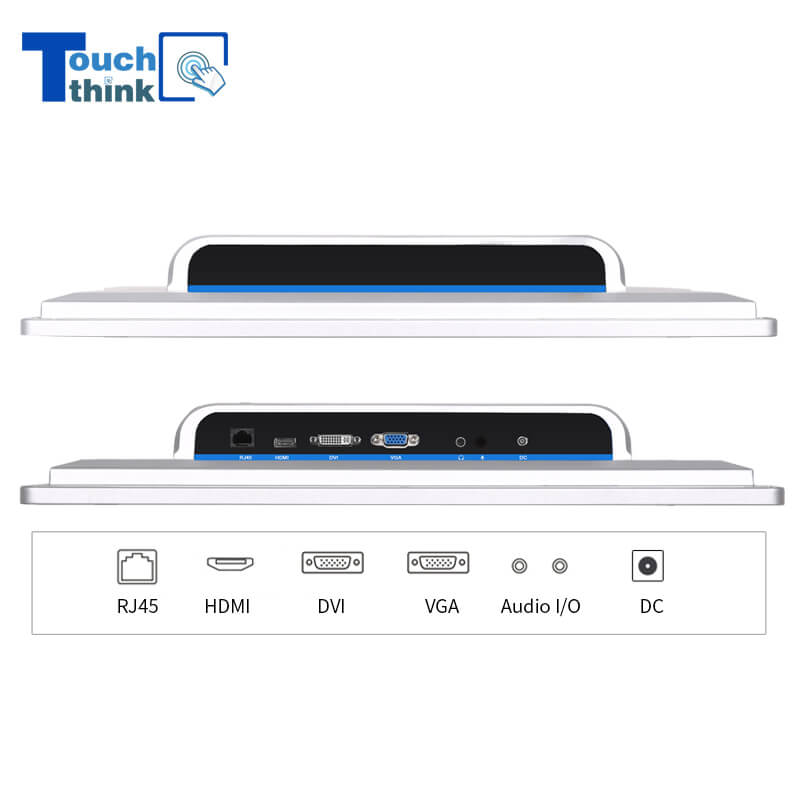

O/I interface parametersSignal Interface DVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output
