Size: 15.6"
Touch Think 15.6-inch industrial panel PC with the ultra-thin front bezel, perfect for an embedded mount. Equipped with a high-performance processor, offers excellent computing for industrial site applications.
Product Color

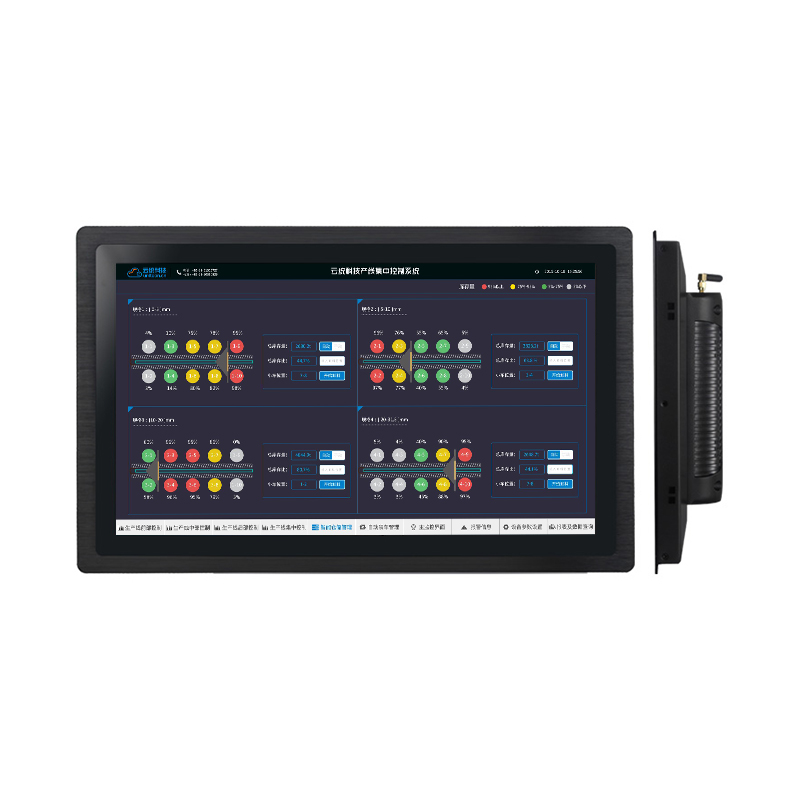

15.6" Industrial Panel PC with Touch Screen
Model: TPC1507B
This Touch Think 15.6-inch industrial panel PC, unlike consumer computers that require much care to protection, won't get damaged from extreme environmental conditions. IP65 rated waterproof and dust-proof industrial panel PCs are suitable for indoor and outdoor devices with perfect performance. Supports a capacitive or resistive touchscreen.
Touch Think 15.6-inch Industrial Panel PC Features
• 3mm ultra-thin front panel thickness, easy to maintain, and suitable for embedding.
• IP65 waterproof and dust-proof for the front panel.
• EMC anti-electromagnetic interference.
• Working temp for industrial panel PC: -20~70°C.
• Adopts with i5-6300U 8G RAM + 512G SSD, fast-running.
• Display Interface: support synchronized dual display / asynchronous double display (VGA+HDMI).
• Aluminum alloy heat-dissipating material, low power consumption, energy-saving.
• Support 7*24 hours long-time running under all-weather conditions.

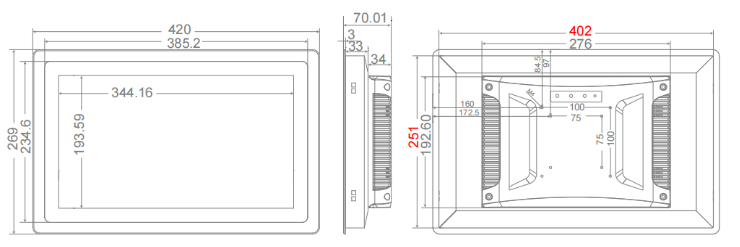

Product size
| Screen parameters | Screen size | 15.6 inch |
| Model | TPC1507B | |
| Resolution | 1920*1080 | |
| Proportion | 16:9 widescreen | |
| Motherboard parameters | CPU | Intel Core i5-6300U |
| Hard Disk | 512G SSD | |
| Memory | 8G DDR3 | |
| Audio | Integrated Audio Chip | |
| Network | Integrated Gigabit LAN | |
| Wireless network | built-in wifi antenna, support wireless connection | |
| Graphics Cards | Integrated Graphics | |
| System | pre-installed windows7, support other | |
| Speakers | Available | |
| Interface parameters | USB interface | 8"-10.4": USB2.0*2, Other sizes: USB2.0*3+USB3.0*1 |
| Serial Interface | 8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, 422/485 Protocol available | |
| WIFI connector | WIFI antenna*1 | |
| Power Interface | DC 12V*1 | |
| High-definition interface | HDMI*1 | |
| Extended display | VGA*1, support for synchronous dual display and differential display | |
| Network interface | RJ-45*1 | |
| Audio Interface | Audio I/O | |
| Support extensions | Multiple industries interface support customization | |
| Display parameters | Color | 16.7M |
| Point distance | 0.264mm | |
| Screen Panel | Industrial control panel | |
| Contrast | 1000:1 | |
| Display brightness | 350cd/m2 (high brightness above 350cd/m2 customizable) | |
| View angle | (H160 (V) 160, customizable wide viewing angle 178° | |
| Backlight type | LED-backlit screen Lifetime ≥ 50000h | |
| Gray-scale response time | 5ms | |
| Touch Optional | Resistive/Capacitive/Mouse control | |
| Installation method | Embedded, desktop, wall-mounted, VESA 75, VESA 100 | |
| Other parameters | Power | 12V-5A Professional External Power Adapter |
| Power consumption | ≤60W | |
| Working temperature | -10°C～60°C | |
| Storage temperature | -20°C～60°C | |
| Relative humidity | 0%-65% (without condensation) | |
| Material | Full body made of aluminum alloy material | |
| Color | Silver / Black | |
| Warranty Policy | Three-year warranty | |
| Degree of protection | Front panel IP65 dustproof and waterproof | |
| Packing list | Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card |
