Size: 19"

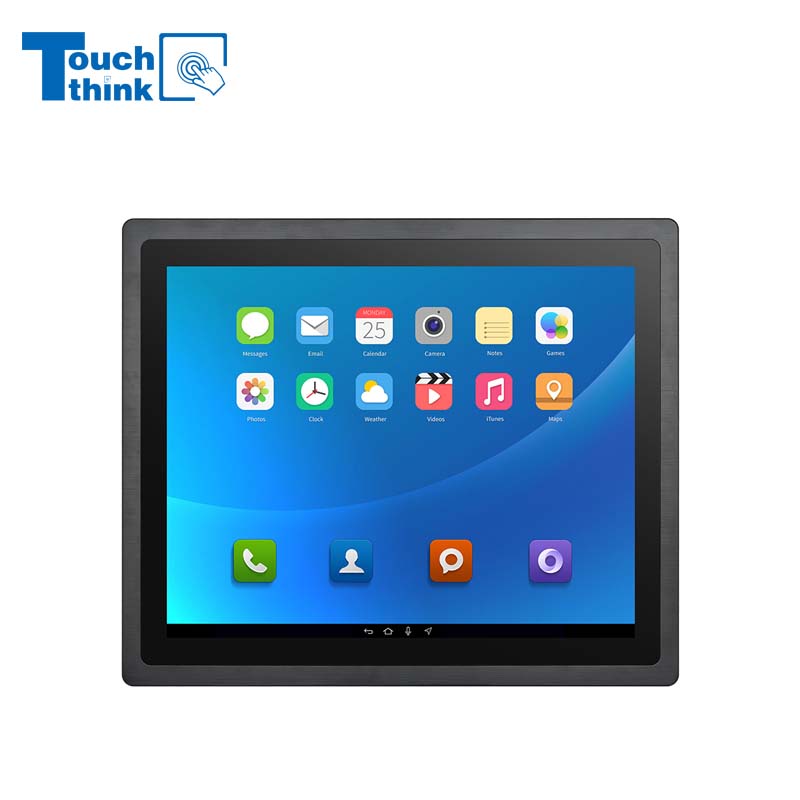

This 19-inch Industrial Touchscreen Panel PC with panel mount design is an ideal solution engineered to meet the demanding needs of smart factories, kiosks, and control terminals. It features rugged, reliable, and high-performance computing capability.
Product Color
Model: TPC190-A28
In today’s era of Industry 4.0 and digital transformation, businesses require rugged, reliable, and high-performance computing solutions to power automation, monitoring, and interactive applications. The 19-inch Industrial Touchscreen Panel PC with panel mount design is an ideal solution engineered to meet the demanding needs of smart factories, kiosks, and control terminals.
Robust Design for Industrial Environments
Industrial settings demand hardware that can withstand harsh conditions such as dust, vibration, and temperature fluctuations. This 19-inch panel PC is built with an IP65-rated front panel to ensure protection against dust and water splashes, making it suitable for 24/7 operation in tough environments. Its rugged aluminum alloy housing and durable panel mount design guarantee a secure installation into cabinets, machinery, or kiosks.
Large 19-Inch Touchscreen for Seamless Operation
Featuring a 19-inch industrial-grade touchscreen, the panel PC delivers crystal-clear display quality and intuitive multi-touch controls. Operators can easily monitor real-time data, interact with automation systems, or guide customers through self-service kiosks with smooth touch response. The wide viewing angles and high brightness display also ensure excellent visibility, even in challenging lighting conditions.
High-Performance Processing Power
Powered by ARM-based processors, the 19-inch industrial panel PC offers the computing performance needed for control systems, HMI interfaces, and kiosk applications. With expandable memory, high-speed SSD storage, and abundant I/O ports including USB, COM, and LAN, it provides the flexibility to integrate seamlessly into diverse industrial automation setups.
Flexible Mounting & OS Compatibility
With its panel mount design, installation is simple, stable, and secure—ideal for embedding directly into machines or kiosks. In addition, the system supports multiple operating systems, including Windows, Linux, and Android, offering flexibility for different software ecosystems.
| Display Parameters | Model | TPC190-A28 | |
| Size | 19" | ||
| Resolution | 1280*1024 | ||
| Aspect Ratio | 5:4 | ||
| Contrast | 1000:1 | ||
| Display Color | 16.7M | ||
| Brightness | 250~300cd/㎡ (Optional high brightness) | ||
| Visual Angle | 89°/89°/80°/80° (L/R/U/D) | ||
| Backlight Type | LED backlight screen, service life ≥ 50000H | ||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||
| Motherboard Model Selection | CX3568-Z | CX3588-Z | |
| System Architecture | CPU | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.4GHz |
| Core Architecture | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | ARM Mali-G52 MP2 | ARM Mali G610 MP4 | |
| Memory (DDR) | 2GB (4/8GB optional) | 8GB (16GB optional) | |
| Storage (eMMC) | 32GB (64/128/256GB optional) | 64GB (256GB optional) | |
| SATA | / | / | |
| Operating System | Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | Android 13.0, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | |
| Networking | Ethernet | 1*1000M (2*1000M Ethernet options) | 1*1000M Ethernet (1*1000M + 1*100 Mbit Ethernet options) |
| 4G | Optional. Based on the 4G module selection | Optional. Based on the 4G module selection | |
| WIFI | WIFI6, Dual-band 2.4/5GHz | WIFI6, Dual-band 2.4/5GHz | |
| Bluetooth | BT5.3 | BT5.3 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |
| EDP | Support 1920*1080 60Hz output | ||
| MIPI | Support 1920*1080 60Hz output | ||
| Mipi Camera | 30-pin FPC interface, supports 1300W Camera | ||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |
| HDMI Input | / | / | |
| Touch Function | Touch Interface | USB/IIC | USB/IIC |

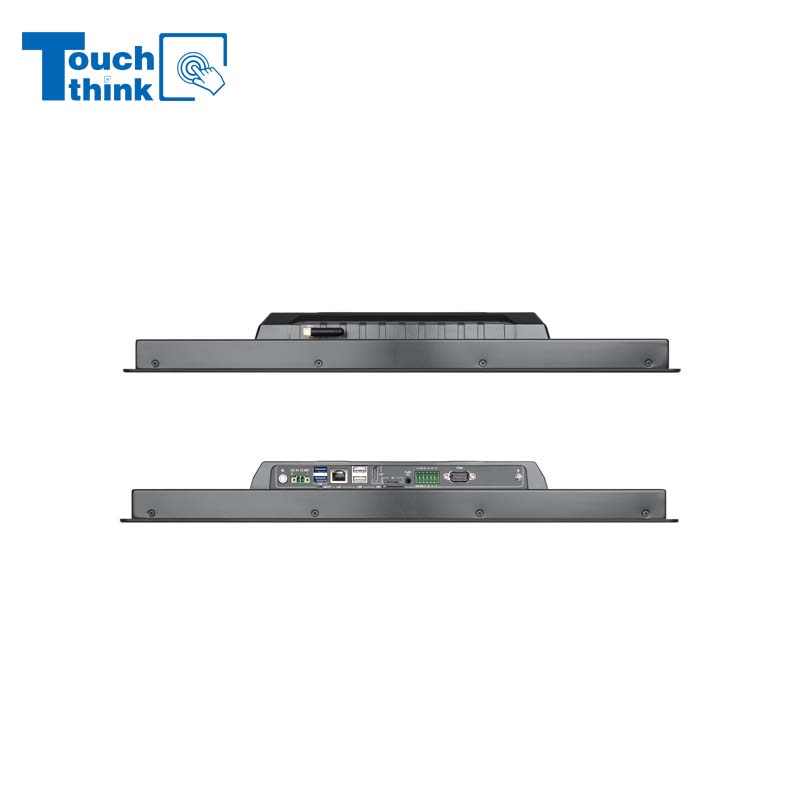

| I/O Ports | MICRO USB | / | / |
| USB 2.0 | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*5 on board | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*3 on board | |
| USB 3.0 | USB3.0*2 (including OTG*1) | USB3.0*2（including OTG*1) | |
| RS232 | RS232*3 | RS232*3 | |
| RS485 | RS485*3 | RS485*3 | |
| TTL | TTL*2 | TTL*2 | |
| GPIO | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | |
| TF Slot | Support | Support | |
| CAN | CAN*1 | CAN*1 | |
| Speaker | 3.5mm standard Jack | 3.5mm standard Jack | |
| MIC | Support | Support | |
| Audio Port | 3.5mm earphone jack, supports input/output | 3.5mm earphone jack, supports input/output | |
| I/O Expansion | Available | Available | |
| Power | Power Input | DC 12~36V | DC 12~36V |
| Adapter | 24V / 2.5A | 24V / 2.5A | |

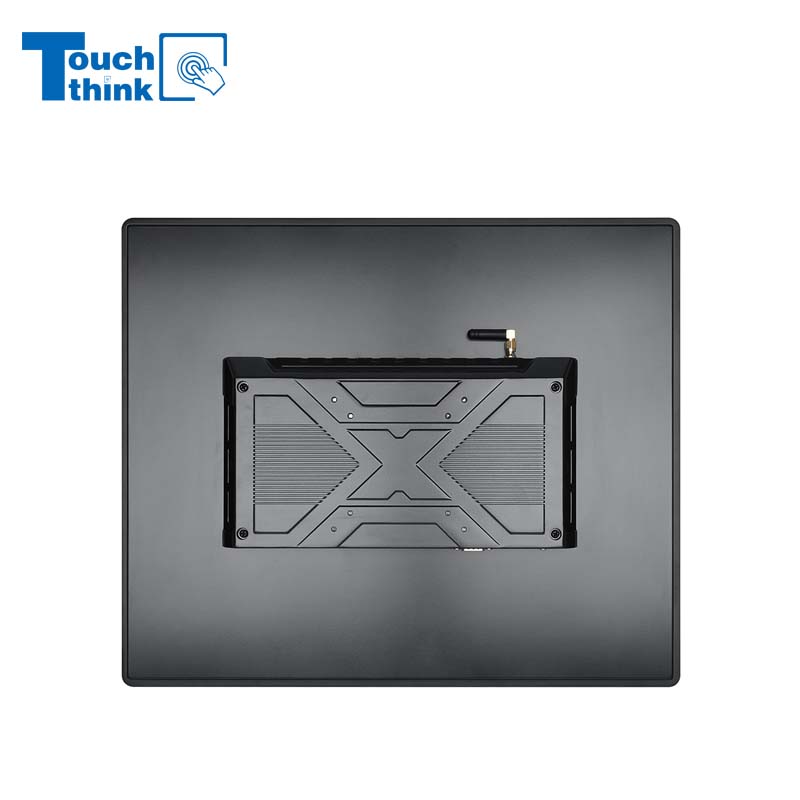

| Mechanical | Enclosure | Aluminum alloy housing | Aluminum alloy housing |
| Cooling System | Fanless | Fanless | |
| Mounting | Desktop, wall-mounted, VESA75/100mm, ceiling-mounted | ||
| Product Reliability | Working Temp | -10°C ~ 60°C | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C | -20°C ~ 70°C | |
| Ambient Humidity | 20% - 95% (relative humidity non-condensing) | 20% - 95% (relative humidity non-condensing) | |
| IP rating | Front IP65 | Front IP65 | |
19-inch Panel Mount PC's Wide Application Scenarios
The 19-inch industrial panel PC is designed to support multiple industries and application scenarios:
Smart Factory Automation: Enables operators to monitor production lines, control equipment, and analyze real-time data through a reliable HMI interface.
Kiosk Systems: Perfect for self-service kiosks in transportation hubs, retail, or ticketing terminals, providing users with fast and intuitive interactions.
Industrial Control Terminals: Integrates into control cabinets, power distribution systems, or monitoring stations to ensure stable, 24/7 operation.
We support OEM/ODM customization service for global customers. Please feel free to contact us for details.
