Size: 10.1" ~ 21.5"
Touch Think 5th-GEN industrial panel PCs with Android operating system, specially designed for very heavy-duty harsh environments. They are built with fully Aluminum alloy housing, and offering excellent dustproof, waterproof, and shockproof performance. They are support Wi-Fi and Ethernet LAN port and features a multi-point capacitive touch panel.
Product Color
Industrial Rugged Panel PC with Android OS and 7mm Front Bezel - Touch Think 5th-GEN Series
Touch think fifth-generation Android all-in-one panel PC is specially designed for harsh industrial environments. They are not only built with reliable and stable quality assurance but also have passed serious industrial-grade inspection and certification. It supports capacitive, resistive, and non-touch modes, offering more flexible operation.
Fully closed aluminum alloy housing, rugged and robust. And with dustproof, waterproof, and shockproof design, highly suitable for an industrial complex environment. Supports HDMI, USB, DC, TC, SIM, RJ45, and other interfaces, equipped with WiFi antenna to enhance the signal. These panel PCs support embedded mount, wall-mounted, VESA, desktop, and other installation methods. Support plug-and-play, remote wake-up, automatic reset, and other functions.
Product Features
● 10.1 inch to 21.5 inch for option, multi-color LCD screen resolution available
● Standard PCAP touchscreen or resistive touchscreen
● Fully enclosed fanless dustproof design
● Industrial LED touch screen, backlight life of over 50,000 hours
● Aluminum alloy casing, corrosion/heat /chemical damage resistance
● Ports: USB / DC / TF / SIM / HDMI / rg45 interface, etc
● 350 Nits (Cd/m2) ~ 1,500 Nits (Cd/m2) high brightness display
● Wide dimming range
● Various installation methods to adapt to multiple environments
● Support Android system customization, support customer upper APP development
● CE, RoHS certified
● IP65 dust-proof and waterproof full-sealed front panel
● 3-year warranty
Product Model Quick Guide:
Model | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote |
TPC101-A5 | 10.1" | 800*1280 | 16:10 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC104-A5 | 10.4" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC116-A5 | 11.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC120-A5 | 12" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC150-A5 | 15" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC156-A5 | 15.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC170-A5 | 17" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC173-A5 | 17.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC190-A5 | 19" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC191-A5 | 19.1" | 1440*900 | 16:10 | Capacitive / Resistive / Non-Touch | Inquiry Now |
TPC215-A5 | 21.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry Now |
Industrial Android Panel PC - Touch Think 5th-GEN Series
Screen Parameters | Gray-scale response time | 5ms | ||||
Panel type | Industrial control A level screen with TFT | |||||
Point distance | 0.264mm | |||||
Contrast | 600:1 / 800:1 / 1000:1 | |||||
Backlight type | LED, span life≥50000h | |||||
Display color | 16.7M | |||||
Visual angle | 160/160°(178° full view angle is customizable) | |||||
Brightness | 300~1500cd/m2 (support high brightness) | |||||
Touch-type | Resistive / Capacitive / Mouse control | |||||
Hardware Configuration | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.4GHz |
Memory | 2GB DDR3 (8GB optional) | 2GB DDR3 (4GB optional) | 4GB DDR3 | 2GB DDR3 (4/8GB optional) | 8GB DDR3 (16GB optional) | |
Storage | 16GB eMMC (32/64GB optional) | 16GB eMMC (32/64GB optional) | 32GB eMMC (64GB optional) | 32GB eMMC (64/128GB optional) | 64GB eMMC (128GB optional) | |
Chipset | Intel Bay Trail SOC | Intel Bay Trail SOC | Intel Bay Trail SOC | Intel Bay Trail SOC | Intel Bay Trail SOC | |
Operating System | Android 6.0 | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1 / 9.0 / 11 / Ubuntu18.04 / Debian10.0 / Linux4. | Android 12.0(Linux optional) | Android 12.0 (Linux optional) | |
GPU | Mali-T764 | Mali-T764 | Mali-T860MP4 | ARM Mali-G52 2EE | Mali-G610 | |
3G/4G/5G Module | Support (Optional) | Support (Optional) | Support (Optional) | Support (Optional) | Support (Optional) | |
WIFI | 2.4G (dual-band 2.4/5G optional) | 2.4G (dual-band 2.4/5G optional) | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | |
Bluetooth | BT4.2 | BT4.2 | BT4.2 | BT5.2 | BT5.0 | |
GPS | Optional | Optional | Optional | Optional | Optional | |
MIC | Optional | Optional | Optional | Optional | Optional | |
RTC, real-time clock | Support | Support | Support | Support | Support | |
Timing Turn On/Off | Support | Support | Support | Support | Support | |
System Upgrade | - | Support SD, and USB upgrade | Support USB upgrade | Support USB upgrade | Support USB upgrade | |
Other Parameters | Power consumption | ≤35W | ||||
Power input | AC 100-240V, 50/60HZ | |||||
Power Output | DC 12V / 4A | |||||
Anti-static | contact 4KV-air 8KV (≥16KV can be customized ) | |||||
Anti-vibration | GB2423 standard | |||||
Anti-interference | EMC | EMI anti-electromagnetic interference | |||||
Dustproof and waterproof | IP65 dust-proof and waterproof for the front panel | |||||
Housing material | Black/Silver, Aluminum Alloy | |||||

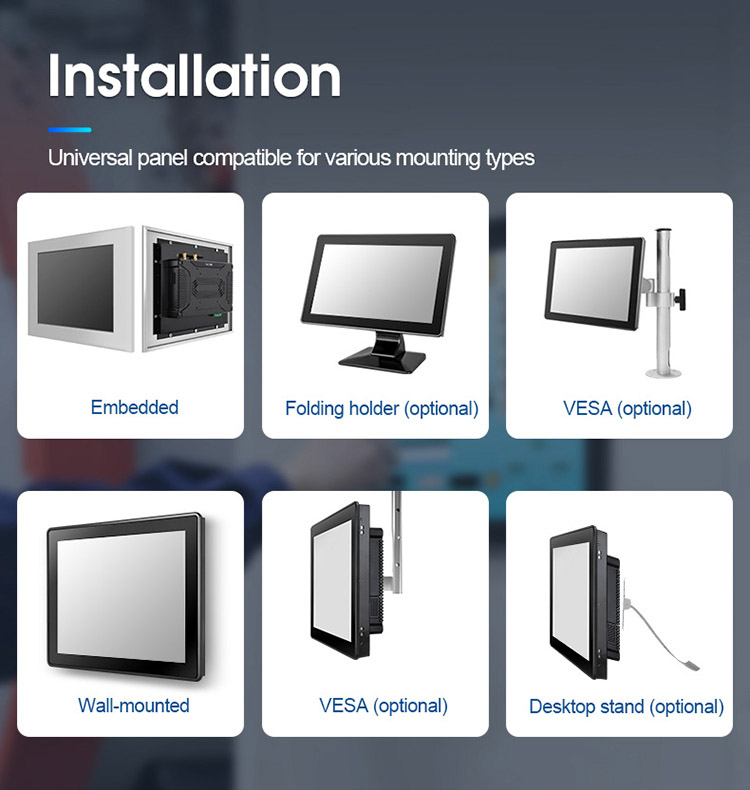

Installation method | Embedded, desktop, wall-mounted, VESA, Open frame optional | |||||
Relative humidity | 95%, Non-Condensing | |||||
Working temperature | -10°C~60°C (-30°~80°C customizable) | |||||
Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian | |||||
I/O Interface | Signal Interface | DVI, HDMI, VGA | ||||
Power connector | DC with ring attachment (optional DC terminal block) | |||||
Touch interface | USB I/O Interface | |||||
Other interfaces | Audio input and output |
Touch Think Industrial Android Panel PC Applications
Food & Beverage
Pharmaceutical
Manufacturing
Packaging
Hazardous
Machine Builder
Petrochemical
Medical & Healthcare
Contact us for your detailed requirements.
