Fanless Medical Grade Touch Panel PC Computer

Size: 7" - 21.5"

Touch Think industrial Panel PCs are ideal to offer touch control and display solutions for the smart hospital system. They have a fanless design that is mute running when operating during diagnosis and when installed in the patient rooms. Providing a comfortable environment for both doctors and patients.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial panel pc


10.1 inch industrial panel pc


10.4 inch industrial panel pc


11.6 inch industrial panel pc


12 inch industrial panel pc


15 inch industrial panel pc


15.6 inch industrial panel pc


17 inch industrial panel pc


17.3 inch industrial panel pc


19 inch industrial panel pc


19.1 inch industrial panel pc


21.5 inch industrial panel pc

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Quick Ordering Guide


Model NameScreen SizeResolution Aspect Ratio
TPC080-W4-YL8"1024*7684:3
TPC101-W4-YL
10.1"1280*80016:10
TPC104-W4-YL10.4"1024*7684:3
TPC116-W4-YL11.6"1920*108016:9
TPC120-W4-YL12"1024*7684:3
TPC150-W4-YL15"1024*7684:3
TPC156-W4-YL15.6"1920*108016:9
TPC170-W4-YL17"1280*10245:4
TPC173-W4-YL17.3"1920*108016:9
TPC190-W4-YL19"1280*10245:4
TPC191-W4-YL19.1"1440*900
16:10
TPC215-W4-M21.5"1920*108016:9




Overview


Fanless Medical Grade Touch Panel PC Computer


The newest fourth generation of industrial all-in-one panel PC is equipped with a 15.6-inch TFT LCD display with high brightness of 400nits. HD display suitable for the medical environment, IP65 rated spill, and dust-resistant for the front panel. What's more, the industrial-grade motherboard of the wide-screen touch panel PC is designed to protect the device from electrical surges and transient voltage spikes. Powered by Intel® Celeron® processor J1900 quad-core, the fourth GEN panel PC is an ideal choice for enabling health care professionals to access patient records and conditions quad-core wherever and whenever needed.


Product Features


• Intel® Celeron® Processor Quad-Core 2.0GHz, configuration upgradable

• TFT LCD display with LED backlight

• Multi-points capacitive touch or five-wire resistive touch screen available

• Aluminum alloy enclosure for the front panel

• IP65 dust-proof and the water-proof front bezel, full-flat enclosure design

• Supports open frame, embedded, desktop, wall mount, VESA arm

• Supports multi-functional modules customization service

• CE/FCC/RoHS/3C/ISO certified





DisplayScreen size7" to 21.5 inch
Motherboard parameters CPUintel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual core, optional Intel H81 equipped with Core i3/i5/i7)
Hard Disk32G SSD (Optional 64G SSD/500G HDD)
Memory 2G DDR3 (supports 8G DDR3)
Audio Integrated Audio Chip
NetworkIntegrated Gigabit LAN
Wireless network built-in wifi antenna, support wireless connection
Graphics Cards Integrated Graphics
System pre-installed windows7, support other version
Speakers available

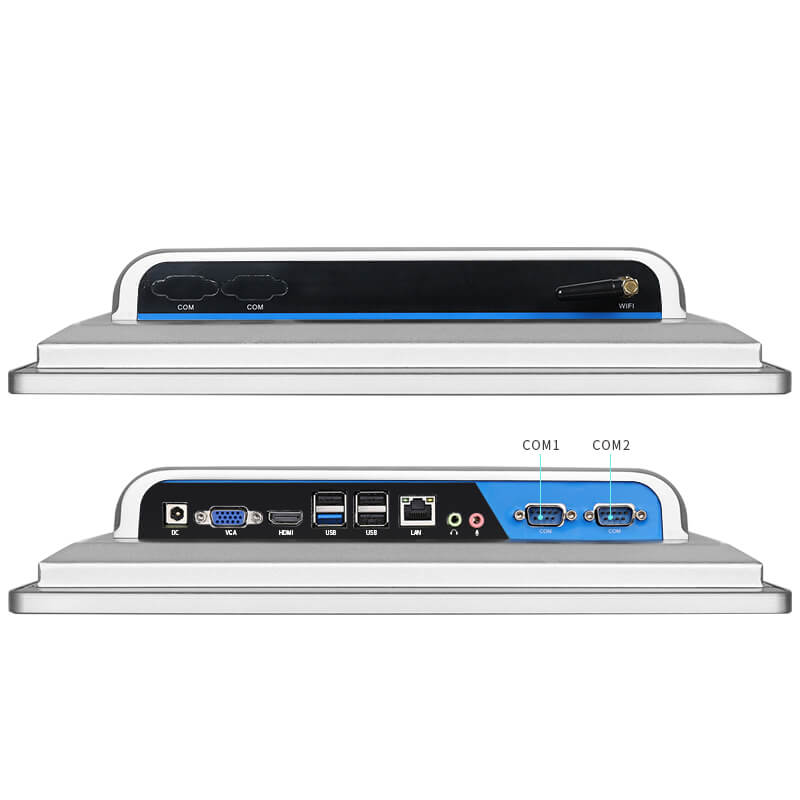

Interface parametersUSB interface8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1
Serial Interface8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol
WIFI connector WIFI antenna*1
Power InterfaceDC 12V*1
High-definition interfaceHDMI*1
Extended displayVGA*1, support for synchronous dual display and differential display
Network interfaceRJ-45*1
Audio InterfaceAudio I/O
Support extensionsMultiple industry interface support customization
Display parametersColor16.7M
Point distance 0.264mm
Screen Panel

 Industrial control panel

Contrast1000:1
Display brightness400cd/m2 (customizable high brightness above 400cd/m2)
View angle(H160 (V) 160, customizable wide viewing angle 178°
Backlight type LED backlit screen Lifetime ≥ 50000h
Gray-scale response time 5ms
Touch OptionalResistive/Capacitive/Infrared Touch Screen
Installation methodEmbedded, desktop, wall-mounted, cantilever
Other parametersPower12V-5A Professional External Power Adapter
Power consumption ≤60W
Working temperature-10°C~60°C
Storage temperature-20°C~60°C
Relative humidity0%-65% (without condensation)
MaterialFull body made of aluminum alloy material
Color Silver Black
Warranty PolicyOne year free warranty
Degree of protection Front panel IP65 dustproof and waterproof
Packing list Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card



Touch Think carries 7" to 21.5" multiple sizes of touch screen panel PCs for use in smart medical and healthcare centers projects. They can be easily embedded into a variety of medical self-service terminal equipment, such as self-printing machines, self-payment machines, or medical robots, Lab equipment, medical carts, and bedside terminals to realize touch control and display functions.


Touch Think panel PCs are powerful and rugged for a wide range of environments. They can be sanitized, and used in harsh and tough environments.

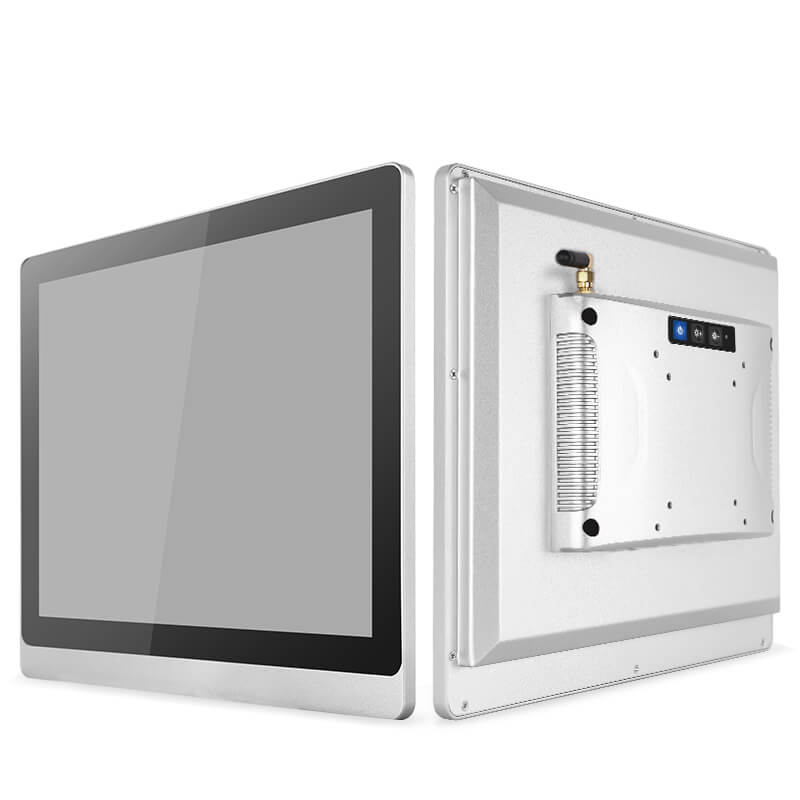

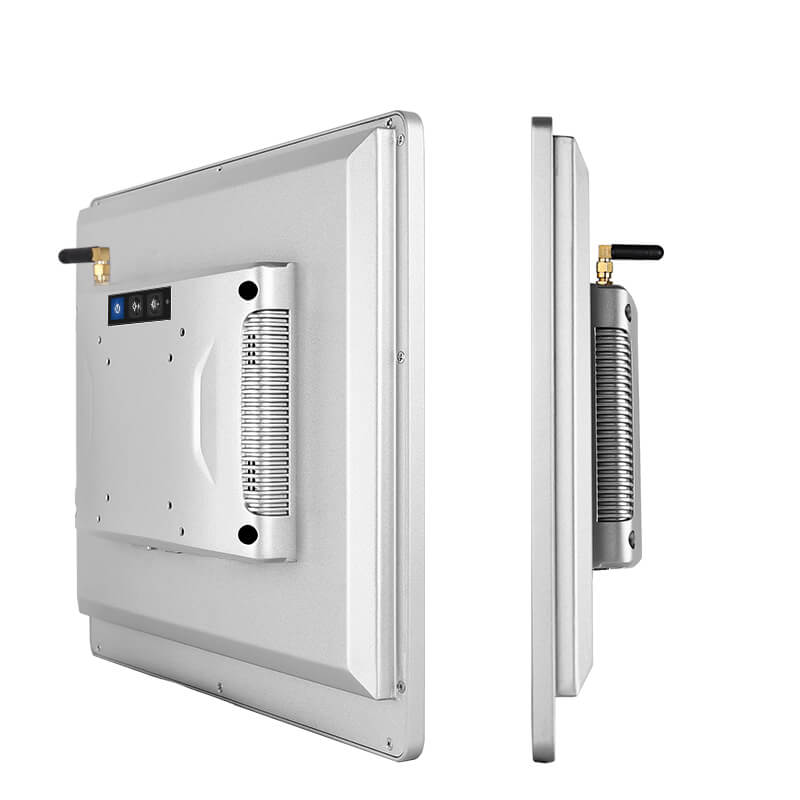

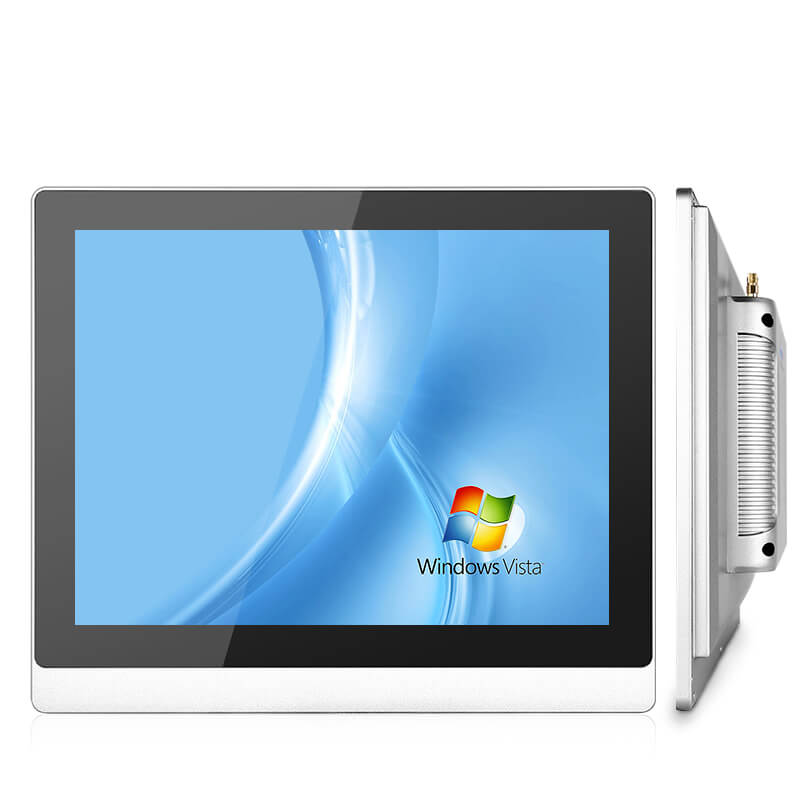

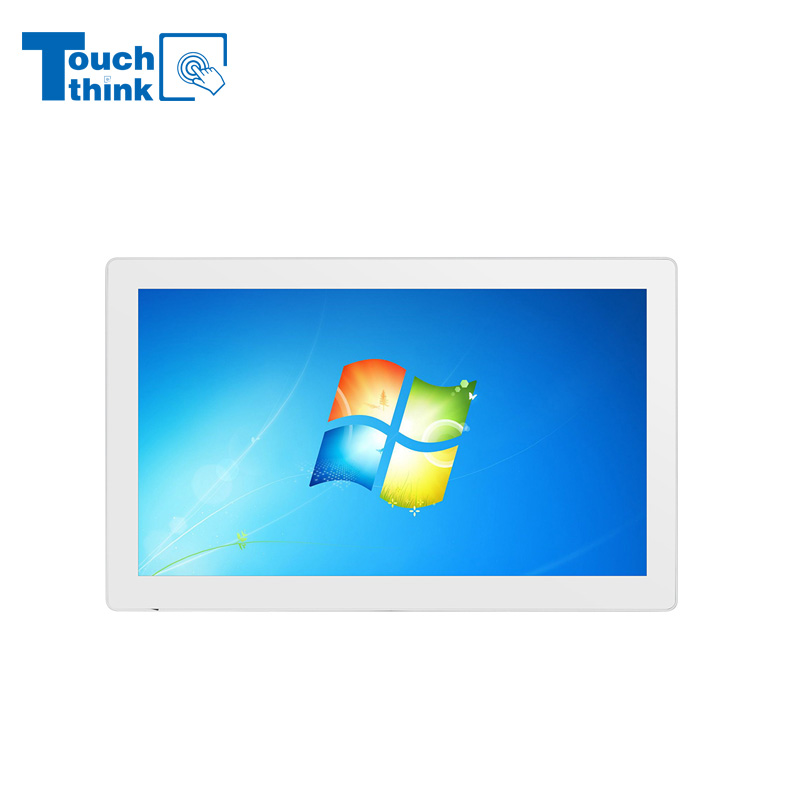

Fanless Medical Grade Touch Panel PC Computer 15.6"



We offer OEM/ODM customization service for global customers, please contact us for details.
