Size: 7" ~ 8"
Touch Think small size industrial Android panel PC 7-inch and 8-inch panel PCs offer 24/7 long time operation in harsh environments.
Product Color

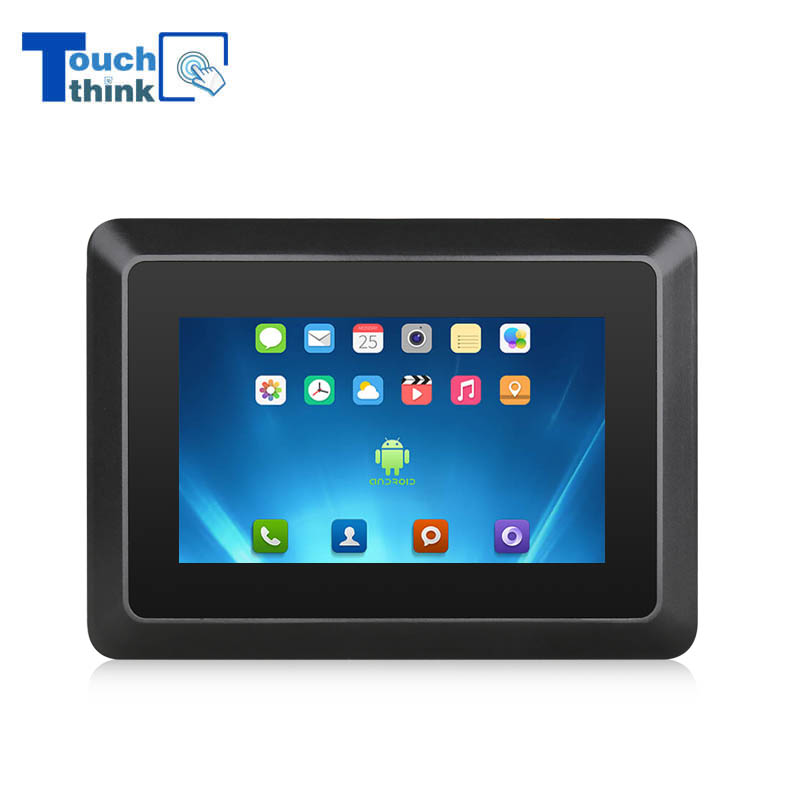

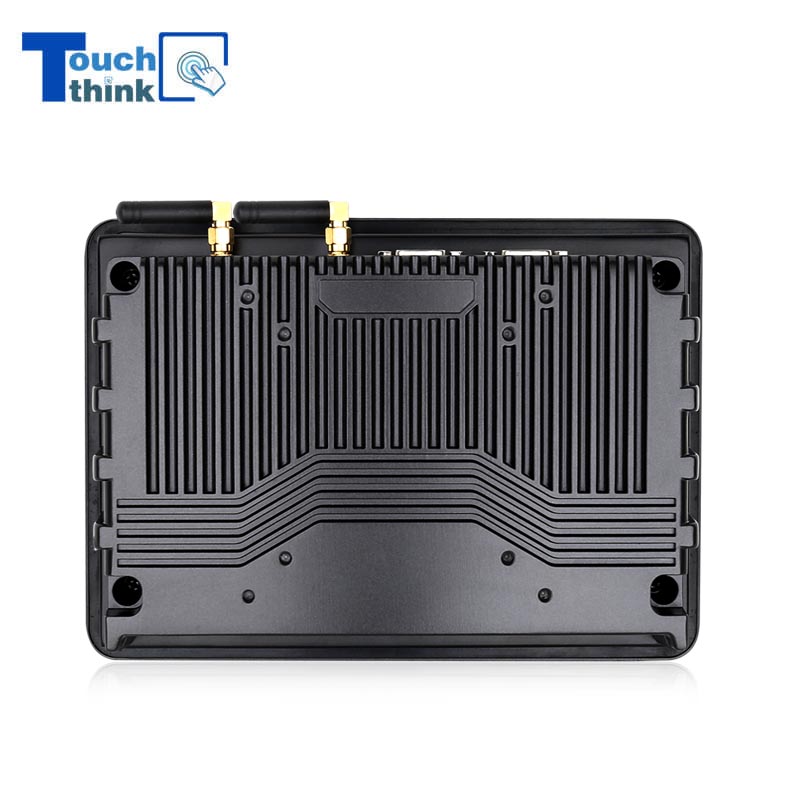

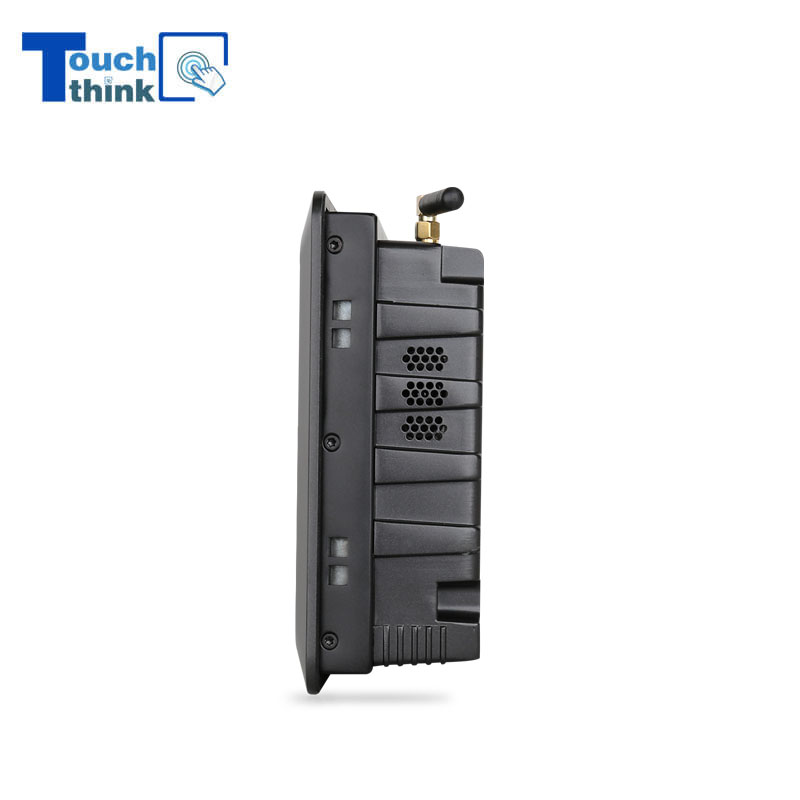

7" and 8" Small Industrial Android Panel PC
7-inch model: TPC070-A-QD
8-inch model: TPC080-A-QD
The Touch Think small size Android panel PC series is designed with a sturdy appearance. With an IP65 dust/water intrusion protection, and Android OS compatibility. And has an abundant, powerful interface design allowing for integration into a variety of different installation environments.
Product Features
● 7" and 8" LCD screen panel option.
● 7-inch: 1024x600 native resolution, 16x9 Aspect Ratio
● 8-inch: 1024x768 native resolution, 4x3 Aspect Ratio
● Allwinner A64 Cortex-A53, 1.5GHz quad-core, 64bits processor.
● Supports multi-functional modules custom, such as RFID, NFC, cameras, and printer, etc.
● Multi-point capacitive and 4/5-wiring resistive touchscreen support.
● Supports wide voltage input: 12V DC ~ 24V DC / 9V DC ~ 36V DC.
● Supports plug-and-play; long-time standby, etc.
● VESA 75/100mm mounting holes.
● Up to 24*7 hours of running.
● RoHS, FCC, CE Certification.
● 3-year warranty (36 months).
Android-Based Industrial Panel PC, Compact Design, Mighty Performance.
Small panel PCs with Android operating systems are suitable for HMI, IoT interactive applications. Supports POE for System Integration Projects.

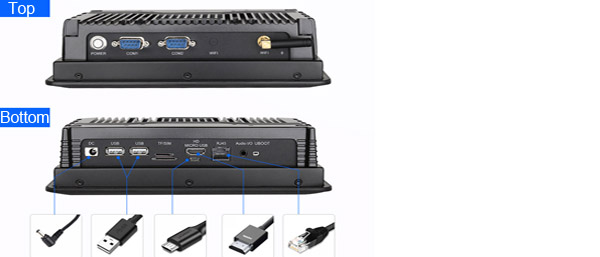

Multi-Interfaces, Supports I/O Expansion
Default Configuration:
- USB-HOST: 2*USB2.0
- USB-OTG: 1*USB-OTG
- DC Port: 1*DC 2.0
- RJ45: 1
- HDMI: 1
- SD/TF Card Slot: 1
- RS232: 2*RS232, ( RS485/RS422 optional )
Complete SDK Tool Kit Available
These small all-in-one panel PCs are based on Android architecture, providing SDK Kit, and support upper-level application APP development, reserve application space for customers, and expand the scope of application of equipment.

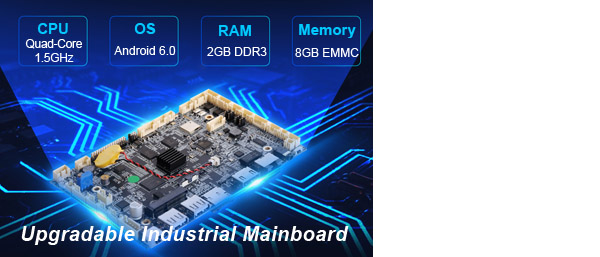

High-Performance ARM Architecture, Industrial Motherboard.
Using low power consumption, high performance A64 Cortex-A53 quad-core 64-bit operating system, with higher stability and scalability.

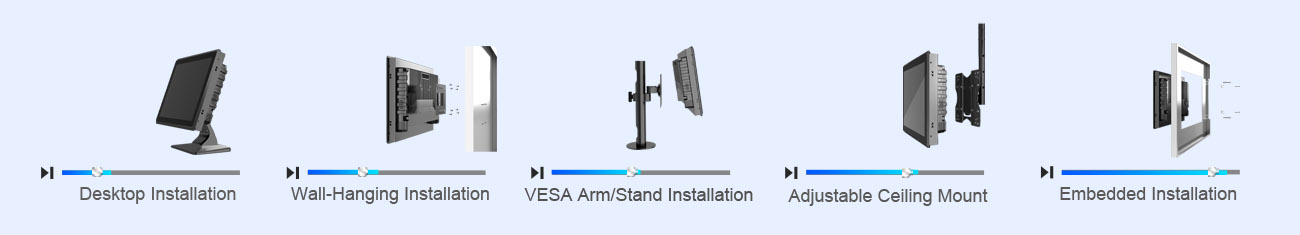

Multi-Installation Methods
| Screen parameters | Screen size | 7 inch / 1024*600 / 16:9 |
| 8 inch / 1024*768 / 4:3 | ||
| Motherboard parameters | CPU | Allwinner A64 Cortex-A53 Quad-core 64Bits |
| Hard Disk | 32G SSD (64/128/256G SSD optional) | |
| Memory | 2G DDR3L (supports 4/8/16G optional) | |
| Audio | Integrated Audio Chip | |
| Network | Integrated Gigabit LAN | |
| Wireless network | built-in wifi antenna, support wireless connection | |
| Graphics Cards | Integrated Graphics | |
| System | Pre-installed with Windows7, support Win8/Win10 | |
| Speakers | Available | |
| Interface parameters | USB interface | USB2.0*2, USB3.0*2 |
| Serial Interface | COM*1, LAN*1, HD/SIM*1, Audio I/O*1, Grounding*1, Power On/Off*1 | |
| WIFI connector | WIFI antenna*2 | |
| Power Interface | DC 12V*1 | |
| Extended display | VGA*1, support for synchronous dual display and differential display | |
| Network interface | RJ-45*1 | |
| Audio Interface | Audio I/O*1 | |
| Support extensions | Multiple industries interface support customization | |
| Display parameters | Color | 16.7M |
| Point distance | 0.264mm | |
| Screen Panel | Industrial control panel | |
| Contrast | 7" with 500:1 / 8" with 800:1 | |
| Display brightness | 300cd/m2 (high brightness customizable) | |
| View angle | (H160 (V) 160, customizable wide viewing angle 178° | |
| Backlight type | LED-backlit screen Lifetime ≥ 50000h | |
| Gray-scale response time | 5ms | |
| Touch Optional | Resistive/Capacitive/Mouse Control | |
| Installation method | Embedded, desktop, wall-mounted, VESA | |
| Other parameters | Power | 12V-5A Professional External Power Adapter |
| Power consumption | ≤60W | |
| Working temperature | -10°C～60°C | |
| Storage temperature | -20°C～60°C | |
| Relative humidity | 0%-65% (without condensation) | |
| Material | Full body made of aluminum alloy material | |
| Color | Silver / Black | |
| Warranty Policy | Three-year warranty in all, one year for free | |
| Degree of protection | Front panel IP65 dustproof and waterproof | |
| Packing list | Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card |
Touch Think small size industrial Android panel PCs are suitable for use in smart retail & hospitality systems, smart medical systems, intelligent industrial control systems, building automation systems, warehouse, and logistic management, smart manufacturing - anywhere that people need to realize touch control and display functions.
We provide multiple customization services for single or mass orders from global clients, please feel free to contact us for details.
