Android In-Vehicle Industrial Panel PC Vehicle AGV Computer

Size: 10.1

10.1-inch in-vehicle industrial Android panel PC with fully enclosed dust-proof design, excellent anti-vibration performance, and adopts aviation connectors with anti-shedding plug interface design, offering an SDK kit for your second upper-level development.

Product Color



Overview


TOUCH THINK 10.1" Android PANEL PC - TPC101-A-CZ10

Easy Deployment For Heavy-duty Applications


Touch Think vehicle-mounted panel PCs are particularly suitable for installation in cabins of various vehicles, including cars, mining trucks, delivery robots, agricultural vehicles, etc, where need high protection factors.


Features


• Display: 10.1" 1280*800, 16:10 TFT LCD panel with a PCAP touch screen

• The TPC10-CZ10 adopts an Android system with a powerful RK3288-I, Quad-core 1.8GHz (RK3399, Six-core 2.0GHz for option).

• Brightness: 300 NITS LED backlight, with auto-dimming function

• Sunlight readable TFT LCD, optimizing the visibility in a critical environment.

• Power: DC 12V to 36V power input; auto power-on using VGA signal

• Built-in multi-functional modules, and supports GPS, 4G LTE,  Bluetooth, NFC, camera.

• Mounting: Wall-mounted, VESA 75mm/100mm, stand or headrest mount

• Operating temperature: -20 to 60 Degrees Centigrade

• IP65 dustproof and waterproof, pure flat panel

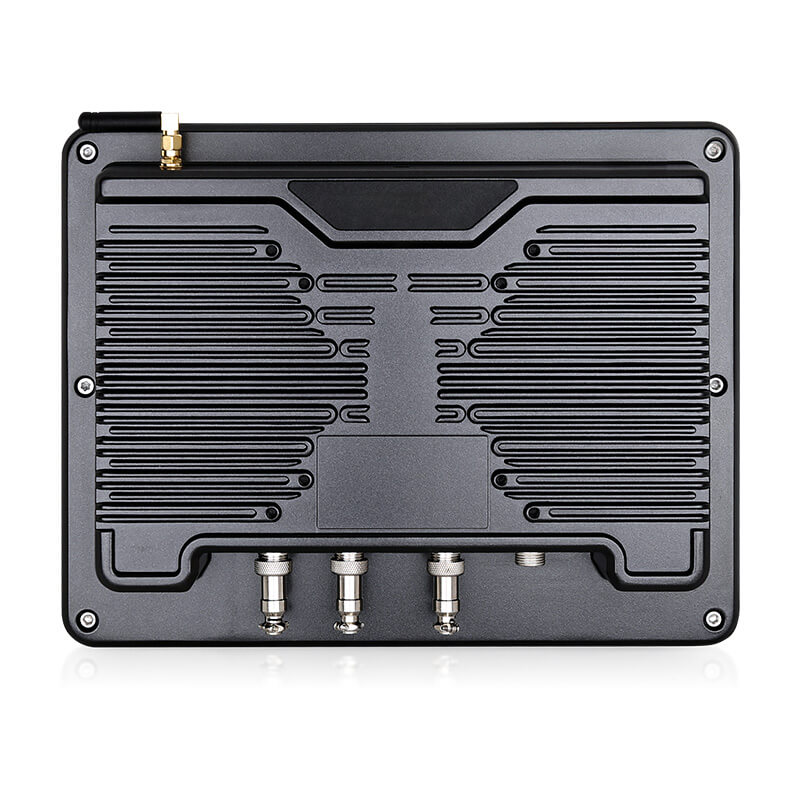

• Anti-vibration: Full shockproof robust aluminum alloy casing

• 24/7 long-time running

• Compliance: CE, FCC, RoHS, CCC


  • product description
  • Product parameters
  • Application
  • OEM/ODM

Android In-Vehicle Industrial Panel PC Vehicle AGV Computer








Android 7.1 RK3288, Quad-core 1.8GHz By Default

RK3399, Six-core 2.0GHz for option


Vehicle-Mounted Industrial Panel PC For Heavy-duty Sites

Fanless Design For Heat-dissipation, Low Power Consumption

24/7 Long-term Continuous Stable Operation, Low failure rate








Android In-Vehicle Industrial Panel PC Vehicle AGV Computer









Provide Motherboard's SDK


Support Second APPs Development

Support Android System Customization, Provide System Call Interface API Reference Code









Android In-Vehicle Industrial Panel PC Vehicle AGV Computer







RK3288 Processor


● Mali-T764 GPU (Mali-T860MP4 option)

● 4K UHD H265/H264/VP9

● Dual USB Type-C and USB 2.0

● Dual-Band WiFi 2.4G/5G

● Bluetooth BT4.0

● Support Built-in 4G, GPS Module













Spec ItemDescription
Display & Configuration
LCD Panel

10.1" TFT LCD; 1280*800

CPU
RK3288-I Quad-core 1.8GHz (RK3399 Six-core 2.0GHz is optional)
SSD16G (32G / 64G optional)
eMMC2G (4G / 8G optional)
ChipsetIntel Bay Trail SOC chipset
Operating SystemAndroid 7.1
Graphics CardIntegrated HD Graphics
3G/4G ModulesSupport
Wifi
2.4G (dual-band 2.4G / 5G optional)
GPUMali-T764 (Mali-T860MP4 optinal)
Bluetooth / GPS / MICOptional
RTC / Wake On LAN / Support
TouchscreenCapacitive
Front BezelIP65, NEMA 4 protection, aluminum alloy housing
Backlight MTBF(hrs)50000
Contrast
600:1
Brightness
300 nits (High brightness above 400cd/m2 can be customized)
Viewing Angle
170°/170° (178° full viewing angle can be customized)
Response Time 6.5ms
Mounting TypesWall-mounted, VESA 75/100mm, Headset, stand
Interfaces
DC port1*waterproof aviation connector (GX12-3 core)
USB 2.01*waterproof aviation connector (GX12-4 core)
COM2*waterproof aviation connector (GX12-4 core)
SpeakerSupport (2*8Ω2W)
Environment
Operating Temperature-10 °C ~ 60 °C (-30 °C ~ 80° C can be customized)
Storage Temperature-40 °C ~ 85 °C
Humidity20%-95%, non-condensing
Power Supply
Power Consumption≤35W
Power InputAC 100-240V 50/60Hz, CCC, CE certification approved
Power OutputDC12V / 5A





Developing and Perfecting Your Vehicle-Mounted Touch Control and Display Solutions


Touch Think offers industrial-grade computing solutions with an X86 platform, and IP65 robust protection design, support wide temperature operation to enhance production efficiency and warehouse management accuracy.


Android In-Vehicle Industrial Panel PC Vehicle AGV Computer


Touch Think offers a variety of OEM/ODM customization services in terms of product appearance design, LOGO, product functional modules, and product performance, please feel free to contact us for details.
