10.1" Vehicle Mount LCD Monitors Vehicle Touch Displays Car Crane Monitor

Size: 10.1"

Touch Think vehicle-mounted monitor series is a rugged 10.1-inch display, sunlight-readable, and superior shockproof for applications such as public transport tools, warehouse forklifts, heavy-duty trucks, and cars where limited space and harsh conditions.

Product Color



Overview


Superior Anti-vibration and shockproof Performance, Specially Engineered for Multi-application Vehicle-mounted Terminals


Model: TPC101-M-CZ10


Touch Think 10.1" industrial in-vehicle touch monitor is professionally designed for managing the touch control and display solutions for various vehicles applications, and automating the process of warehouse management.


The screens have a native resolution of 1280x800. This vehicle mount monitors very suitable use for drivers in-vehicle control rooms, support outdoor direct sunlight, and support manual dimmer control as well as automatic brightness sensor to display a suitable brightness for the present ambient conditions. It is built with high-strength aluminum alloy housing and mechanism, keeping 24/7 long time reliable operation in high dust, high and low-temperature environments; And the vehicle monitors are designed with shockproof layout, and added anti-vibrated adhesive strips, up to GB2423 anti-vibration standards. Support capacitive touch screen technology, diversified input and output ports, support aviation connectors, including VGA, Touch interface, 12V-36V interface. Fanless design for heat dissipation.


Features


• Display: 10.1" 1280*800, 16:10 TFT LCD panel with a PCAP touch screen

• Brightness: 300 NITS LED backlight, with auto-dimming function

• Power: DC 12V to 36V power input; auto power-on using VGA signal

• Functional modules available: Built-in GPS, 4G, speakers, Wi-Fi, and Bluetooth

• Mounting: Wall-mounted, VESA 75mm/100mm, stand or headrest mount

• Operating temperature: -20 to 60 Degrees Centigrade

• IP65 dustproof and waterproof, pure flat panel

• Anti-vibration: Full shockproof robust aluminum alloy casing

• 24/7 long-time running

• Compliance: CE, FCC, RoHS, CCC

  • product description
  • Product parameters
  • Application
  • OEM/ODM

10.1" Vehicle Mount LCD Monitors Vehicle Touch Displays







10.1" In-Vehicle

Industrial-grade Touch Screen Monitor


______________________________________



Suitable For Smart Warehouse, Heavy-duty Trucks, Mining Vehicles, Public Transportation Tools Environments.









10.1" Vehicle Mount LCD Monitors Vehicle Touch Displays










Robust High-intensity Aluminum Alloy Housing


High and Low-Temperature Resistant, Corrosion Resistance, Shockproof, and Long Span-life In Harsh Environments











10.1" Vehicle Mount LCD Monitors Vehicle Touch Displays







LED HD Industrial-grade Screen


Adopt Long Service Life LED Backlight Industrial Control Screen, Presenting A High-Quality Picture
















10.1" Vehicle Mount LCD Monitors Vehicle Touch Displays







True Flat Panel, IP65, NEMA X4 Rating Dustproof, and Waterproof



Suitable For Outdoor Heavy-duty Environments












Spec ItemDescription
Display
LCD Panel

10.1" TFT LCD; 1280*800 pixels

TouchscreenCapacitive
Front BezelIP65, NEMA 4 protection, aluminum alloy housing
Backlight MTBF(hrs)50000
Contrast
600:1
Brightness
300 nits (High brightness above 400cd/m2 can be customized)
Viewing Angle
170°/170° (178° full viewing angle can be customized)
Response Time 6.5ms
Mounting TypesWall-mounted, VESA 75/100mm, Headset, stand

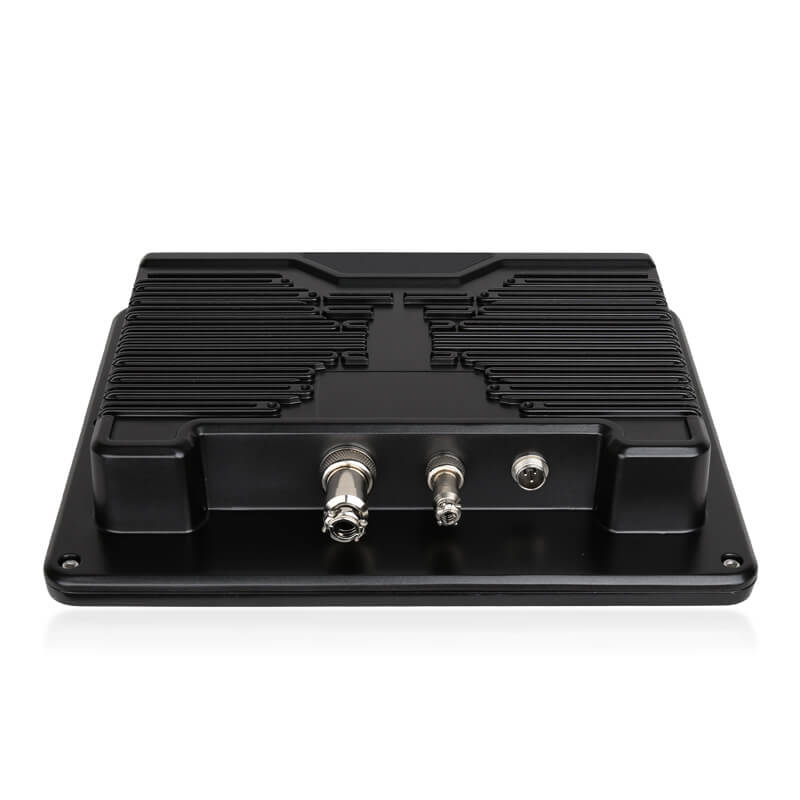

Interfaces
DC port1*waterproof aviation connector (GX12-3 core)
VGA1*waterproof aviation connector (GX20-15 core)
Touch Interface1*waterproof aviation connector (GX12-4 core)
Environment
Operating Temperature-10 °C ~ 60 °C (-30 °C ~ 80° C can be customized)
Storage Temperature-40 °C ~ 85 °C
Humidity20%-95%, non-condensing
Power Supply
Power Consumption≤35W
Power InputAC 100-240V 50/60Hz, CCC, CE certification approved



Touch Think industrial vehicle-mounted monitors are compliant with CE standards, engineered with Robust IP65 aluminum ultra-thin front for seamless panel mount installation, and also support VESA stands. Wide range 12V~36V DC input, meets the demand for transportation environments.



10.1" Vehicle Mount LCD Monitors Vehicle Touch Displays


Touch Think offers a variety of OEM/ODM customization services in terms of product appearance design, LOGO, product functional modules, and product performance, please feel free to contact us for details.
