12" TFT Railway Fanless Touch Panel PC with Intel Processor

Size: 7" - 21.5"

Touch Think offers a full range of industrial all-in-one touch panel PCs for transportation solutions. The industrial-grade TFT LCD fanless touchscreen panel PC with Intel for railway train control and rail signaling consoles.

Product Color



Product Model Quick Guide


Model Name

Screen Size

Resolution

Aspect Ratio

TPC101-W2

10.1"

1280*800

16:10

TPC104-W2

10.4"

1024*768

4:3

TPC116-W2

11.6"

1920*1080

16:9

TPC120-W2

12"

1024*768

4:3

TPC150-W2

15"

1024*768

4:3

TPC156-W2

15.6"

1920*1080

16:9

TPC170-W2

17"

1280*1024

5:4

TPC173-W2

17.3"

1920*1080

16:9

TPC190-W2

19"

1280*1024

5:4

TPC191-W2

19.1"

1440*900

16:10

TPC215-W2

21.5"

1920*1080

16:9

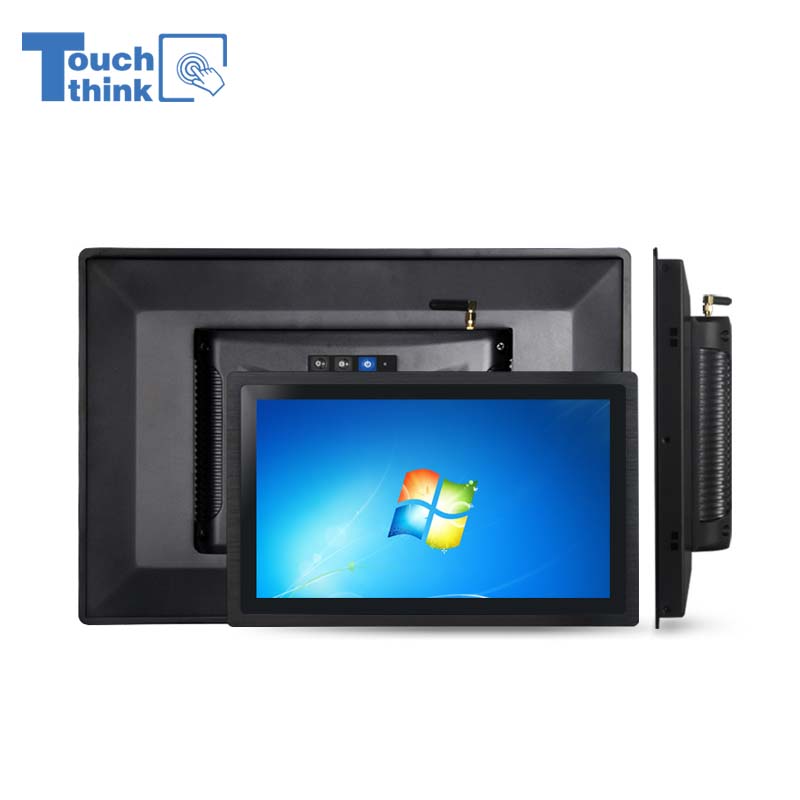

12" TFT Railway Fanless Touch Panel PC with Intel Processor


Touch Think 12" fanless all-in-one touch panel computer for railway applications is designed to support the higher efficient heating-dissipation and lower power consumption, fitted with quad-core Intel® J1900 processor with 2GHz. The TFT LCD display with high brightness LED backlight (400 nits, also support higher brightness) and auto-dimming control under different conditions of weather, allows the train operator to easily read messages. With IP65 dust-proof and waterproof for the front bezel. The industrial all-in-one panel computer is suitable for demanding HMI, AI, and IoT applications in the transportation system, its function including controlling and monitoring, turnstile system, self-service for ticket selling and picking, temperature control, and security system, etc.


Touch Think Industrial All In One PC Feature

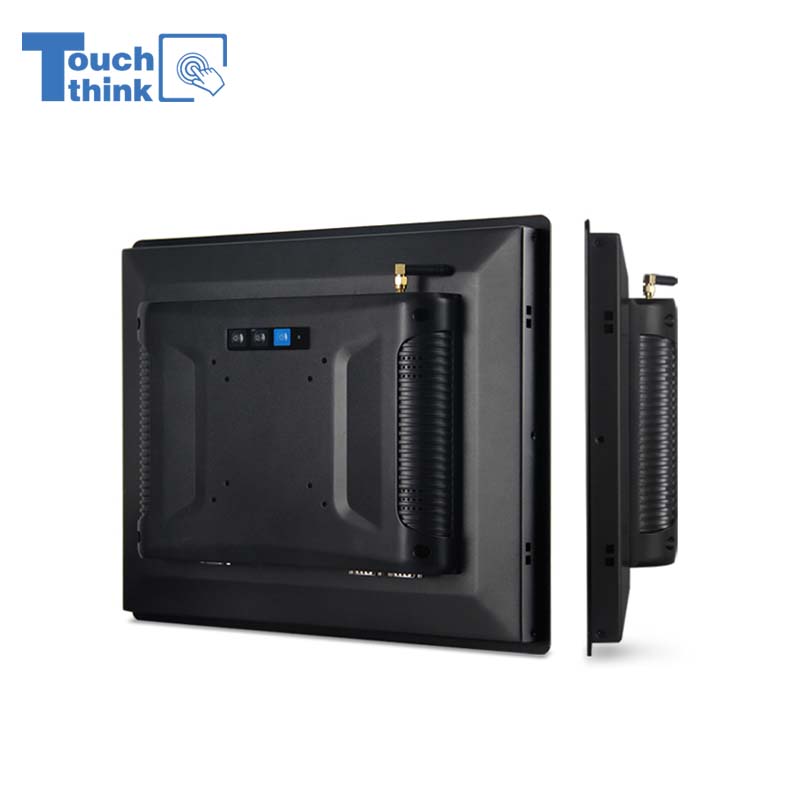

● Aluminum alloy enclosure, good heating dissipation.

● IP65 rated dust-proof and water-proof for the front panel, well-performed in harsh environments.

● It adopts industrial-grade A, A+ LED screens, offering a perfect image for users.

● Automatic power-on function. Support plug-and-play function.

● The panel PC support long-time running with no interruption during 365 days * 24 hours.

● Industrial-grade mainboards, high performance in harsh industrial environments.

● EMI / EMC / Flame-proof / Damp proof / Anti-static / Anti-surge.

● Sunlight readable TFT LCD with a high brightness of 400 nits supports higher brightness, up to 1500 nits.

● Fanless with Intel® J1900 processor 2GHz.

● Connectors of the panel PC with lockable design.

● Auto-dimming for different ambient environments.

● Wide operation temperature range: -10°C to +60°C.


  • product description
  • Product parameters
  • Application
  • OEM/ODM

12" TFT Railway Fanless Touch Panel PC with Intel Processor






Capacitive Touch Panel PC Touch Think Industrial All-in-one PC Customization Items


Multi-functional modules are available for customizaed customers

Including built-in camera, GPS, Printing, Fingerprint,Gravity induction, and Infrared induction, and more.



Touch Think has maintained long-term strategic partnerships with major processor and software suppliers. We can ensure that products have good lifecycle management and alternative solutions after product delisting to provide the product span-life required for industry applications cycle.


Touch Think provides OEM/ODM design services for customers from major regions of the world, and our customers can enjoy the most convenient services by fast response speed, shortening delivery time and simplifying business processes,.








Screen parametersScreen size12 inch
ModelTPC120-W2
Resolution1024*768
Proportion 4:3 square screen
Motherboard parameters CPUIntel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual-core, optional Intel H81 equipped with Core i3/i5/i7)
Hard Disk32G SSD (Optional 64G SSD/500G HDD)
Memory 2G DDR3 (supports 8G DDR3)
Audio Integrated Audio Chip
NetworkIntegrated Gigabit LAN
Wireless network built-in wifi antenna, support wireless connection
Graphics Cards Integrated Graphics
System pre-installed windows7, support other versions
Speakers Available

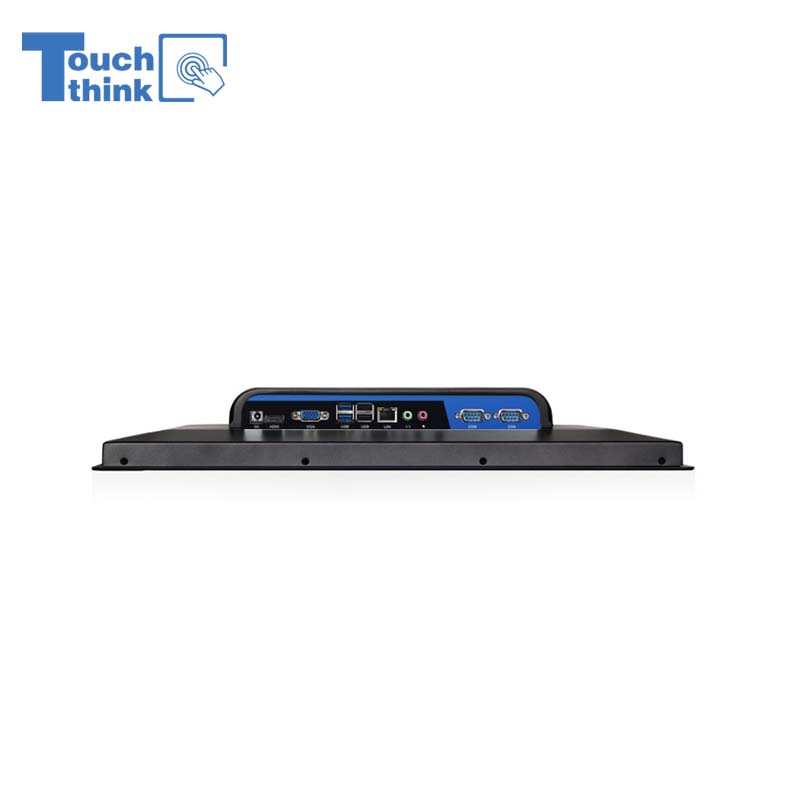

Interface parametersUSB interface8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1
Serial Interface8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol
WIFI connector WIFI antenna*1
Power InterfaceDC 12V*1
High-definition interfaceHDMI*1
Extended displayVGA*1, support for synchronous dual display and differential display
Network interfaceRJ-45*1
Audio InterfaceAudio I/O
Support extensionsMultiple industry interface support customization
Display parametersColor16.7M
Point distance 0.264mm
Screen Panel

 Industrial control panel

Contrast1000:1
Display brightness400cd/m2 (customizable high brightness above 400cd/m2)
View angle(H160 (V) 160, customizable wide viewing angle 178°
Backlight type LED-backlit screen Lifetime ≥ 50000h
Gray-scale response time 5ms
Touch OptionalResistive/Capacitive/Infrared Touch Screen
Installation methodEmbedded, desktop, wall-mounted, cantilever
Other parametersPower12V-5A Professional External Power Adapter
Power consumption ≤60W
Working temperature-10°C~60°C
Storage temperature-20°C~60°C
Relative humidity0%-65% (without condensation)
MaterialFull body made of aluminum alloy material
Color Silver Black
Warranty PolicyOne year free warranty
Degree of protection Front panel IP65 dustproof and waterproof
Packing list Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card

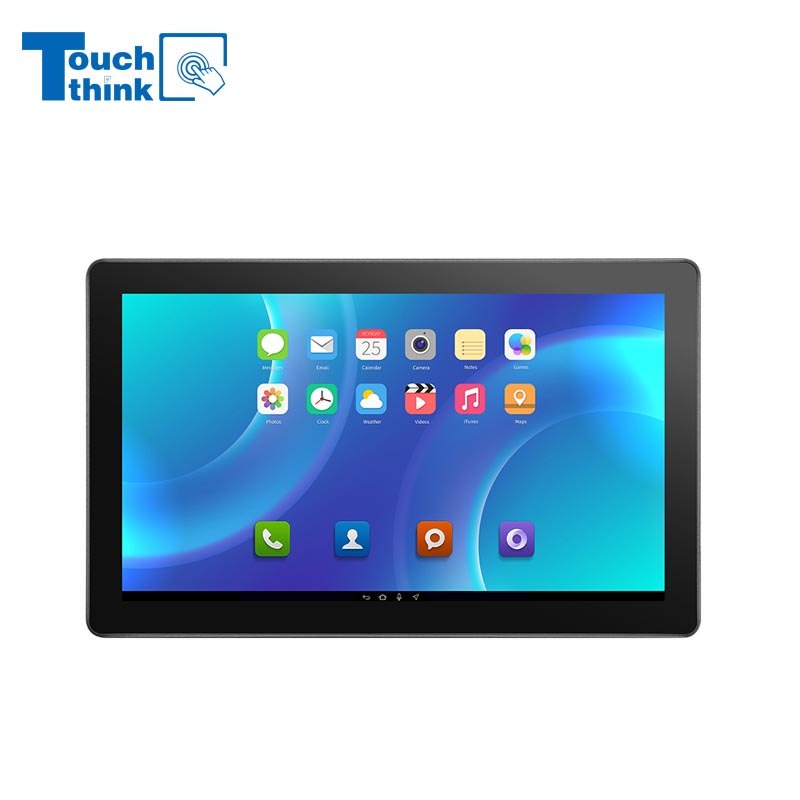

12-inch industrial touch screen AIO Panel PC

12-inch industrial touch screen AIO Panel PC
