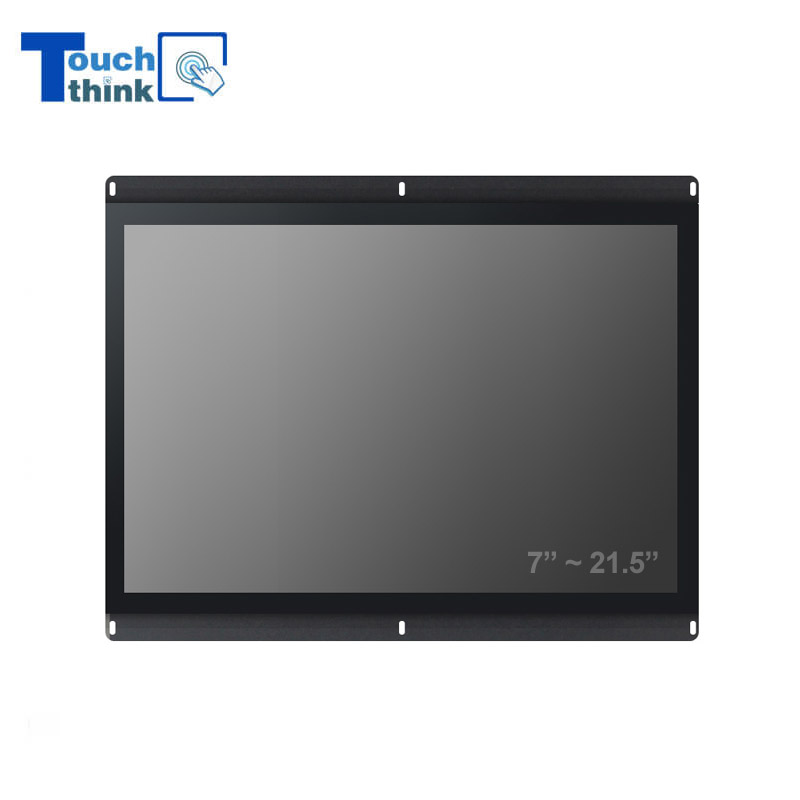

Open Frame Monitor With Touchscreen Displays

Size: 8" ~ 21.5"

Touch Think industrial open frame monitors can be used in a variety of applications, such as electric cabinets, ATM machines, casino machines, vending machines, and other kiosk solutions.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial monitor


10.1 inch industrial monitor


10.4 inch industrial monitor


11.6 inch industrial monitor


12 inch industrial monitor


15 inch industrial monitor


15.6 inch industrial monitor


17 inch industrial monitor


17.3 inch industrial monitor


19 inch industrial monitor


19.1 inch industrial monitor


21.5 inch industrial monitor

  • product description
  • Product parameters
  • Application
  • OEM/ODM


Industrial Open Frame Monitor With Touchscreen Displays


Touch Think open frame touchscreen display with industrial-grade motherboards provides intelligent hardware solutions for industrial automation, Internet of Things projects. These industrial open frame LCD monitors deliver multi-point touch control or single-point touch control screens, excellent for various self-service terminals and industrial environments due to their reliable performance.


We offer open frame displays product line with a wide range of sizes, 7" to 21.5" for standard models, also support other screen sizes with massive quantity. Other customization items include high brightness, I/O interfaces, touch technologies and viewing angle, wide temperature and wide voltage operation, etc.


Open Frame Touchscreen Displays


Industrial Open Frame Screen Features


● TFT LCD display: 7"/8"/10"/11.6"/12"/15"/15.6"/17"/17.3"/19"/21.5"

● Touch Screen: Multi-touch capacitive, 4/5-wire resistive or Non-touch screen

● Support modularly configured and I/O expanded

● Unique universal installation design

● Waterproof edge protection, water seepage prevention, and shock mitigation

● Industrial grade drive board, anti-static, and anti-electromagnetic interference

● Internal heat dissipation structure design, supporting 7*24 hours long-term uninterrupted operation

● The surface is IP65 dust-proof and waterproof, and fully dust-proof for the whole monitor

● Touch Think industrial open frame monitors support Windows, Linux, and Android.

● Particularly suitable for use in harsh industrial environments



Products Details

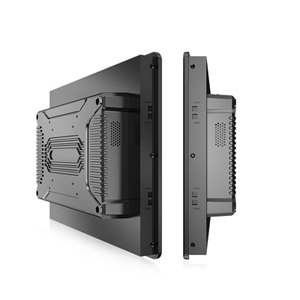

Open frame monitor

It is suitable for all kinds of equipment with open-back mounting. High flexibility. It can modify the counterbore structure according to the different requirements of the equipment application. The front flat panel shows a perfect embedded effect, easy to clean and maintain.


Simple Installation and Support Customized Counterbore

It adopts a sheet metal frame and aluminum alloy back cover, with a smooth and flat surface, solid and durable body, good heat dissipation, compact and reasonable internal structure, compression resistance, high and low-temperature resistance, shockproof, electromagnetic interference resistance, and other functions.


Multiple I/O Interface, Support Expansion

Self-developed anti-shedding DC interface design, to prevent the interfaces' falling off and stopping power supply due to vibration, collision, and other conditions of the monitor. The touch interface adopts a standard 8-bit modular RJ45 interface, with fast transmission speed, stable and accurate touch.


Heat-dissipation Design for Long-term Uninterrupted Operation

Aluminum alloy material with good heat dissipation performance, combined with the self-developed heat dissipation structure layout design, improve the heat dissipation performance to a certain degree and adopt industrial-grade components, LCD screen, drive board, the monitors keep reliable performance in the temperature of -10 ~ 60 ℃, and support stable operation in other harsh environments for a long time.


Independent R&D of Industrial-grade Motherboard

PCB wiring design, up to EMI / EMC standard, anti-vibration protection level up to GB2423B standard, and with anti-electromagnetic interference, anti-static, anti-surge, wide temperature operation, and wide voltage characteristics.








Other Kinds of Mounting Choosing

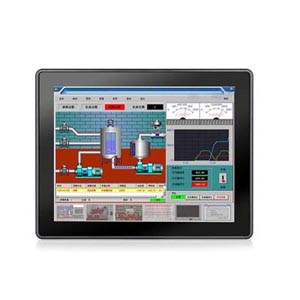

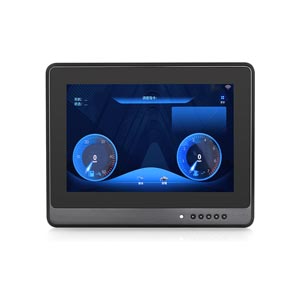

Panel Mount MonitorDesktop Mount MonitorVESA Mount MonitorVehicle-Mount Monitor

● Touch Think 2nd-GEN Series

● Touch Think 5th-GEN Series

● Touch Think 2nd-GEN Series

● Touch Think 4th-GEN Series

● Touch Think 5th-GEN Series

Touch Think 4th-GEN Series

Touch Think 5th-GEN Series
Open Frame Touchscreen DisplaysOpen Frame Touchscreen DisplaysOpen Frame Touchscreen DisplaysOpen Frame Touchscreen Displays
Open Frame Touchscreen DisplaysOpen Frame Touchscreen Displays

Open Frame Touchscreen Displays

Open Frame Touchscreen Displays









Product ModelsModelScreen SizeResolutionAspect Ratio
TPC080-M4-OF8"1024*7684:3
TPC101-M4-OF
10.1"1280*80016:10
TPC104-M4-OF10.4"1024*7684:3
TPC116-M4-OF11.6"1920*108016:9
TPC120-M4-OF12"1024*7684:3
TPC150-M4-OF15"1024*7684:3
TPC156-M4-OF15.6"1920*108016:9
TPC170-M4-OF17"1280*10245:4
TPC173-M4-OF17.3"1920*108016:9
TPC190-M4-OF19"1280*10245:4
TPC191-M4-OF19.1"1440*900
16:10
TPC215-M4-OF21.5"1920*108016:9

Screen ParametersGray-scale response time 5ms
Panel typeIndustrial control A level screen with TFT
Point distance0.264mm
Contrast   600:1 / 800:1 / 1000:1
Backlight type  LED, span life≥50000h
Display color16.7M
Visual angle 160/160°(178° full view angle is customizable)
Brightness  300~1500cd/m2 (support high brightness)
Touch-typeResistive / Capacitive / Mouse control
Other Parameters
Power consumption≤35W
Power inputAC 100-240V, 50/60HZ
Power OutputDC 12V / 4A
Anti-staticcontact 4KV-air 8KV (≥16KV can be customized )
Anti-vibrationGB2423 standard
Anti-interference EMC|EMI anti-electromagnetic interference
Dustproof and waterproofIP65 dust-proof and waterproof for the front panel
Housing materialBlack/Silver, Aluminum Alloy
Installation methodOpen frame, Embedded, desktop, wall-mounted, VESA
Relative humidity95%, Non-Condensing
Working temperature-10°C~60°C (-30°~80°C customizable)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian
I/O Interface
Signal Interface  DVI, HDMI, VGA
Power connector DC with ring attachment (optional DC terminal block)
Touch interfaceUSB   I/O Interface
Other interfacesAudio input and output


Touch Think industrial LCD open frame monitors are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC, and POS communication, and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations, and parks as media (advertising) players or information-checking terminals.


Open frame displays are excellent embedded in other machines, cabinets, or install on the operating tables, man-machine display operation interfaces. They are also served as a bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.


In addition, they are also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.








Touch Think industrial monitors support customization services such as logo, appearance, color, installation methods, I/O ports, high brightness, viewing angle, touchscreen types, etc.
