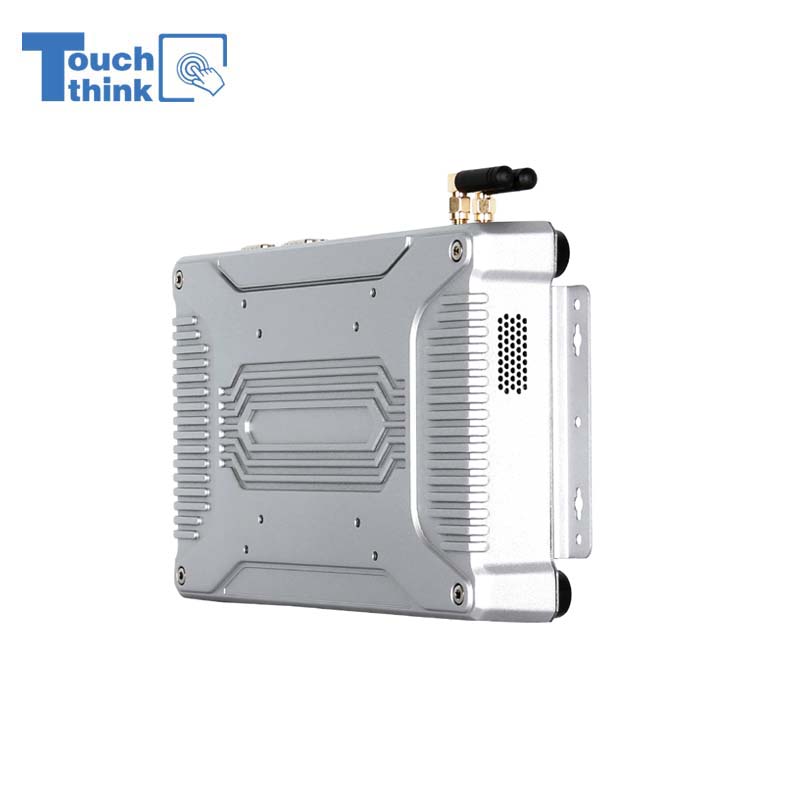

Compact Fanless Industrial Computer with Android 12, 8-Core 64-Bit RK3588 CPU

Size: 239.5*148.5*43mm

At Touch Think we supply suitable industrial PCs based on years of experience. Suitable for telecom, transport, machine building, or the maritime sector.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Compact Fanless Industrial Computer with Android 12


Model: TPCIOT-500


As a manufacturer, we are able to configure and assemble a complete industrial PC for you. Thanks to our years of experience in developing and configuring industrial computers, we are the right partner to help you select a responsible system.

Our industrial PCs are based on a modular design and support fully customized industrial PC. For example, we support customer-specific tailored I/O to the application. Each component is based on quality, reliability, and availability. So you can be assured about this.

Our industrial PCs are engineered multifunctional, ideal for applications at the enterprise or industrial level. They are made of rugged Aluminum alloy material that is very robust and cannot oxidize. This makes these industrial PCs suitable for the most demanding industrial environments.



Features


● High-performance CPU, which can be upgraded to RK3588 eight-core 64-bit.

● Aluminum alloy structure, robust and reliable.

● Multiple interfaces, support USB 3.0, HDMI, etc.

● Dual LAN gigabit, faster and more stable for 5G.

● Powerful open-source architecture to meet various development and customization needs of customers.

● Support 12V-36V wide voltage power supply.

● A variety of operating systems, high-end series support Android 12, Linux system.

● Color: Black or silver for option.




Hardware ConfigurationCPURK3588 Octa-Core 1.8GHzRK3399 Six-Core 1.8GHzRK3288 Quad-Core 1.6GHz
Hard diskeMMC 64GB eMMC 32GB (16/64GB optional)eMMC 16GB (8/32/64GB optional)
Inner MemoryDDR4 8GB2GB (4GB optional)2GB (4GB optional)
Operating SystemAndroid 12Android 7.1/9.0/11 / Ubuntu18.04 / Debian10.0 / Linux4.4

Android 7.1/10.0 /

Linux4.4 / Ubuntu18.04 / Debian10.0

GPUMali-G610 MC4Mali-T764GPUMali-T764GPU
4G/5G Module

Support

SupportSupport
WIFIDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5G
BluetoothBT5.0BT4.0BT4.0
GPSExternal GPS (Optional)External GPS (Optional)External GPS (Optional)
MIC

Optional

OptionalOptional
RTC (real-time clock) / Timing Turn On/OffSupportSupportOptional
System UpgradeSupport SD, and USB upgrade
Here take the RK3588 for your reference
InterfacesUSB interfaceUSB-OTG: 1*USB3.0; USB-HOST: 3*USB3.0
COM Serial Ports2*RS232 for PC, 5*serial sockets for the board (1*RS232, 1*RS485, 1*TTL, 2*sockets for RS232 and TTL to switch); Supports expansion.
WIFI connector1*WIFI antenna
Power interface1*DC2.1, supports wide voltage 12V-36V power supply
HD Interface1*HDMI, 1080P
Earphone Jack3.5mm standard interface
RJ45 Ethernet2*10M/100M/1000M adaptive Ethernet
Audio interfaceAudio I/O
SD/TF card socketTF data storage

ReliabilityWorking temperature-10°C ~ 60°C
Storage temperature-20°C ~ 70°C
Ambient humidity20% - 95% (relative humidity non-condensing)

Power AdapterPower consumption≤24W
Power inputAC 100-240V 50/60Hz; CCC/CE/FCC/EMC/CB/ROHS certification Passed
Power outputDC12V/4A
