Small Size Industrial LCD Displays 7 inch Monitor 8 inch Touch Monitor

Size: 7" ~ 8"

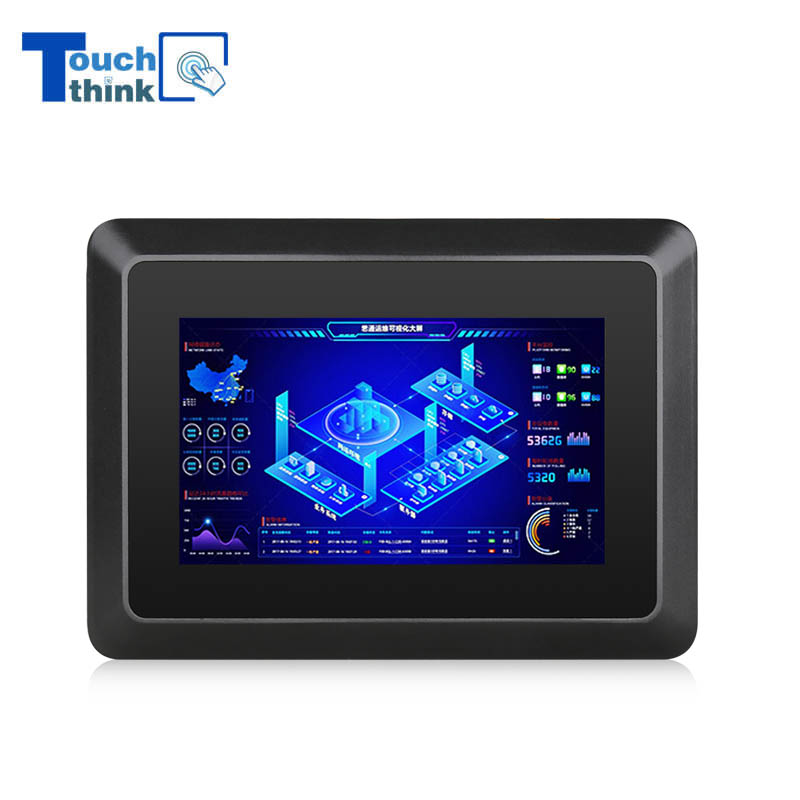

Touch Think 7-inch and 8-inch small-size monitors with industrial-grade quality provide ideal touch display solutions for custom projects. These small LCD monitors are designed to fit anywhere and are made from an aluminum alloy so they're tough enough to take a beating.

Product Color



Small Size Industrial Touch Screen Monitors


7" Industrial Monitor: Model: TPC070-M-QD

8" Industrial Monitor: Model: TPC080-M-QD


Touch Think 7-inch and 8-inch small-size monitors with industrial-grade quality provide ideal touch display solutions for custom projects. These small LCD monitors are designed to fit anywhere and are made from an aluminum alloy so they're tough enough to take a beating.


Product Features


● 7" and 8" LCD screen panel option.

● 7-inch: 1024x600 native resolution, 16x9 Aspect Ratio

● 8-inch: 1024x768 native resolution, 4x3 Aspect Ratio

● Multi-point capacitive and 4/5-wiring resistive touchscreen support.

● Supports wide voltage input: 12V DC ~ 24V DC / 9V DC ~ 36V DC.

● VESA 75/100mm mounting holes.

● RoHS, FCC, CE Certification.

● 3-year warranty (36 months).




  • product description
  • Product parameters
  • Application
  • OEM/ODM


Small Size Industrial LCD Displays 7 inch Monitor 8 inch Touch Monitor




Small Size Industrial LCD Displays 7 inch Monitor 8 inch Touch Monitor

Industrial-Grade Quality and Performance


- These two small industrial monitors are designed with a universal appearance, support multi-installations, including desktop, embedded, and wall-hanging, etc.

- IP65 dustproof and waterproof protection.










Small Size Industrial LCD Displays 7 inch Monitor 8 inch Touch Monitor

LED High-Definition Industrial Control Screen


- Long span-life LED backlight screen, and up A/A+ level industrial screens, presents high-quality clear images.

- 7-inch monitor with 1024*600 definition; the 8-inch monitor with 1024*768 definition.

- Color display: 16.7M

- Screen brightness: 300cd/m2

- Viewing angles: 75°/75°







Small Size Industrial LCD Displays 7 inch Monitor 8 inch Touch Monitor

Multi-Touch Screen Types Options


- Capacitive touch screens: Multi-point touch, high sensitivity, and fast response touch operation.

- Resistive touch screens: High light transmittance, high accuracy for touching, strong anti-interference performance.










Small Size Industrial LCD Displays 7 inch Monitor 8 inch Touch Monitor

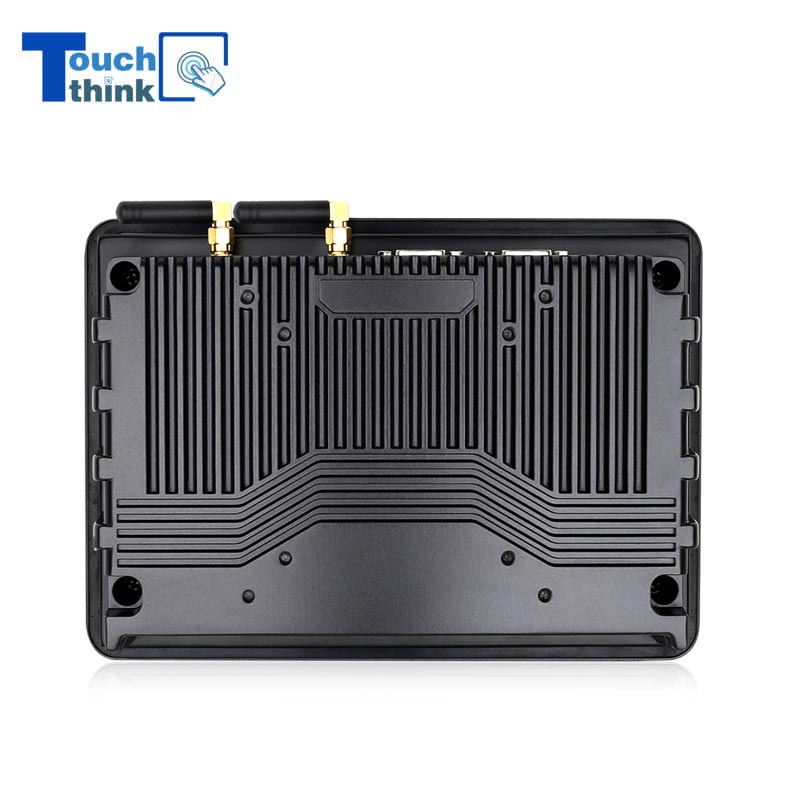

Fanless Design For Heat-Dissipation, Low-Power Consumption


Internal heat dissipation structure design, and engineered with Aluminum alloy housing with high-efficiency thermal conductivity material, more stable for long-term operation.











Small Size Industrial LCD Displays 7 inch Monitor 8 inch Touch MonitorIndustrial-grade Display Driver Board


These small size industrial monitors adopt RTD2483 chips, which upgrade the stability and scalability.

- Anti-vibration: GB2423 compliant, keeping an unwearable operation in strong shock environments.

- The PCB is built with green environmental protection materials.

- Supports wide temperature operation: -20°C to +70°C.

- Anti-surge, anti-static protection.







Screen parametersScreen Size7 inch / 1024*600 / 16:9
8 inch / 1024*768 / 4:3
HDMIHDMI*1
DVIDVI*1
Power InterfaceDC 12~24V
Extended displayVGA*1, support for synchronous dual display and differential display
Network interfaceRJ45*1
Audio InterfaceAudio I/O*1
I/O extensionsSupport customization
Display ParametersColor16.7M
Point distance
0.264mm
Screen panelIndustrial control screen
Contrast7" with 500:1 / 8" with 800:1
Display brightness300cd/m2 (high brightness customizable)
View angle(H)150 (V) 150, 178° wide viewing angle is customizable.
Backlight typeLED-backlit screen Lifetime ≥ 50000h
Gray-scale response time 6.5ms
Touch OptionalResistive/Capacitive/Mouse Control
Installation methodEmbedded, desktop, wall-mounted, VESA
Other ParametersPower12V-5A Professional External Power Adapter
Power consumption ≤60W
Working temperature-10°C~60°C
Storage temperature-20°C~70°C
Relative humidity0%-65% (without condensation)
MaterialFull Aluminum alloy material
Warranty PolicyThree-year warranty
IP-rating protection Front panel IP65 dustproof and waterproof
Packing list Industrial monitor / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card




The industrial durability and versatility of the Touch Think 7" and 8" industrial monitors makes them ideal for a wide range of applications: sub-monitors for Industrial PC use or self-service filming devices, information display/data visualization/process control & inspection/supervision use at smart factories' production lines, educational equipment, smart showrooms, intelligent video paperless conferences, digital signage, etc.








We provide multiple customization services for single or mass orders from global clients, please feel free to contact us for details.
