Size: 7" ~ 23.8"

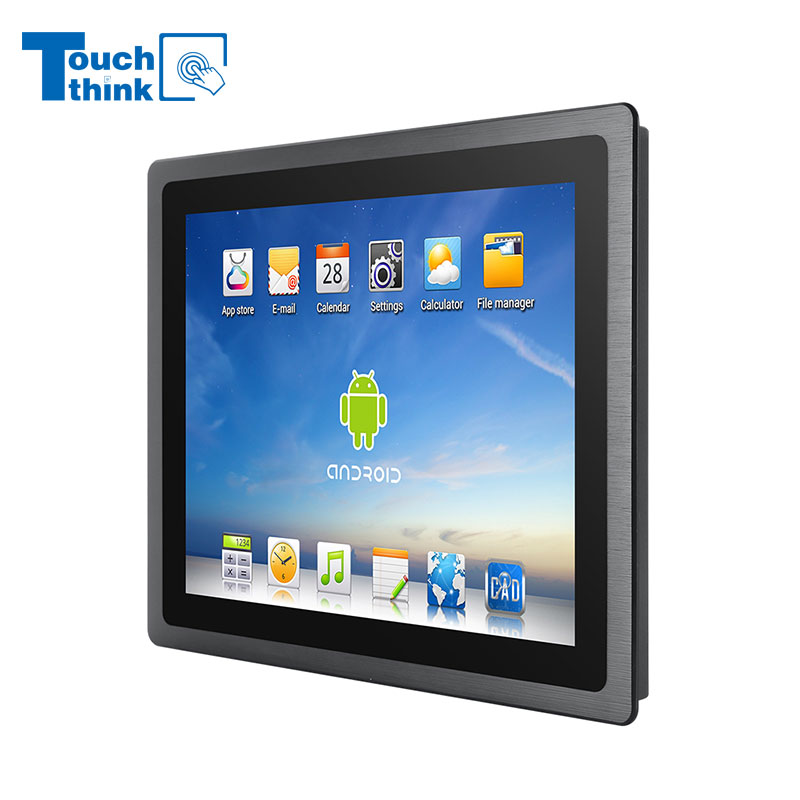

The 7″ to 23.8″ industrial panel PC, powered by Rockchip RK3566 or Allwinner A133, featuring up to 8GB RAM + 256GB storage, capacitive touch (resistive or Non-touch options), and running Android 15, offers a powerful, flexible, and reliable solution for industrial control, medical systems, HMI interfaces, kiosks, and outdoor deployments.
Product Color
7″ to 23.8″ Android Industrial Panel PC with RK3566 (A133 options), Up to 8GB RAM + 256GB Storage, Android 15/10 for Industrial, Medical, HMI, Kiosk, and Outdoor Applications
With the rapid adoption of smart terminals across industrial, medical, and public environments, demand is growing for Android-based industrial panel PCs that combine performance, stability, and flexible display options. The 7-inch to 23.8-inch Android industrial panel PC, powered by the Rockchip RK3566 processor, equipped with 8GB RAM and 256GB storage, and running Android 15, delivers a powerful and scalable solution for industrial control, medical systems, HMI interfaces, kiosks, and outdoor applications.
Product Model Fast Guide
| Product Models | LCD Displays | Resolution | Aspect Ratio | Brightness | Dimension (L*W*D) | Get A Quote Now! |
| TPC070-A31 | 7" | 1024*600 | 16:9 | 300cd/㎡ | 233.56*154.56*40.5mm | Inquiry |
| TPC080-A31 | 8" | 1024*768 | 4:3 | 300cd/㎡ | 233.56*174.56*44.5mm | |
| TPC101-A31 | 10.1" | 1280*800/800*1280 | 16:10/10:16 | 500/300cd/㎡ | 293.6*193.3*46mm | Inquiry |
| TPC104-A31 | 10.4" | 1024*768 | 4:3 | 400cd/㎡ | 288*231*49mm | Inquiry |
| TPC116-A31 | 11.6" | 1920*1080 | 16:9 | 250~300cd/㎡ | 323.7*218.5*46mm | Inquiry |
| TPC120-A31 | 12" | 1024*768 | 4:3 | 500cd/㎡ | 319*257*52mm | Inquiry |
| TPC121-A31 | 12.1" | 1280*800 | 16:10 | 350cd/㎡ | 330*227.34*52mm | Inquiry |
| TPC133-A31 | 13.3" | 1920*1080 | 4:3 | 400cd/㎡ | 373.62*245.17*46mm | Inquiry |
| TPC150-A31 | 15" | 1024*768 | 4:3 | 350cd/㎡ | 379.81*300*52.5mm | Inquiry |
| TPC156-A31 | 15.6" | 1920*1080 | 16:9 | 300cd/㎡ | 420*269*50mm | Inquiry |
| TPC170-A31 | 17" | 1280*1024 | 5:4 | 250~300cd/㎡ | 414*345*55.5mm | Inquiry |
| TPC173-A31 | 17.3" | 1920*1080 | 16:9 | 400cd/㎡ | 458*291*52mm | Inquiry |
| TPC185-A31 | 18.5" | 1920*1080 | 16:9 | 300cd/㎡ | 486.5*307.4*58mm | Inquiry |
| TPC190-A31 | 19" | 1280*1024 | 5:4 | 400cd/㎡ | 451*380*55mm | Inquiry |
TPC191-A31 | 19.1" | 1440*900 | 16:10 | 250~300cd/㎡ | 486*332*56mm | Inquiry |
| TPC215-A31 | 21.5" | 1920*1080 | 16:9 | 250~300cd/㎡ | 557*345*53mm | Inquiry |
| TPC238-A31 | 23.8" | 1920*1080 | 16:9 | 250~300cd/㎡ | 606*376*61mm | Inquiry |
Note: High-brightness screen optional.
Rockchip RK3566 Performance for Android Industrial Systems
At the core of this industrial panel PC is the Rockchip RK3566, a quad-core ARM Cortex-A55 processor optimized for industrial and embedded use. It offers smooth multitasking performance for Android applications and with a low power consumption design for continuous 24/7 operation. It is a stable platform for long-term availability.
Note: This panem mount industrial panel PC also supports the Allwinner A133 processor.
Latest Android 15 OS with Large Memory Configuration
Running on Android 15, this industrial panel PC offers enhanced system security, improved performance, and long-term OS support. Combined with a robust 8GB RAM (2/4GB options) and 256GB (16/32/64/128GB options) internal storage, the system provides fast application loading and a smooth user experience. The ample storage for industrial software, data, and media content.
Industrial-Grade Design for Harsh and Specialized Environments
This Android industrial panel PC is built to meet the requirements of industrial, medical, and outdoor installations, offering rugged construction for long-term reliability and stable operation in challenging environmental conditions, suitability for clean environments, industrial workshops, and semi-outdoor locations
| Display Parameters | Size | 7"~23.8" Options | |
| Backlight type | LED backlight screen, service life ≥ 50000H | ||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||
| Motherboard Model Selection | CL3566-A | CL-A133-A | |
| System Architecture | CPU | RK3566 Quad-Core 1.8GHz | Allwinner A133 Quad-Core 1.5GHz |
| Core Architecture | Cortex-A55 | Quad-Core Cortex-A53 | |
| GPU | ARM Mali-G52 | GE8300 | |
| Memory (DDR) | 2GB (4/8GB optional) | 2GB (4GB optional) | |
| Storage (eMMC) | 32GB (64/128/256GB optional) | 8GB (16/32/64/128GB optional) | |
| SATA | / | / | |
| Operating System | Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | Android 10.0 | |
| Networking | Ethernet | 1*1000M (2*1000M Ethernet options) | 1*100 Mbit Ethernet |
| 4G | Optional. Based on the 4G module selection | Optional. Based on the 4G module selection | |
| WIFI | WIFI6, Dual-band 2.4/5GHz | WIFI6, Dual-band 2.4/5GHz | |
| Bluetooth | BT5.3 | BT5.4 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |
| EDP | Support 1920*1080 60Hz output | ||
| MIPI | Support 1920*1080 60Hz output | ||
| Mipi Camera | 30-pin FPC interface, supports 1300W Camera | ||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | 1080P at 60fps (FHD) | |
| HDMI Input | / | / | |
| Touch Function | Touch Interface | USB/IIC | USB/IIC |
| I/O Ports | MICRO USB | / | / |
| USB 2.0 | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*5 on board | USB2.0*2 | |
| USB 3.0 | USB3.0*2 (including OTG*1) | / | |
| RS232 | RS232*3 | RS232*1(RS485/TTL*1 Optional) | |
| RS485 | RS485*3 | / | |
| TTL | TTL*2 | / | |
| GPIO | GPIO*12 (input/output) | / | |
| SIM Slot | Support | Support | |
| TF Slot | Support | Support | |
| CAN | CAN*1 | / | |
| Speaker | 3.5mm standard Jack | 3.5mm standard Jack | |
| MIC | Support | Support | |
| Audio Port | 3.5mm earphone jack, supports input/output | 3.5mm earphone jack, supports input/output | |
| I/O Expansion | Available | Available | |
| Power | Power Input | DC 12-36V | DC 12-36V |
| Adapter | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Enclosure | Aluminum alloy housing | Aluminum alloy housing |
| Cooling System | Fanless | Fanless | |
| Mounting | Desktop, wall-mounted, VESA75/100mm, ceiling-mounted | ||
| Product Reliability | Working Temp | -10°C ~ 60°C | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C | -20°C ~ 70°C | |
| Ambient Humidity | 20% - 95% (relative humidity non-condensing) | 20% - 95% (relative humidity non-condensing) | |
| IP rating | Front IP65 | Front IP65 | |
Versatile Application Support
Thanks to its Android platform and flexible hardware design, this industrial panel PC is widely used in:
● Industrial automation and HMI control systems
● Medical equipment interfaces and healthcare terminals
● Self-service kiosks and information terminals
● Outdoor digital signage and access systems
● Smart retail and interactive display solutions
