Size: 10.1" / 11.6" / 15.6" / 21.5"
The Z-Series ARM Industrial Panel PC is powered by high-performance ARM processors including Rockchip RK3568, RK3576, and RK3588, with Card Reading Function is an intelligent industrial touchscreen computer designed for smart manufacturing, automation control, access management, self-service terminals, and industrial IoT applications.
Product Color
The Z-Series ARM Industrial Panel PC with Card Reading Function is an intelligent industrial touchscreen computer designed for smart manufacturing, automation control, access management, self-service terminals, and industrial IoT applications.
Powered by high-performance ARM processors including Rockchip RK3568, RK3576, and RK3588, this industrial panel PC combines powerful edge computing capability with integrated identity recognition functions. The built-in dual-frequency card reader (125KHz + 13.56MHz), HD camera, and customizable industrial interfaces make it an ideal solution for applications requiring secure user authentication, data collection, and real-time equipment interaction.
Featuring a 10.1-inch to 21.5-inch full-view touchscreen display, 6 TOPS NPU AI acceleration, 8K video processing capability, and support for Android 13, Linux, and Ubuntu systems, the Z-Series provides a flexible computing platform for next-generation industrial HMI and intelligent terminal solutions.
With multiple mounting options including wall mounting, cantilever mounting, desktop installation, and boom mounting, this ARM-based industrial panel PC can be easily integrated into different industrial environments.
| Model Name | Screen Size | Resolution | Aspect Ratio | Contrast Ratio | Get A Quote Now! |
| TPC101-A37 | 10.1" | 800*1280 | 10:16 | 600:1 | Inquiry |
| TPC116-A37 | 11.6" | 1920*1080 | 16:9 | 800:1 | Inquiry |
| TPC156-A37 | 15.6" | 1920*1080 | 16:9 | 800:1 | Inquiry |
| TPC215-A37 | 21.5" | 1920*1080 | 16:9 | 1000:1 | Inquiry |
The Z-Series Industrial Panel PC supports multiple ARM processor options including RK3568, RK3576, and RK3588.
These processors provide excellent performance-to-power efficiency and support different application requirements from basic HMI interaction to advanced AI edge computing.
The RK3588 version delivers enhanced processing capability for applications requiring AI recognition, Machine vision, High-resolution display, Industrial data processing, and Multimedia applications.

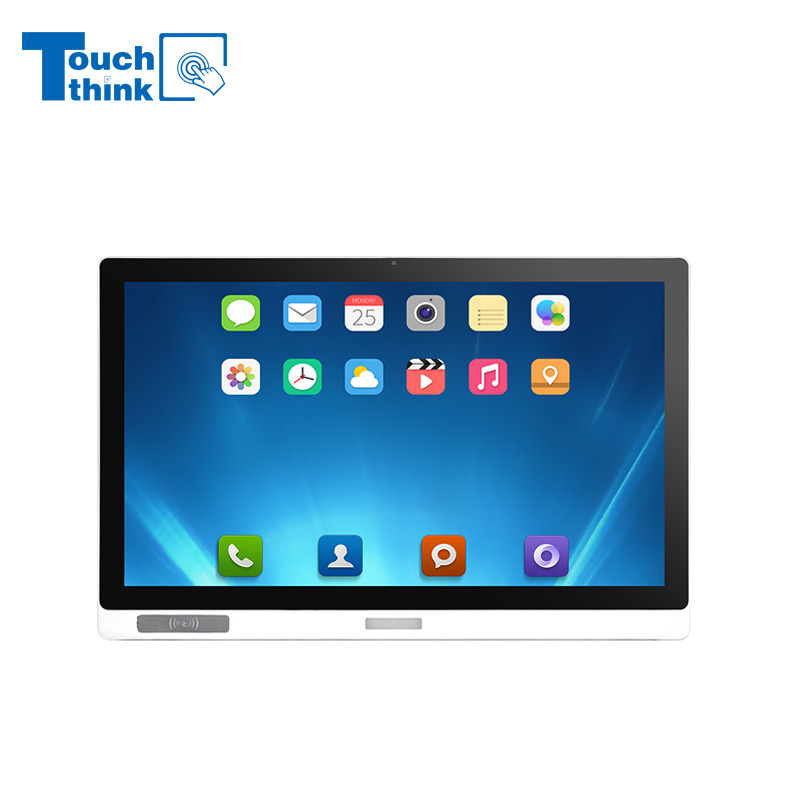

To meet different installation and operation requirements, the Z-Series is available in 10.1 inch, 11.6 inch, 15.6 inch, and 21.5 inch. The industrial touchscreen panel features full viewing angle display, high-quality image performance, 10-point capacitive multi-touch smooth and responsive operation.
The multi-touch interface enables operators to easily control industrial applications, monitor production data, and interact with automation systems. It is suitable for industrial HMI systems, smart factory terminals, equipment control panels, and digital workstations.
The Z-Series ARM Panel PC integrates an independent 6 TOPS NPU (Neural Processing Unit) to enhance AI computing capability at the edge.
Compared with traditional industrial computers that rely only on CPU processing, the integrated NPU enables faster and more efficient AI-related tasks, including image recognition, intelligent monitoring, machine vision applications, and AI-based industrial automation.
The system also supports 8K video decoding, 8K video encoding, and 8K display output. This makes it suitable for advanced visualization and intelligent terminal applications.
Unlike Touch Think standard industrial panel PCs, the Z-Series integrates multiple intelligent interaction modules.
Built-in 100W HD Camera
The integrated high-definition camera supports applications such as face recognition, remote monitoring, video communication, and intelligent access control.
Dual-Frequency Card Reader
The built-in card reader supports 125KHz cards + 13.56MHz cards. It enables secure identification functions for employee authentication, factory access control, equipment operation authorization, and smart attendance systems.
This two functions make the Z-Series an excellent choice for smart factory and industrial security applications.

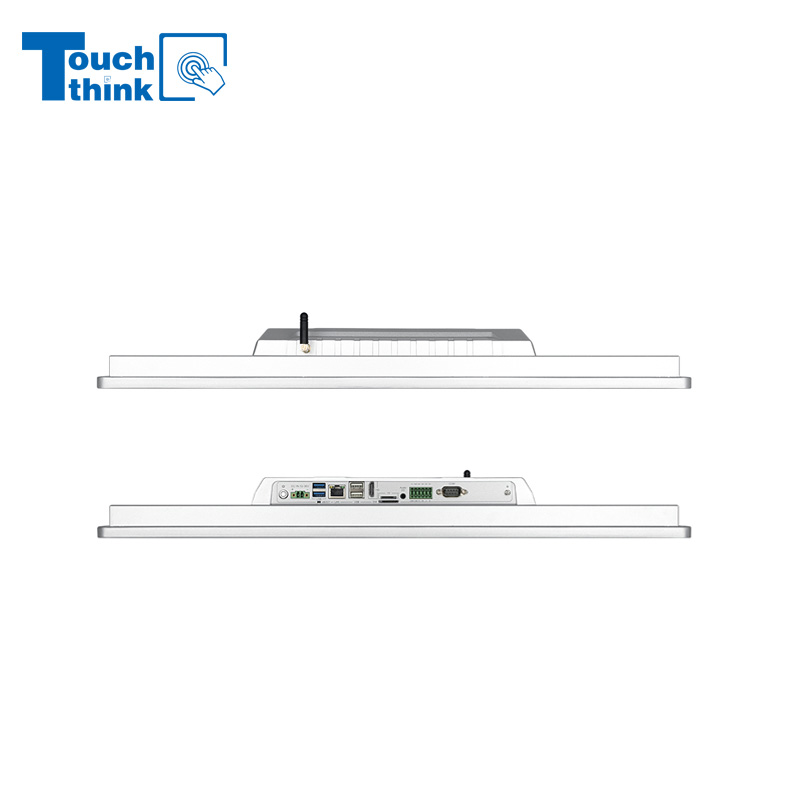

The Z-Series is designed for industrial integration and supports flexible interface expansion.
A 12-pin Phoenix connector provides four customizable interfaces, allowing users to define and upgrade functions according to project requirements. Possible customization options include digital I/O, industrial communication interfaces, control signals, and sensor connections
The serial ports feature adjustable design, allowing flexible configuration and future upgrades. Optional support includes RS232, RS485, and RS422
Opto-isolated serial communication: This flexibility helps reduce development costs and simplifies system integration.
The Z-Series ARM Industrial Panel PC comes standard with Android 13, providing a modern and user-friendly operating environment.
It also supports Linux, Ubuntu and customized operating systems. For developers and system integrators, an open API development interface is available for secondary development and application customization.
This allows seamless integration with MES systems, industrial databases, IoT platforms, and custom automation software.
The Z-Series supports various installation methods to meet different deployment requirements, inclusing wall mounting, VESA / Cantilever mounting, desktop stand mounting, and cieling-mounted. Whether installed on production lines, machine equipment, workstations, or interactive terminals, the flexible mounting design provides easier system deployment.
| Display Parameters | Size | 10.1" / 11.6" / 15.6" / 21.5" Options | ||
| Backlight type | LED backlight screen, service life ≥ 50000H | |||
| Touch Screen | Capacitive, Resistive, or Non-touch options | |||
| Motherboard Model Selection | CX3568-Z | CX3576-Z | CX3588-Z | |
| System Architecture | CPU | RK3568 Quad-Core 2.0GHz | RK3576 Octa-Core 2.2GHz | RK3588 Octa-Core 2.4GHz |
| Core Architecture | Cortex-A55 | Quad-Core Cortex-A72 + Quad-Core Cortex-A53 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | ARM Mali-G52 MP2 | Mali G52 MC3 | ARM Mali G610 MC4 | |
| Memory (DDR) | 2GB (4/8GB optional) | 4GB (8/16GB optional) | 8GB (16/32GB optional) | |
| Storage (eMMC) | 32GB (64/128/256GB optional) | 64GB (64/128/256GB optional) | 64GB (256GB optional) | |
| Operating System | Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | Android 14.0, Linux 6.1, Ubuntu 22.04, Debian 12 | Android 13.0, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | |
| Networking | Ethernet | 1*1000M (2*1000M Ethernet options) | 1*1000M (2*1000M Ethernet options) | 1*1000M Ethernet (1*1000M + 1*100 Mbit Ethernet options) |
| 4G | Optional. Based on the 4G module selection | Optional. Based on the 4G module selection | Optional. Based on the 4G module selection | |
| WIFI | WIFI6, Dual-band 2.4/5GHz | WIFI6, Dual-band 2.4/5GHz | WIFI6, Dual-band 2.4/5GHz | |
| Bluetooth | BT5.3 | BT5.3 | BT5.3 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | ||
| EDP | Support 1920*1080 60Hz output | |||
| MIPI | Support 1920*1080 60Hz output | |||
| Mipi Camera | 30-pin FPC interface, supports 1300W Camera | |||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 4K 4096*2160 120Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |
| Touch Function | Touch Interface | USB/IIC | USB/IIC | USB/IIC |
| I/O Ports | MICRO USB | / | / | / |
| USB 2.0 | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*5 on board | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*3 on board | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*3 on board | |
| USB 3.0 | USB3.0*2 (including OTG*1) | USB3.0*2（including OTG*1) | USB3.0*2（including OTG*1) | |
| RS232 | RS232*3 | RS232*6 | RS232*3 | |
| RS485 | RS485*3 | RS485*5 | RS485*3 | |
| TTL | TTL*2 | TTL*1 | TTL*2 | |
| GPIO | GPIO*12 (input/output) | GPIO*10 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | Support | |
| TF Slot | Support | Support | Support | |
| CAN | CAN*1 | CAN*2 | CAN*1 | |
| Speaker | Support | Support | Support | |
| MIC | Support | Support | Support | |
| Audio Port | 3.5mm earphone jack, supports input/output | 3.5mm earphone jack, supports input/output | 3.5mm earphone jack, supports input/output | |
| I/O Expansion | Available | Available | Available | |
| Power | Power Input | DC 12-36V | DC 12-36V | DC 12-36V |
| Adapter | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Enclosure | Aluminum alloy housing | Aluminum alloy housing | Aluminum alloy housing |
| Cooling System | Fanless | Fanless | Fanless | |
| Mounting | Desktop, wall-mounted, VESA75/100mm, ceiling-mounted | |||
| Product Reliability | Working Temp | -10°C ~ 60°C | -10°C ~ 60°C | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | |
| Ambient Humidity | 20% - 95% (relative humidity non-condensing) | 20% - 95% (relative humidity non-condensing) | 20% - 95% (relative humidity non-condensing) | |
| IP rating | Front IP65 | Front IP65 | Front IP65 | |
The Z-Series can serve as an intelligent production terminal for:
- Work order management
- Operator authentication
- Production data collection
- Equipment monitoring
With integrated RFID reader and camera, it can be used for:
- Factory entrance management
- Restricted area access
- Employee verification
The touchscreen design and card recognition capability make it suitable for:
- Smart kiosks
- Visitor registration systems
- Industrial self-service terminals
The ARM industrial panel PC can connect with industrial controllers and automation equipment for:
Machine monitoring
Process visualization
Equipment operation
Every industrial project has unique requirements for hardware integration, communication interfaces, and user interaction. Touch Think provides professional OEM/ODM customization services for ARM-based industrial panel PCs, helping customers create application-specific solutions for smart manufacturing, intelligent kiosks, access control systems, logistics terminals, and industrial automation equipment.
From hardware modification to software optimization, our engineering team supports flexible customization based on your project requirements.
