Size: 10.4"
This state-of-the-art Customizable Industrial Android Panel PC with a 10.4-inch display – is a versatile solution designed to meet the unique demands of your industrial environment. Tailored for adaptability and performance, this panel PC empowers you to optimize control, monitoring, and automation processes with unparalleled flexibility.
Product Color

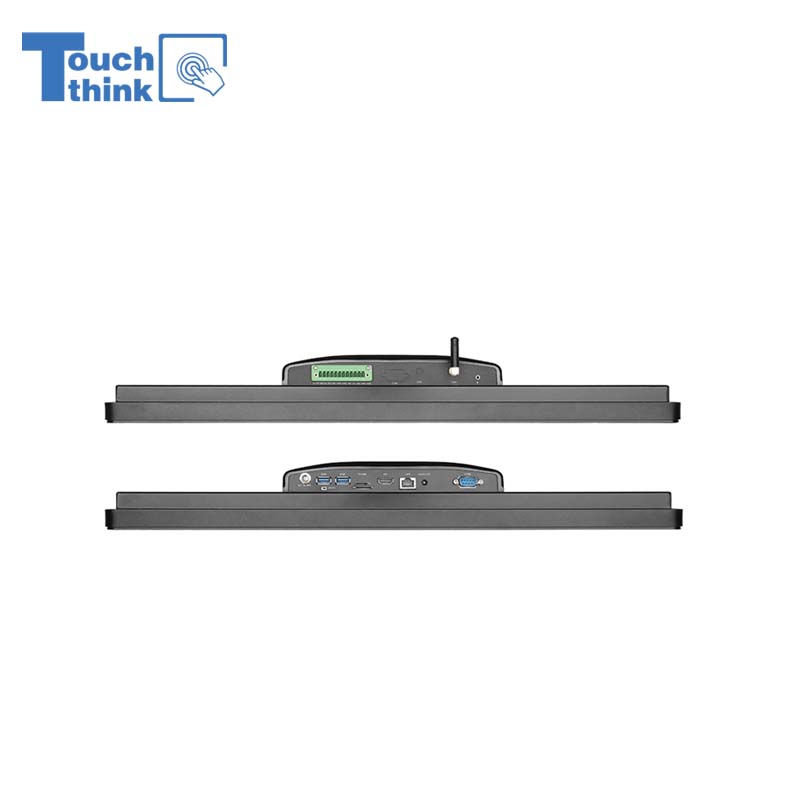

Customizable industrial Android panel PC 10.4 inch
Model: TPC104-A19
Product Features
● 10.4-inch High-Resolution Touchscreen Display: Immerse yourself in a visual experience characterized by clarity and precision. The expansive 10.4-inch touchscreen display provides an intuitive interface for seamless interaction with your industrial applications and data.
● Android Operating System: Harness the power of the Android operating system, ensuring compatibility with a myriad of applications and facilitating a user-friendly environment. Stay at the forefront of technology with access to the latest software updates and advancements within the Android ecosystem.
● Equipped with Quad-Core 64-Bit 2.0GHz RK3568 high-speed processor (with A64/RK3288/RK3399/RK3588 options).
● Customization at Your Fingertips: Adapt the panel PC to your exact specifications with our extensive customization options. Tailor features such as function keys, ports, and hardware configurations to align seamlessly with the unique requirements of your industrial processes.
Display Parameters | Size | 10.4" | |||
| Resolution | 1024x768 | ||||
| Screen Ratio | 4:3 | ||||
| Brightness | 400 nits (Optional high brightness) | ||||
| Contrast Ratio | 1000:1 | ||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | ||||
| Backlight type | LED backlight screen, service life ≥ 50000H | ||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||||
| Motherboard Model Selection | JWS3288-I | CX3399-A | CX3568-A | CX3588-A | |
| System Architecture | CPU | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
| Memory (DDR) | 2GB (4GB optional) | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
| Storage (eMMC) | 16GB (32/64/128/256GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | Support | / | |
| Operating System | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet |
| 4G | Optional. Based on the 4G module selection | ||||
| 5G | / | / | / | / | |
| WIFI | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |||
| EDP | 1920*1080 60Hz output | ||||
| MIPI | Support 1920*1080 60Hz output | ||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | ||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |||
| HDMI Input | HDMI Input, 24-pin FPC custom interface | HDMI Input, 24-pin FPC custom interface | / | / | |
| Touch Function | Touch Interface | USB | USB/IIC | ||
| I/O Ports | MICRO USB | / | / | / | / |
| USB 2.0 | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | |
| USB 3.0 | / | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | |
| RS232 | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | |
| TTL | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | |
| GPIO | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | Support | Support | |
| TF Slot | Support | Support | Support | Support | |
| CAN | / | / | Support | Support | |
| Speaker | 3.5mm standard Jack | ||||
| MIC | Support | Support | Support | Support | |
| Audio Port | 3.5mm earphone jack, support input/output | ||||
| I/O Expansion | Available | ||||
| Power | Power Input | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 261.5*208.9*51.9mm | |||
| Enclosure | Aluminum alloy housing | ||||
| Cooling System | Fanless | ||||
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||
Product Reliability | Working Temp | -20°C ~ 70°C | |||
| Storage Temp | -30°C ~ 80°C | ||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||
| IP rating | Front IP65 | ||||
