Embedded Industrial Monitor Waterproof and Dustproof HD 21.5"

Size: 21.5

Touch Think 2nd updated generation industrial embedded monitor with thin 3mm front panel and fashion appearance.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 12”

  • 12.1”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”

10mm Bezel Industrial Panel PC

Resolution:1366*768

10mm Bezel Industrial Panel PC

Resolution:1024*768

10mm Bezel Industrial Panel PC

Resolution:800*600/1024*768

10mm Bezel Industrial Panel PC

Resolution:1280*800

10mm Bezel Industrial Panel PC

Resolution:1024*768

10mm Bezel Industrial Panel PC

Resolution:1366*768

10mm Bezel Industrial Panel PC

Resolution:1280*1024

10mm Bezel Industrial Panel PC

Resolution:1920*1080

10mm Bezel Industrial Panel PC

Resolution:1280*1024

10mm Bezel Industrial Panel PC

Resolution:1440*900

10mm Bezel Industrial Panel PC

Resolution:1920*1080

10mm Bezel Industrial Panel PC

  • product description
  • Product parameters
  • Application
  • OEM/ODM

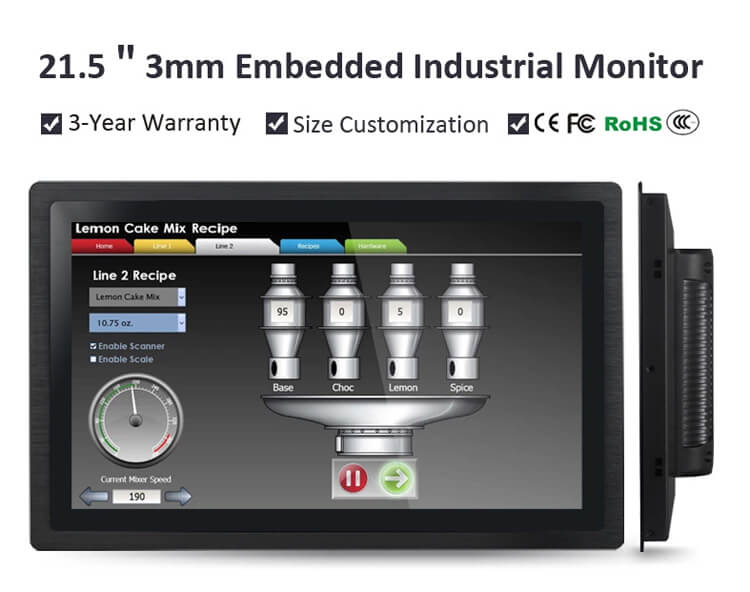

Embedded Industrial Monitor Waterproof and Dustproof HD 21.5"

Embedded industrial monitor combine all in one PC and touch screen panel into a compact enclosure. It

has a seamless design for low maintenance and easy to operate under harsh working environment.

Embedded Industrial Monitor

Industrial Monitor Case Display

Take the 21.5" industrial monitor with 3mm front panel as example:

Embedded Monitor

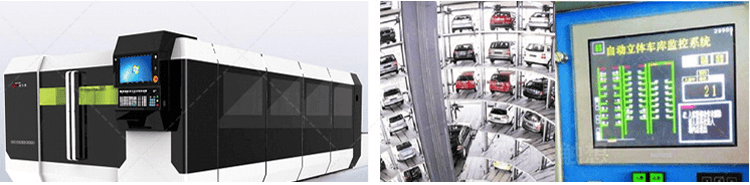

1. Application range: CNC cutting machine.

Application Equipment: Cutting Machine:

Customer demand: monitor with touch screen, anti-dust and anti-vibration.

Product Feature: Big size display screen, it can satisfy cutting machine’s requirements such as displaying

rich graphics and control display interface. Touch Think industrial monitors conform to IP65 rated dustproof

and waterproof, and Chinese GB2423 anti-vibration. In such industrial environment, resistive touch screen

is recommended due to its strong ability of anti-interference, and worker who wear gloves also can operate

the embedded industrial monitor in that environment.

2. Application range: Supermarket, hypermarket, hospital, hotel and restaurant.

Application Equipment: Stereo garage

Customer demand: High stability, high running speed and low power consumption

Product Feature: Industrial monitors apply in these case should equip with industrial grade drive board,

and transmission interface RS232/RS485 should de pre-setted, to ensure equipment running with high

speed and stable. Capacitive touch screen is recommended in such environments, as it is easy to operate.

Working temperature can be -20°C~70°C, and power consumption is less than 48W. Embedded monitor

with good compatibility and expandable features.

Embedded Industrial Monitor

3. Application range: Community, industrial park and commercial building.

Application Equipment: Smart express cabinet

Customer demand: High brightness, waterproof and dustproof, stable performance.

Product Feature: Industrial monitor apply to smart express cabinet can adopt brightness up to 800cd/m2,

and it also has built-in photosensitive system, which can automatically adjust the brightness of the screen.

Providing three signal input port: VGA, DVI and HDMI. The express cabinet display also satisfy IP65 water-

proof and dustproof. Big size screen can display smart express cabinet control signal, it is convenient for

end-users to input personal information to pick up cargos.

4. Application range: Community, office building, and CBD.

Application Equipment:  ATM

Customer demand: Touch screen, prevent peeping, and stable performance

Product Feature: Industrial monitors embedded to such financial self-service device, should adopt to ten-

point capacitive touch screen technology, precise to touch, and no drift phenomenon. Touch Think industrial

touch screen monitor also has built-in photosensitive system, which can automatically adjust the brightness

of the screen. What’s more, peep-proof protection film is fitted for ATM monitor screen, blocks visibility from

side angles outside the 30 degree viewing angle, but not behind from users, it's good for protecting users’

privacy. Touch Think industrial monitor support stable running under kinds of environments, such as -20°C~

70°C.

Industrial Monitor Display From Touch Think

Embedded Industrial Monitor Waterproof and Dustproof HD 21.5"

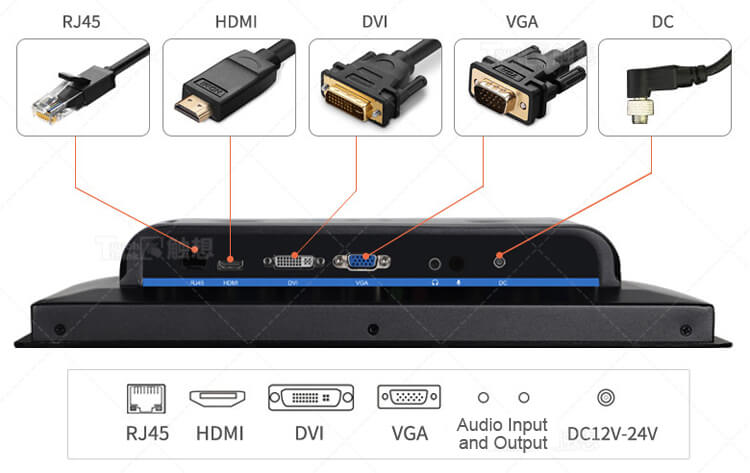

Product Interface

Touch Think industrial monitors offer diversified Interface, to satisfy customer's multi-requirements.

Embedded Industrial Monitor Waterproof and Dustproof HD 21.5"

Embedded Monitor

Embedded Monitor Installation Steps

Embedded mount method is one of the most popular installation methods at present, as it is suitable for

most application.

Embedded mount Industrial Monitor




Motherboard
Display
Luminance400cd/m2 (500-1500cd/m2 for customized)
DisplayA + high brightness LED backlight panel
Backlight lifetime50000h
Point distance0.264mm
Display color16.7M
Response time5ms
Viewing angle160°/160°,support customize full view 178°
Touch screenCapacitive touch screen, Resistive touch screen, IR touch screen and Non-touch screen
Touch lifetimeCapacitive/IR touch  ≥50 million times ,Resistive touch screen  ≥35 million times
Other
Power input12V-5A power adapter
Power supply100-240V,50-60hz
Max Power Dissipation≤60W
EnvironmentWorking temperature:-20~70°C, support customize wide temp -30°~80° C, Working humidity :<80%
The I/O Interface
WIFI                       1
DC12V                        1
VGA                           1
HDMI                              1
USB      USB2.0*3+USB3.0*1
LAN                       1
Audio I/O                        1
COM       2*RS232  (RS485/RS422 optional)
