Home  >>  Products >> Industrial Android All-in-one PC >> 3mm Front Bezel Industrial Android Panel PC

Android Touch All In One PC Waterproof Dustproof 11.6 Inch

Size: 11.6"

Touch Think 11.6-inch reliable industrial tablet PC ideal for the industrial field in challenging conditions. IP65 industrial-grade protection for water-proof, rain-resistant & dust-proof.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Android Touch All-In-One PC Waterproof Dustproof 11.6"


Model: TPC116-A2


In modern industrial environments, the demand for rugged, intelligent, and easy-to-use computing solutions is greater than ever. The 11.6-inch Industrial Android Touchscreen All-in-One PC is purpose-built to withstand harsh working conditions while delivering seamless performance for automation, monitoring, and control applications.



Compact 11.6-Inch Touch Display

The 11.6-inch capacitive touchscreen offers a balance of portability and clarity, providing operators with smooth, precise control. Its high-resolution display ensures crisp visuals, while the wide viewing angles make it suitable for human-machine interfaces (HMI), kiosks, and industrial automation systems.



Robust Design for Harsh Environments

Equipped with an IP65-rated waterproof and dustproof front panel, this industrial PC ensures reliable operation even in challenging environments such as factories, workshops, and outdoor kiosks. The rugged construction protects against water splashes, dust ingress, and accidental impacts, making it ideal for continuous 24/7 operation.



Android OS for Smart Applications

Running on the Android operating system, this all-in-one panel PC provides a familiar and versatile software ecosystem. It supports a wide range of industrial and commercial apps, making integration simple and cost-effective. Users can benefit from easy customization, remote updates, and connectivity with cloud-based platforms.

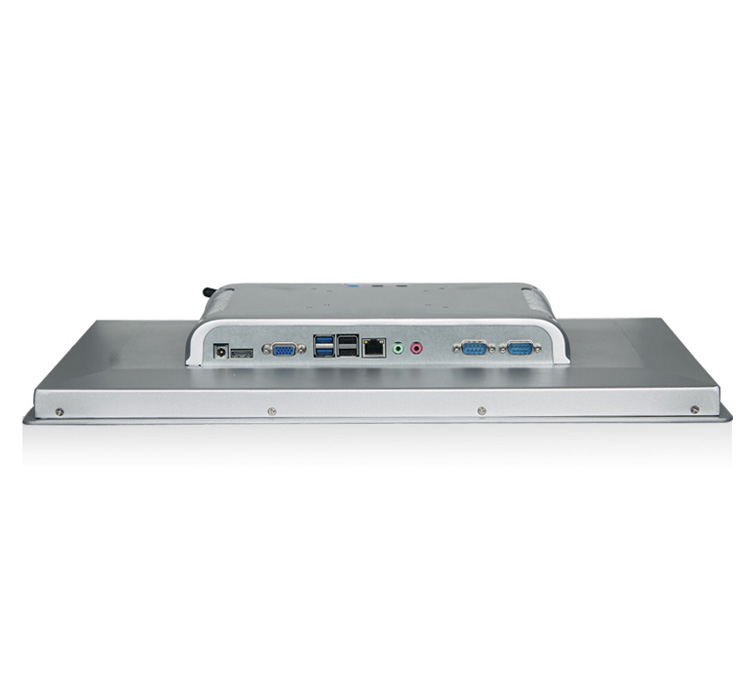

Connectivity and Expansion

Designed with abundant I/O ports and wireless connectivity options, including Wi-Fi, Bluetooth, Ethernet, and an optional 4G module, the device ensures seamless communication within industrial networks. This flexibility allows it to support various peripherals and external sensors for data collection, monitoring, and control.



The 11.6-inch Industrial Android Touchscreen All-In-One PC with IP65 waterproof and dustproof protection delivers a perfect combination of rugged durability and intelligent performance. Compact yet powerful, it is an excellent choice for industries seeking a reliable solution to optimize automation, enhance efficiency, and support smart applications in demanding environments.












Display ParametersSize11.6"
Resolution1920x1080
Screen Ratio16:9
Brightness220~300 nits (Optional high brightness)
Contrast Ratio1000:1
Viewing Angle89/89/89/89 (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options









Motherboard Model SelectionJWS64
JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
SATA////Support/1*SATA hard drive port
Operating SystemAndroid 6.0Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0

Android 7.1 / 9.0 / 11 / Ubuntu18.04 /

 Debian10.0 / Linux4.4

Android 7.1/9.0/11,

Linux 4.4 / Ubuntu 18.04 / Debian 10

Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11Android 13.0Android 12 / Linux 5.10 / Debian11 / Ubuntu 20.04









NetworkingEthernet1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
4GOptional. Based on the 4G module selection
5G

/

/////Support M.2 5G module interface
WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









Display FunctionLVDSSupport 1920*1080 60Hz output
EDP/1920*1080 60Hz output4K 3840*2160 output
MIPISupport 1920*1080 60Hz output
Mipi Camera30pin FPC interface, support 1300W Camera
HDMI OutputHDMI 2.0, support 4K 3840*2160 60Hz outputHDMI 2.1, support 8K 7680*4320 60Hz output
HDMI Input/HDMI Input, 24-pin FPC custom interface/HDMI Input, 24-pin FPC custom interface//HDMI 2.0, support 4K 3840*2160 60Hz input
Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC
I/O PortsMICRO USB1*MICRO USB (OTG)/////
USB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 (including OTG*1) + USB2.0*6 on boardUSB2.0*5 on boardUSB2.0*1 + USB2.0*5 on boardUSB2.0*4 on boardUSB2.0*1 + USB2.0*4 on boardUSB2.0*5 on board
USB 3.0//USB3.0*2 (including OTG*1)USB3.0*1(OTG)USB3.0*2 (including OTG*1)
USB3.0*1(OTG)
USB3.0*4 (including OTG*1)
RS2323*RS232/TTL mutual conversion1*RS232, 2*TTL/RS232 optionalRS232*2RS232*2RS232*2RS232*2RS232*1; RS232/TTL*2 (optional)
RS485 / (Unless install RS232 to RS485 converter)RS485*1RS485*1RS485*1RS485*1RS485*1
TTL3*RS232/TTL mutual conversion1*RS232, 2*TTL/RS232 optionalTTL*2TTL*2TTL*2TTL*2TTL*1; RS232/TTL*2 (optional)
GPIO3*GPIO output, 1*GPIO input, and 1*ADC portGPIO*7 (input/output)GPIO*8 (input/output)GPIO*8 (input/output)GPIO*12 (input/output)GPIO*6 (input/output)
SIM SlotSupportSupportSupportSupportSupportSupport
TF SlotSupportSupportSupportSupportSupportSupport
CAN////SupportSupport
Speaker3.5mm standard Jack
MICSupportSupportSupportSupportSupportSupport
Audio Port3.5mm earphone jack, support input/output
I/O Expansion Available









PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A

MechanicalDimension323.7*218.5*50.5mm
EnclosureAluminum alloy housing
Cooling SystemFanless
MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product

Reliability

Working Temp -20°C ~ 70°C
Storage Temp -30°C ~ 80°C
Ambient Humidity 5% - 95% (relative humidity non-condensing)
IP ratingFront IP65





11.6-inch industrial Android panel PC Key Applications


1. Industrial Automation: Real-time control and monitoring of production lines.

2. Kiosk & Self-Service Terminals: Reliable user interaction in retail and transportation hubs.

3. Smart Factories & Warehousing: Data visualization and equipment management.

4. Outdoor Information Systems: Weather-resistant display for digital signage.






11.6-inch industrial Android panel PC supports OEM and ODM services. For more details, please contact us.
