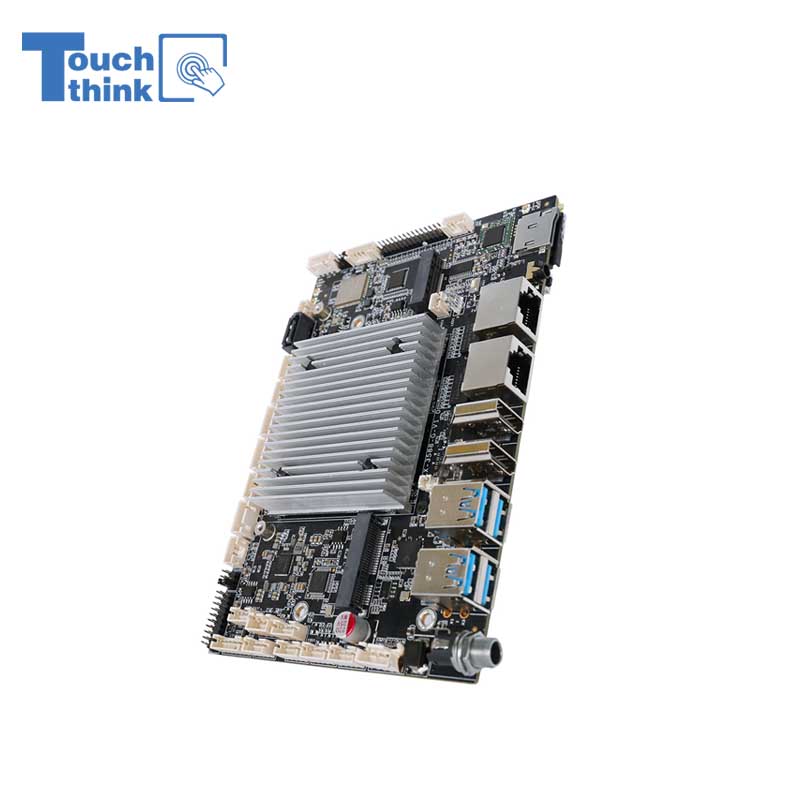

RK3588 Industrial Motherboard with Android 12 Octa-Core 64Bits CPU for Digital Signage

Size: 160.3*109*22.8mm

The model CX3588-G supports an 8K ultra-high-definition display, and with RK3588 industrial motherboard is built with Octa-Core CPU for high computing performance and is easy to integrate into AIoT platforms. It has abundant I/O connectivity, and high expansibility, ideal for industrial applications, and kiosks.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM



Model: CX3588-G


Touch Think's industrial-embedded motherboards are designed with small footprints, ideal for limited-space applications. They are equipped with an octa-core CPU, offering a high computing capability, and high flexibility in terms of storage and I/O expansion. All the components are selected from famous brands with reliable and rugged quality, suitable for harsh environments. They are easily customizable.



Features


● High-end Qcta-Core 64-bit CPU: Cortex-A76 Quad-Core + Cortex-A55 Quad-Core, 2.4GHz main frequency

● High configuration storage, 8GB RAM + 64GB eMMC memory (16+128GB optional)

● 8K ultra high definition display, supporting 8K@60fps, presenting rich colors, and clear quality.

● Powerful network communication capability, support Dual Gigabit Ethernet, WIFI 6, and BT5.0.

● Support dual-screen display and the four-screen display is customizable

● Support wide voltage operation: 12V-36V

● High and low-temperature resistance operation: -20°C to +70°C

● Anti-static, static contact is ± 8KV, and air contact is ± 15KV

● Equipped with the Android 12.0 operating system, the Linux system is customizable



Applications


● Industrial Control

● Internet of Things

● Transportation

● Digital Signage

● Outdoor Kiosks

● Gaming Machines

● Retail


Hardware ConfigurationCPUQcta-core 64-bit, 2.4GHz
GPUMali-G610MP4
RAM
Default with 8GB (16GB optional)
MemoryeMMC default with 64GB (128GB optional)
Operating SystemAndroid 12.0 / Linux system customizable
Built-in ROM4KB EEPROM
4G/5GBuilt-in WCDMA, EVDO, 4G/5G full Netcom, support voice calls
TF CardSupport
WIFIDual frequency 2.4/5G
BluetoothBT5.0
GPSExternal GPS (optional)
RTCSupport
System UpgradeSupport local TF, USB upgrade
Timer SwitchSupport
SpeakerSupport

Interface ParameterUSB2*USB3.0 standard interface; 4*USB2.0 standard interface4*USB2.0 socket
Serial Interface4*RS232, 1*RS485, 2*TTL(1*RS232 optional), 2*CANFD/CAN
WIFI ConnectorSupport dual-band WIFI dual antenna
Mipi Camera30pin FPC interface, support 1300w Camera
HD Interface1*HDMI, support 1080P@120Hz, 4kx2k@60Hz output
Network Card Interface2*Gigabit Ethernet (RJ45)
Audio InterfaceAudio I/O
Support ExpansionSupport interfaces customization for various industries

Display ParametersDecoding ResolutionUp to 8K
Playback ModeSupport multiple playback modes such as loop, timing, and interrupt
Video PlaybackSupport WMV, avi, flv, rm, rmvb, MPEG, ts, mp4, etc.
Image FormatsSupport BMP, JPEG, PNG, GIF

Product ReliabilityWorking Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Relative Humidity95% Non-Condensing

The Power AdapterPower Consumption20W
Power Input AC 100-240V 50/60Hz; CCC, CE approved
Power OutputDC12V/5A

Packaging SpecificationWarranty PolicyOne year warranty
Packaging ListJWS3588 motherboard, instruction manual, warranty card



Touch Think Industrial Android Motherboards are ideal for applications such as kiosks, POS systems, digital signage, self-service vending machines, ATMs, heavy industrial equipment, industrial robots, and commercial robots.



We have customization services for the motherboards, If you need to make any tailored customizations for your projects, please contact us for details.
