Size: 17.3"

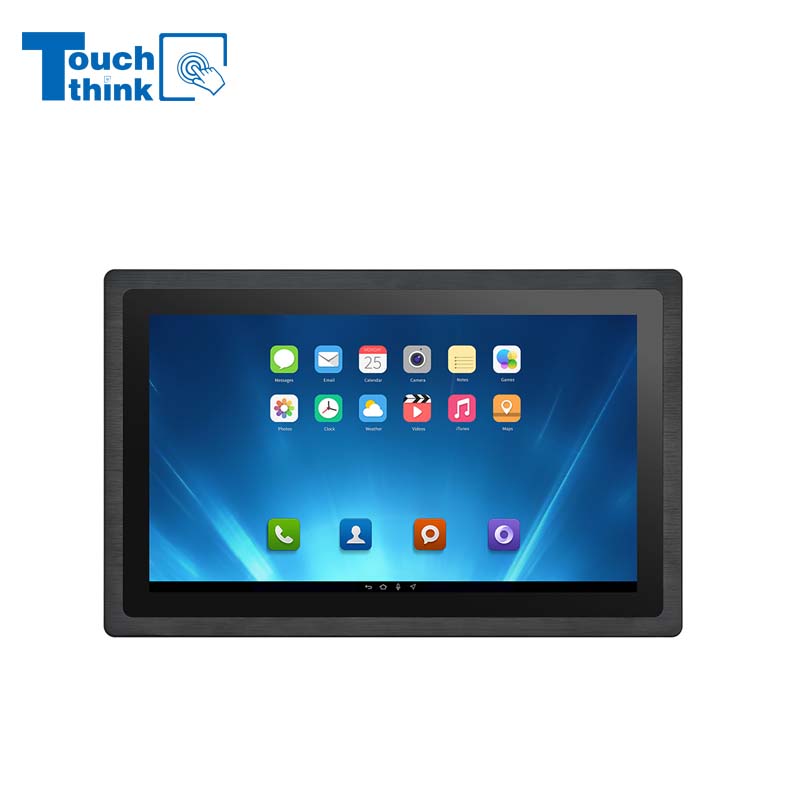

This 17.3-inch Industrial Panel Mount PC, powered by the RK3568 or RK3588 processor and running on Android, Linux, or Ubuntu OS, supports Google Play. Designed for demanding environments where reliability and smooth operation are critical.
Product Color
Model: TPC173-A28
The demand for industrial panel PCs continues to grow as industries adopt smarter automation solutions. The 17.3 inch Industrial Panel Mount PC, powered by the RK3568 or RK3588 processor and running on Android OS with Google Play support offers the perfect balance of performance, durability, and flexibility. With its high-brightness display, robust construction, and advanced connectivity, this industrial panel PC is designed for demanding environments where reliability and smooth operation are critical.
1. 17.3 Inch High-Brightness Display
Featuring a 17.3-inch widescreen display, this panel PC delivers crystal-clear Full HD visuals with enhanced brightness for excellent readability in bright or outdoor environments. Ideal for HMI interfaces, kiosks, and automation systems, the screen ensures operators can monitor data with precision.
2. Powerful RK3568 RK3588 Processor Options
At the heart of this device is the Rockchip RK3568 processor (RK3588 optional), delivering stable performance, energy efficiency, and smooth multitasking. This makes the industrial panel mount PC highly suitable for real-time control, monitoring, and intelligent applications.
3. Android OS with Google Play Support
Running on the Android operating system (Linux, Ubuntu, Debian optional), the PC provides a familiar and user-friendly interface. With Google Play support, industries can access a wide range of business and automation apps, enabling customization and easy integration into existing workflows.
4. Industrial-Grade Reliability
The rugged design ensures long-term operation in tough environments. Built with durable housing and designed for panel mount installation, this industrial PC withstands vibration, dust, and continuous operation, making it perfect for manufacturing plants, transportation hubs, and outdoor systems.
5. Connectivity and Integration
Equipped with multiple I/O ports, wired/wireless connectivity options, and support for Google services, this panel PC easily integrates into IoT systems, automation networks, and smart industrial applications.
The 17.3 Inch Industrial Panel Mount PC with high brightness, RK3568 processor, Android OS, and Google Play support is an excellent solution for industries seeking a powerful, flexible, and reliable computing platform. Whether deployed in manufacturing, retail, transportation, or energy, this rugged panel PC provides the performance and versatility needed to support modern industrial applications.
| Display Parameters | Model | TPC173-A28 | |
| Size | 17.3" | ||
| Resolution | 1920*1080 | ||
| Aspect Ratio | 16:9 | ||
| Contrast | 1000:1 | ||
| Display Color | 16.7M | ||
| Brightness | 400cd/㎡ (Optional high brightness) | ||
| Visual Angle | 85°/85°/60°/80° (L/R/U/D) | ||
| Backlight Type | LED backlight screen, service life ≥ 50000H | ||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||
| Motherboard Model Selection | CX3568-Z | CX3588-Z | |
| System Architecture | CPU | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.4GHz |
| Core Architecture | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | ARM Mali-G52 MP2 | ARM Mali G610 MP4 | |
| Memory (DDR) | 2GB (4/8GB optional) | 8GB (16GB optional) | |
| Storage (eMMC) | 32GB (64/128/256GB optional) | 64GB (256GB optional) | |
| SATA | / | / | |
| Operating System | Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | Android 13.0, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | |
| Networking | Ethernet | 1*1000M (2*1000M Ethernet options) | 1*1000M Ethernet (1*1000M + 1*100 Mbit Ethernet options) |
| 4G | Optional. Based on the 4G module selection | Optional. Based on the 4G module selection | |
| WIFI | WIFI6, Dual-band 2.4/5GHz | WIFI6, Dual-band 2.4/5GHz | |
| Bluetooth | BT5.3 | BT5.3 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |
| EDP | Support 1920*1080 60Hz output | ||
| MIPI | Support 1920*1080 60Hz output | ||
| Mipi Camera | 30-pin FPC interface, supports 1300W Camera | ||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |
| HDMI Input | / | / | |
| Touch Function | Touch Interface | USB/IIC | USB/IIC |
| I/O Ports | MICRO USB | / | / |
| USB 2.0 | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*5 on board | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*3 on board | |
| USB 3.0 | USB3.0*2 (including OTG*1) | USB3.0*2（including OTG*1) | |
| RS232 | RS232*3 | RS232*3 | |
| RS485 | RS485*3 | RS485*3 | |
| TTL | TTL*2 | TTL*2 | |
| GPIO | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | |
| TF Slot | Support | Support | |
| CAN | CAN*1 | CAN*1 | |
| Speaker | 3.5mm standard Jack | 3.5mm standard Jack | |
| MIC | Support | Support | |
| Audio Port | 3.5mm earphone jack, supports input/output | 3.5mm earphone jack, supports input/output | |
| I/O Expansion | Available | Available | |
| Power | Power Input | DC 12~36V | DC 12~36V |
| Adapter | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Enclosure | Aluminum alloy housing | Aluminum alloy housing |
| Cooling System | Fanless | Fanless | |
| Mounting | Desktop, wall-mounted, VESA75/100mm, ceiling-mounted | ||
| Product Reliability | Working Temp | -10°C ~ 60°C | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C | -20°C ~ 70°C | |
| Ambient Humidity | 20% - 95% (relative humidity non-condensing) | 20% - 95% (relative humidity non-condensing) | |
| IP rating | Front IP65 | Front IP65 | |
The 17.3 inch Android-based industrial panel mount PC is ideal for:
1. Industrial automation – HMI terminals, factory monitoring, and machine control.
2. Retail & kiosks – interactive displays and self-service terminals.
3. Smart transportation – fleet management and ticketing systems.
4. Energy and utilities – monitoring and control systems in power plants.
5. Healthcare & commercial use – digital signage, patient information, and service kiosks.
We support OEM/ODM customization service for global customers. Please feel free to contact us for details.
