Product Overview

The Z-Series X86 Industrial Panel PC with Card Reading Function is a powerful industrial workstation designed for smart manufacturing, production management, equipment control, and intelligent human-machine interaction applications.

Built on the reliable Intel N97 quad-core processor platform, this industrial touchscreen computer delivers excellent compatibility with Windows 10/11 operating systems and industrial software applications. Compared with traditional embedded terminals, the Z-Series provides stronger software adaptability, allowing seamless deployment of MES, SCADA, ERP, database systems, and customized industrial applications.

The integrated dual-frequency card reader (125KHz + 13.56MHz) enables secure user identification and equipment authorization, while the built-in HD webcam and RGB status indicator support advanced interactive applications. Combined with flexible GPIO control, customizable Phoenix interfaces, and multiple installation options, the X-Series provides a complete workstation solution for modern industrial environments.

Available in 10.1", 11.6", 15.6", and 21.5" display sizes, this X86 industrial panel PC is ideal for factory workstations, production lines, machine control terminals, access management systems, and industrial IoT applications.

Key Features

Windows-Compatible Industrial Computing Platform

Powered by the Intel N97 quad-core, quad-thread processor with a clock speed of up to 2GHz, the X-Series delivers reliable computing performance for industrial software applications.

The X86 architecture provides broad compatibility with Windows 10, Windows 11, industrial control software, MES systems, SCADA platforms, ERP applications, and customized software solutions. Compared with lightweight embedded platforms, the Z-Series offers a familiar Windows environment that simplifies software deployment and system integration for industrial users.

Integrated RFID Card Reader for Secure Industrial Identification

The built-in 125KHz + 13.56MHz dual-frequency card reader enables convenient identity authentication and access management. The integrated RFID function supports applications such as operator login, equipment authorization, production workstation management, employee identification, and access control systems.

By combining computing, visualization, and identification functions into one device, the Z-Series reduces additional hardware requirements and creates a cleaner industrial workstation environment.

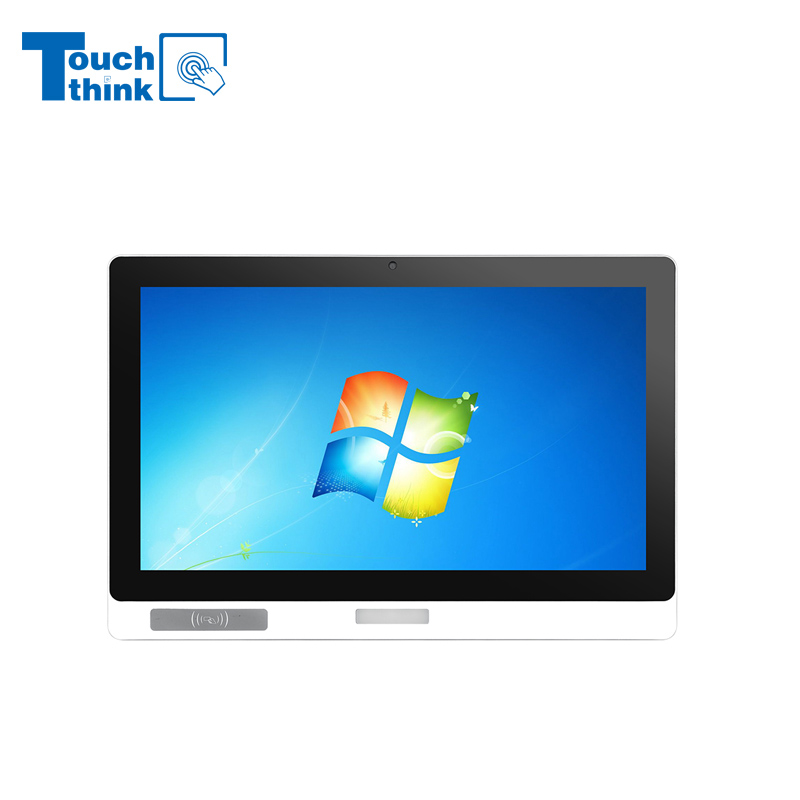

Built-in Webcam and RGB Status Indicator for Intelligent Interaction

The front-facing 1MP HD webcam provides additional interaction capability for industrial applications. It can support remote assistance, visual communication, identity verification, and smart monitoring applications.

The integrated RGB tri-color LED indicator provides real-time equipment status feedback, allowing operators to quickly understand system conditions through visual signals.

Expandable Industrial Interfaces and GPIO Control

Designed for industrial integration, the Z-Series provides flexible hardware expansion capability.

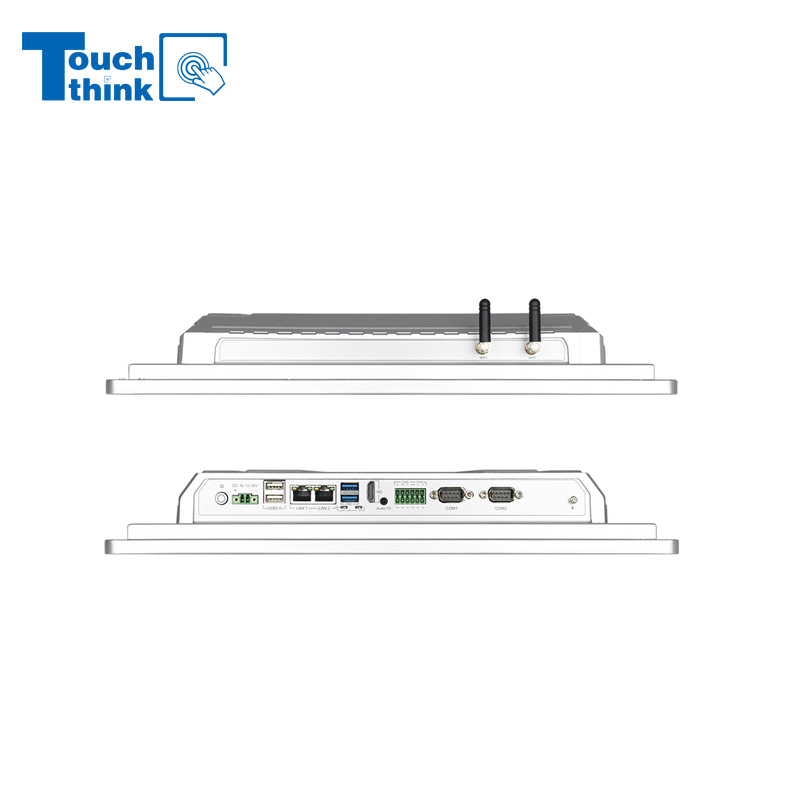

The integrated 12-pin Phoenix connector supports up to 6 customizable interface functions, allowing customers to define communication and control requirements according to specific applications. The system also supports 8-channel GPIO TTL input, and 8-channel GPIO TTL output.

These configurable I/O resources enable connection with sensors buttons, industrial controllers, machine equipment, and automation devices. The flexible interface design makes the Z-Series suitable for customized automation projects.

Designed for Industrial Workstation Deployment

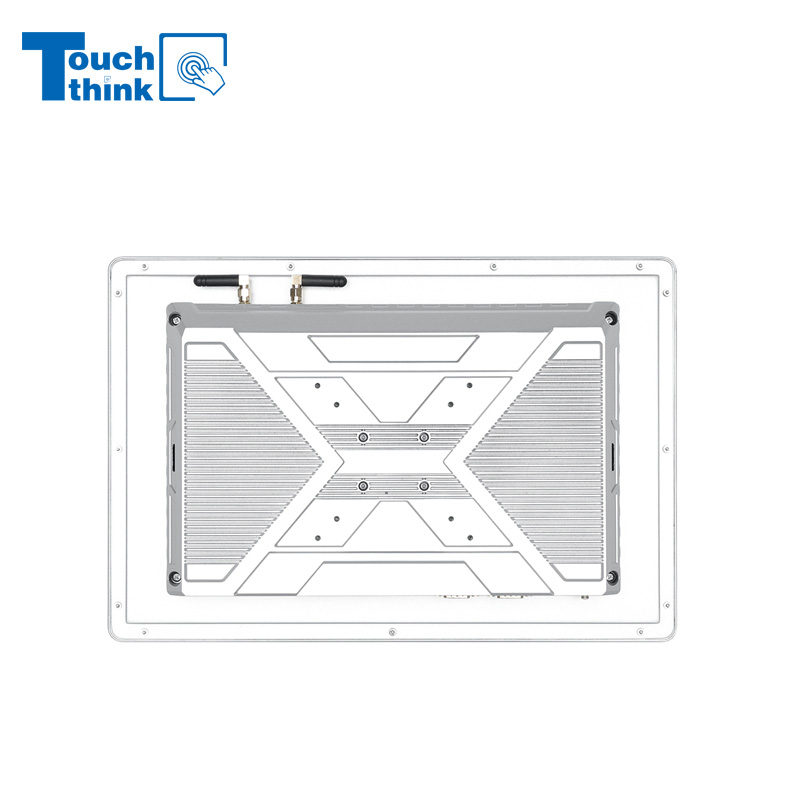

The Z-Series supports various installation methods to adapt to different working environments, including wall mounting, VESA mounting, desktop installation, and ceiling mounting. This flexibility allows integration into production workstations, assembly lines, machine equipment, control rooms, and factory information terminals.

Applications

Smart Factory Production Workstations

The Z-Series provides operators with a reliable Windows-based terminal for production data monitoring, work order management, operator authentication, and manufacturing process control.

MES and SCADA Systems

With Windows compatibility and multiple industrial interfaces, the Z-Series can support run MES software, SCADA applications, industrial databases, and equipment monitoring platforms.

Industrial Access Control Terminals

The integrated RFID reader enables employee authentication, equipment permission management, and restricted area access.

Machine Control and Automation Equipment

Through GPIO and industrial interfaces, the Z-Series can connect with sensors, controllers, production equipment, and automation systems.

OEM/ODM Customization Services

Touch Think provides professional customization services for X86 industrial workstation projects.

Hardware Customization

Available options include:

- Intel processor configuration

- Memory and storage selection

- Display size customization

- Touchscreen configuration

- Camera integration

- RFID module customization

- Interface Customization

Support:

- GPIO configuration

- Phoenix connector definition

- RS232/RS485 expansion

- Industrial communication interfaces

- Software Customization

Support:

- Windows system optimization

- Driver integration

- Application pre-installation

- API development support

- Customer software deployment

Mechanical Design Customization

Including:

- Mounting structure adjustment

- Housing color design optimization

- Front panel customization

- Cable layout modification
