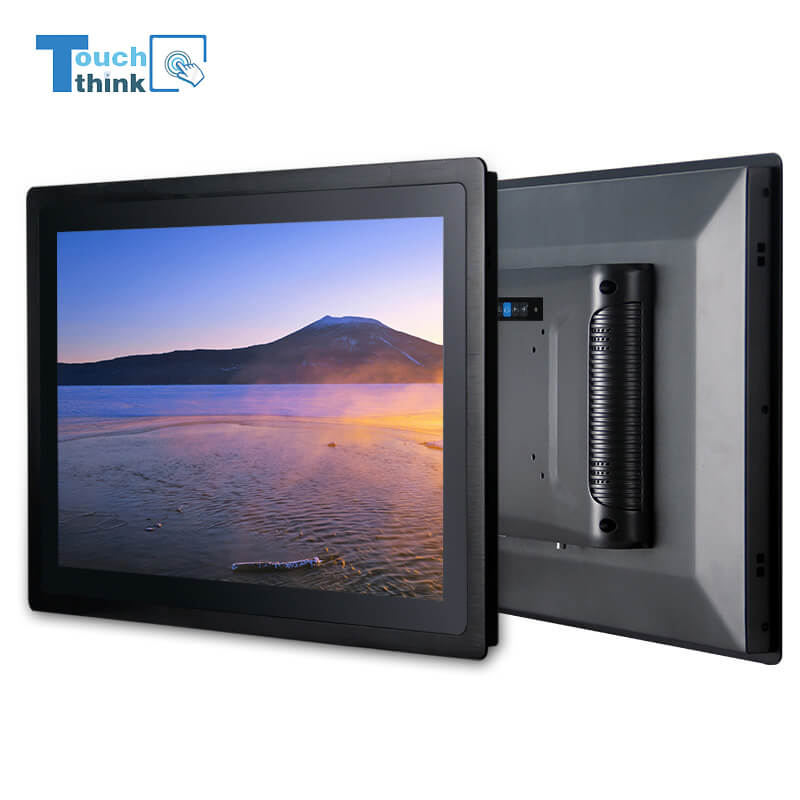

Industrial Embedded TFT LCD Monitor with DVI/VGA/USB Ports 10.1 Inch

Size: 10.1"

Touch Think is a top leading intelligent display equipment supplier in fields of Industrial Internet of Things (IIoT), M2M industrial automation, transportation, medical, smart city.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Industrial Embedded TFT LCD Monitor with DVI/VGA/USB Ports 10.1"


Model: TPC101-M19


Combining proven technologies and flexible manufacturing, Touch Think creates top leading solutions for your customers by designing, developing, and manufacturing industrial monitors that meet the demands of industrial display applied to Industrial Internet of Things (IIoT), M2M industrial automation, transportation, medical, smart city, and other intelligent system markets globally. Touch Think delivers a series of excellent competitive products and we insist the customer-centric development value reinforces all of our manufacturing and before-after sales service activities.



● Display:10.1 inch; Definition: 1280 * 800; Aspect ratio: 16:10

● Color: Black/Silver (color customization available)

● LED backlight for power saving and environmental protection

● -10~60°C wide operating temperature, wider operation temperature available

● 350nit brightness and rated for 50,000 hours of backlight life

● Dual signal interface with VGA and DVI, support I/O expansion

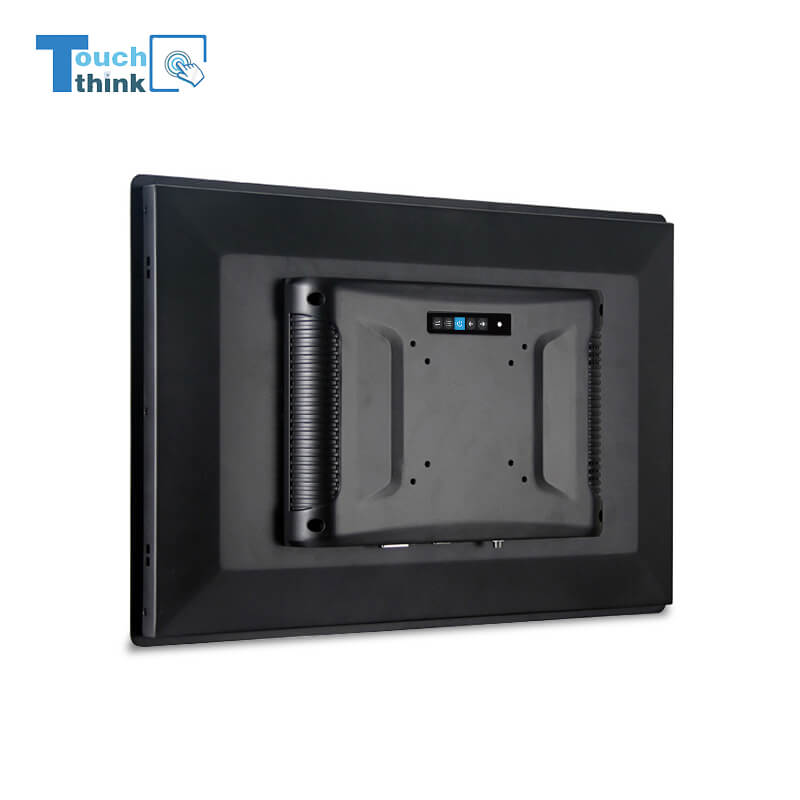

● Versatile mounting methods for Rear mounting and VESA mounting

● Anti-reflective surface treatment for sunlight readable enhancement (optional)

● Environment: indoor/outdoor device

● Ways to install: embedded | desktop | wall mounted | VESA | open frame

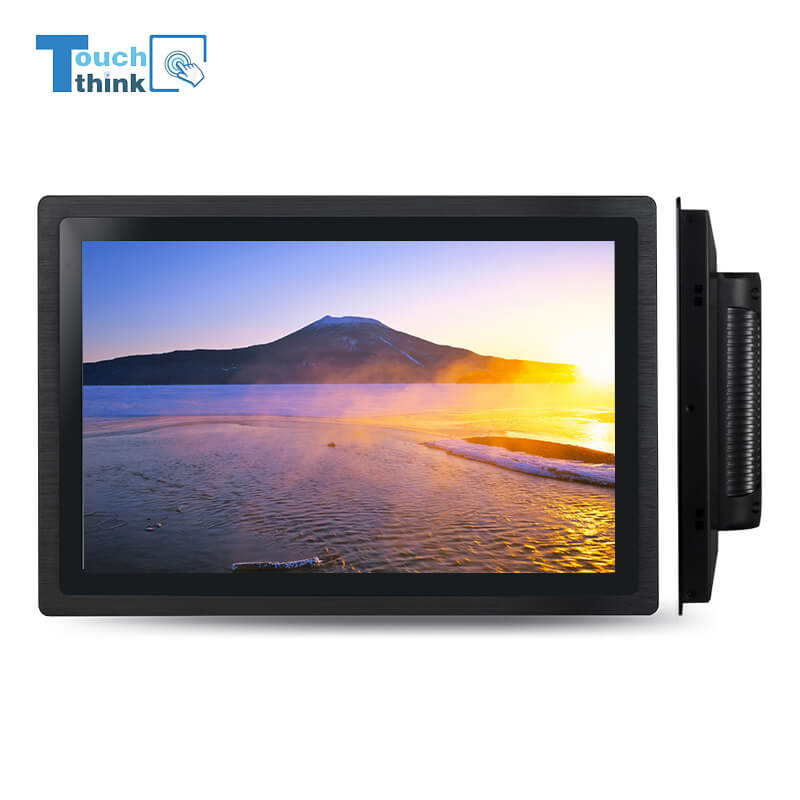

Touch Think 10.1-inch Industrial Embedded Mount Monitor - Model: TPC101-M19
Display
LCD Size10.1"
Resolution800*1280 / 1280*800
Aspect Ratio10:16 / 16:10
Luminance400cd/m2 (optional high brightness screen)
Backlight lifetimeLED backlight, 50000h
Point Distance0.264mm
Display Color16.7M
Response Time5ms
Surface Hardness7 Mohs
Viewing Angle85°/85°/85°/85° (L/R/U/D)
Touch ScreenCapacitive / Resistive touch screen / Mouse control
Configuration
CPU
Realtek RTD2513A-CG

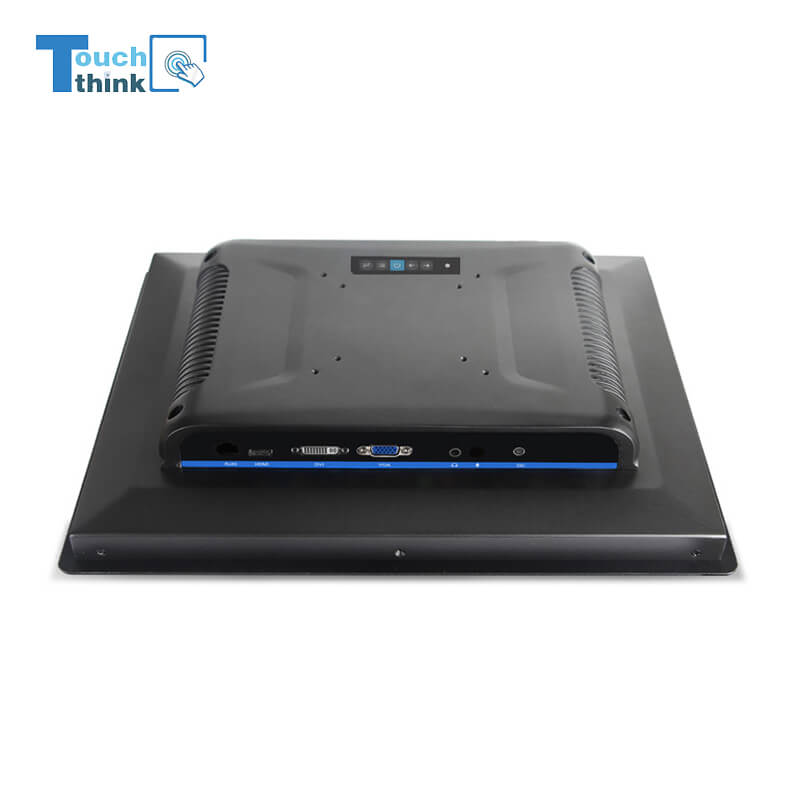

I/O Ports
Power Port

1*DC

HDMI1*HDMI, Max.1080P
DVI1*DVI
VGA1*VGA
Touch Port1*Touch (RJ45)
Audio I/O1*3.5mm Audio I/O
Phoenix Terminal1*Phoenix Terminal
GND1*GND
Power
Power Adapter24V/1.5A
Power InputDC 12V~36V
Product Reliability
Operation Temperature-10°C~60°C
Storage Temperature-20°C~70°C
Relative Humidity95% RH (Non-Condensing)
IP-ratingFront IP65
Vibration ResistantIEC 60068-2-64
Impact ResistantIEC 60068-2-27
CertificatesCCC/CE/FCC/EMC/CB/ROHS
Mechanical
MaterialAluminum alloy enclosure
ColorDefault with black color; Silver color optional

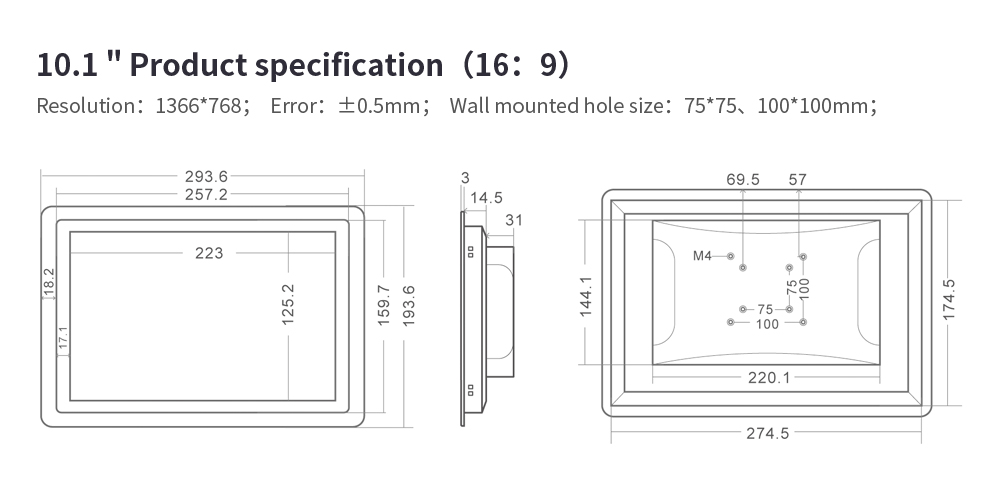

Dimensions (L x W x D)263.5 x 166 x 58.7mm
Mounting OptionsPanel Mount / Wall-mount / VESA75/100 / Stand

Industrial monitors are widely used in industrial manufacturing, industrial automation fields due to the rugged and reliable performance under harsh industrial environments for 7/24 long time running. Here list some applications of industrial embedded monitors:


1. Machine Vision Industry (MES)

1) Food traceability system

2) Drug traceability system

3) Code Reading System of Production Line

4) Quality control of inspection line



2. Factory Automation Industry

1) LCD Monitor Production Line Automation

2) Full Fire Monitoring System for Semiconductor Factory

3) Cable Production Workshop System

4) Production scheduling system of industrial and mining enterprises and iron and steel companies

5) Industrial wastewater monitoring and testing system

6) Waste Control System in Chemical Industry

7) Fire monitoring

8) Boiler Computer Control System Based on Soft PLC

9) centralized batching monitoring system



3. Iron and Steel Automation Industry

1) Ironmaking furnace optimization system

2) Smoke and Dust Concentration Detection System

3) Integrated Monitoring and Information Embedded System of Huangjie in Iron and Steel Works


Touch Think OEM/ODM Items:


Touch Think Industrial Monitors Screen Customization

1. High-light screen: default 350cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: industrial monitor, resistive touch, capacitive touch screen, IR touch screen, non-touch screen.

5. High-resolution screen: customize higher resolution than a standard LCD screen.

6. Screen size: support to the customized screen.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customizations for Touch Think Industrial Monitors

1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -10~+60°C, we can customize a wider working temp: -40~+85°C.

3. LOGO customization.

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: for special occasions.

8. IP grade: The industrial monitors can be customized fully-sealed dust-proof and waterproof.
