Touch Think industrial embedded monitors with touch screen are designed to provide superior image quality and rugged Aluminium alloy enclosure, ensuring years of reliable operation.
Product Color
8”
10.1”
10.4”
11.6”
12”
15”
15.6”
17”
17.3”
19”
19.1”
21.5”
Industrial Monitors with Resistive Capacitive Touchscreen 19.1"
Touch Think sunlight readable LCD industrial monitor displays offer high-performance capacitive, resistive
and non-touch screen in industrial-grade LCD flat panels, with thin flat front surface industrial design. The
touch screen LCD monitor are designed for indoor and outdoor applications, such as kiosks, self-service
devices, digital signage applications.

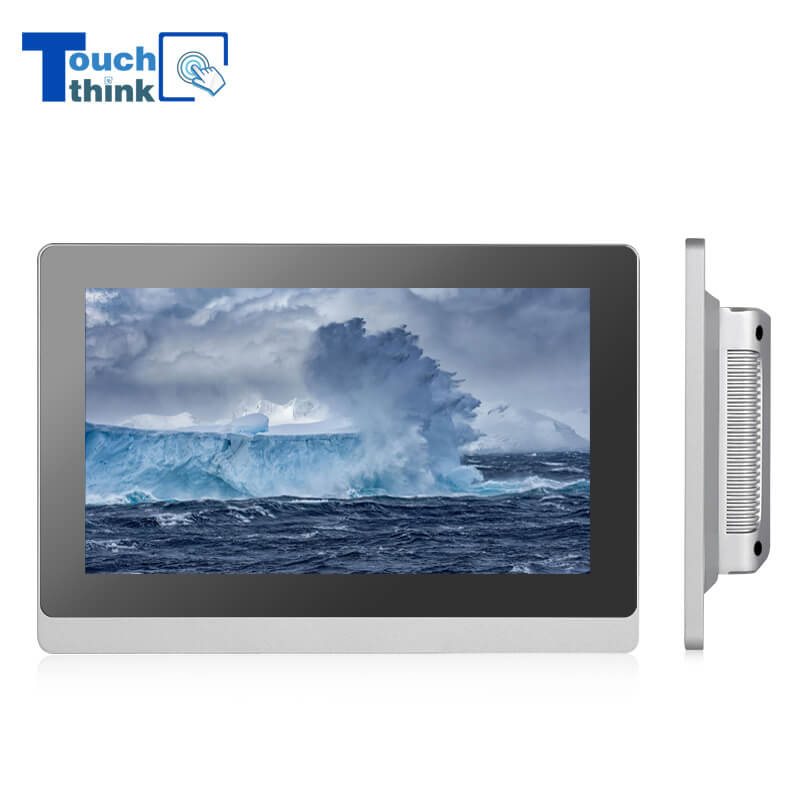

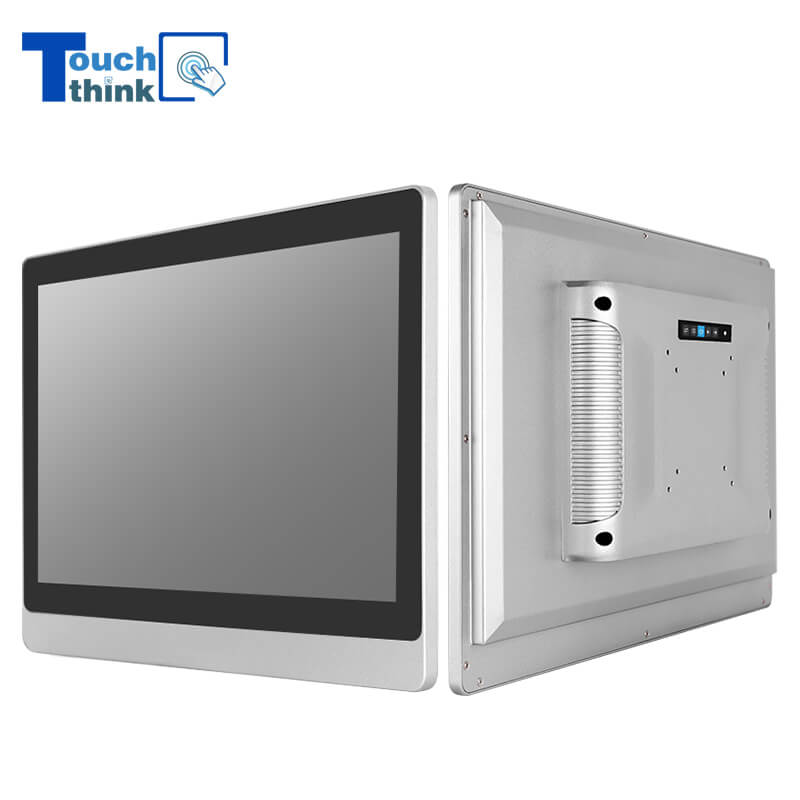

Touch Think Industrial Monitor Show
Details of Touch Think Industrial Display
1. The updated fourth generation of Touch Think industrial displays designed with 10mm thickness front
bezel, strong impact resistant and well-embedded into other equipments.
2. The full-enclosed aluminum alloy enclosure, higher heat-dissipation than iron materials.
3. IP65 level water-proof and dust-proof for front panel. Standard color is black, silver, We also support
appearance customization for monitors, even for one unit.
4. Support capacitive touch and resistive touch screen, suitable for all kinds of harsh environments.
5. Thin narrow bezel design, exquisite craft aesthetic design, narrow frame with rounded corners, back
key panel, exquisite arc side, pre-installed water proof speaker hole, 10mm thickness front panel, well
impact resistant.
6. Fanless cooling system, no noise running, better heat-dissipation.

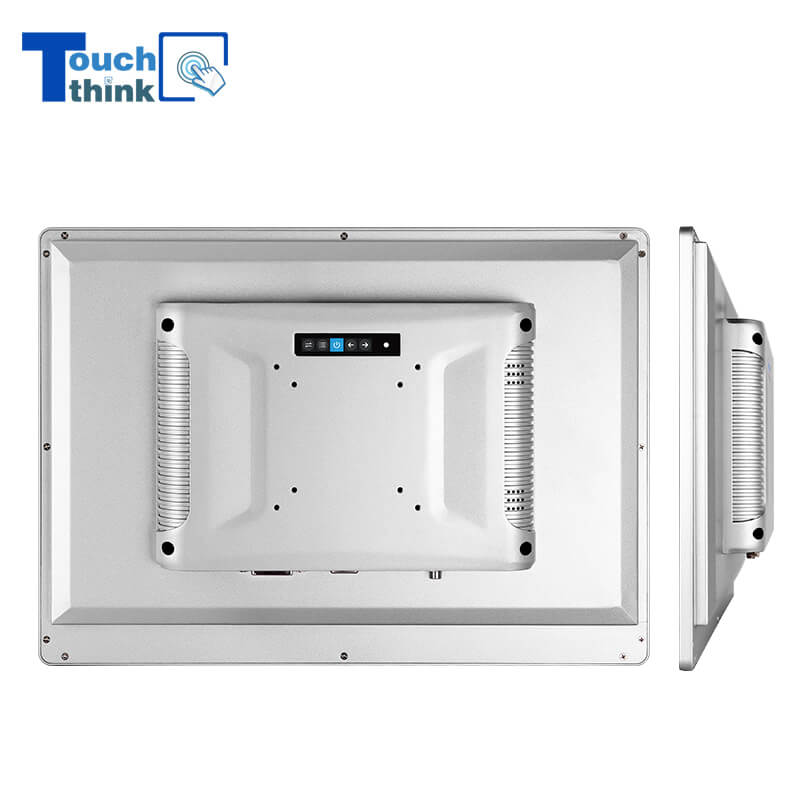

7. Back button panel, easy debugging, the industrial monitor support VGA, HDMI, DVI, etc. Offer auto-
matic identification signal channel.
8. Self-developed industrial-grade display drive board, quality is well-guaranteed.
9. Support wide temperature and wide voltage, adopt famous brand of power management chip design,
wide voltage reaches 12-24V. Ensure industrial monitors perform stable under harsh environments.
10. Industrial monitors support long standby time and stable performance, adopt original professional
hardware, support 7*24 hours long-time running without interruption.
11. For all aspects of quality, customers will get a better using experience. The industrial monitor support
anti-jamming, compliance with EMC/EMI standard. Shock proof up to GB2423.
12. Support multi installation methods, such as desktop, VESA, wall-mounted, embedded, etc.
| Screen parameters | Screen size | 19.1 inch |
| Model | TPC191-M4 | |
| Resolution | 1440*900 | |
| Proportion | 16:10 widescreen | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance | 0.264mm | |
| Contrast | 1000:1 | |
| Backlight type | LED, use length≥50000h | |
| Display color | 16.7M | |
| Visual angle | 160/160 (Customizable 178° full view angle) | |
| Brightness | 400cd/m2 (customizable high brightness) | |
| Touch type | Resistive / capacitive / infrared touch screen | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | contact 4KV-air 8KV (can be customized ≥16KV) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
| Housing Material | Black/Silver, Aluminum Alloy | |
| Installation method | Embedded, desktop, wall-mounted, cantilever | |
| Ambient temperature | <80%, non-condensable | |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian | |

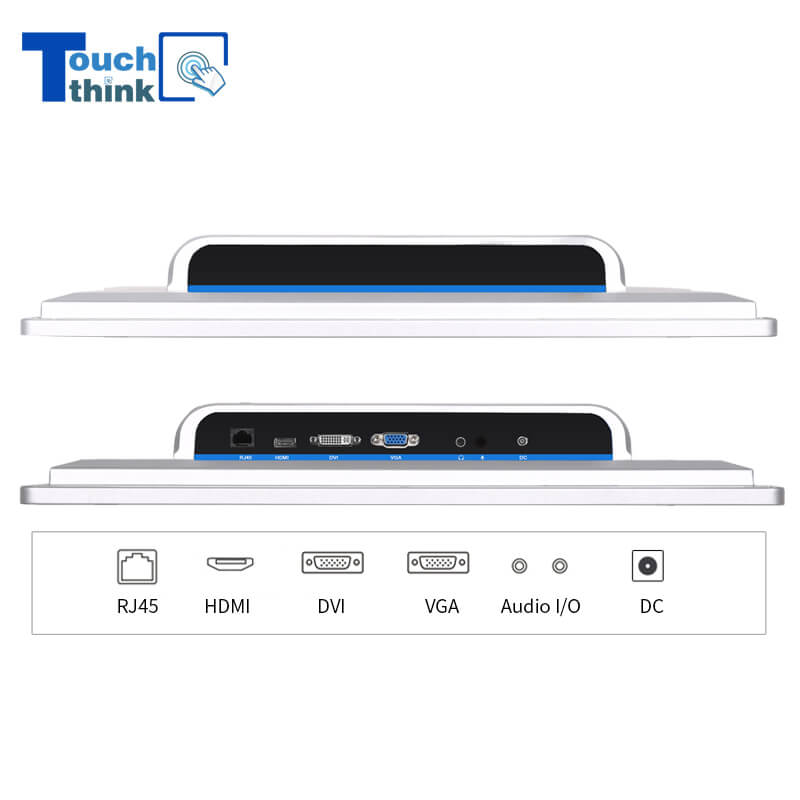

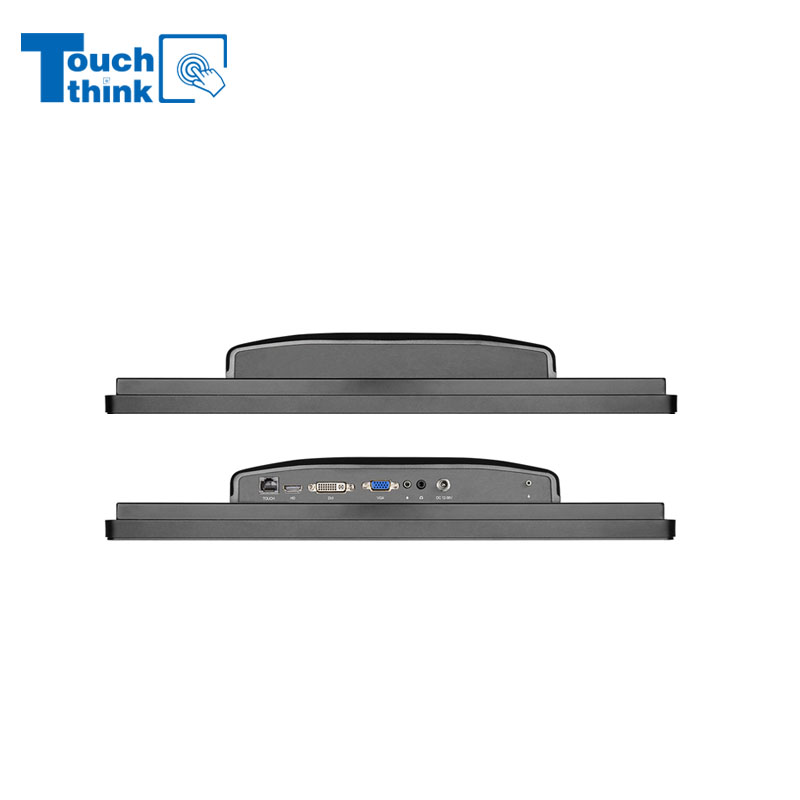

| O/I interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output |
Touch Think industrial LCD monitors are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.
These industrial displays are suitable for wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.
In addition to the above areas, industrial LCD monitor also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.
Touch Think industrial monitors support customization service such as logo, appearance, color, installation methods, I/O ports, high brightness, viewing angle, touchscreen types, etc.
