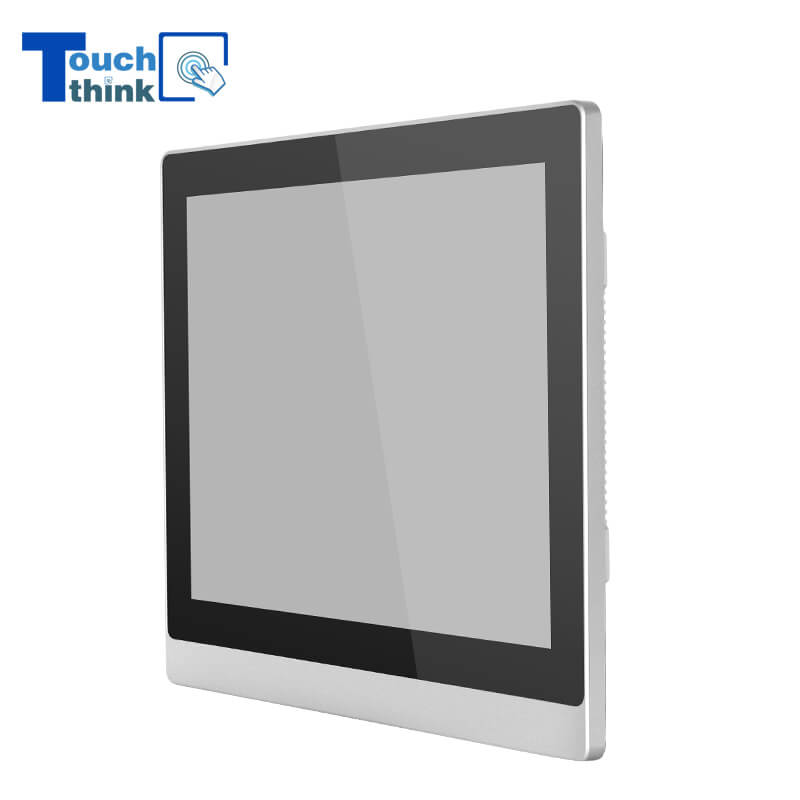

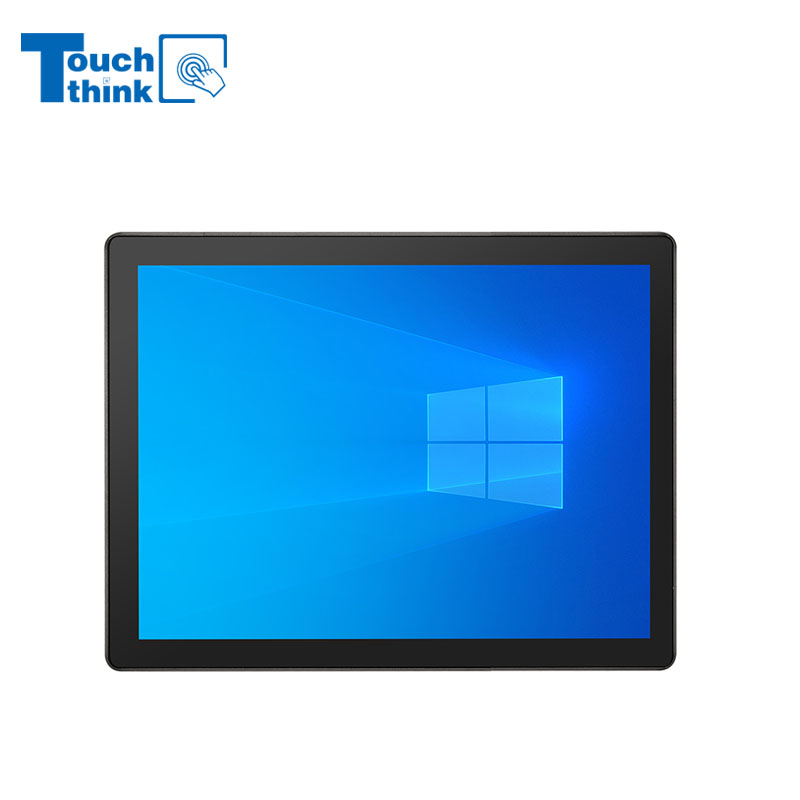

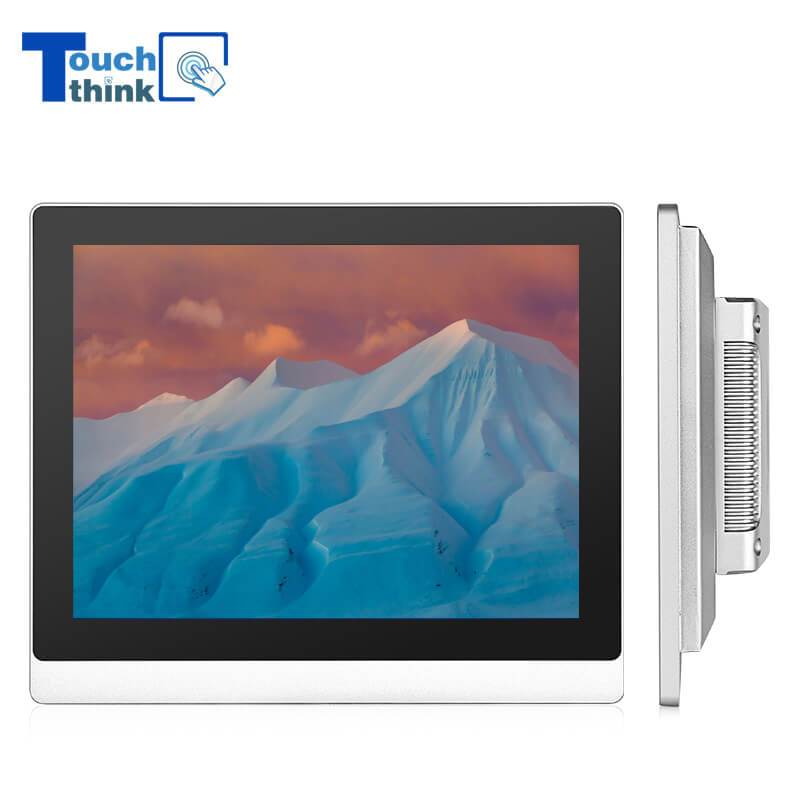

Industrial Monitors Touch Screens 10.4 Inch

Size: 10.4

Industrial LCD display with 10.4 inch 1024 x 768 display with VGA port. Option for single-point touch screen, multi-touch screen and mouse-control/non-touch.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial monitor


10.1 inch industrial monitor


10.4 inch industrial monitor


11.6 inch industrial monitor


12 inch industrial monitor


15 inch industrial monitor


15.6 inch industrial monitor


17 inch industrial monitor


17.3 inch industrial monitor


19 inch industrial monitor


19.1 inch industrial monitor


21.5 inch industrial monitor

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Industrial LCD display with 10.4 inch 1024 x 768 display with VGA port. Option for single-point touch screen,

multi-touch screen and mouse-control/non-touch.


Touch Think 4th generation of high brightness, sunlight readable LCD industrial monitors with full view-

able touch screen are ideal for used in any high light condition. Adopts advanced high bright TFT active

matrix displays. Touch Think industrial monitors are ideal for most industrial, commercial needs, KIOSK,

security, marine, military and vehicular applications.

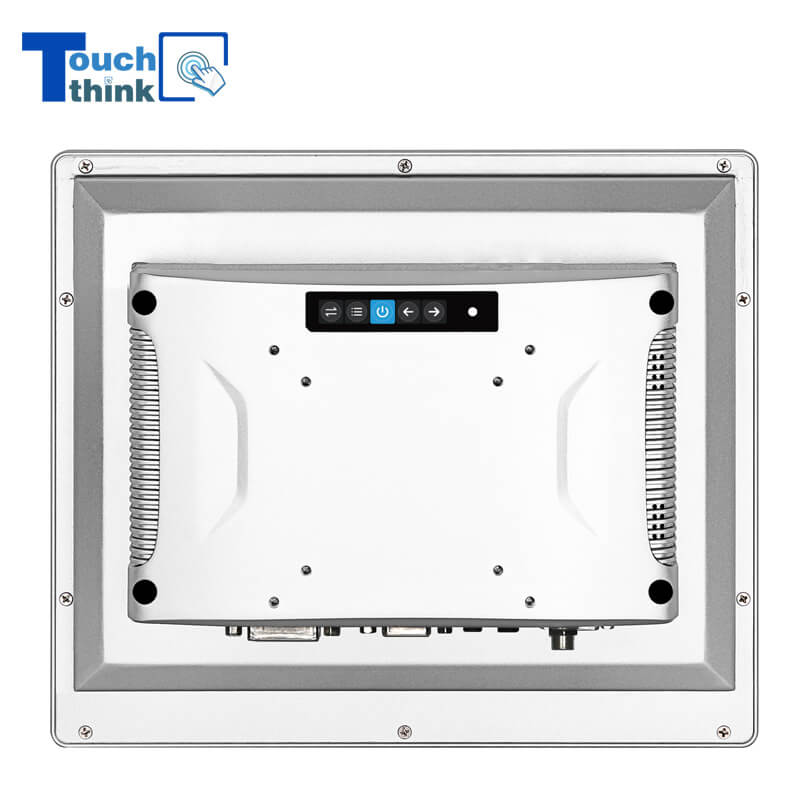

Touch Think Industrial Monitor Display

Industrial Monitors Touch Screens 10.4 Inch

Touch Think 10.4-inch Industrial Touch Monitor Features

● 10mm bezel monitors are suitable for embedded into cabinet in various applications. Strong impact

   resistant in harsh environments..

● Industrial monitor adopt industrial A+ grade screen, high bright backlight LCD screen, famous brand

   touch screen, antioxidant aluminium alloy display fuselage .

● The industrial touch screen monitors are designed with triple protection from flame-proof, explosion-

   proof and dust-proof for whole body.

● Support long-term running without interruption for whole year..

● IP65 rated front bezel industrial monitors are suitable used in harsh environments.

● All Touch Think industrial monitors adopt industrial-grade inner components, ensure longer service

   time.

● The monitors are compliance with EMI / EMC anti-interference standard.

● Touch Think also support kinds of OEM/ODM customization services for industrial display's interfaces.

● High brightness of screen, support sunlight readable for kinds of outdoor devices, such as self-service

   equipments, express cabinet, ATM etc.

● OSD adjustable backlight brightness, it won't affect the color saturation of the pictures.

● Working temperature for our displays can be -20~70°, it also support customization working temperature

   range up to -30~80°。

● All industrial touch screen monitors are designed well-performed in harsh environments.

● Offer embedded monitor, desktop monitors, wall-mounted monitors and VESA mounting monitors.

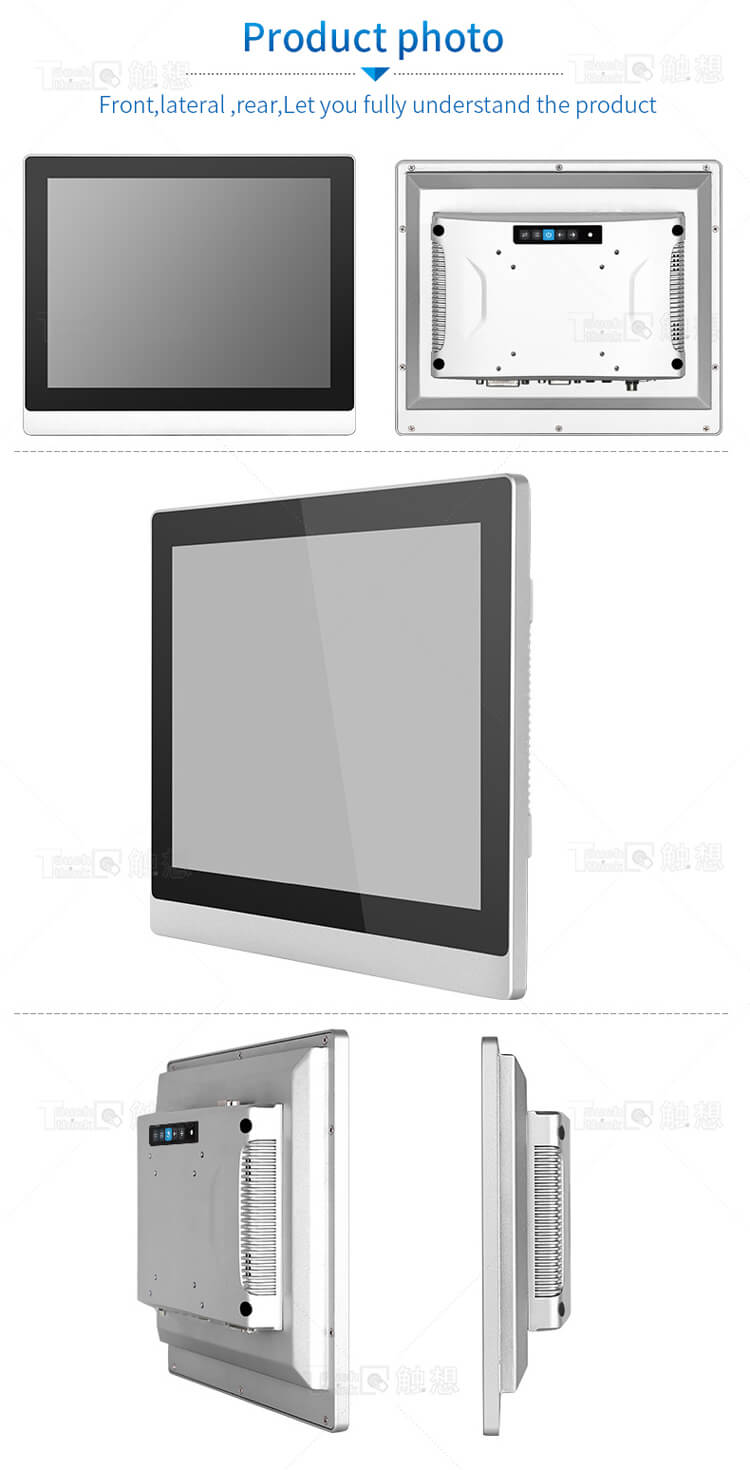

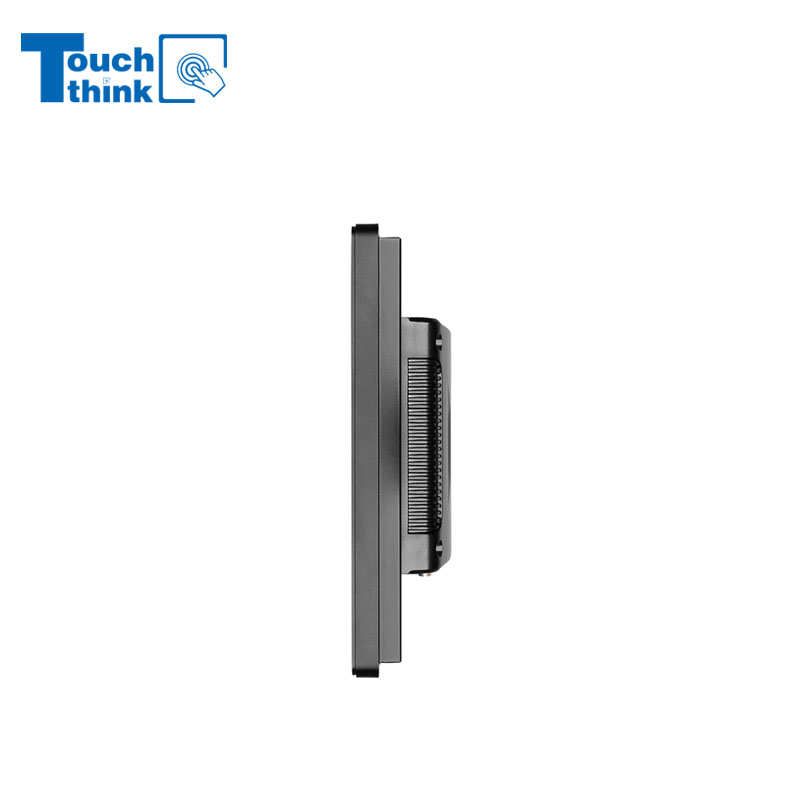

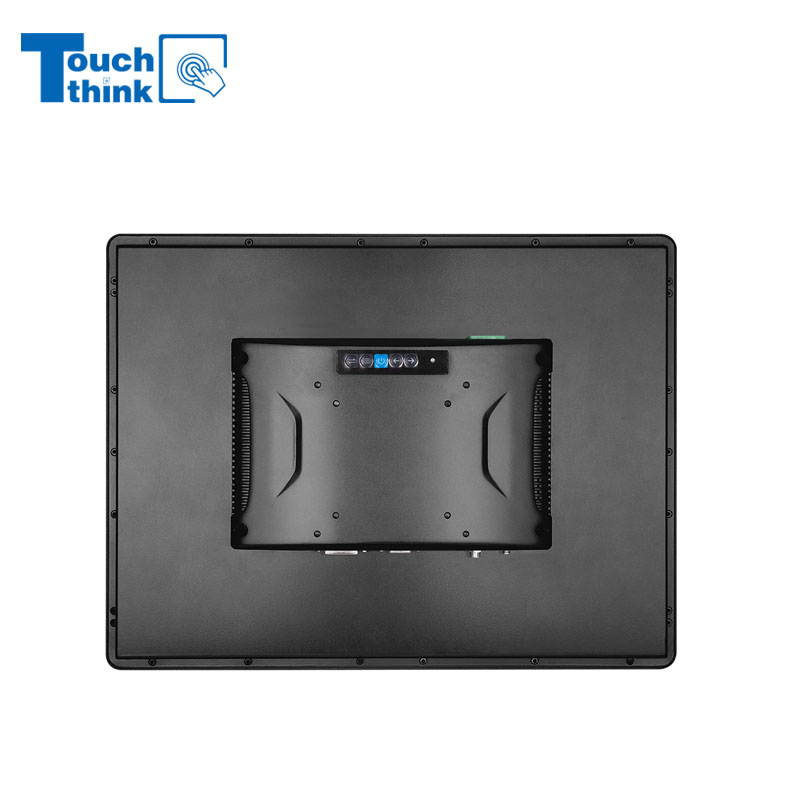

Product Details

Industrial Monitors Touch Screens 10.4 Inch

Industrial Monitors Touch Screens 10.4 Inch












Screen parametersScreen size10.4 inch
ModelTPC104-M4
Resolution1024*768
Proportion4:3 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast800:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160 (Customizable 178° full view angle)
Brightness 400cd/m2 (customizable high brightness)
Touch typeResistive / capacitive / mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (can be customized ≥16KV)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, cantilever
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (-30°C~80°C customizable)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian

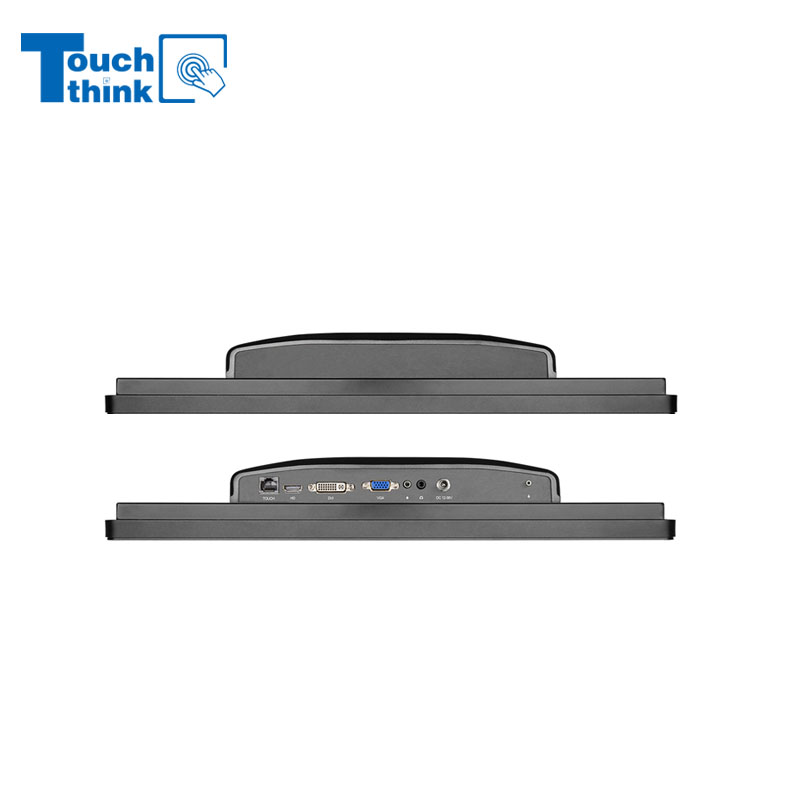

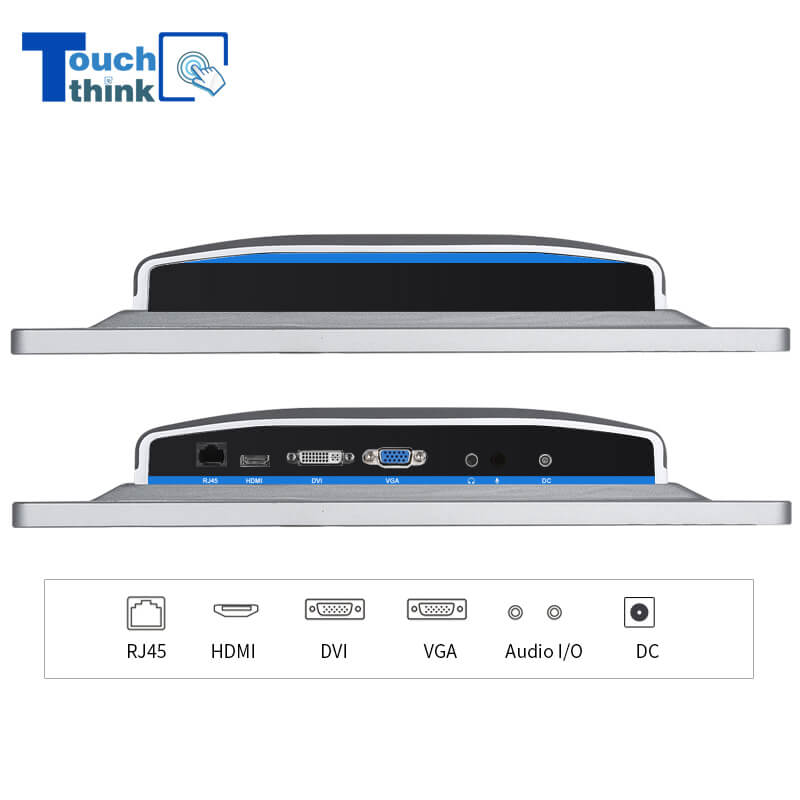

O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (DC terminal block optional)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial LCD monitors are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.


These industrial displays are suitable for wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.


In addition to the above areas, industrial LCD monitor also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.


Touch Think industrial monitors support customization service such as logo, appearance, color, installation methods, touch screen technologies, I/O ports, high brightness, viewing angle, touchscreen types, etc.
