Industrial Display Used For Power Distribution Box 15.6 inch

Size: 15.6"

The TPC156-M series is a versatile 15.6-inch display that can be mounted into a cutout in a cabinet or other big equipment thanks to their thin front bezels. Their front panel is IP65 rating for protection from liquids and dust. Supports be connected to industrial computers, providing a ruggedized, long-span life touch control and display solution.

Product Color

15.6" Industrial Display Monitors Used For Power Distribution Cabinets


Touch Think sunlight readable LCD industrial monitor displays offer high-performance capacitive, resistive, and non-touchscreen in industrial-grade LCD flat panels, with thin flat front surface industrial design. The touch screen LCD monitor is designed for indoor/outdoor applications, such as power distribution boxes, kiosks, self-service devices, digital signage applications.


Touch Think Industrial Display Details


● The updated second and 5th editions of Touch Think industrial monitors are designed with 3mm or 7mm front bezel options, offering strong impact resistance and well-embedded into other equipment.

● Full-enclosed aluminum alloy enclosure, higher heat-dissipation than iron materials.

● IP65 level waterproof and dust-proof for the front panel.

● Support capacitive touch and resistive touch screen, suitable for all kinds of harsh environments.

● Thin narrow bezel design, exquisite craft aesthetic design, narrow frame with rounded corners.

● Pre-installed waterproof speaker hole.

● Fanless cooling system, no noise running, good heat dissipation.

● Back button panel, easy debugging, the industrial monitor support VGA, HDMI, DVI, etc. Offer automatic identification signal channel.

● Self-developed industrial-grade display drive board, quality is well-guaranteed.

● Support wide temperature (-10 to 60°C), and wide voltage working: 12-24V.

● Supports long standby time and 7*24 hours stable performance.

● The industrial monitor supports anti-jamming, compliance with EMC/EMI standards, and shockproof up to GB2423 standards.


  • product description
  • Product parameters
  • Application
  • OEM/ODM


Product Model Fast Guide



Models

DisplaysThe thickness of Front BezelDefinitionProduct Description
TPC156-M215.6"3mm1920*1080  /  16:9Touch Think 2nd-GEN
TPC156-M515.6"7mm1920*1080  /  16:9Touch Think 5th-GEN

Products Pictures

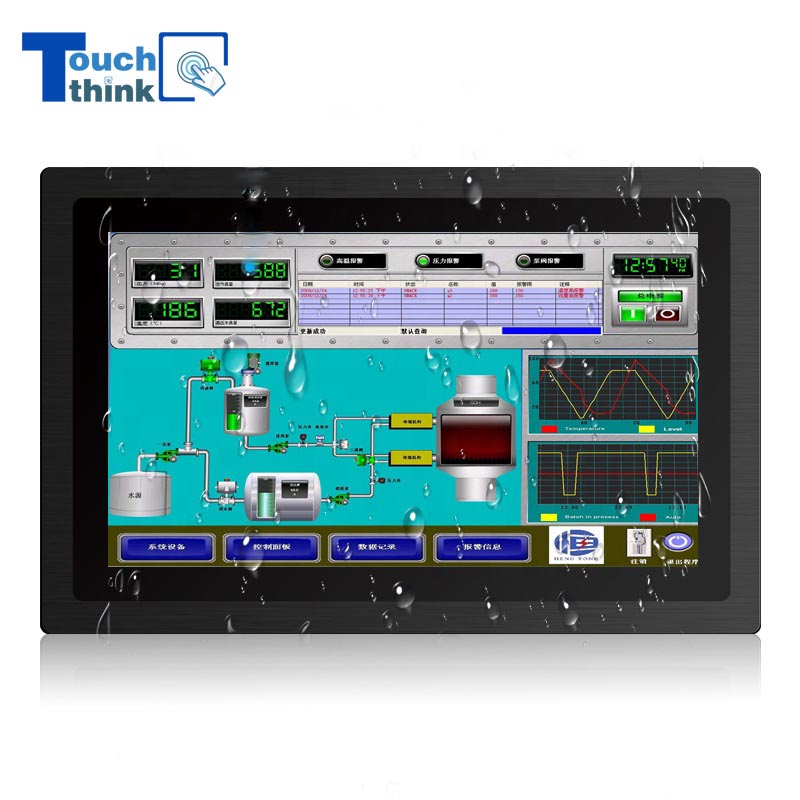

Front View

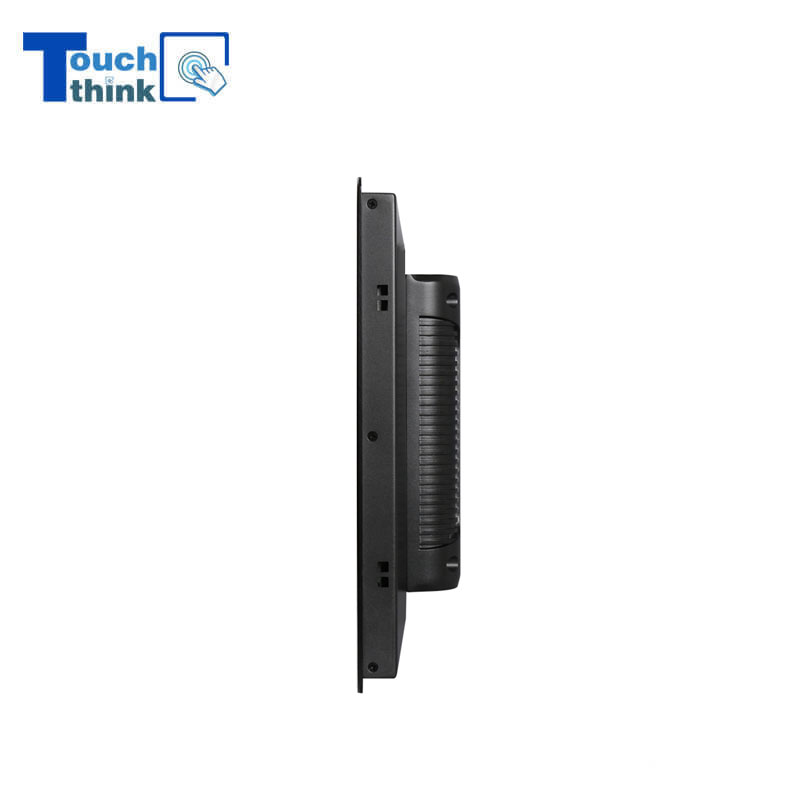

Side View

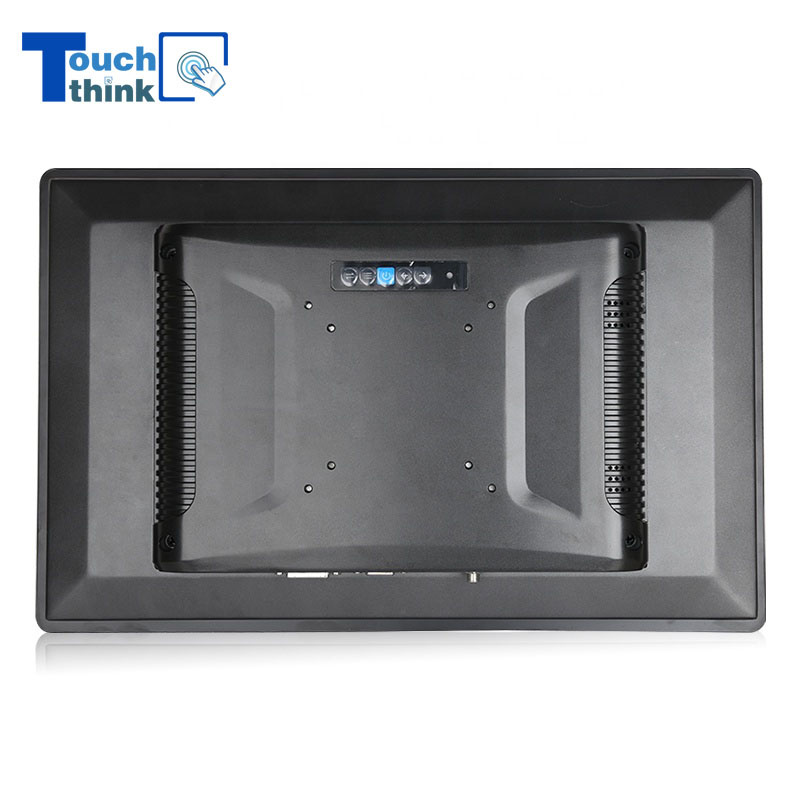

Rear ViewOblique view

TPC156-M2


Inquiry Now

Industrial Display Used For Power Distribution Box 15.6 inchIndustrial Display Used For Power Distribution Box 15.6 inchIndustrial Display Used For Power Distribution Box 15.6 inchIndustrial Display Used For Power Distribution Box 15.6 inch

TPC156-M5


Inquiry Now

Industrial Display Used For Power Distribution Box 15.6 inchIndustrial Display Used For Power Distribution Box 15.6 inchIndustrial Display Used For Power Distribution Box 15.6 inchIndustrial Display Used For Power Distribution Box 15.6 inch




Screen parametersScreen size15.6 inch
ModelTPC156-M2; TPC156-M5
Resolution1920*1080
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160 (178° full viewing angle customizable)
Brightness 400cd/m2 (high brightness customizable)
Touch-typeResistive / capacitive / Non-touch
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (can be customized ≥16KV)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, VESA
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian

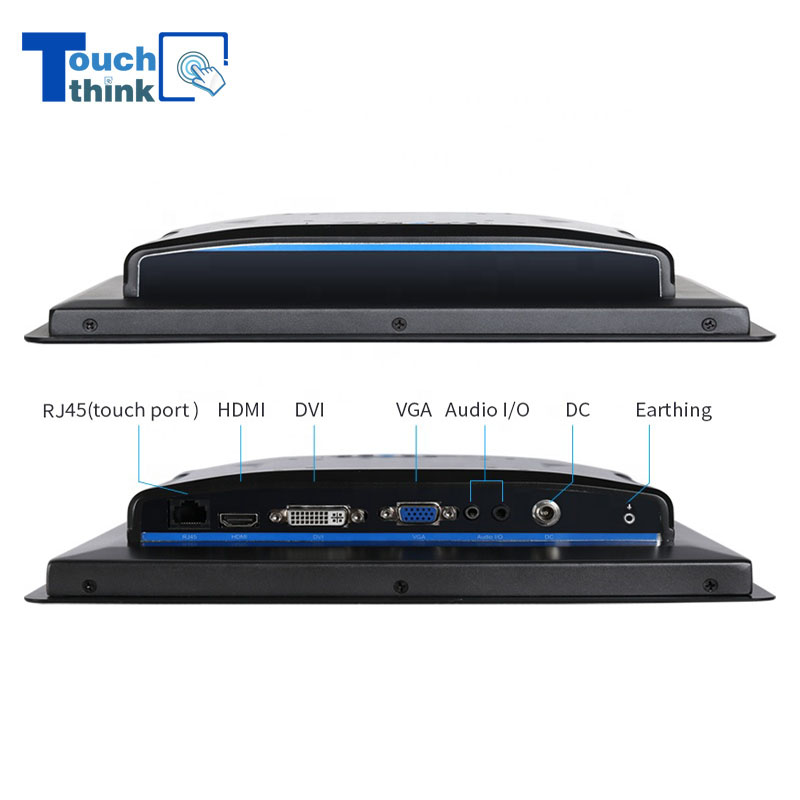

O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial LCD monitors are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication, and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.


These industrial displays are suitable for wall-mounted, or embedded in other machines, cabinets, or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.


In addition to the above areas, industrial LCD monitor also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.


Touch Think industrial monitors support customization service such as logo, appearance, color, installation methods, I/O ports, high brightness, viewing angle, touchscreen types, etc.
