Fanless Industrial Touch Panel Computer 15.6 inch

Size: 15.6"

Fanless Industrial Touch Panel Computer with a 15.6-inch display seamlessly combines reliable fanless cooling with a responsive touchscreen interface, providing an efficient and user-friendly solution for industrial applications requiring durability, space efficiency, and high-performance computing.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

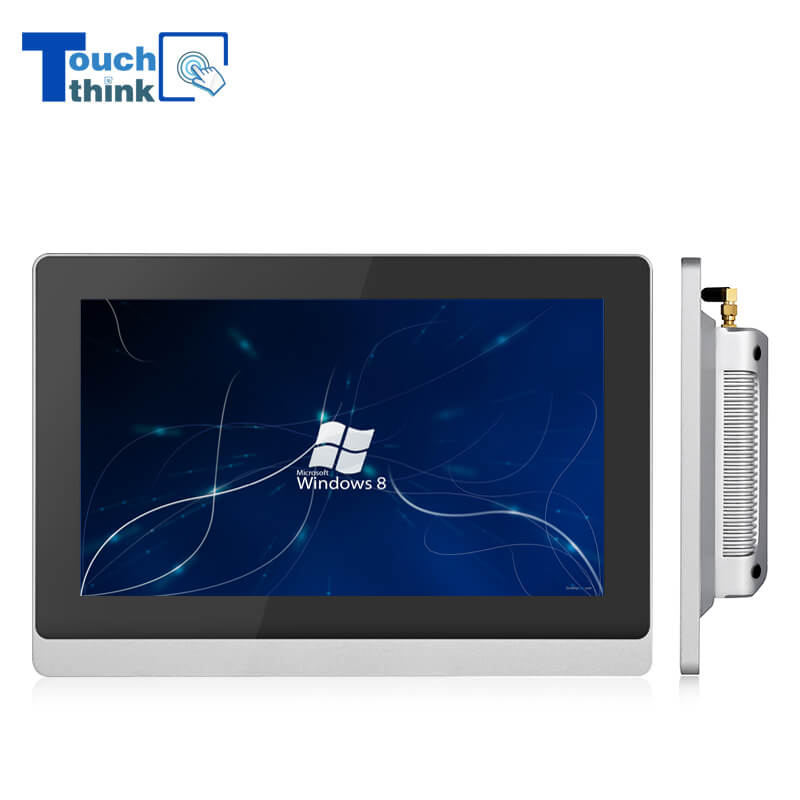

Fanless Industrial Touch Panel Computer 15.6"


Model: TPC156-W19


Touch Think 15.6-inch industrial panel PC equipped with powerful Intel Celeron processors and industrial grade motherboard with high quality to ensure excellent reliability and 7/24hrs operation in industrial applications. The industrial all-in-one panel PC is designed with an IP65-rated front bezel for dust / waterproof and fanless design, making it suitable for harsh environments. This 15.6" PC has a compact design, which saves much space and can enhance connectivity with optional wireless and BT4.0/BT5.2. It can easily be implemented in diverse applications including industrial manufacturing, kinds of monitoring systems, and industrial automation control systems due to its various mounting options including a panel mount, desktop, embedded, wall-mounted VESA mount, etc.



Product Features



● 15.6" flat panel with capacitive or resistive touchscreen, free control, fast response for user experience.

● Sunlight readable LCD industrial grade monitor.

● IP65-protected front bezel.

● Working temperature for the all-in-one panel PC: -10~60°C, wider temperature is available.

● Celeron Quad-core J6412/J4125/J1900 CPU, fast and smooth running in complex industrial applications.

● Aluminum alloy heat-dissipating material, low power consumption, and energy saving.

● Support 7 days* 24 hours long-time running.

● Support multi-customization services in terms of functional modules.

● EMC/EMI anti-electromagnetic interference. The panel PC is suitable for multi-signal complex environments.




ScreenScreen size15.6 inch
ModelTPC156-W19
Resolution1920*1080
Proportion 16:9 Wide Screen
Color16.7M
Dot Pitch0.264mm
Contrast ratio800:1
Display luminance300cd/m2 (high brightness above 300cd/m2 is customizable)
Backlight typeLED-backlit screen Lifetime ≥ 50000h
Viewing angle85°/85°/85°/85° (L/R/U/D)
TouchscreenCapacitive touch, resistive touch, and Non-touch for optional
Gray-scale Response Time 6.5ms

Motherboard Model SelectionCL-J1900BCX-J4125-ACX-J6412CX-12U01
ConfigCPUIntel Celeron J1900, Quad-core, 2.0GHz Intel Celeron J4125, Quad-core, 2.0GHz Intel Celeron J6412, Quad-core, 2.0GHz i3-1215Ui5-1235Ui7-1255U
Memory 4GB (8GB options)DDR4 4/8GBDDR4 8/16GBDDR4 32GB
Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80Intel Iris Xe Graphics 96
Operating SystemWin 7 / Win 10Win 10  / Win 11Win 10 / Win 11Win 10 / Win 11
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/
BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)
RTCSupportSupportSupportSupport
Wake On LANSupportSupportOptionalSupport
3G/4G moduleSupport
SupportSupportSupport
WIFIDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHz
GPS/MICOptionalOptionalOptionalSupport
Plug-n-PlaySupportSupportSupportSupport

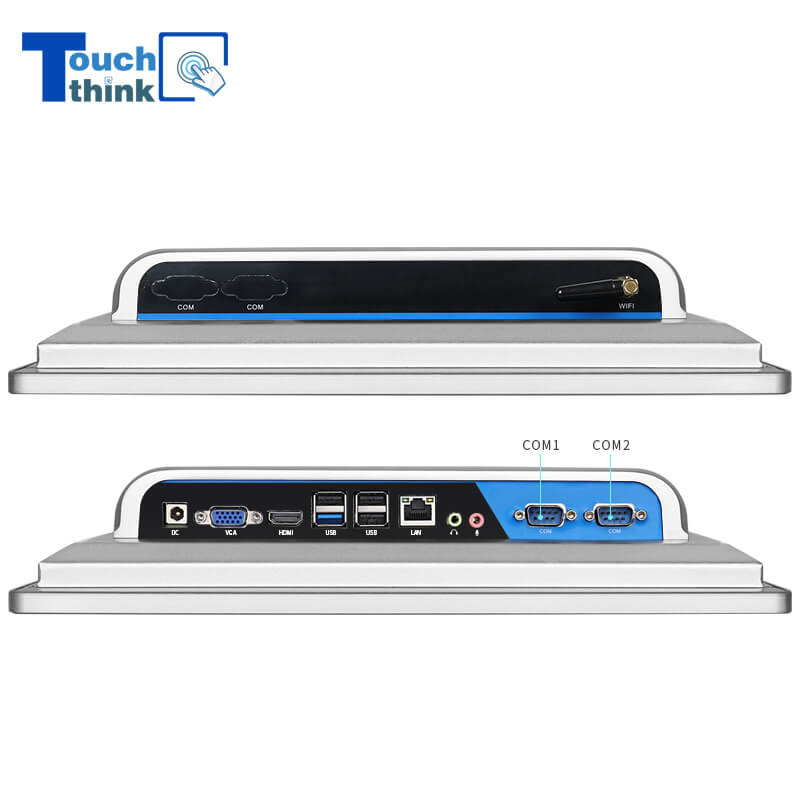

I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
Type-C///2*type-c
USB 3.0USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on boardUSB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
RS4851*RS232/RS422/RS485 mutual conversion
RS4221*RS232/RS422/RS485 mutual conversion
GPIOGPIO*8 (input/output)
WIFI connectorWIFI antenna*2
DC InterfaceDC 2.5*1; Supports 12V-36V wide voltage power supply
SIM Slot1*SIM Slot + 1*SIM Slot on board
MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
HDMI3840*2160 30Hz output4096*2160 30Hz output4096*2160 30Hz output4096*2304 60Hz output
VGA1920*1080 60Hz output
RJ452*10M/100M/1000M adaptive Ethernet
Audio InterfaceAudio I/O
Earphone jack3.5mm standard interface

ReliabilityWorking Temp-10°C~60°C
Storage Temp-20°C~70°C
Relative humidity95% (without condensation)

PowerPower inputDC in 12V ~ 36V
Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

MechanicalDimension391.55*240.98*47.9mm
MaterialAluminum alloy material

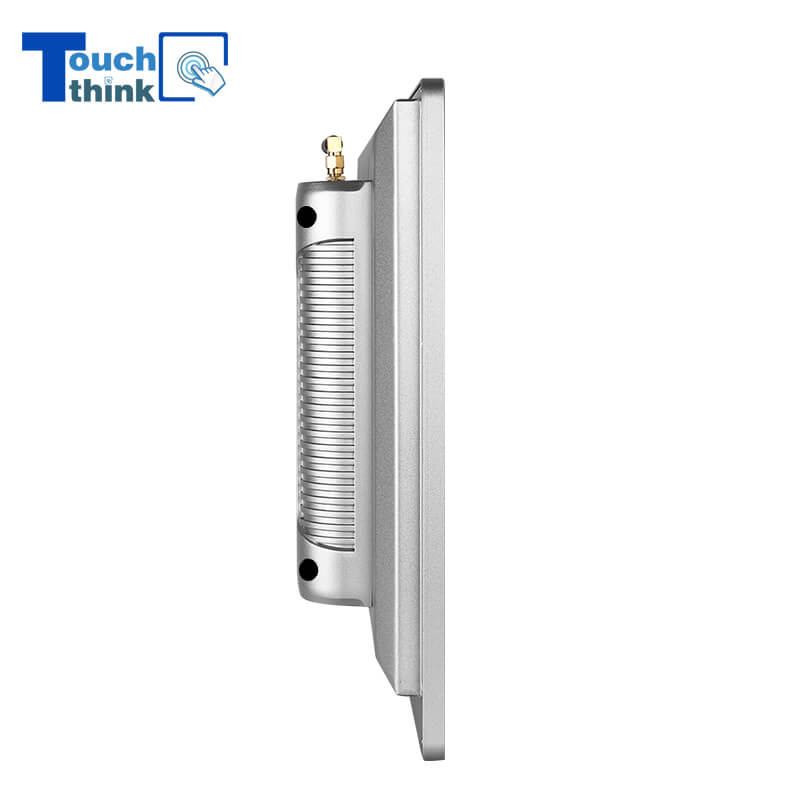

Cooling SystemFanless
Color Silver / Black

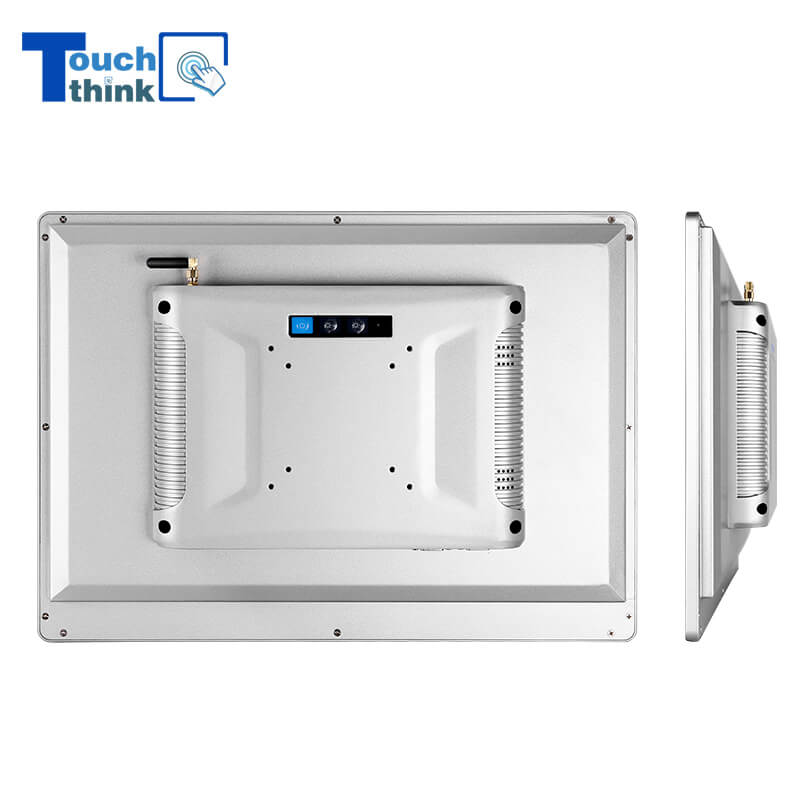

Installation methodEmbedded mount, panel mount, desktop, wall-mounted, VESA 75/100mm.

PackagingWarranty PolicyThree-year warranty, one year for free.
Packaging materialCarton
Packing list Industrial Panel PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card



A huge demand for intelligent equipment in automotive, communications, information and electrical appliances, medical, military, and other industries has driven the development of embedded industrial all-in-one panel PCs and systems.


Unlike traditional industrial panel computers, the fanless industrial panel computer is oriented to specific application areas, customized according to application requirements, and with the general demand for intelligent products, it penetrates all aspects of life.


Industrial all-in-one PCs are widely used in industrial automation, smart factories, intelligent manufacturing and RFID solutions, transportation and logistics, real-time data, industrial Internet of Things (IIoT), machine-to-machine (M2M), intelligent building automation, HVAC control, access control, check-in system, interactive security systems, and interactive patient room information displays.


With the continuous innovation of hardware technology, the processing capacity of hardware platforms is increasing, and the cost of hardware is decreasing. Industrial all-in-one panel PCs with touch screens have become the key driving technology of digital transformation and intellectualized value-added products.






Screen Customization for Touch Think Industrial Panel PCs


1. High-light screen: default 300cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspectives: support custom WVA.

4. High-resolution screen: customize a higher resolution than the standard LCD screen.

5. Screen size: support the customized screen.

6. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customization Items

1. Appearance customization: support appearance design and sample customization.

2. Working temperature: standard temp is -10 ~ +60°C, we can customize wider working temp: -30~+80°C.

3. LOGO customization

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-36V.

7. Special materials: for special occasions.

8. IP grade: The industrial PCs can be customized fully sealed dust-proof and waterproof.
