Embedded Industrial Panel PC For Industrial Control 15"

Size: 15

This industrial panel PC is well-embedded into cabinet with its true flat front panel, suitable used in industrial control fields due to its reliable performance.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial panel pc


10.1 inch industrial panel pc


10.4 inch industrial panel pc


11.6 inch industrial panel pc


12 inch industrial panel pc


15 inch industrial panel pc


15.6 inch industrial panel pc


17 inch industrial panel pc


17.3 inch industrial panel pc


19 inch industrial panel pc


19.1 inch industrial panel pc


21.5 inch industrial panel pc

  • product description
  • Product parameters
  • Application
  • OEM/ODM

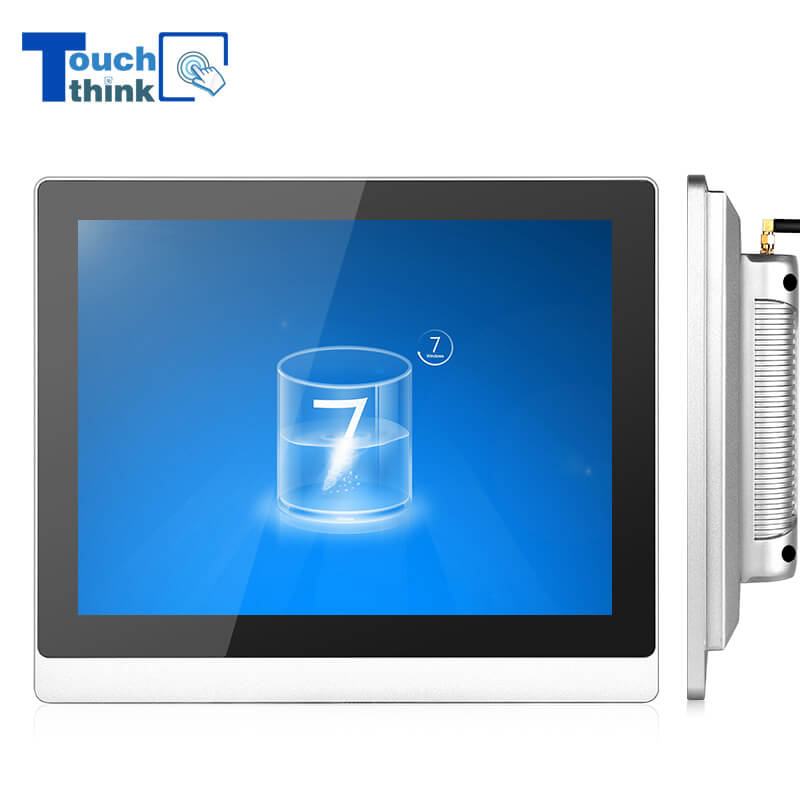

Embedded Industrial Panel PC For Industrial Control 15"

Industrial panel PC is a kind of rugged industrial computer, which is specially designed for industrial fields. It can

operate reliably in industrial environment as an industrial controller.



Common embedded industrial tablet PCs include box PC, fanless industrial tablet PC, etc. The embedded indus-

trial panel PC has the advantages of reliable performance, fanless structure, compact size and affordable price,

and it is widely used in industrial computer application.


Especially in recent years, with the development of embedded technology, the embedded industrial panel PC is

also developing rapidly, and it has been applied to various fields and occupies an increasingly important position

in industrial automation and industrial control fields.

Industrial All In One Touchscreen Computer 15"

Advantages of Embedded Industrial Tablet PC

1. The product has good function adaptability, almost matches the function of the controlled object under

    test, and has certain expansibility but does not take expansion as the main purpose, so the product is

    cost-effective.

2. The miniaturization of the device is one of the main embodiment, which is the compact design. There

    is no standard for reference in the structural design, so the reasonable utilization of the external inter-

    face and installation space should be fully considered.

3. High reliability requirements. On the basis that the electrical function meets the reliability design, care-

    fully consider the reliability design contents such as heat dissipation design, electromagnetic compati-

    bility design, dust-proof and waterproof design, anti vibration design, etc.


4. Ultra low power and fanless design is the mainstream. Since the miniaturization of the device, the cool-

    ing capacity is limited, and the embedded system MTBF (mean time between failures) requirements

    are also very high, especially in unattended applications, ultra-low power consumption and fanless

    design become necessary.


Touch Think industrial Panel PC Features

● Adopt aluminum alloy one-piece die-casting for the whole panel PC.

● IP65 dust-proof and water proof rated protection level.

● The industrial all in one panel PC is designed with integrated structure: the host computer, LCD

   and touch screen are integrated, better stability.

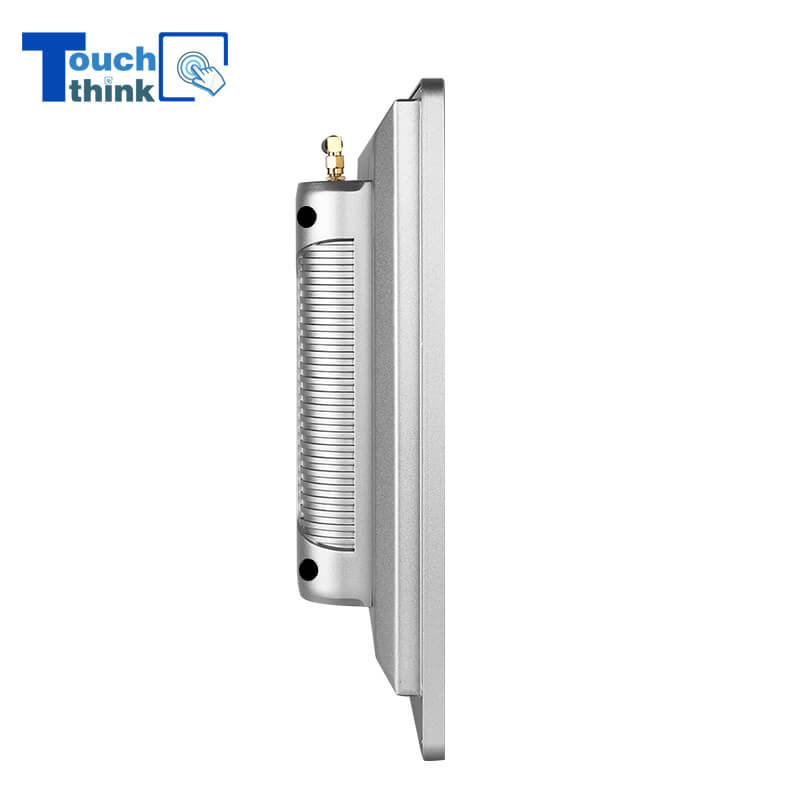

● Fan-free heating-dissipation system, large area fin-shaped aluminium blocks for heat dissipation,

   with less power consumption and no noise mute running.

● Touch Think industrial panel PC has high safety, stable performance, wear resistance and co-

    rrosion protection, low failure rate and anti-light interference. It is suitable used in high humidity,

    high temperature or low temperature environment.

● Support the main popular single-point resistive touch screen and multi-point capacitive touch

   screen for applying to harsh industrial environments and commercial terminal device in outdoor.

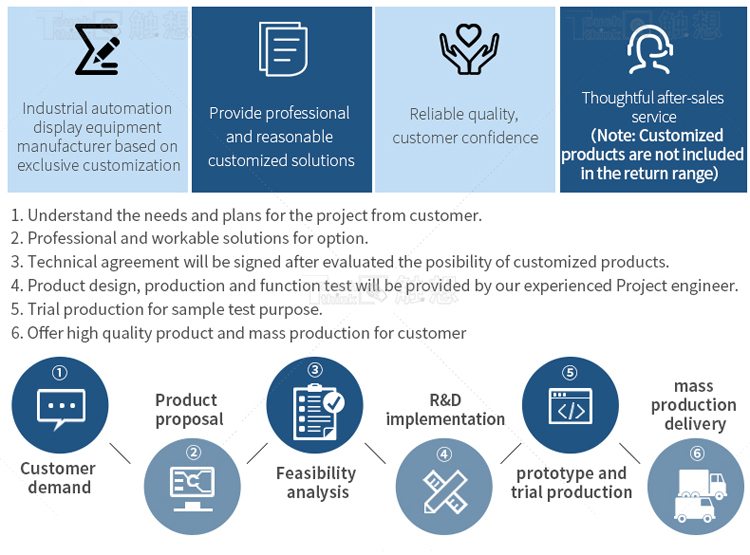

Touch Think All-in-one Panel PC Customization Service

Industrial All In One Touchscreen Computer 15"

Industrial All In One Touchscreen Computer 15"












Screen parametersScreen size15 inch
ModelTouchTEC-150A
Resolution1024*768
Proportion 4:3 square size screen
Motherboard parameters CPUintel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual core, optional Intel H81 equipped with Core i3/i5/i7)
Hard Disk32G SSD (Optional 64G SSD/500G HDD)
Memory 2G DDR3 (supports 8G DDR3)
Audio Integrated Audio Chip
NetworkIntegrated Gigabit LAN
Wireless network built-in wifi antenna, support wireless connection
Graphics Cards Integrated Graphics
System pre-installed windows7, support other version
Speakers available

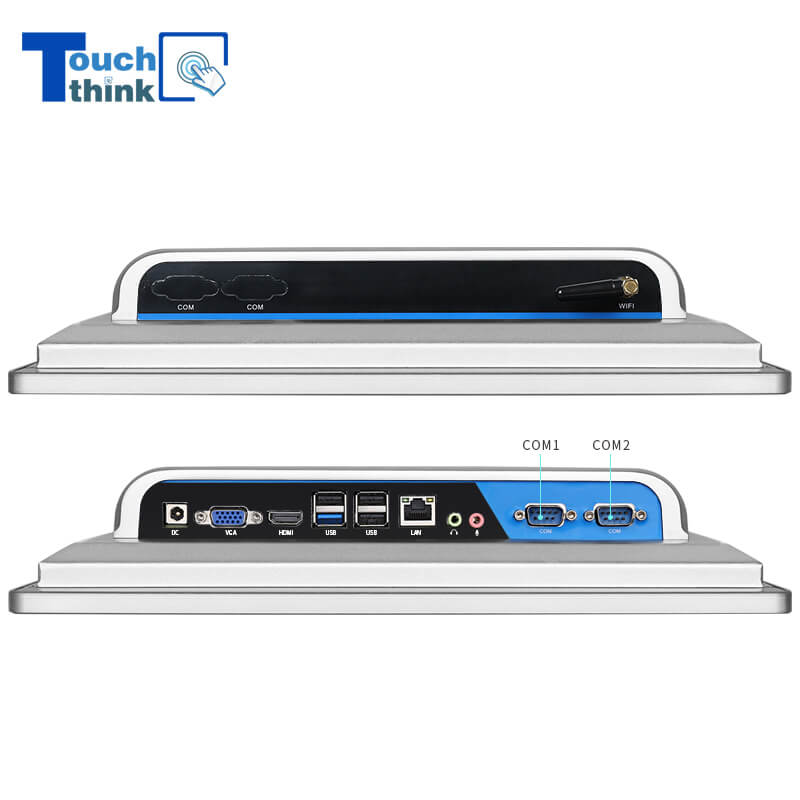

Interface parametersUSB interface8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1
Serial Interface8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol
WIFI connector WIFI antenna*1
Power InterfaceDC 12V*1
High-definition interfaceHDMI*1
Extended displayVGA*1, support for synchronous dual display and differential display
Network interfaceRJ-45*1
Audio InterfaceAudio I/O
Support extensionsMultiple industry interface support customization
Display parametersColor16.7M
Point distance 0.264mm
Screen Panel

 Industrial control panel

Contrast1000:1
Display brightness400cd/m2 (customizable high brightness above 400cd/m2)
View angle(H160 (V) 160, customizable wide viewing angle 178°
Backlight type LED backlit screen Lifetime ≥ 50000h
Gray-scale response time 5ms
Touch OptionalResistive/Capacitive/Infrared Touch Screen
Installation methodEmbedded, desktop, wall-mounted, cantilever
Other parametersPower12V-5A Professional External Power Adapter
Power consumption ≤60W
Working temperature-10°C~60°C
Storage temperature-20°C~60°C
Relative humidity0%-65% (without condensation)
MaterialFull body made of aluminum alloy material
Color Silver Black
Warranty PolicyOne year free warranty
Degree of protection Front panel IP65 dustproof and waterproof
Packing list Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card


1. Power industry mobile application

By using RFID, mobile Internet and other technologies, the mobile intelligent patrol inspection function in the transmission, transformation, distribution and other links is realized, so as to achieve the purpose of lean and closed-loop management.


2. Application in petroleum and petrochemical industry

RFID technology is used to realize the automatic, fast and accurate reading of the warehouse in and out of the exploration collection station, which greatly improves the accuracy and efficiency of warehouse management.


3. Application of government supervision industry

For example, through RFID, sensor, video monitoring, wireless transmission and other technical to realize real-time monitor for dangerous cargo's flow in market, suc h as fireworks. It realize more functions like the warehouse over warning, the warehouse temperature and humidity real-time monitoring warning, video monitoring warning and other functions, so as to reduce the incidence of safety production accidents.


4. Medical management industry

RFID technology is used to realize the construction of information platform of drug supply chain, so as to achieve the real-time tracking and supervision of drug production, distribution and sales.


5. Application of environmental protection supervision industry

The application cases of industrial tablet PCs in the environmental protection industry are gradually increasing, which is mainly driven by the construction of the national automatic whole process real-time monitoring system for pollution sources. This work requires the automatic transmission of tens of thousands of signals to the main station and the collection of a large number of signals. The industrial panel PC, especially the embedded industrial tablets, can play a very good demonstration effect among them.


6. Logistics industry

The degree of modernization of logistics system may exceed many people's imagination. A complete set of modern logistics system can almost replace people's work, including scanning, detection, analysis, processing, automatic packaging, classification and many other links. Industrial panel PCs are widely used in this field.


7. Smart home industry

Industrial panel PC can be used as home service terminals in high-end residential areas, such as real intercom, message, cost inquiry, commodity ordering, home appliance management, etc.






Screen Customization for Touch Think Industrial Panel PCs

1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: resistive touch screen, capacitive touch screen, IR touch screen.

5. High resolution screen: customize higher resolution than standard LCD screen.

6. Screen size: support to customized screen.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.

Other Customization

1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -20~+70°C, we can customize wider working temp: -30~+80°C.

3. LOGO customization

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: for special occasions.

8. IP grade: The industrial panel PCs can be customized fully-sealed dust-proof and waterproof.
