Size: 18.5
This 18.5" industrial rugged monitor is available for numerous mechanical configurations including industrial-grade A+ and NEMA 4 (IP65) panels, Aluminum alloy housing, ultra-thin front bezels, suit for panel mount, and embedded mount. It is available for use in direct sunlight environments.
Product Color
TPC185-M2
Touch Think 18.5-inch industrial-grade IP65 panel mount LCD flat panel display is engineered with industrial-grade, waterproof LCD monitors, offering high performance in harsh environments where dust, water splashes, dirt, moisture, oil, and chemicals conditions. It can be configured with numerous optional features like a PCAP touch screen, a Resistive touch screen, optical bonding, extended operational temperature, and extended operational voltage capabilities. Also support special functional modules such as NFC/RFID card reading and scanning, cameras, printing, etc.
Features
● 18.5" Full HD TFT LCD panel, 1920*1080 resolution, and 16:9 aspect
● Touch Think 2nd-GEN series, 3mm slim bezel and compact design
● Fully-enclosed dustproof design
● Support high brightness display for outdoor applications
● HDMI, DisplayPort, DVI-D, Audio-in
● Projected Capacitive, Resistive, or Non-touch screen for options
● Rugged Die Cast Aluminum alloy chassis
● Optional Optical Bonding optional
● Compliant with IP65
| Screen parameters | Screen size | 18.5 inch |
| Model | TPC185-M2 | |
| Resolution | 1920*1080 | |
| Proportion | 16:9 widescreen | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance | 0.264mm | |
| Contrast | 1000:1 | |
| Backlight type | LED, use length≥50000h | |
| Display color | 16.7M | |
| Visual angle | 160/160 (178° full view angle is customizable) | |
| Brightness | 400cd/m2 (high brightness customizable) | |
| Touch-type | Resistive / capacitive / mouse control | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | contact 4KV-air 8KV (can be customized ≥16KV) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
| Housing Material | Black/Silver, Aluminum Alloy | |
| Installation method | Embedded, desktop, wall-mounted, VESA, panel mount. | |
| Ambient temperature | <80%, non-condensable | |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian | |

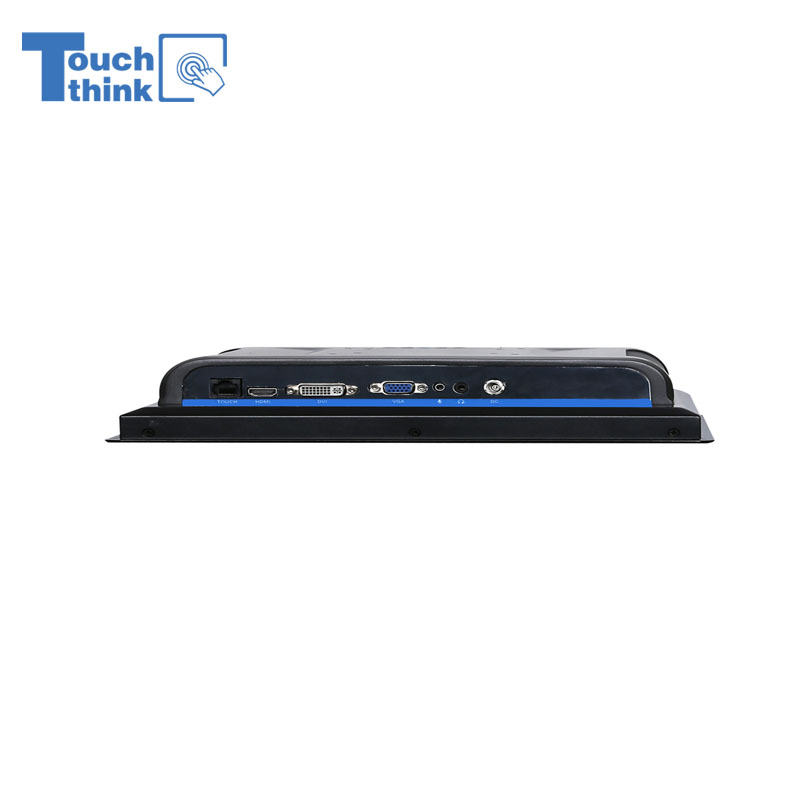

| O/I interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output | |
