Size: 17"
This industrial-grade touch screen monitor with the ultra-thin front bezel, excellent for embedding to information kiosks, supports sunlight readable for outdoor environments, or self-adjusting in other high ambient-light conditions. The brightness can be customized up to 1000 nits.
Product Color
Interactive Display Industrial Touch Screen Monitor With LCD Square Screen For Kiosk Solution
The Touch Think 17-inch industrial touch screen monitor delivers high-quality pictures for users no matter for indoor or outdoor devices. The monitors are designed for multi applications and withstand a wide operating temperature range.
• Highly transparent with a transmittance of 95%~99%
• Tempered glass with a scratch hardness of 7H
• IP65-rating dustproof & waterproof protection frame makes the monitor more suitable for applications in public places.
• High sensitivity: capacitive touch screens are capable of offering immediate response at the slightest touch
• The extremely high transmittance and 7H of the anti-scratch industrial-grade screen, coupled with water and dust resistant surface design make the product best suited for general public kiosk solutions.
Product Model Quick Guide
| Product Model | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote Now! |
| TPC070-M-QD | 7" | 1024*600 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC080-M-QD | 8" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC101-M2 | 10.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC104-M2 | 10.4" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC116-M2 | 11.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC120-M2 | 12" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC150-M2 | 15" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC156-M2 | 15.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC170-M2 | 17" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC173-M2 | 17.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC190-M2 | 19" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC191-M2 | 19.1" | 1440*900 | 16:10 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC215-M2 | 21.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry |
| TPC238-M2 | 23.8" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touch | Inquiry |
Touch Think 17-inch Industrial Touch Screen Monitor Display
| Screen parameters | Screen size | 17 inch |
| Model | TPC170-M2 | |
| Resolution | 1280*1024 | |
| Proportion | 5:4 square screen | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance | 0.264mm | |
| Contrast | 1000:1 | |
| Backlight type | LED, use length≥50000h | |
| Display color | 16.7M | |
| Visual angle | 160/160 ( 178° full view angle customizable) | |
| Brightness | 400cd/m2 (high brightness customizable) | |
| Touch-type | Resistive / capacitive / mouse control | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | contact 4KV-air 8KV (can be customized ≥16KV) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Dustproof and waterproof | Front IP65 dustproof and waterproof | |
| Housing Material | Black/Silver, Aluminum Alloy | |

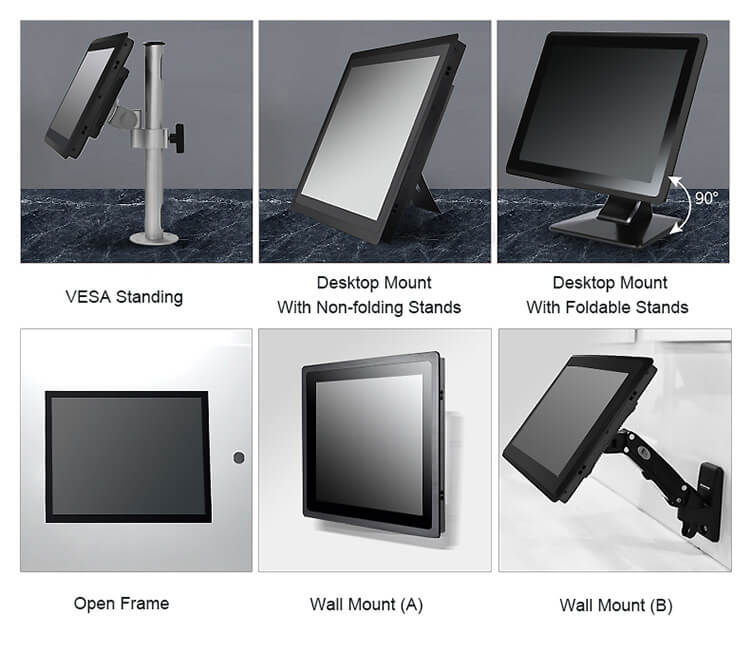

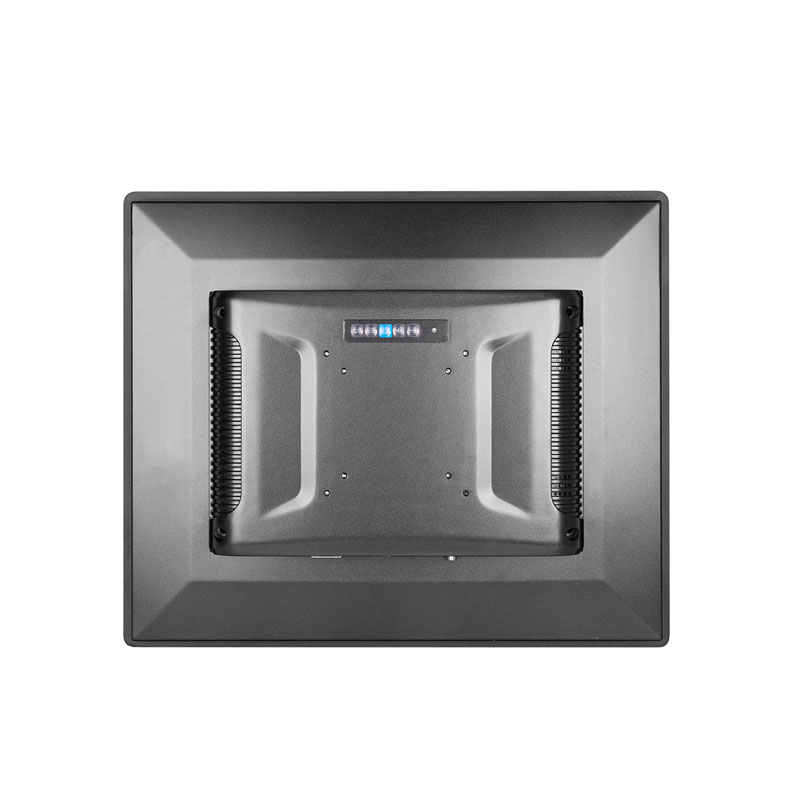

| Installation method | Embedded, desktop, wall-mounted, VESA | |
| Ambient temperature | <80%, non-condensable | |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian | |

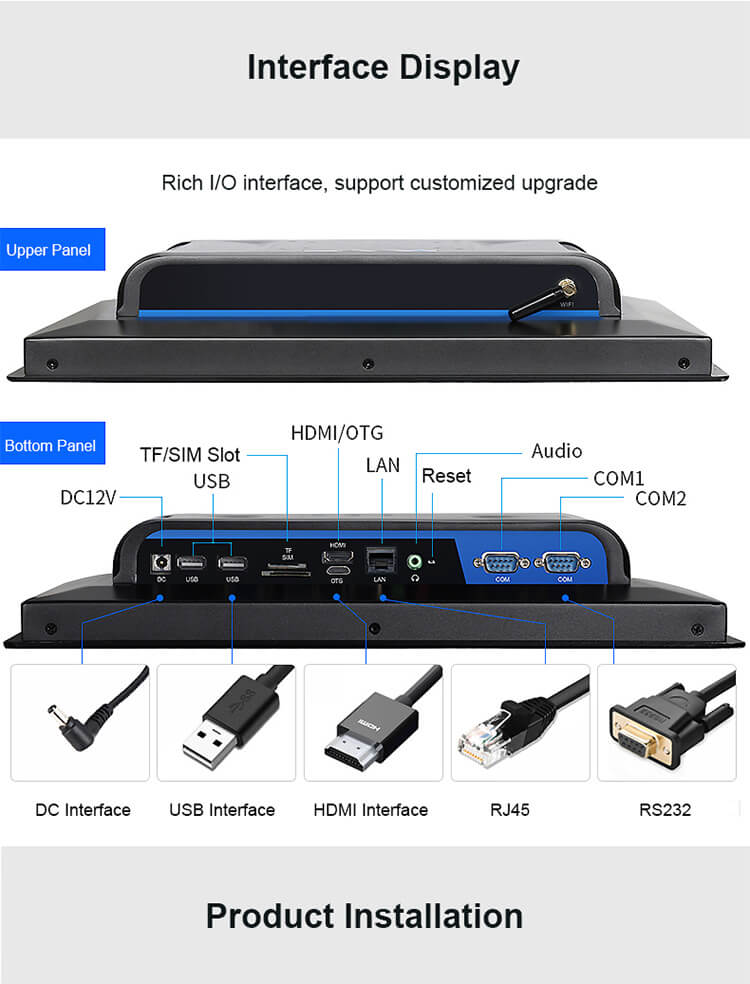

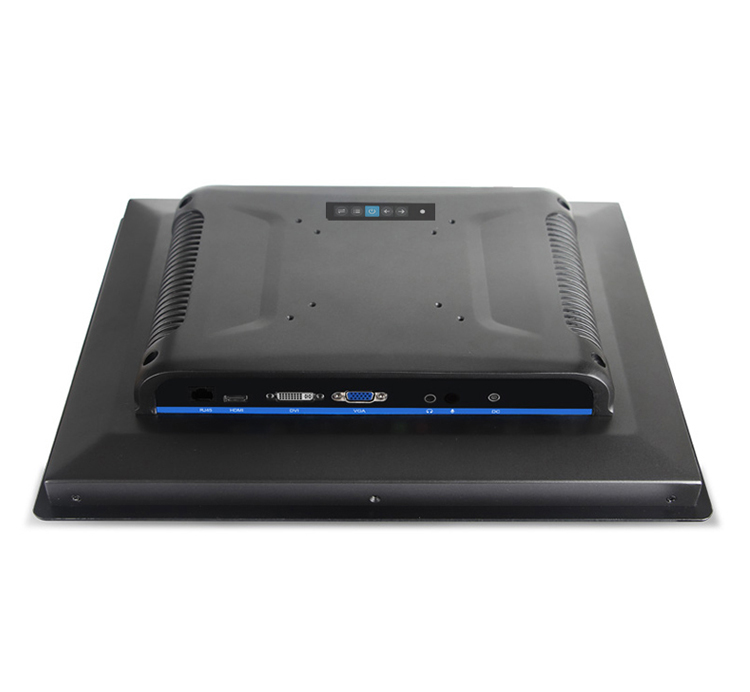

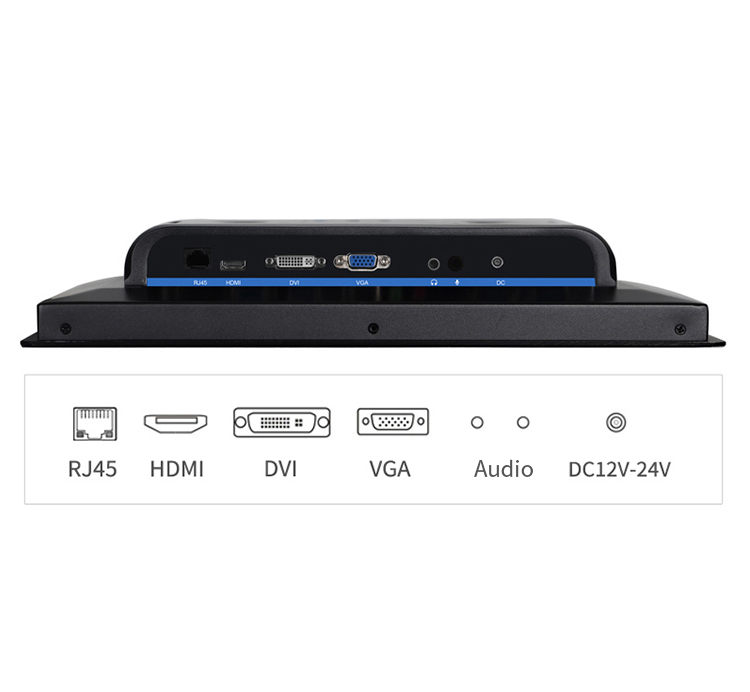

| O/I interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output |

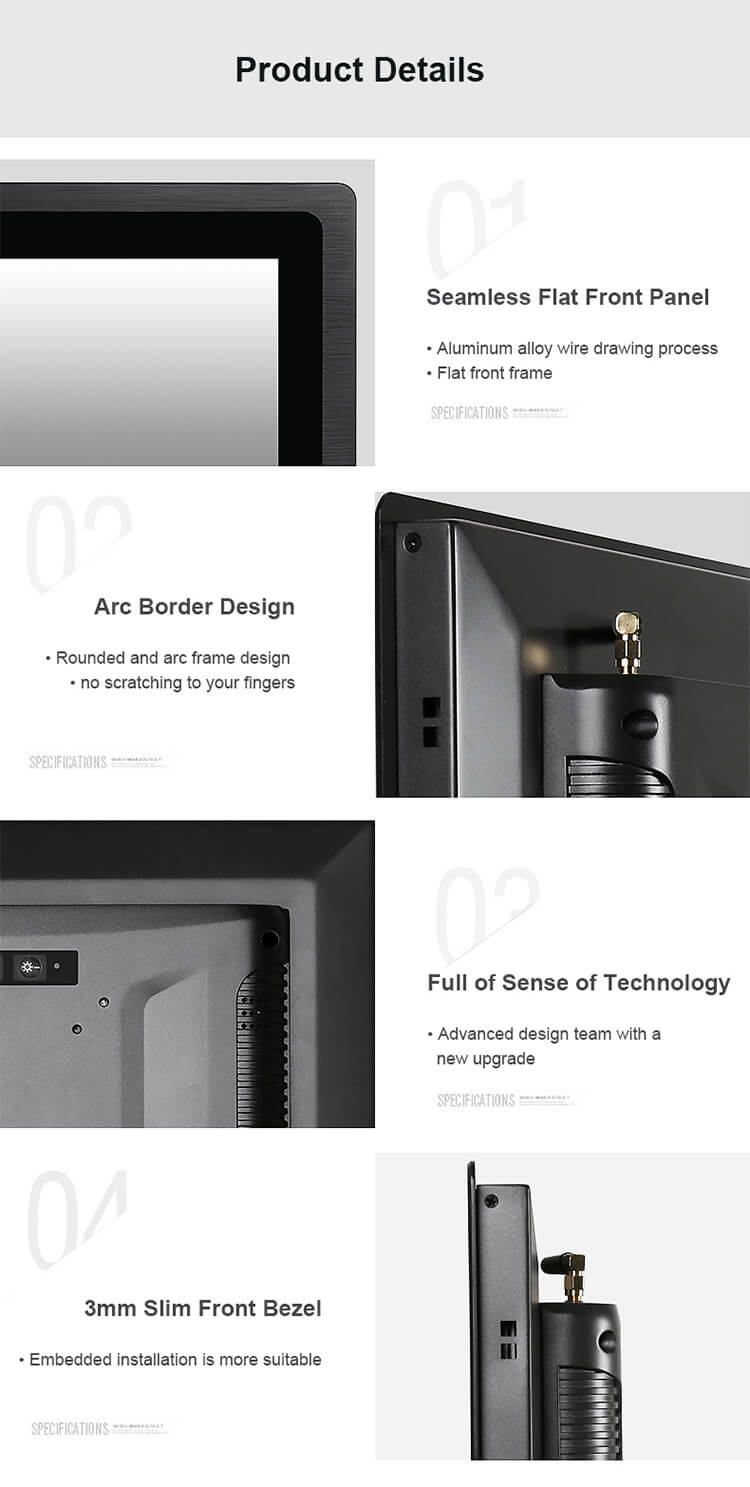

Touch Think 17" industrial LCD monitors with touch screen and ultra-thin front bezel (3mm) are widely embedded into the indoor and outdoor self-service machines, commercial self-service equipment, including food self-service machine, ATM, self-help pay cost. Office self-help, including self-service inquiry, smart office, self-service printing, appointment making. Public outdoor equipment, medical equipment, recycle device, medical check-up device.
Besides, they are widely used in smart factory applications, such as production line equipment, industrial automation devices, industrial control system, process control, data acquisition, and display solutions, numerical control, production-manufacturing.
We offer OEM/ODM customization service for global clients, please contact us for details.
OEM/ODM Items
Screen Customization for Touch Think Industrial Monitors
1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.
2. Photosensitive head: customize the screen brightness automatically based on ambient light.
3. All perspective: standard 160°, 178° WVA customized.
4. Touch screen: industrial monitor, resistive touch screen, capacitive touch screen, IR touch screen.
5. High-resolution screen: customize higher resolution than a standard LCD screen.
6. Screen size: support the customized screen.
7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.
Other Customizations for Touch Think Industrial Monitors
1. Appearance customization: support appearance design, sample customization.
2. Working temperature: standard temp is -20~+70°C, we can customize wider working temp: -30~+80°C.
3. LOGO customization
4. System software customization: compatible with all software requirements.
5. I/O ports customization: support adding more ports according to your demands.
6. Wide voltage: 12V-24V.
7. Special materials: for special occasions.
8. IP grade: The industrial monitors can be customized fully-sealed dust-proof and waterproof.
