LCD Monitors For Mobile Medical Carts In Healthcare Hospitals and Clinics Patient Care

Size: 10.1"

Powered and Non-Powered LCD monitors are suited for a mobile medical cart fleet. We design and manufactures LCD monitors for medical workstations and carts that deliver touch display functions in a simple yet seamless way.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

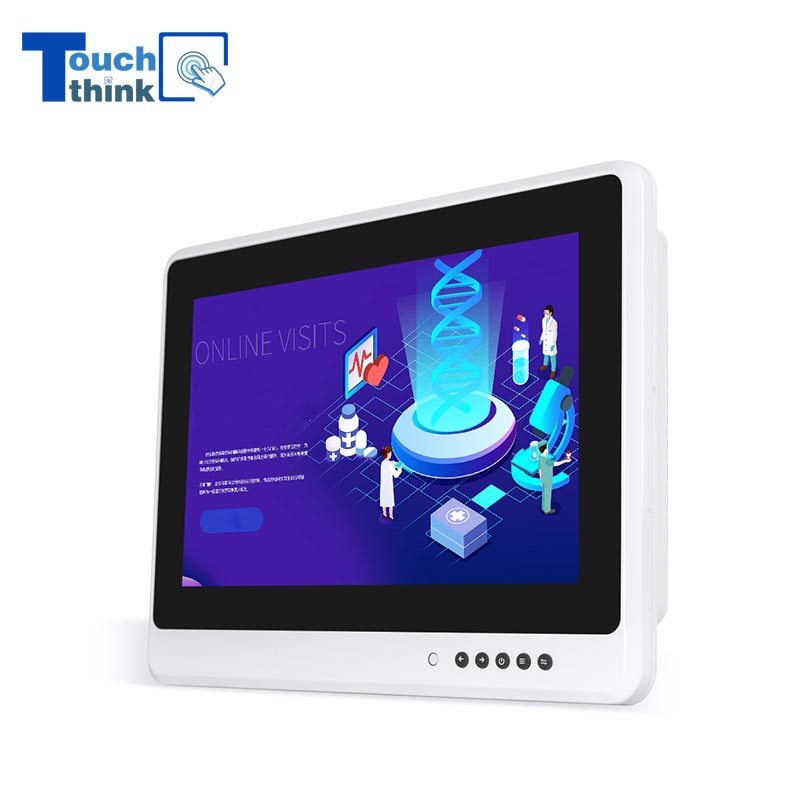

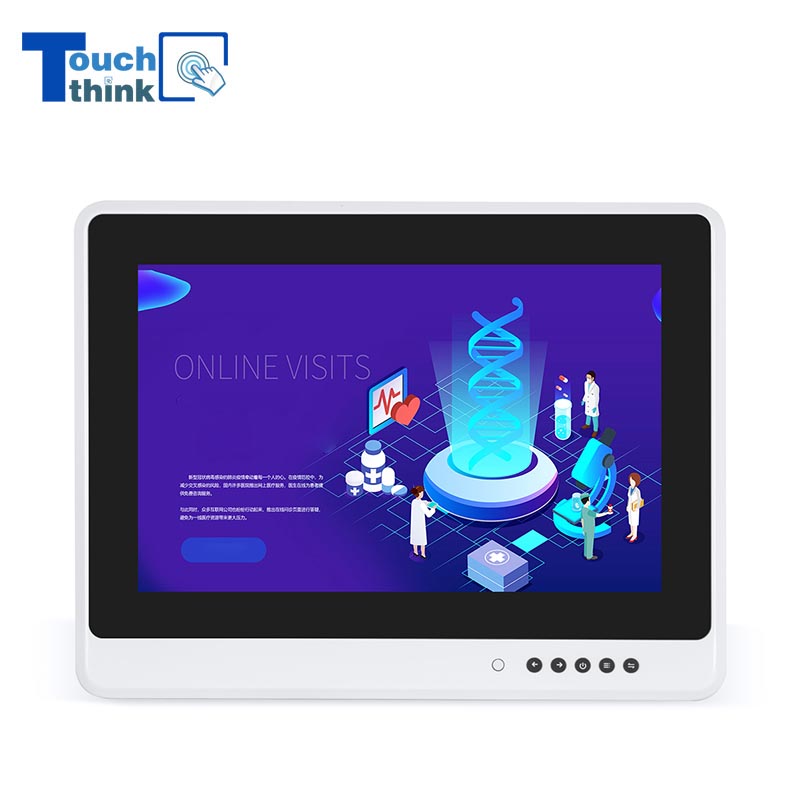

10.1" LCD Displays For Mobile Medical Carts


Model: TPC101-MT02


This Touch Think LCD monitor with medical-grade quality and performance, is a medical LCD display, specially designed for mobile medical carts or medical workstations, with its shockproof, anti-interference, anti-static, radiation-resistant, dustproof, and waterproof, etc. This medical cart monitor adopts RTD2513 chip, ESD up to ±8KV/±15KV, avoid some problems such as grey screen, grainy and pixelated screen. It is suitable for hospitals' strong electromagnetic environments, fully meeting mobile medical carts' various requirements, providing multi-functions in medical applications.



Product Features


● LCD display: 10.1-inch / 1280*800 / 16:10.

● Touchscreen: Multi-touch capacitive technology, supports touch by wearing gloves.

● Medical EN60601-1 certified.

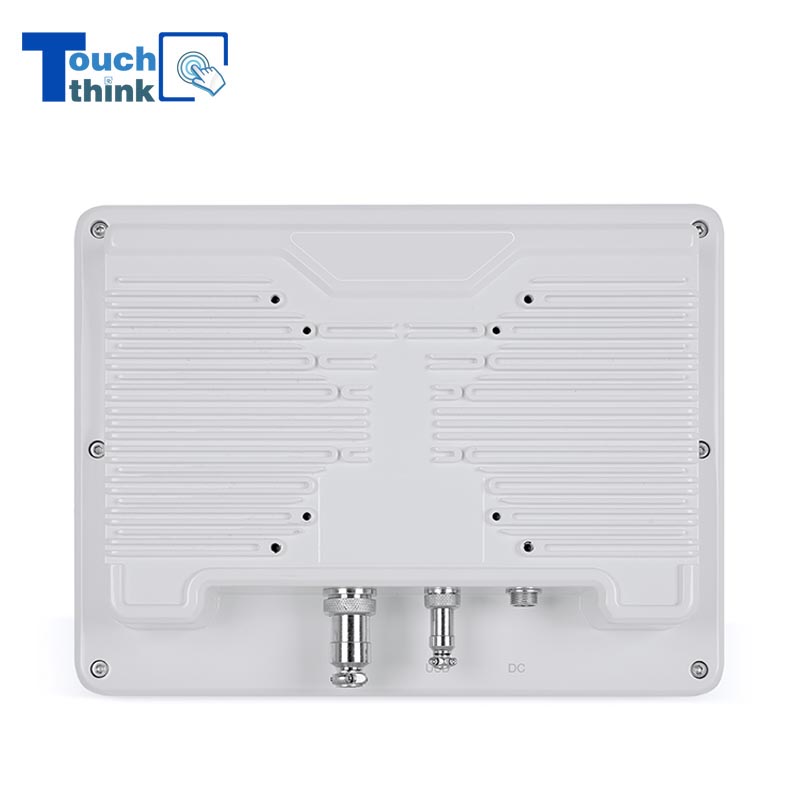

● Aviation interface design: dust-proof, waterproof, oil-proof, shock-proof and fall off.

● Front panel IP65 dustproof and waterproof: effectively prevent damage from splashed water droplets.

● High and low-temperature resistance: The whole monitor is resistant to high and low temperatures, up to -20℃~+70℃.

● 12-36V wide voltage power supply: Effectively respond to voltage instability and trouble-free operation.

● Designed to meet requirements of medical carts, including shockproof, anti-interference, anti-static, dustproof, and waterproof.

● Adopting RTD2513 chip configuration, internal anti-interference layout, to prevent problems like gray screen, screen particles.

● High adaptability to the strong electromagnetic environment in the hospital.

● Support multiple installation methods (VESA, wall-mounted, adjustable ceiling-mounted, 360-degree rotating ball head mount, standing mounted).

● Self-developed industrial-grade display driver board with outstanding performance.

● Rich interfaces support I/O ports expansion.


LCD Monitors For Mobile Medical Carts In Healthcare Hospitals and Clinics Patient Care


LCD Monitors For Mobile Medical Carts In Healthcare Hospitals and Clinics Patient Care






Screen parametersScreen Size10.1 inch / 1280*800 / 16:10

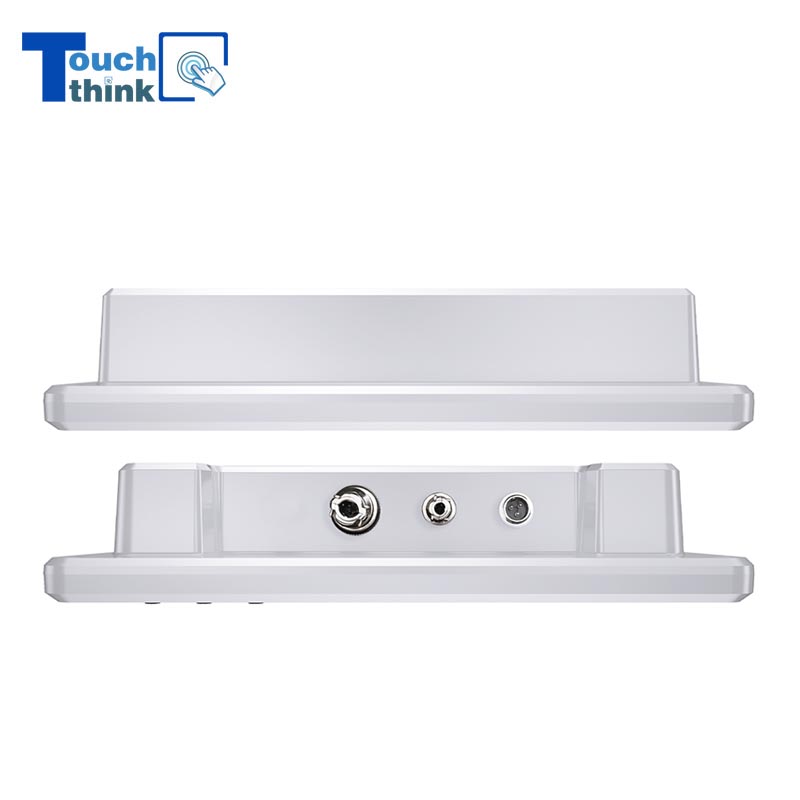

Interface parametersPower interfaceDC*1, waterproof aviation connector
Extended displayVGA*1, waterproof aviation connector
Touch interface
1, waterproof aviation connector
I/O expansionSupports customization
Display parametersColor16.7M
Point distance
0.264mm
Screen panelIndustrial control screen
Contrast800:1
Display brightness300cd/m2 (high brightness customizable)
View angle85/85/85/85(L/R/U/D) full viewing angles.
Backlight type LED-backlit screen Lifetime ≥ 50000h
Gray-scale response time 6.5ms
Touch OptionalResistive/Capacitive/Mouse Control
Installation methodEmbedded, desktop, wall-mounted, VESA, 360-degree rotating ball head mount.
Other parametersPower12V-5A Professional External Power Adapter
Power consumption ≤60W
Working temperature-10°C~60°C
Storage temperature-20°C~70°C
Relative humidity0%-65% (without condensation)
MaterialFull Aluminum alloy material
Warranty PolicyThree-year warranty
IP-rating protection Front panel IP65 dustproof and waterproof
