Industrial Touch Screen Monitors 7 to 24 inch Sunlight-Readable LCD Panels Panel Mount For Control Cabinets and Machines

Size: 7" ~ 23.8"

Industrial touch screen monitors from 7 to 24 inches with sunlight-readable LCD panels are essential for reliable machine control and automation systems. With robust panel mount designs, high brightness displays, and industrial-grade durability, they are well-suited for control cabinets and machines.

Product Color

Black Silvery

Inquiry Now Next Product

product description
Product parameters
Application
OEM/ODM

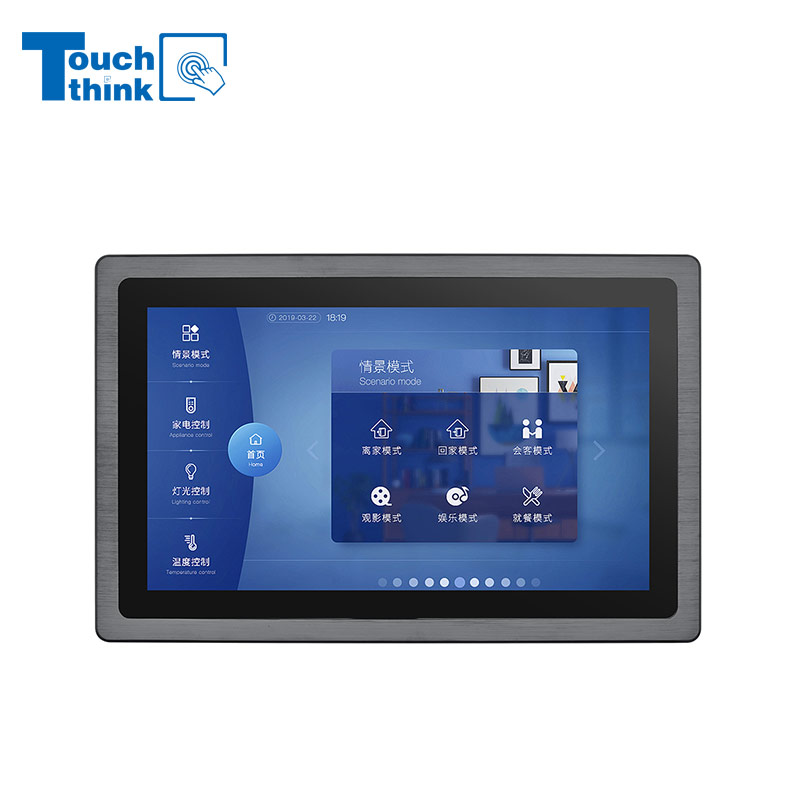

Industrial Touch Screen Monitors 7 to 24 Inch Sunlight-Readable LCD Panels for Control Cabinets and Machines

Industrial touch screen monitors play a critical role in modern automation, machinery control, and industrial HMI (Human–Machine Interface) systems. Designed for harsh environments and continuous operation, 7 to 24 inch industrial touch screen monitors with sunlight-readable LCD panels are widely used in control cabinets, industrial machines, production lines, and outdoor or semi-outdoor installations.

Product Model Fast Guide

Product Models	LCD Displays	Resolution	Aspect Ratio	Brightness	Get A Quote Now!
TPC070-M31	7"	1024*600	16:9	300cd/㎡	Inquiry
TPC080-M31	8"	1024*768	4:3	300cd/㎡	Inquiry
TPC101-M31	10.1"	8001280/1280800	10:16/16:10	500/300cd/㎡	Inquiry
TPC104-M31	10.4"	1024*768	4:3	400cd/㎡	Inquiry
TPC116-M31	11.6"	1920*1080	16:9	250~300cd/㎡	Inquiry
TPC120-M31	12"	1024*768	4:3	500cd/㎡	Inquiry
TPC121-M31	12.1"	1280*800	16:10	350cd/㎡	Inquiry
TPC133-M31	13.3"	1920*1080	4:3	400cd/㎡	Inquiry
TPC150-M31	15"	1024*768	4:3	350cd/㎡	Inquiry
TPC156-M31	15.6"	1920*1080	16:9	300cd/㎡	Inquiry
TPC170-M31	17"	1280*1024	5:4	250~300cd/㎡	Inquiry
TPC173-M31	17.3"	1920*1080	16:9	400cd/㎡	Inquiry
TPC185-M31	18.5"	1920*1080	16:9	300cd/㎡	Inquiry
TPC190-M31	19"	1280*1024	5:4	400cd/㎡	Inquiry
TPC191-M31	19.1"	1440*900	16:10	250~300cd/㎡	Inquiry
TPC215-M31	21.5"	1920*1080	16:9	250~300cd/㎡	Inquiry
TPC238-M31	23.8"	1920*1080	16:9	250~300cd/㎡	Inquiry

Note: High-brightness screen optional.

Sunlight-Readable LCD Panels for Bright Environments

For industrial environments with high ambient light, sunlight-readable touch screen monitors are essential. These displays typically offer:

1. High brightness levels (1000–1500 nits optional)

2. Anti-glare or anti-reflective glass

3. High contrast ratios for improved visibility

This feature allows our industrial monitors to be ideal for sunlight-readable applications, including factory floors with strong overhead lighting, control cabinets near windows, outdoor or semi-outdoor machines, and logistics, ports, and transportation equipment.

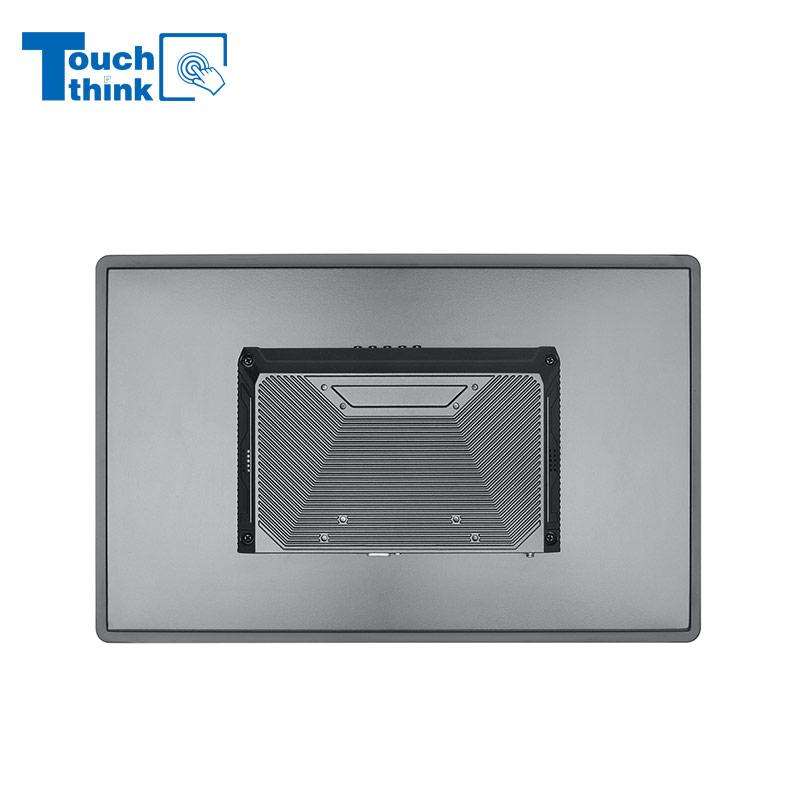

Panel Mount Design for Control Cabinets and Machines

Panel-mount industrial touch screen monitors are specifically designed for front-panel installation into cabinets or machines. Key advantages include:

1. Flush-mount or true flat front design

2. Secure rear clamping or bracket mounting

3. Clean integration with electrical enclosures

4. Easy sealing for dust and water protection

Panel mount monitors are widely used in electrical control cabinets, CNC machines, packaging and food processing equipment, and industrial automation lines.

Industrial-Grade Reliability and Protection

Industrial touch monitors are built to withstand harsh conditions, featuring metal housing (aluminum alloy housing), front IP65 protection against dust and water, a wide operating temperature range (e.g., -10°C to +60°C), and a shock and vibration resistance design.

These features ensure reliable performance in manufacturing plants, energy facilities, transportation systems, and industrial automation projects.

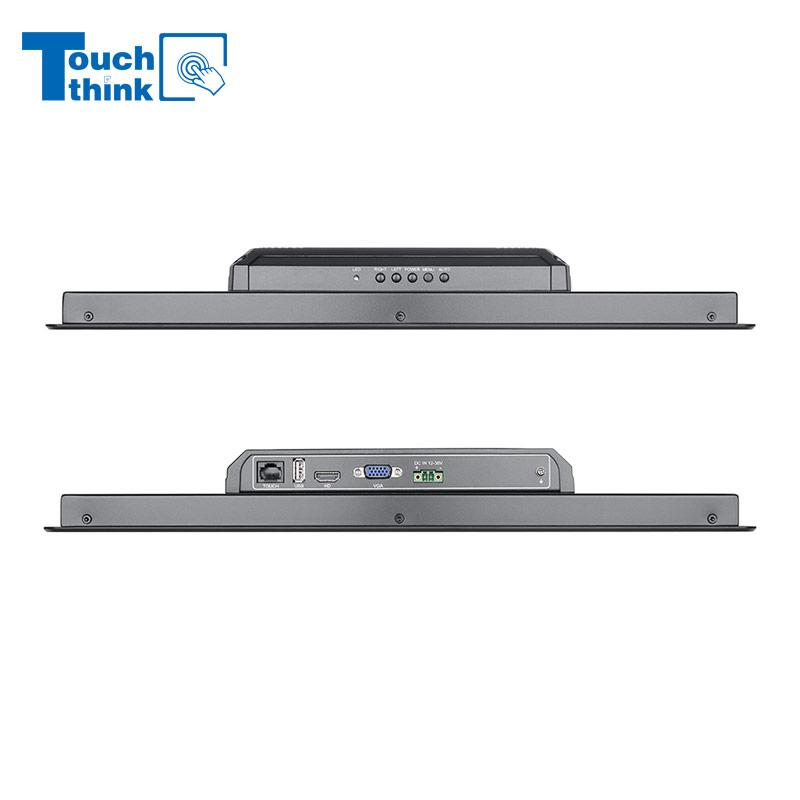

Chip Options	RTD2281 or RTD2513BR-CG
I/Os Parameter	Touch interface	RJ45 port standard (defined as USB)
	HDMI	Supports HDMI data input, maximum support of 1080P
	LVDS/EDP	Optional
	VGA	Support
	DC Port	1*DC2.1, support 12V-36V wide voltage power supply
	Earphone Jack	Standard 3.5mm port
	Audio Port	Audio I/O
	Grounding	1*GND
	I/O Expansion	Support I/O customization for various industries

Screen Parameters	Color	16.7M
	Panel Type	Industrial-grade
	Viewing Angle	160°/160, full viewing angle 178° can be customized.
	Backlight Type	LED, lifetime ≥50000h
	Grayscale Response Time	6.5ms
	Touch Screen Technology	Capacitive, resistive, and non-touch options

Product Reliability	Working Temperature	-10°C ~ 60°C (Support custom -20°C~70°C)
	Storage Temperature	-20°C ~ 70°C
	Operating Humidity	0% ~ 90% RH, non-condensing

Power Parameters	Power Adapter	24V/1.5A
Power Parameters	Power Input	DC 12V~36V

Mechanical	Installation	Panel Mount
	Material	Aluminum alloy housing
	Color	Black, optional silver
