Size: 10.1"
The newest touch screen all-in-one industrial panel PC with reliable performance under harsh environments.
Product Color
8”
10.1”
10.4”
11.6”
12”
15”
15.6”
17”
17.3”
19”
19.1”
21.5”

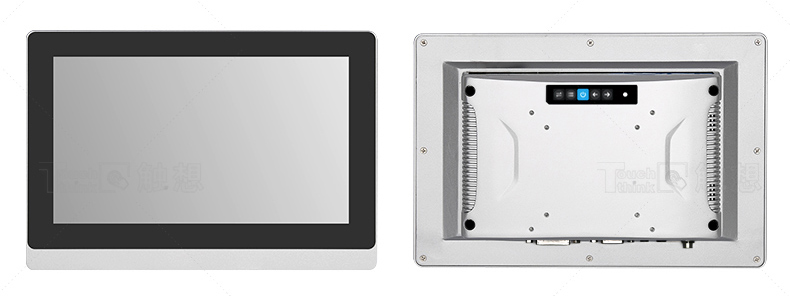

Wall Mounted Industrial PCs 10.1 Inch
Touch Think newest designed industrial all-in-one panel PCs are durable and reliable under harsh environ-
ments. Supporting wall-mounted for various of industrial or commercial terminal applications. OEM/ODM
service for global customers is available. We have provided numbers of one-step solution for customers from
industrial automation fields, IoT, artificial intelligent and commercial terminal device etc.
Features of Touch Think Industrial All in One PC:
1. Touch Think newest generation of industrial tablet PCs use fashion and modern design.

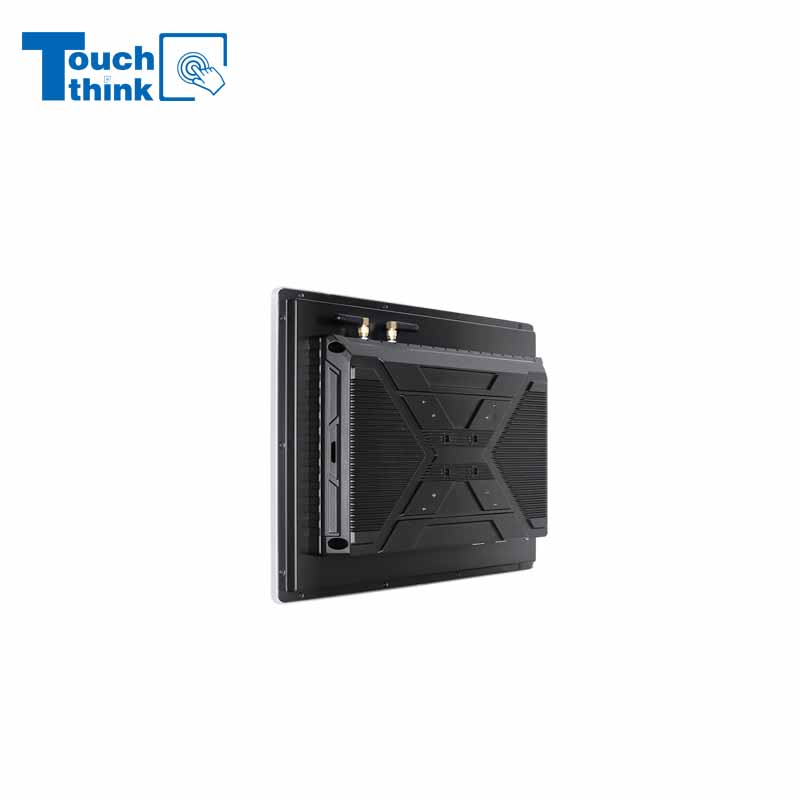

2. Fan-free for heat-dissipation, good heating-dissipation, inner electronic components are well-protected.
3. Self-developed main board with industrial-grade quality, offer reliable operation in industrial conditions.
4. Pre-installed with Win 7 operation system, other Windows version is available.

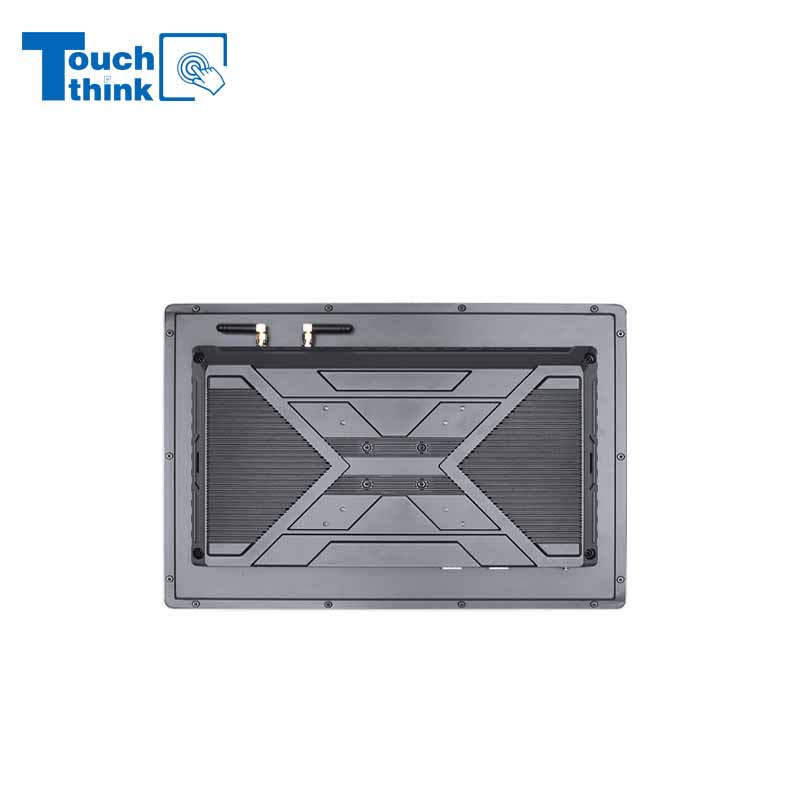

5. Aluminum alloy material housing for better heating-dissipation and strong antioxidant capacity.
6. True flat panel with IP65 rated dust-proof and waterproof, well-performanced under wet environments and
outdoor projects, such as self-service vending machines, express cabinets, etc.

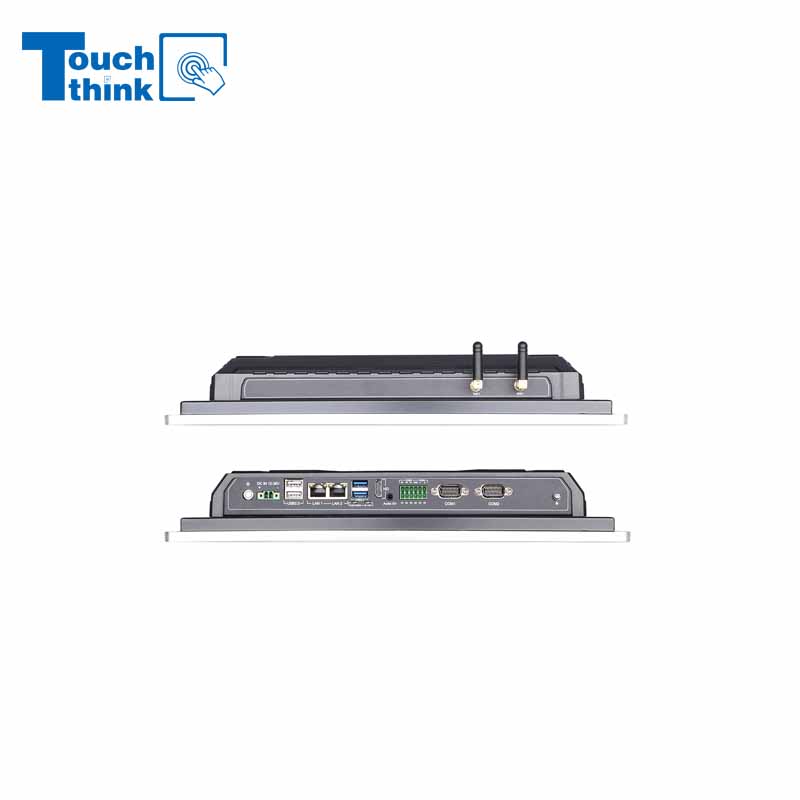

7. Multiple interfaces to meet your needs: DC, HDMI, VGA, RJ-45, USB, and COM. Offer I/O expansion.
8. Standard configuration for motherboard, support upgrade version according to requirements.
Comprehensive Customization Service for Touch Think Industrial All-in-one PC
1. Get understanding of customer’s requirements and plans of the project.
2. Offer professional and effective solutions as suggestion.
3. Technical agreement will be signed after evaluated the possibility of customized products.
4. Product design, production and function test will be provided by our experienced project engineer.
5. Trial production for the purpose of sample test.
6. Offer high quality product and mass production for customer.
| Screen parameters | Screen size | 10.1 inch |
| Model | TouchTEC-101A | |
| Resolution | 1280*800 | |
| Proportion | 16:10 widescreen | |
| Motherboard parameters | CPU | intel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual core, optional Intel H81 equipped with Core i3/i5/i7) |
| Hard Disk | 32G SSD (Optional 64G SSD/500G HDD) | |
| Memory | 2G DDR3 (supports 8G DDR3) | |
| Audio | Integrated Audio Chip | |
| Network | Integrated Gigabit LAN | |
| Wireless network | built-in wifi antenna, support wireless connection | |
| Graphics Cards | Integrated Graphics | |
| System | pre-installed windows7, support other version | |
| Speakers | available | |
| Interface parameters | USB interface | 8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1 |
| Serial Interface | 8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol | |
| WIFI connector | WIFI antenna*1 | |
| Power Interface | DC 12V*1 | |
| High-definition interface | HDMI*1 | |
| Extended display | VGA*1, support for synchronous dual display and differential display | |
| Network interface | RJ-45*1 | |
| Audio Interface | Audio I/O | |
| Support extensions | Multiple industry interface support customization | |
| Display parameters | Color | 16.7M |
| Point distance | 0.264mm | |
| Screen Panel | Industrial control panel | |
| Contrast | 800:1 | |
| Display brightness | 400cd/m2 (customizable high brightness above 400cd/m2) | |
| View angle | (H160 (V) 160, customizable wide viewing angle 178° | |
| Backlight type | LED backlit screen Lifetime ≥ 50000h | |
| Gray-scale response time | 5ms | |
| Touch Optional | Resistive/Capacitive/Mouse Control | |
| Installation method | Embedded, desktop, wall-mounted, VESA, panel mount | |
| Other parameters | Power | 12V-5A Professional External Power Adapter |
| Power consumption | ≤60W | |
| Working temperature | -10°C～60°C | |
| Storage temperature | -20°C～60°C | |
| Relative humidity | 0%-65% (without condensation) | |
| Material | Full body made of aluminum alloy material | |
| Color | Silver, Black | |
| Warranty Policy | One year free warranty | |
| Degree of protection | Front panel IP65 dustproof and waterproof | |
| Packing list | Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card |

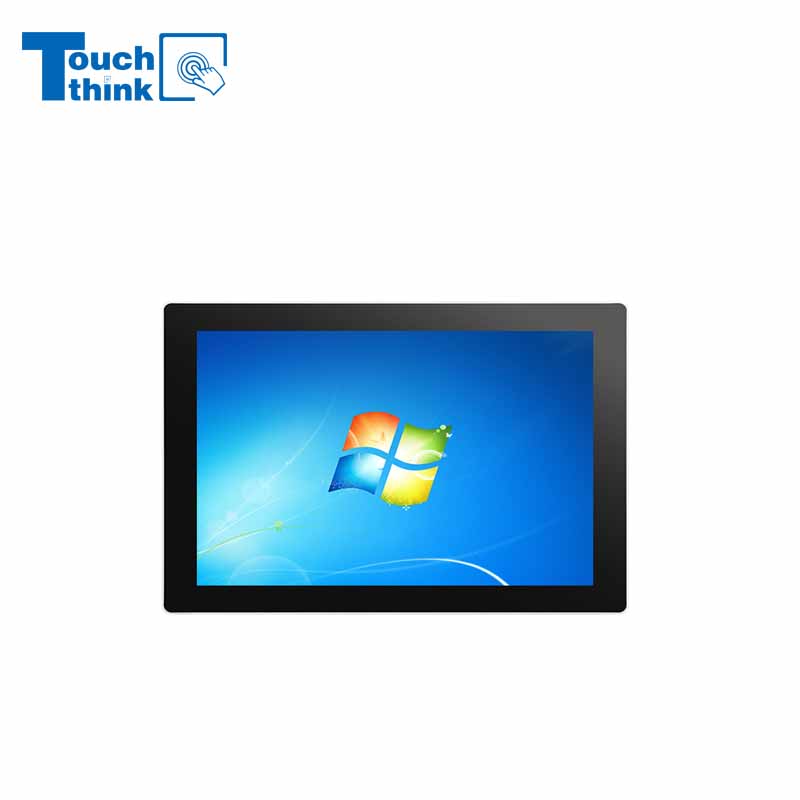

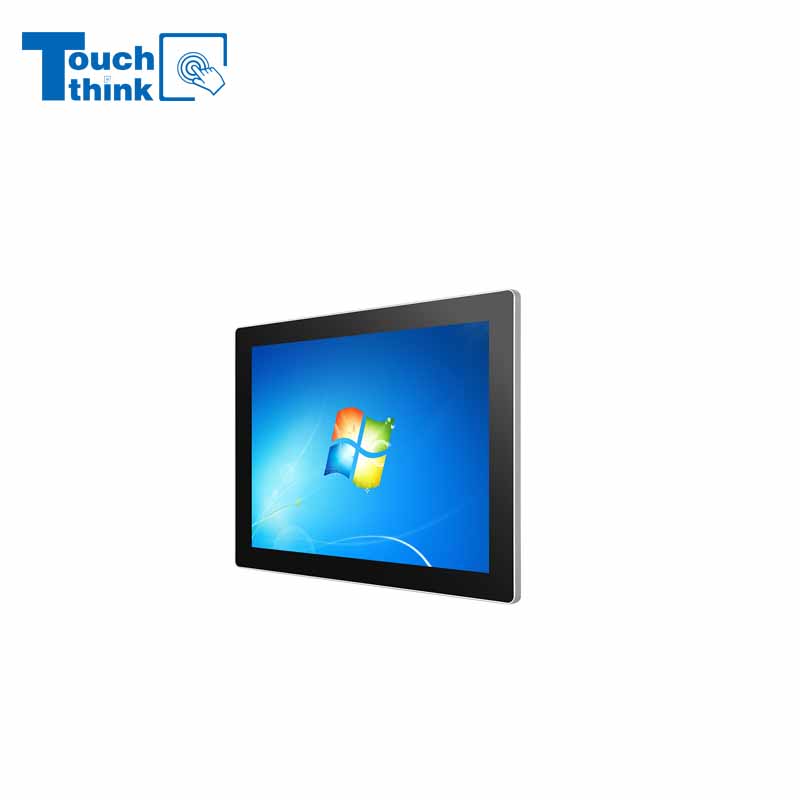

10.1-inch industrial touch screen AIO Panel PC
10.1-inch industrial touch screen AIO Panel PC
