Size: 15"
Touch Think industrial grade panel PCs with Android system are designed for industrial automation, poin-of-sale, healthcare, home automation and more. Offer capacitive, or non-touch screen technologies.
Product Color

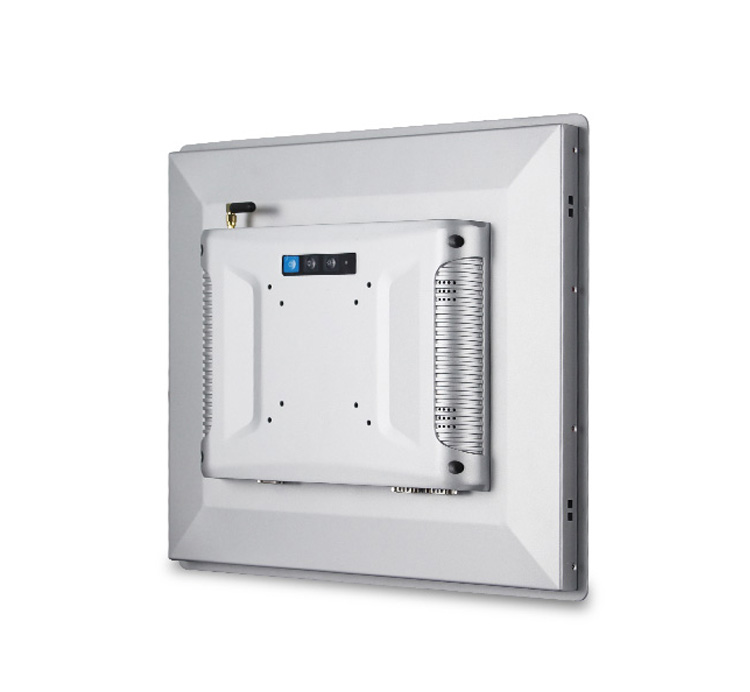

15" Industrial Android Panel PC With Factory Wholesale Price
Model: TPC150-A2
• LCD display: 15-inch
• Resolution: 1024*768
• Aspect ratio: 4:3 widescreen
• CPU: JWSA64 Cortex-A53 quad-core 1.2GHz
(JWS3288 Cortex-A17 quad-core 1.8GHz; JWS3399 two Cortex-A72 + four Cortex-A53, six-core 1.8GHz for optional)
• RAM: 2G DDR3 (4/8/16G optional)
• Memory: 64G SSD (128/256G optional)
• Operting system: Android 6.0 / 7.1 / 9.0 / 10.0 and more.
• Touch technology: Capacitive (Non-touchscreen optional)
Touch Think industrial touch screen all-in-one panel PC with Android OS delivers high-quality picture and smooth operation for users no matter for indoor or outdoor devices under harsh conditions. Touch Think all-in-one PCs are designed for multi applications and withstand a wide operating temperature range.
Touch Think Android Industrial Panel PC Features
● Offer many installation styles: desktop, embedded, wall-mounted panel mount, and VESA.
● Color: black or silver, offer appearance color customization service.
● These industrial all-in-one PCs have passed IP65 waterproof and dustproof standards.
● Working temperature is -20~70 Celsius degree, humidity range is 10%~90%.
● Support long-term, all-weather operation, 365 days*24 hours long-time without interruption.

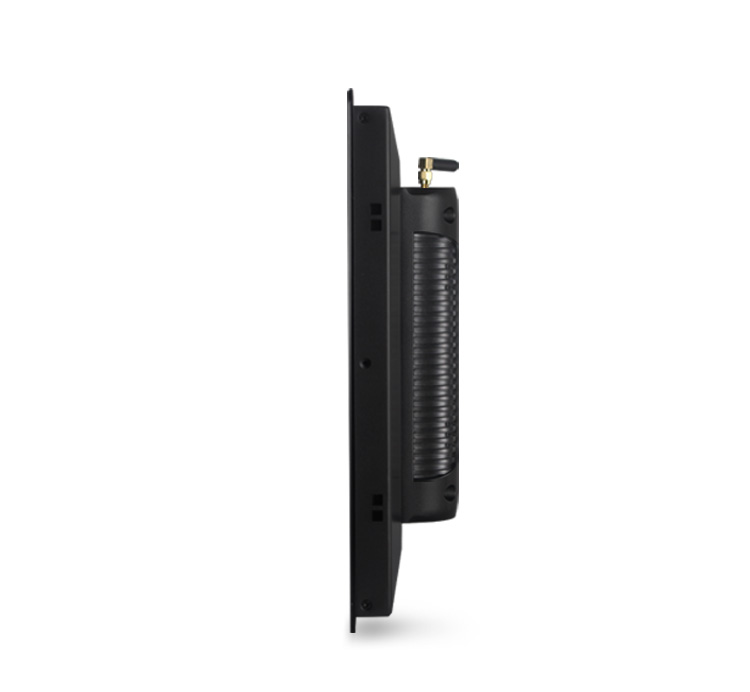

● It is designed with a 3mm bezel thin front bezel, suitable for embedding into other devices.
● Aluminium alloy shell, high performance for heat-dissipation.
● Support non-touch and capacity touch screen.
● Standard I/O interfaces: VGA, HDMI, DVI, automatic identification signal channel, also support other customized multi-ports.
● Special design for DC power port with anti-shedding.
● Anti-interference design to meet EMI / EMC standards.
● Triple protection for the monitor: explosion-proof, moisture-proof, and flameproof.
● Shock resistance for industrial computers reaches GB2423, it can be well-protected during transportation.
● The anti-static level of contact is 4KV, supporting customized MAX 16KV for industrial panel PCs.
● Offer a multitude of ports for customers according to different applications. Support I/O expansion.
Display Parameters | Size | 15" | ||||||
Resolution | 1024x768 | |||||||
Screen Ratio | 4:3 | |||||||
Brightness | 350 nits (Optional high brightness) | |||||||
Contrast Ratio | 1000:1 | |||||||
Viewing Angle | 89/89/89/89 (L/R/U/D) | |||||||
Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G | |
System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) | |
Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
Operating System | Android 6.0 | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1 / 9.0 / 11 / Ubuntu18.04 / Debian10.0 / Linux4.4 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | Android 12 / Linux 5.10 / Debian11 / Ubuntu 20.04 | |
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet |
4G | Optional. Based on the 4G module selection | |||||||
5G | / | / | / | / | / | / | Support M.2 5G module interface | |
WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
Display Function | LVDS | Support 1920*1080 60Hz output | ||||||
EDP | / | 1920*1080 60Hz output | 4K 3840*2160 output | |||||
MIPI | Support 1920*1080 60Hz output | |||||||
Mipi Camera | 30pin FPC interface, support 1300W Camera | |||||||
HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | ||||||
HDMI Input | / | HDMI Input, 24-pin FPC custom interface | / | HDMI Input, 24-pin FPC custom interface | / | / | HDMI 2.0, support 4K 3840*2160 60Hz input | |
Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||
I/O Ports | MICRO USB | 1*MICRO USB (OTG) | / | / | / | / | / | |
USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*5 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | USB2.0*5 on board | |
USB 3.0 | / | / | USB3.0*2 (including OTG*1) | USB3.0*1(OTG) | USB3.0*2 (including OTG*1) | USB3.0*1(OTG) | USB3.0*4 (including OTG*1) | |
RS232 | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | RS232*2 | RS232*1; RS232/TTL*2 (optional) | |
RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | RS485*1 | RS485*1 | ||
TTL | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | TTL*2 | TTL*1; RS232/TTL*2 (optional) | |
GPIO | 3*GPIO output, 1*GPIO input, and 1*ADC port | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | ||
SIM Slot | Support | Support | Support | Support | Support | Support | ||
TF Slot | Support | Support | Support | Support | Support | Support | ||
CAN | / | / | / | / | Support | Support | ||
Speaker | 3.5mm standard Jack | |||||||
MIC | Support | Support | Support | Support | Support | Support | ||
Audio Port | 3.5mm earphone jack, support input/output | |||||||
I/O Expansion | Available | |||||||
Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
Mechanical | Dimension | 378*300*63.6mm | ||||||
Enclosure | Aluminum alloy housing | |||||||
Cooling System | Fanless | |||||||
Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | |||||||
Product Reliability | Working Temp | -20°C ~ 70°C | ||||||
Storage Temp | -30°C ~ 80°C | |||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
IP rating | Front IP65 | |||||||
Our industrial tablet PCs are suitable for universal use, such as healthcare devices, building automation, industrial automation, industry 4.0, IOT, commercial terminals, POS system, fleet management, logistics and warehouse management,. etc.
If you need advice for your special application, do not hesitate to contact our technical sales or support. We will find the right solution together.
We support kinds of customization service, please feel free to contact us for details.
