10 Inch Open Frame Panel PC Android 9.0 / 7.1 / 6.0 / 5.1

Size: 10.1" / 11.6"

Touch Think industrial open-frame panel PCs can be used in a variety of applications, such as electric cabinets, ATM machines, casino machines, vending machines, and other kiosk solutions.

Product Color



Industrial-Grade Open Frame Touchscreen Panel PCs


Model: TPC101-AI10      10.1"

Model: TPC116-AI10      11.6"


Touch Think open frame touchscreen panel PC with Android system, and industrial-grade motherboards provide intelligent hardware solutions for industrial automation, Internet of Things projects. Deliver multi-point touch control screens, excellent for various self-service terminal equipment and industrial environments due to their reliable quality. Touch Think offers open frame tablets with a wide range of sizes, 7" to 21.5" for standard models, also support other screen sizes with massive quantity. Other customization items include high brightness, I/O interfaces, touch technologies and viewing angle, wide temperature and wide voltage operation, etc.


Industrial Open Frame Tablets Features


● Unique universal installation design.

● Waterproof edge protection, water seepage prevention, and shock mitigation.

● Industrial grade drive board, anti-static, and anti-electromagnetic interference.

● Internal heat dissipation structure design, supporting 7*24 hours long-term uninterrupted operation.

● The surface is IP65 dust-proof and waterproof, and the whole tablet is dust-proof.







  • product description
  • Product parameters
  • Application
  • OEM/ODM

10 Inch Open Frame Panel PC Android 9.0 / 7.1 / 6.0 / 5.1





10 Inch Open Frame Panel PC Android 9.0 / 7.1 / 6.0 / 5.1Open frame Android Panel PC


It is suitable for all kinds of equipment with open-back mounting. High flexibility. It can modify the counterbore structure according to the different requirements of the equipment application. The front flat panel shows a perfect embedded effect, easy to clean and maintain.










10 Inch Open Frame Panel PC Android 9.0 / 7.1 / 6.0 / 5.1

Simple Installation


It adopts an Aluminum alloy back cover, with a smooth and flat surface, solid and durable body, good heat dissipation, compact and reasonable internal structure, compression resistance, high and low-temperature resistance, shockproof, electromagnetic interference resistance, and other functions. It has fast transmission speed, stable and accurate touch.








10 Inch Open Frame Panel PC Android 9.0 / 7.1 / 6.0 / 5.1

Best Choice For Your HMI Solutions


- RK3288, Cortex-A17, Quad-Core, 1.8GHz; Android System

- Higher configuration is upgradable to meet your applications

- Provide SDK development Kit for your secondary development









10 Inch Open Frame Panel PC Android 9.0 / 7.1 / 6.0 / 5.1

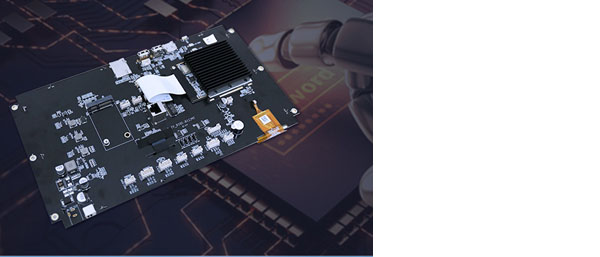

Industrial-grade Motherboard, Multiple I/O Interface, Support Expansion


PCB wiring design, up to EMI / EMC standard, anti-vibration protection level up to GB2423B standard, and with anti-electromagnetic interference, anti-static, anti-surge, support wide voltage & wide temperature operation. Self-developed anti-shedding DC interface design, to prevent the interfaces' falling off and stopping power supply due to vibration, collision, and other conditions of the screens.
















Screen parametersScreen size10.1-inch   /    11.6-inch
Resolution1280*800   /   1920*1080
Aspect ratio16:10   /   16:9   /   widescreen
Gray-scale response time5ms
Panel TypeIndustrial control A style screen with TFT
Point distance

0.264mm

Contrast800:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160° (178° full view angle is customizable)
Brightness 350cd/m2 (support other high brightness)
Touch-typeCapacitive
Backlight typeLED backlight; ≥50000h
Hardware Configuration
CPURK3288, Quad-core, 1.8GHz main frequency
RAMDDR3L default with 2G (4G optional)
Hard disk storageEMMC 8G (16/32/64G optional, maximum support 64G)
Operating systemAndroid 7.1
Graphics cardMali-T764GPU dual-core ultra-high performance GPU, supporting HDMI 4K output
WiFi2.4G/5G
BluetoothBT4.0
GPS / MIC
Optional
Other parametersPower consumption≤35W
Power inputAC 100-240V, 50/60HZ
Power OutputDC12V / 4A
Anti-staticContact 4KV-air 8KV (≥16KV can be customized)
Anti-vibrationGB2423 standard
Anti-interferenceEMC | EMI anti-electromagnetic interference
Dustproof and waterproofIP65 dust-proof and waterproof for the front panel
Housing materialBlack/Silver, Aluminum Alloy
Installation methodOpen frame
Relative humidity95%, Non-Condensing
Working temperature-10°C~60°C (-30°~80°C customizable)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian
I/O interface parametersDC Port1*DC 2.1
USB-OTG1
USB-HOST4*USB 2.0
RJ45 Ethernet1 (10M/100M/1000M adaptive Ethernet)
SD/TFTF for data storage, maximum support 64G
Serial port
4-channel serial ports, default with three-channel for 232, one-channel for DEBUG port (two of which can be TTL)
Wide voltage input12V-36V for option


Touch Think industrial LCD open frame panel PCs are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC, and POS communication, and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations, and parks as media (advertising) players or information-checking terminals.


Open frame Panel PCs are excellent embedded in other machines, cabinets, or install on the operating tables, man-machine display operation interfaces. They are also served as a bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.


In addition, they are also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.








Touch Think industrial panel PCs support customization services such as logo, appearance, color, installation methods, I/O ports, high brightness, viewing angle, touchscreen types, etc.
