17 Inch Industrial Monitor Universal Mount TFT LCD Flat Panel With BNC Connector

Size: 17"

Touch Think 17 inch industrial displays are built to withstand the most challenging environments. The LCD monitors are manufactured with high-quality industrial-grade components to assure reliable field 24/7 long-term operation.

Product Color



17 Inch Industrial Monitor Universal Mount TFT LCD Flat Panel With BNC Connector


Model: TPC170-M5


These Touch Think 5th-GEN industrial monitors are designed for professional use, they're designed & produced with the highest standards and are equipped with plenty of highlights to make them easy to operate and maintain. They support running on a wide temperature & voltage range, feature a long span life LED backlight, and are easy for universal mounts like wall-mounted, desktop, flush mount or panel mount, embedded mount, and VESA arm mount.



Product Features


• 1280x1024 high resolution, 5 : 4 aspect ratio

• IP65 / NEMA4X rated dust and water resistance

• Standard 350cd/m2, support 1000cd/m2 with long-life LED backlight

• Wide viewing angle IPS (In-Plane Switching) LCD panel

• Automatic backlight adjustment through a built-in ambient light sensor

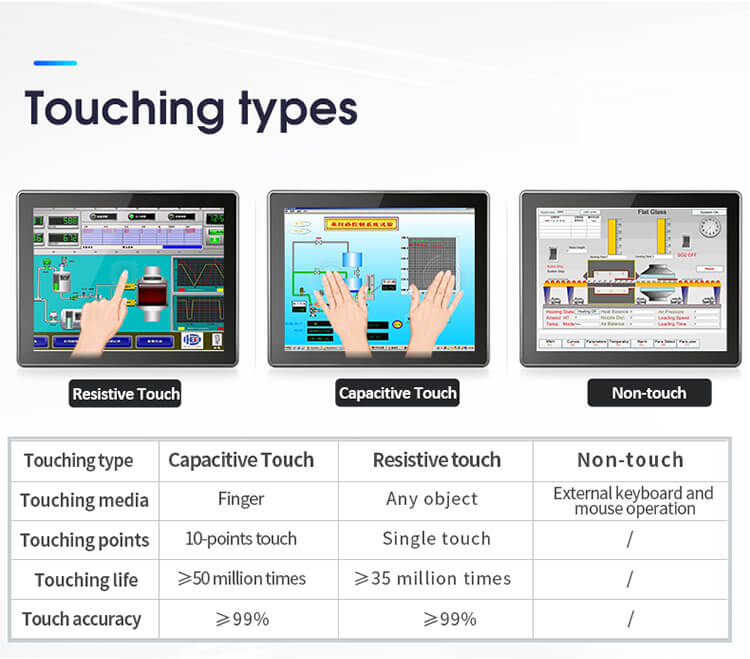

• Single-point resistive & projected capacitive Multi-point touch screen

• Optical bonding, anti-fingerprint, and anti-reflective coating

• Supports 12 ~ 24V DC, anti-falling off design for DC ports

• High-Performance Image and Video Signal Processor

• Last input and power setting memory

• Built-in waterproof speaker

• Plug-and-Play function

• VESA 75/100mm mounting holes on rear cover

• Heavy-duty connector with connector locking

• Ruggedized Aluminum alloy casing

• OSD function

• FCC, CE, ROHS compliant

• 3 Year/36-month warranty




Touch Think 5th-GEN Industrial Monitor - Product Model Quick Guide


ModelLCD DisplayResolutionAspect RatioTouch Screen Type
Get A Quote Now
TPC070-M-QD7"1024*60016:9Capacitive / Resistive / Non-TouchInquiry
TPC080-M-QD8"
1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC101-M510.1"1280*80016:10Capacitive / Resistive / Non-TouchInquiry
TPC104-M510.4"1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC116-M511.6"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC120-M512"1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC150-M515"1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC156-M515.6"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC170-M517"1280*10245:4Capacitive / Resistive / Non-TouchInquiry
TPC173-M517.3"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC190-M519"1280*10245:4Capacitive / Resistive / Non-TouchInquiry
TPC191-M519.1"1440*90016:10Capacitive / Resistive / Non-TouchInquiry
TPC215-M521.5"1920*108016:9
Capacitive / Resistive / Non-TouchInquiry
TPC238-M223.8"1920*108016:9Capacitive / Resistive / Non-TouchInquiry


  • product description
  • Product parameters
  • Application
  • OEM/ODM

17-inch Industrial Touch Monitor With 5:4 Square Screen


17 Inch Industrial Monitor Universal Mount TFT LCD Flat Panel With BNC Connector


12" Industrial Durable Touch Screen Monitor Wide Viewing Angle

12" Industrial Durable Touch Screen Monitor Wide Viewing Angle

17 Inch Industrial Monitor Universal Mount TFT LCD Flat Panel With BNC Connector

12" Industrial Durable Touch Screen Monitor Wide Viewing Angle





Screen parametersScreen size17 inch
ModelTPC170-M5
Resolution1280*1024
Proportion5:4 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160° (178° full view angle customizable)
Brightness 350cd/m2 (high brightness customizable)
Touch-typeResistive / capacitive / mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (≥16KV can be customized)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy

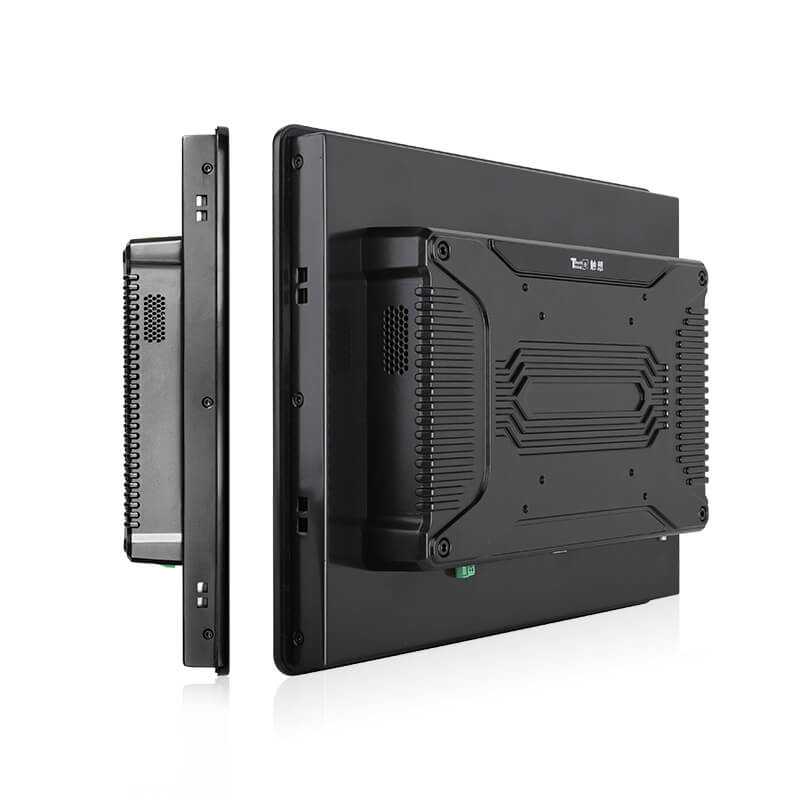

Installation methodEmbedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame.
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian, etc.
O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial Monitors are widely used in the following fields:


1. Industrial field control display;

2. Embedded in various devices as display devices;

3. As a display device in the host of telecommunications and network rooms;

4. Monitors for trains, subway stations, and ports;

5. Vehicle-mounted displays on train, subway, car;

6. Rugged or military standard displays are generally used in harsh outdoor environments, military vehicles, and warships;

7. Embedded into the advertising machine, which is widely applied to elevators, public places, and commercial office buildings of living quarters.



Touch Think industrial monitors support OEM/ODM customization service.


Screen Customization


1. High-light screen: default with 350cd/m2, support customization up to 1500cd/m2.

2. Photosensitive head: support screen brightness automatically adjusts based on ambient light.

3. Screen viewing angle: default with 160°, but all perspectives 178° WVA can be customized.

4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen, and non-touchscreen.

5. High-resolution screen: higher resolution than standard LCD screen can be customized.

6. Screen size: standard display size range is 7 inch to 21.5 inch, other size is available.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customization Items


1. Appearance customization: support appearance and product color design, sample customization.

2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.

3. LOGO customization.

4. System software: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.

8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof, and waterproof can be customized.

9. Installation methods: support different installation methods for different applications.
