Size: 10.1" / 11.6" / 15.6" / 21.5"
The Z-Series X86 Industrial Panel PC with Card Reading and QR Code/Barcode Recognition Functions, Powered by the Intel N97 quad-core processor, is an advanced industrial workstation designed for intelligent data collection, product identification, and digital manufacturing applications.
Product Color
The Z-Series X86 Industrial Panel PC with Card Reading and QR Code/Barcode Recognition Functions is an advanced industrial workstation designed for intelligent data collection, product identification, and digital manufacturing applications.
Powered by the Intel N97 quad-core processor, this industrial touchscreen computer provides excellent performance and compatibility with Windows 10/11 operating systems, enabling seamless operation of industrial software platforms including MES, WMS, SCADA, ERP, and customized automation applications.
Unlike standard industrial Panel PCs that require separate scanning equipment, the Z-Series integrates multiple identification technologies into one compact workstation, including a dual-frequency RFID card reader, QR code/barcode recognition module, and HD webcam. This integrated design helps manufacturers simplify equipment deployment, improve operational accuracy, and accelerate digital transformation.
With support for 10.1-inch, 11.6-inch, 15.6-inch, and 21.5-inch touchscreen displays, customizable industrial interfaces, GPIO control, and multiple mounting methods, the Z-Series provides a flexible computing platform for smart factories, warehouse automation, logistics management, production traceability, and industrial IoT applications.
| Model Name | Screen Size | Resolution | Aspect Ratio | Contrast Ratio | Get A Quote Now! |
| TPC101-W38 | 10.1" | 1280*800 | 16:10 | 600:1 | Inquiry |
| TPC116-W38 | 11.6" | 1920*1080 | 16:9 | 800:1 | Inquiry |
| TPC156-W38 | 15.6" | 1920*1080 | 16:9 | 800:1 | Inquiry |
| TPC215-W38 | 21.5" | 1920*1080 | 16:9 | 1000:1 | Inquiry |
The Z-Series is powered by an Intel N97 quad-core, quad-thread processor with a 2GHz clock speed, delivering reliable computing performance for industrial applications.
The X86 architecture provides broad compatibility with Windows-based software ecosystems, allowing customers to directly deploy existing industrial applications without additional development platforms. Supported applications include MES production management systems, WMS warehouse software, SCADA monitoring platforms, ERP integration systems, industrial database applications, and customized automation software. Compared with embedded computing platforms, the Z-Series provides stronger software flexibility for complex industrial environments.
The Z-Series features a built-in high-precision QR code and barcode recognition module, enabling fast and accurate data capture during industrial operations.
Operators can scan product QR codes, barcode labels, serial numbers, material identification codes, production orders, and logistics information. The integrated scanning capability allows real-time connection between physical products and digital management systems.
Typical benefits include reduced manual data entry, improved production accuracy, faster workflow execution, and enhanced product traceability.
The Z-Series is especially suitable for manufacturing and logistics environments where every product, component, or package requires reliable identification.
In addition to barcode recognition, the Z-Series integrates a 125KHz + 13.56MHz dual-frequency card reader for identity authentication and equipment authorization.
The RFID function supports operator login, production workstation access, equipment permission control, employee identification, and secure operation management.
Combining RFID authentication with barcode data collection allows factories to associate Operator + Product + Process + Production Data, creating a more complete digital manufacturing workflow.

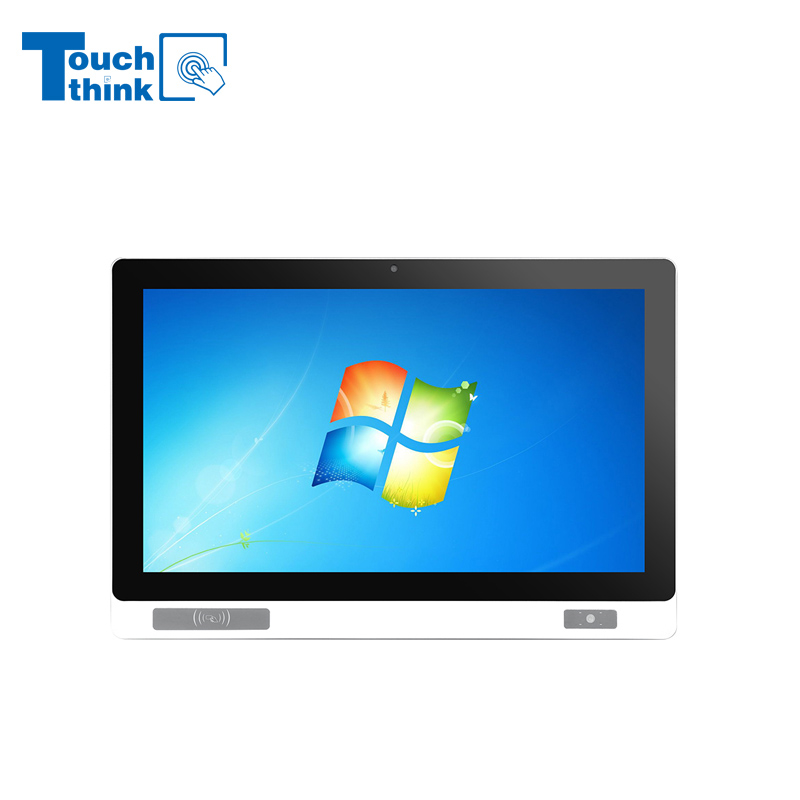

The Z-Series is available in 10.1", 11.6", 15.6", and 21.5" display sizes. The full-view touchscreen features 10-point capacitive multi-touch, wide viewing angle, clear visual output, and responsive operation. The intuitive touchscreen interface allows operators to complete scanning, data verification, equipment control, and information management directly from the same industrial terminal.
The front-mounted 1MP HD webcam provides additional functionality for intelligent industrial applications. Possible applications include remote technical support, visual communication, image capture, and identity verification.

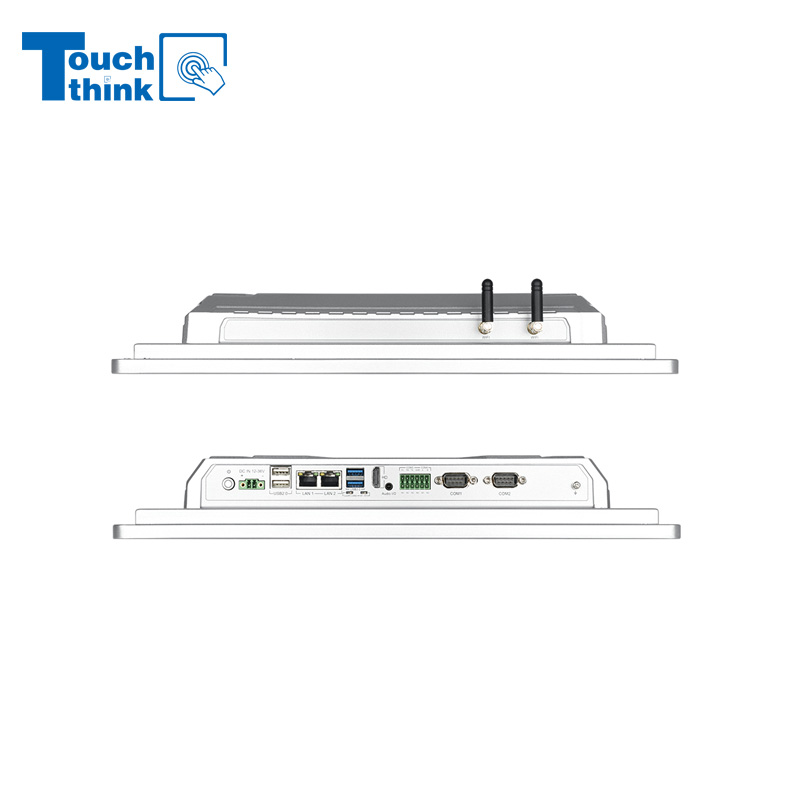

Designed for automation integration, the Z-Series provides extensive hardware expansion capability. The integrated 12-pin Phoenix connector supports six customizable interfaces, enabling flexible connection with industrial equipment. The system also supports 8-channel GPIO TTL input/output. These resources allow connection with sensors, PLC controllers, switches, industrial machines, and external control devices. The customizable interface architecture makes the Z-Series suitable for OEM automation projects.
| Display Parameters | Size | 10.1" / 11.6" / 15.6" / 21.5" |
| Backlight type | LED backlight screen, service life ≥ 50000H | |
| Touch Screen | Capacitive, Resistive, or Non-touch options | |
| System Architecture | CPU | Intel N97 Quad-Core, 2.0GHz |
| Architecture | Intel Alder Lake | |
| GPU | Intel UHD Graphics | |
| Memory | 8GB (16/32GB Optional) | |
| Storage | 128GB (256/512GB SSD; 1T/2T/4T HDD optional) | |
| SATA | 1*SATA3.0 (SATA and MSATA, select either one) | |
MSATA | 1*MSATA (SATA and MSATA, select either one) | |
| M.2 | 1*M.2 | |
| Operating System | Windows 10/11 | |
Ubuntu 22.04 | ||
| Networking | Ethernet | 2*2500 Mbps |
| 4G | A 4G module adapter card needs to be added to achieve this. | |
5G | A 5G module adapter card needs to be added to achieve this. | |
| WIFI | 1*M.2 supports Key-E interface WiFi/Bluetooth module; Dual-band 2.4/5GHz | |
| Bluetooth | BT5.0 (Optional) | |
| Display Function | LVDS | Support 1920*1080 60Hz output |
| EDP | Supports 4096*2304 120Hz output | |
| VGA | / | |
| HDMI | Supports 4096*2160 @60Hz output | |
| Touch Function | Touch Interface | USB |
| I/O Ports | USB 2.0 | USB2.0*2+USB2.0*2 on board |
| USB 3.0 | USB3.0*2 + USB3.0*2 on board | |
| RS232 | 6*RS232 (one of which is for RS232/RS422/RS485 mutual conversion, five of which is for RS232/RS485 mutual conversion) | |
| RS485 | 6*RS485 (one of which is for RS232/RS422/RS485 mutual conversion, five of which is for RS232/RS485 mutual conversion) | |
| RS422 | 1*RS422 (support RS232/RS422/RS485 mutual conversion) | |
| SIM Slot | / | |
| MIC | Support | |
| Audio Port | 3.5mm earphone jack, supports input/output | |
| I/O Expansion | Support | |
| Power | Power Input | 12-36V DC |
| Adapter | 24V / 2.5A | |
| Mechanical | Enclosure | Aluminum alloy housing |
| Cooling System | Fanless | |

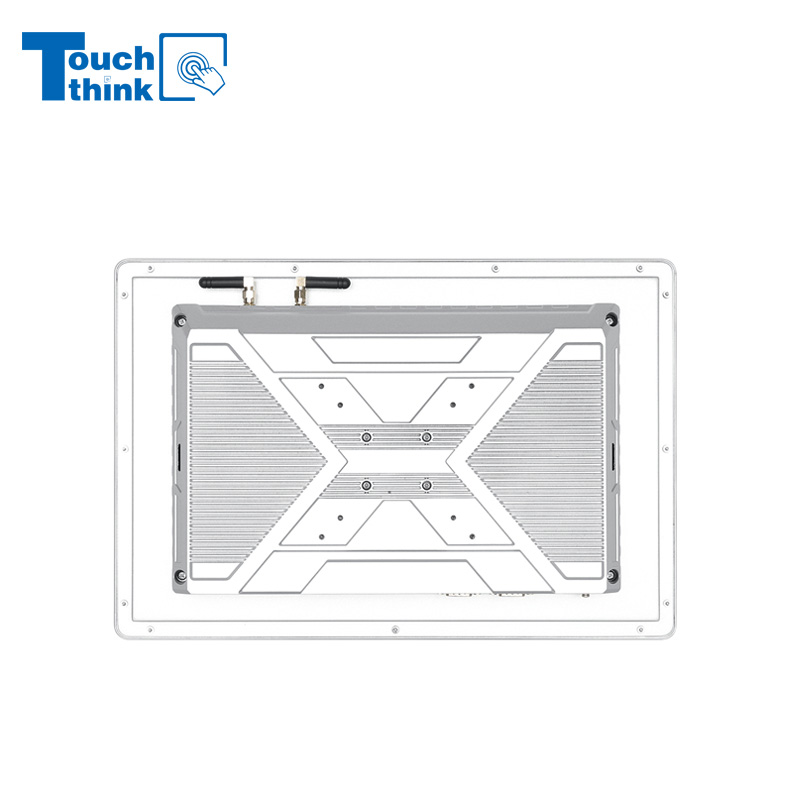

| Mounting | Wall mounting, VESA mounting, desktop installation, and ceiling mounting | |
Product Reliability | Working Temp | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C | |
| Ambient Humidity | 95% (relative humidity non-condensing) | |
| IP rating | Front IP65 | |
The Z-Series X86 Industrial Panel PC combines industrial computing, touchscreen operation, RFID card reading, QR/barcode recognition, and visual interaction in a single workstation. This integrated architecture makes it suitable for applications where operators need to identify personnel, capture product information, access software systems, and interact with industrial equipment from one terminal.
At production workstations, operators can use the built-in card reader to authenticate personnel and scan QR codes or barcodes to identify materials, work orders, and products. The X86 platform supports Windows-based MES, ERP, SCADA, and other manufacturing software, helping connect operator actions with production data in real time.
Typical functions include:
* Operator identification and workstation login
* Material and product code scanning
* Work-order verification
* Production status updates
* Process data entry and confirmation
* Equipment control and status monitoring
The Panel PC can serve as a front-end terminal for Manufacturing Execution Systems (MES). Operators can access production instructions, check process information, record inspection results, and confirm completed operations directly from the touchscreen.
By combining card authentication with barcode or QR code identification, manufacturers can associate the **operator, product, process, and production record** within the same workflow.
For industries requiring detailed product genealogy, the integrated scanning module provides a convenient way to capture identification data at different production stages.
The terminal can be installed at incoming material inspection, assembly, testing, packaging, and final inspection stations. Scanned information can then be transferred to the customer's manufacturing or database system through the X86 computing platform.
This approach helps reduce manual data entry and creates a more consistent traceability process across the production line.
In warehouse environments, the Panel PC can function as a fixed data collection terminal for receiving, picking, inventory, and dispatch operations.
Workers can scan package or material codes while using the touchscreen to access WMS applications, verify inventory information, and update logistics records. RFID card authentication can also be used to control access to specific warehouse operations.
Suitable applications include:
* Receiving and material registration
* Inventory checking
* Picking verification
* Package identification
* Shipping confirmation
* Warehouse workstation access control
The X86 Panel PC can be integrated with industrial machines as a human-machine interface for equipment monitoring and operation.
Its combination of touchscreen interaction, serial communication, Ethernet connectivity, and customizable industrial I/O allows it to communicate with PLCs, controllers, sensors, and other field devices.
The integrated card reader can be used for operator authorization, while barcode or QR recognition can trigger product-specific machine workflows.
At inspection stations, operators can scan a product ID before entering inspection results into a quality management system. This creates a direct connection between the physical product and its digital inspection record.
The front camera can also support image capture or visual communication where required by the application.
Typical uses include:
* Product inspection terminals
* Testing workstations
* Quality data collection
* Serial number verification
* Inspection record management
* Production exception handling
For logistics and parcel processing applications, the built-in QR/barcode recognition function can be used to identify packages, orders, containers, or transport units.
The industrial touchscreen provides operators with an interactive interface for checking shipping information, confirming package status, and processing exceptions, while the X86 architecture provides compatibility with Windows-based logistics software.
The dual-frequency card reader can be used to identify authorized operators before allowing access to specific applications, equipment, or production processes.
This makes the Panel PC suitable for industrial environments where user authentication needs to be combined with workstation operation, production data collection, or equipment control.
Beyond standard production and logistics applications, the Z-Series can be configured as a dedicated computing terminal for customized automation equipment.
Its multiple serial ports, Ethernet connectivity, GPIO resources, customizable interfaces, and multiple mounting options provide a hardware foundation for system integrators developing specialized industrial machines and control terminals.
Every industrial application has different requirements for computing performance, interfaces, mechanical integration, and data collection. Touch Think provides OEM/ODM customization for the Z-Series X86 Industrial Panel PC, helping system integrators, equipment manufacturers, and solution providers adapt the platform to their specific application requirements.
The computing platform can be configured according to application requirements, including memory, storage, wireless communication, and expansion options.
Depending on the project, customers can specify configurations such as:
* RAM and SSD capacity
* SATA or M.2 storage configuration
* Wi-Fi and Bluetooth
* 4G/5G connectivity
* Additional industrial communication interfaces
* Customized I/O requirements
* Different touchscreen technologies
This allows the same Panel PC platform to be adapted for different levels of application complexity and deployment environments.
Industrial equipment often requires communication interfaces that differ from standard commercial computers.
The Z-Series provides multiple RS232/RS485 interfaces, Ethernet connectivity, GPIO, and a customizable Phoenix terminal. For OEM projects, the interface configuration can be adjusted to match the communication requirements of PLCs, sensors, controllers, machines, and other field devices.
Custom interface requirements may include:
* RS232 / RS485 / RS422
* GPIO
* Ethernet
* USB
* HDMI
* Audio
* Additional industrial communication interfaces
* Application-specific connector configurations
Our engineering team can evaluate the required interface combination based on the customer's equipment architecture.
The Z-Series is available in 10.1", 11.6", 15.6", and 21.5" display sizes to accommodate different installation spaces and viewing requirements.
For OEM projects, customers can also discuss touchscreen and display configurations according to the application, including capacitive touch, resistive touch, or non-touch display options.
This makes the platform suitable for both operator-facing interfaces and equipment-integrated display terminals.
The X86 architecture provides compatibility with Windows 10/11 and Ubuntu 22.04, allowing system integrators to deploy existing industrial software or develop application-specific interfaces.
OEM/ODM projects can involve software integration requirements related to:
* MES
* WMS
* SCADA
* ERP
* HMI applications
* Industrial databases
* Equipment control software
* Customized data collection applications
Where applicable, the Panel PC can be prepared according to the customer's software environment and deployment requirements.
For distributors, solution providers, and equipment manufacturers, product appearance and branding can be adapted for project-specific deployments.
Depending on the project, OEM customization may include:
* Customer logo
* Product labeling
* Customized model number
* Packaging
* User documentation
* Application-specific configuration
This enables customers to deploy the Panel PC as part of their own equipment, automation solution, or product portfolio.
Touch Think supports OEM/ODM projects from initial requirement assessment through prototype evaluation and production deployment.
A typical customization workflow includes:
**Requirement Discussion → Hardware & Mechanical Evaluation → Prototype Configuration → Sample Testing → Design Optimization → Mass Production**
Before production, the customized configuration can be evaluated against the customer's installation, communication, software, and identification requirements.
Whether you need a customized industrial workstation for a single automation machine or a standardized Panel PC platform for large-scale deployment, our engineering team can work with you to define a practical configuration.
