Touch Screen Computer Monitor Industrial Display Flat Panel 15.6"

Size: 15.6"

Touch Think 15.6" industrial touch screen monitor definitely enhances your productivity virtually anywhere with the LED HD monitor. It also comes with VESA wall mounting, allowing it to be used as a small digital signage display.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial monitor


10.1 inch industrial monitor


10.4 inch industrial monitor


11.6 inch industrial monitor


12 inch industrial monitor


15 inch industrial monitor


15.6 inch industrial monitor


17 inch industrial monitor


17.3 inch industrial monitor


19 inch industrial monitor


19.1 inch industrial monitor


21.5 inch industrial monitor

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Touch Screen Computer Monitor Industrial Display Flat Panel 15.6"

Touch Think manufacturers a wide variety of industrial grade displays with mounting designs and

flexible mounting solutions such as panel mount, wall, VESA mount, fully-enclosed gasket sealed,

embedded mount, open frame and table top. The industrial monitors are available with enhance-

ments such as high brightness and sunlight readable technology, shock & vibration resilient com-

ponents, like industrial-grade motherboards, EMI protection, and wide operational temperatures

and wide voltage. Environmentally sealed protection for the whole shell, IP65 dustproof & water-

proof ratings (front panel) enable these harsh duty displays to be used in applications where dirt,

dust, moisture, water and other foreign debris can be present in the working environment.

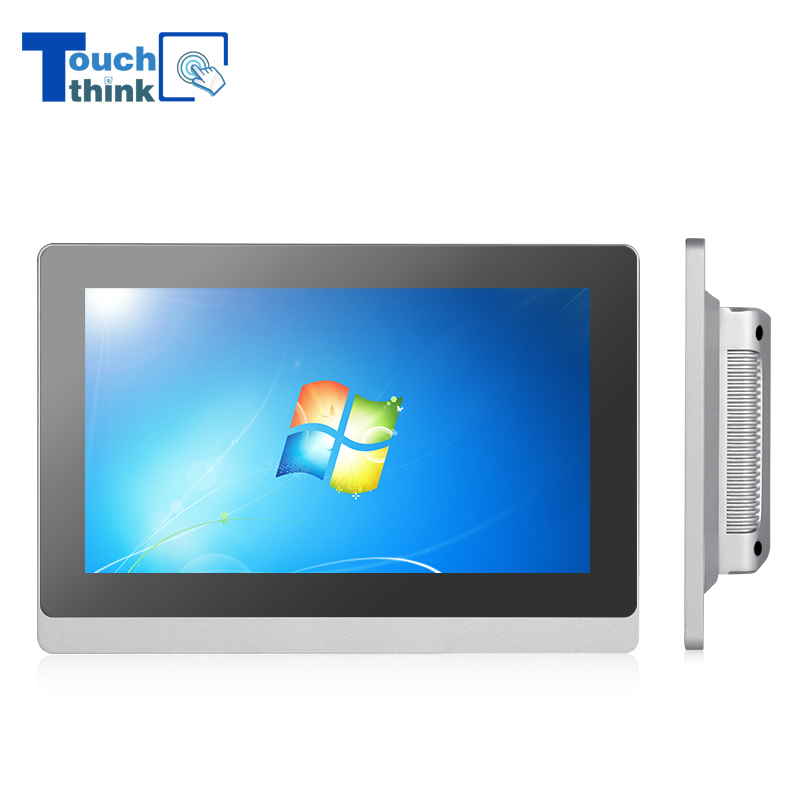

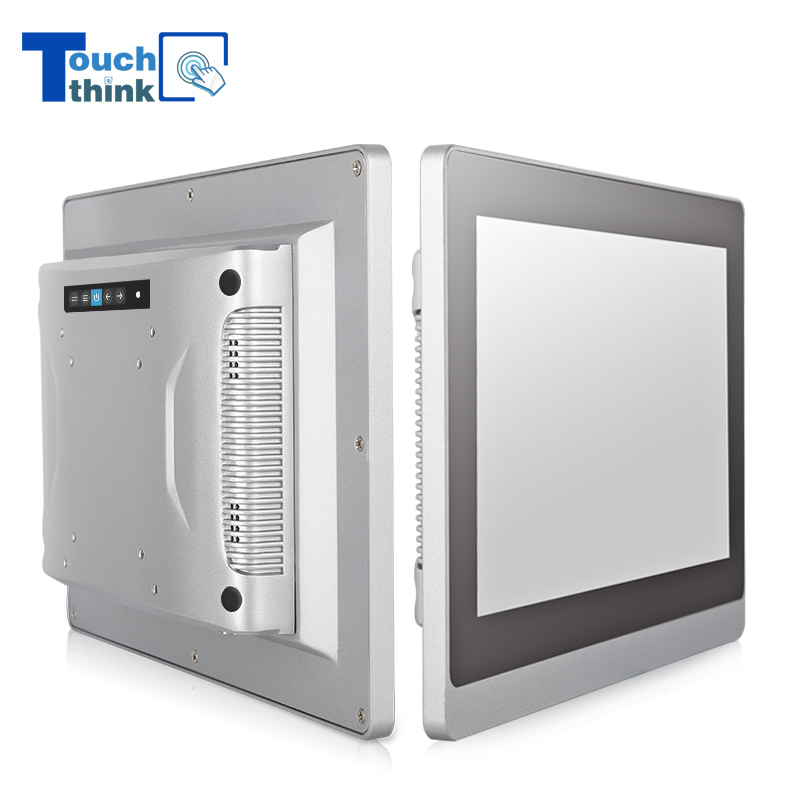

Touch Think Industrial Monitor Pictures

LCD Monitors Displays

Features of Touch Think Industrial Display

● 15.6-inch bright active matrix TFT display.

● Base video inputs: HDMI, VGA, display port.

● High contrast ratio & definition, excellent vivid color and image quality.

● Rugged aluminum alloy chassis.

● Fanless design, no-noise running, energy efficient, low power consumption.

● IP65 rating dustproof & waterproof for front panel. High environmental reliability and performance.

● Support anti-reflective protective window.

● Wide screen aspect ratio 16:9 and 1920 x 1080 resolution.

● Wide Operational Temperature Range, -10°C to +60°C. Support extended temperature ranges.

● Full-sealed front bezel, support OSD on back of panel.

● CE, RoHS compliant.

● Three (3) Year Warranty.

Touch Think Industrial Monitors Upgradable Items

industrial monitors

Application of Touch Think Industrial Monitors

industrial monitor








Screen parametersScreen size15.6 inch
ModelTPC156-M41
Resolution1920*1080
Proportion16:9 widescreen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, service life ≥ 50000h
Display color

16.7M

Visual angle160/160° ( 178° full viewing angle customizable)
Brightness 400cd/m2 (customizable high brightness)
Touch-typeTen-point capacitive touch screen (resistive/mouse control for optional)
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (can be customized ≥16KV)
Power≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy

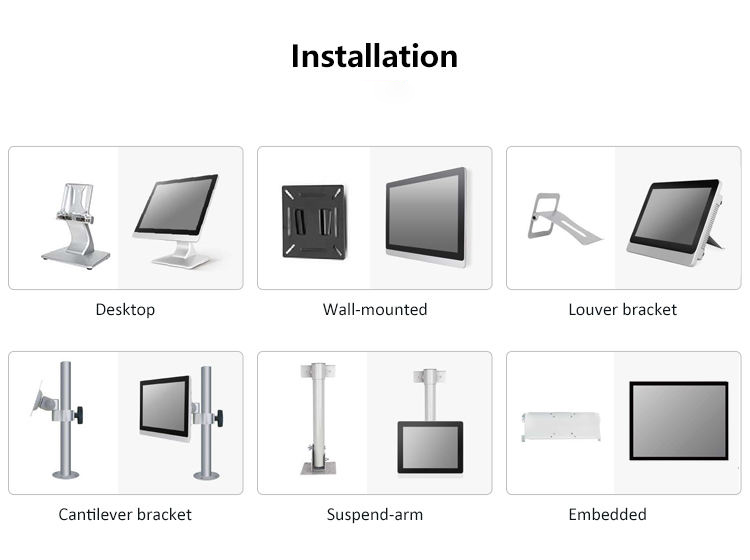

Installation methodEmbedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame.
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C ( -30°C~80°C customizable)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian, etc.

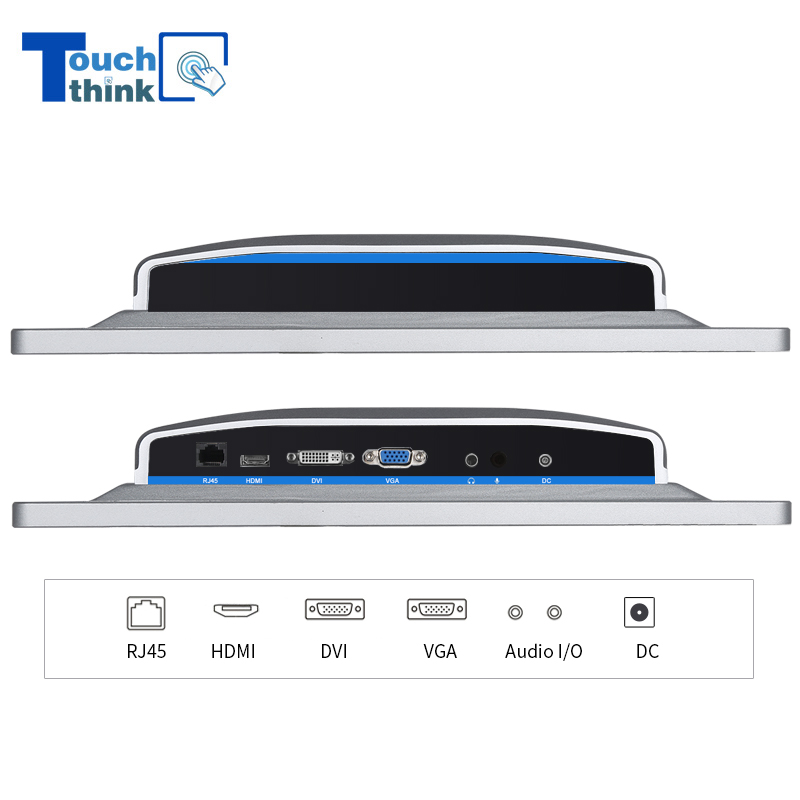

O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial Monitors are widely used in the following fields:

1. Industrial field control display;

2. Embedded in various devices as display devices;

3. As a display device in the host of telecommunications and network rooms;

4. Monitors for trains, subway stations, and ports;

5. Vehicle-mounted displays on train, subway, car;

6. Rugged or military standard displays are generally used in harsh outdoor environments, military vehicles, and warships;

7. Embedded into the advertising machine, which is widely applied to elevators, public places, and commercial office buildings of living quarters.



Touch Think industrial monitors support OEM/ODM customization service.


Screen Customization

1. High-light screen: default with 400cd/m2, support customization up to 1500cd/m2.

2. Photosensitive head: support screen brightness automatically adjust based on ambient light.

3. Screen viewing angle: default with 160°, but all perspectives 178° WVA can be customized.

4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen, and non-touchscreen.

5. High-resolution screen: higher resolution than standard LCD screen can be customized.

6. Screen size: standard display size range is 7 inch to 21.5 inch, other size is available.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customization Items

1. Appearance customization: support appearance and product color design, sample customization.

2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.

3. LOGO customization.

4. System software: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.

8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof and waterproof can be customized.

9. Installation methods: support different installation methods for different applications.
