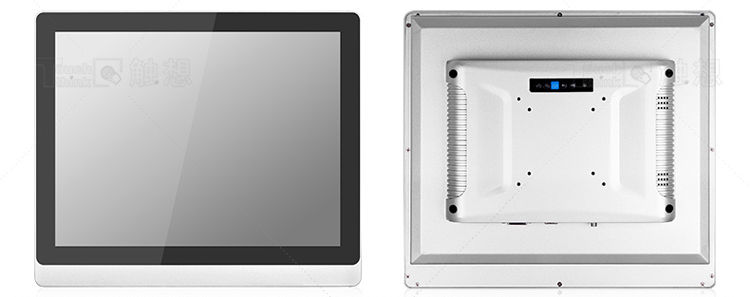

Embedded PCs Touchscreen IP65 High Brightness 12"

Touch Think industrial-grade LCD monitors are built with aluminum alloy shell and offer operating tempera-

tures of -20°C to +70°C. High performance industrial-grade electronic components and with a wide variety

of inputs such as USB, HDMI, VGA, RJ45 and other expansion ports for optional. The industrial monitors

are easy to install and operate, and are designed to well-performed in harsh environments. We offer kinds

of customization service according to your requirements. This industrial monitor is widely used to Windows

and Android all-in-one panel PCs.


Industrial monitor with LCD, high quality color display, can be used for wall-mounted, embedded mounting,

desktop or VESA installation. Support metal frame, iron, stainless steel and aluminum alloy bezel. But all

Touch Think new industrial monitors are equipped with aluminum alloy frame, due to its better heat-dissi-

pation and looks more elegant. We offer a variety of other options to customize this industrial monitor to fit

all your needs.

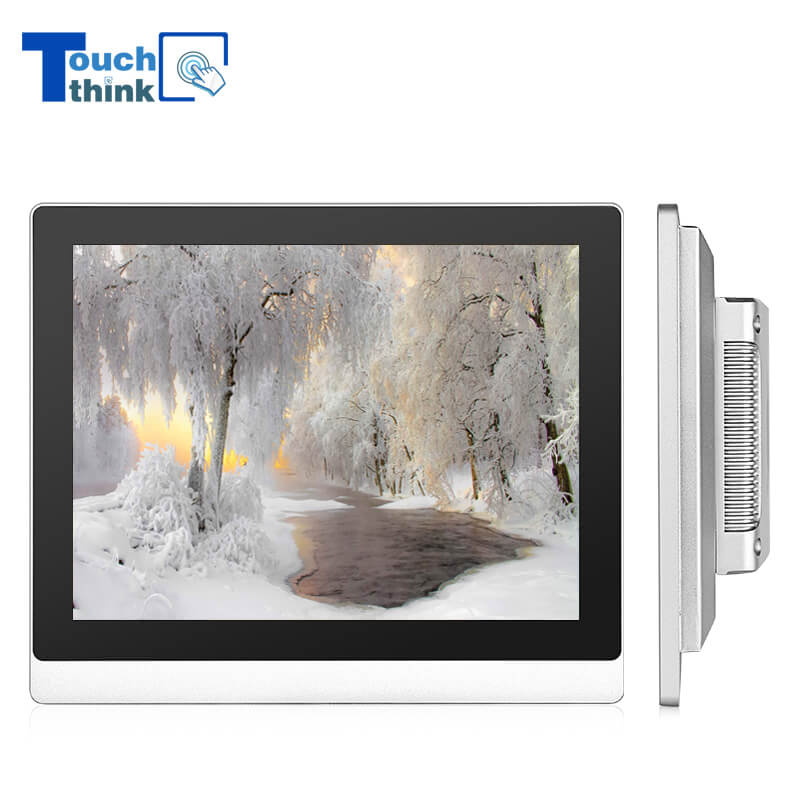

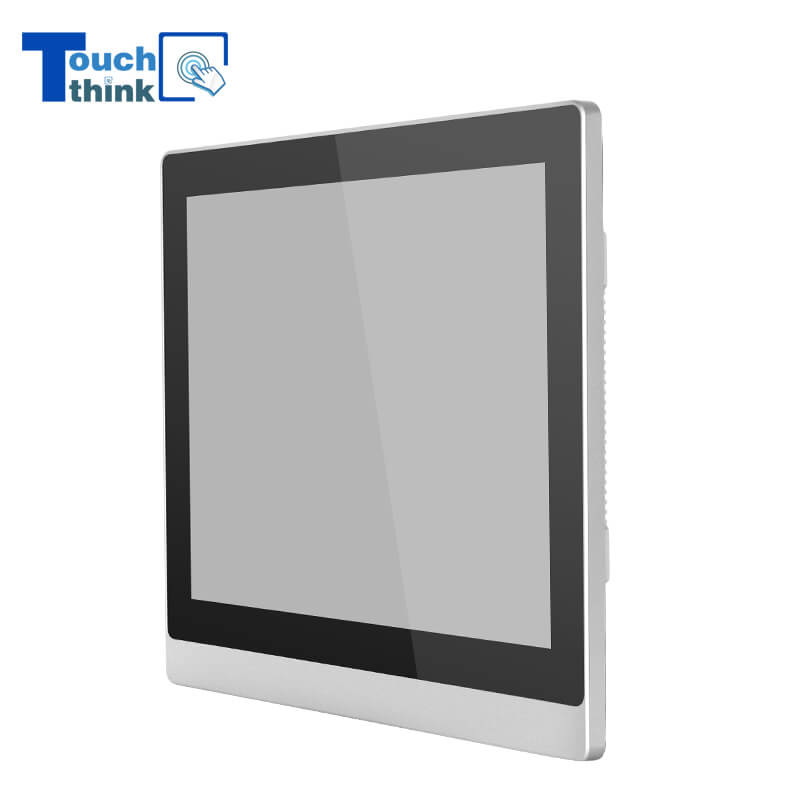

Embedded PCs Touchscreen IP65 High Brightness 12"

Touch Think Industrial Monitor Features

● Brightness of display can be adjusted by the OSD menu on the back of panel.

● Aluminum alloy wire drawing material, surface matte technology.

● 10mm thin front panel fits better for strong impact environments, and embedded cabinet.

● The middle panel is designed with chamfer edge for a smoother touching.

● The aluminum alloy circular arc heat-dissipation structure will maximize heat dissipation effect.

● With independent R&D central, and self-molding department; true flat panel, well-touched for operation.

● Fully enclosed dust-proof design for whole industrial monitor.

● Touch Think industrial displays support multi installation methods.

● Support customization service in terms of screen size, brightness, viewing angle, functional module, etc.

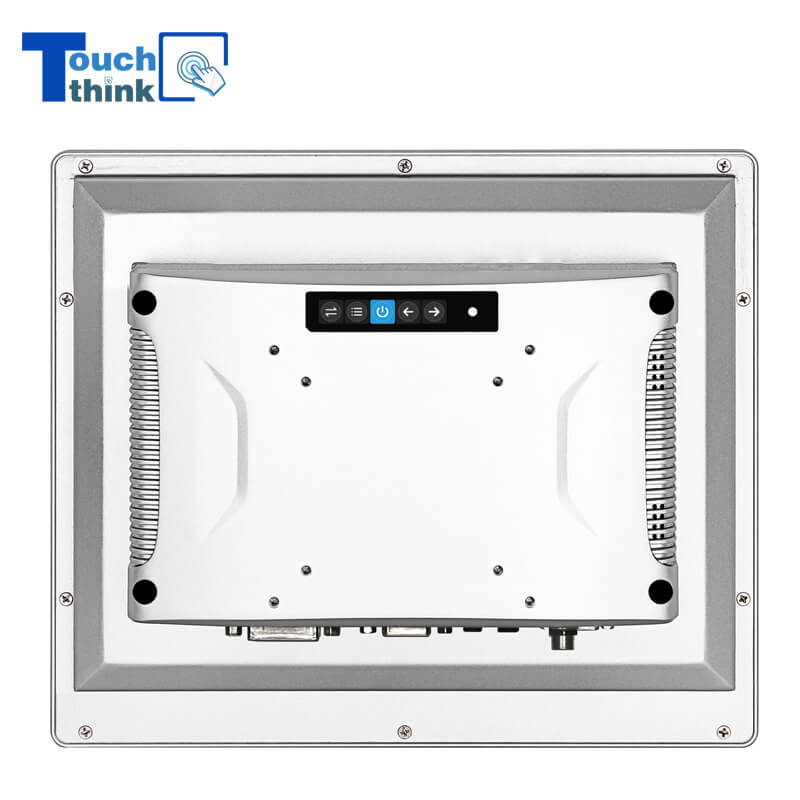

● OSD menu on back panel of industrial display provides easy operation for debugging, such as brightness adjustment.

● Provide multiple ports for different clients' requirements. Also offer other expansion ports customization services.











Screen parametersScreen size12 inch
ModelTPC120-M4
Resolution1024*768
Proportion4:3 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast800:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160 (Customizable 178° full view angle)
Brightness 400cd/m2 (customizable high brightness)
Touch typeResistive / capacitive / Mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticcontact 4KV-air 8KV (can be customized ≥16KV)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofIP65 dust-proof and waterproof for front panel
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, VESA
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian

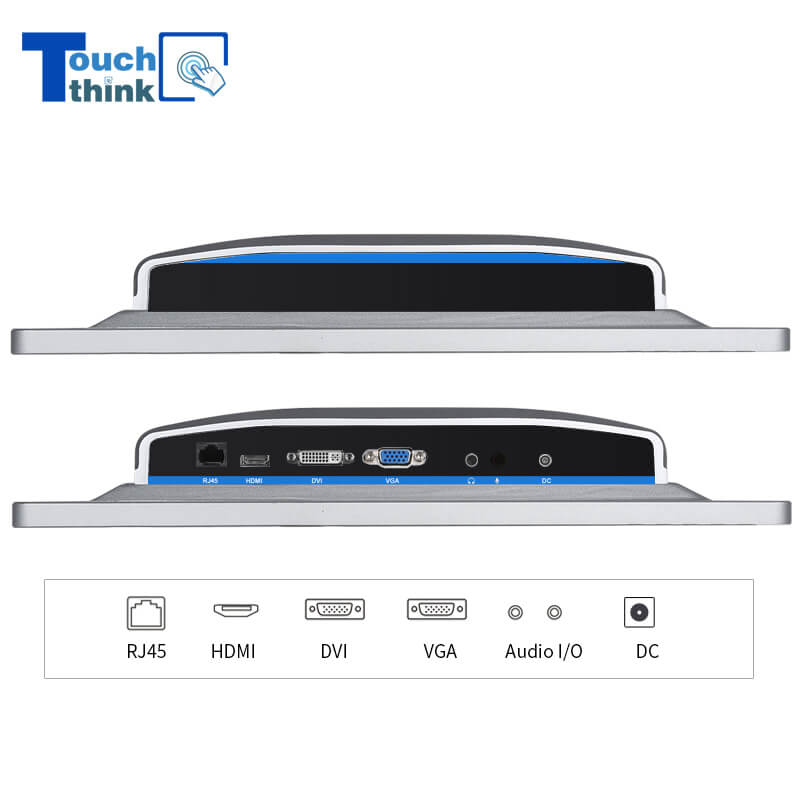

O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial LCD monitors are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.


These industrial displays are suitable for wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.


In addition to the above areas, industrial LCD monitor also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.


Touch Think industrial monitors support customization service such as logo, appearance, color, installation methods, I/O ports, high brightness, viewing angle, touchscreen types, etc.
