Industrial Touchscreen LCD Monitors 11.6 Inch

Size: 11.6"

Touch Think industrial high brightness LCD monitor displays are support sunlight readable with high bright for outdoor devices.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”

8 inch industrial monitor

10.1 inch industrial monitor

10.4 inch industrial monitor

11.6 inch industrial monitor

12 inch industrial monitor

15 inch industrial monitor

15.6 inch industrial monitor

17 inch industrial monitor

17.3 inch industrial monitor

19 inch industrial monitor

19.1 inch industrial monitor

21.5 inch industrial monitor

  • product description
  • Product parameters
  • Application

Industrial Touchscreen LCD Monitors 11.6 Inch

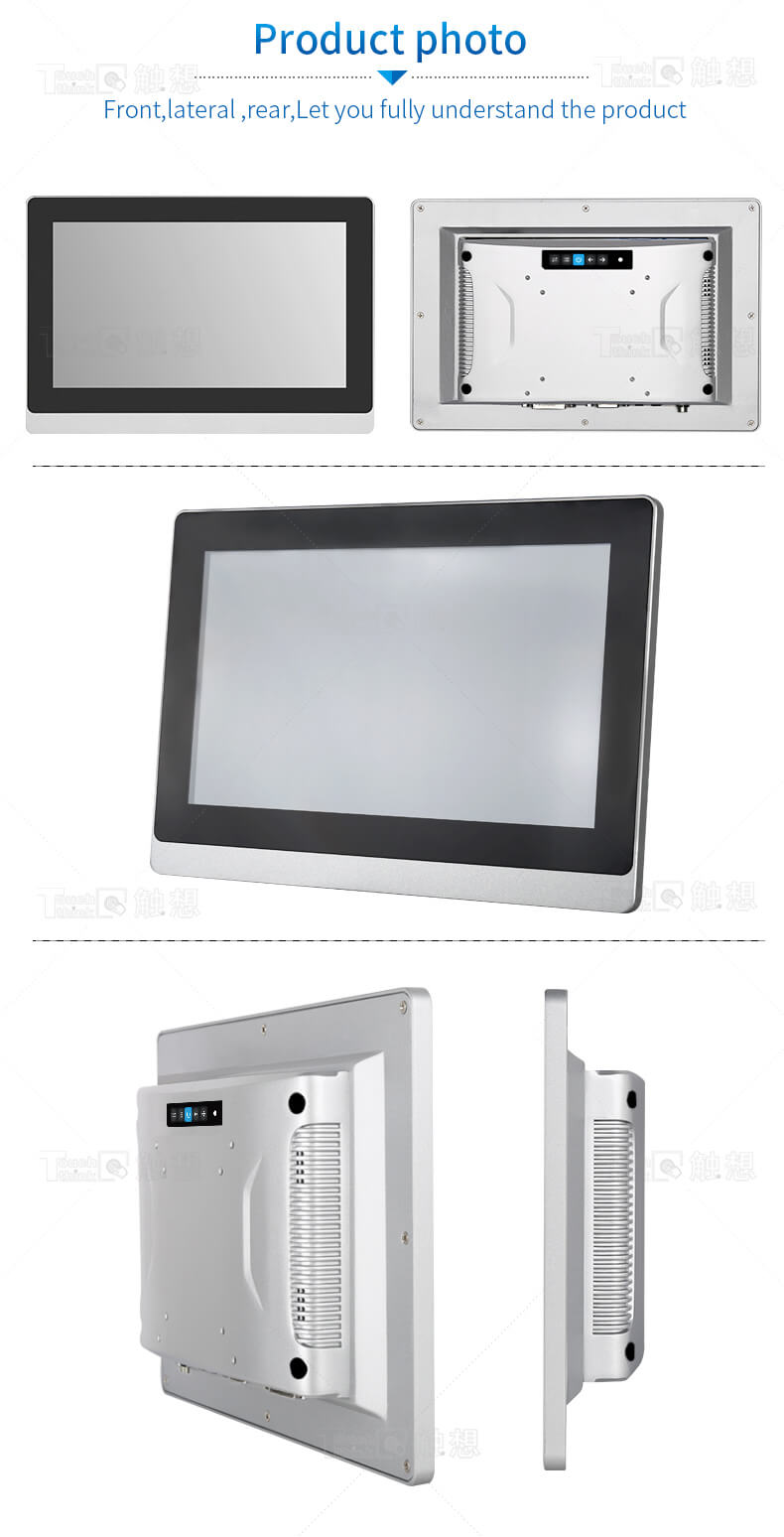

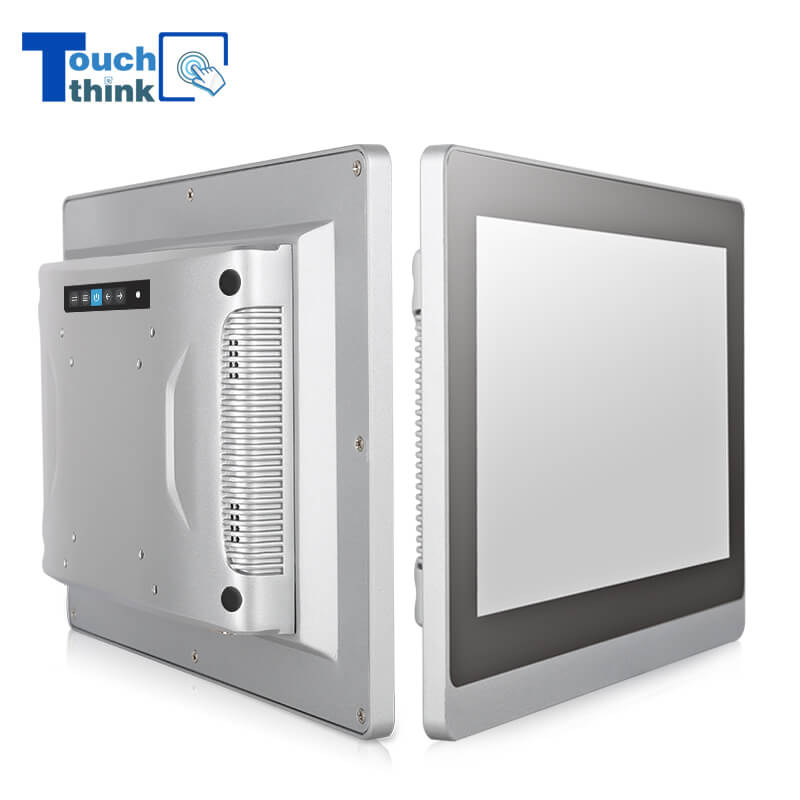

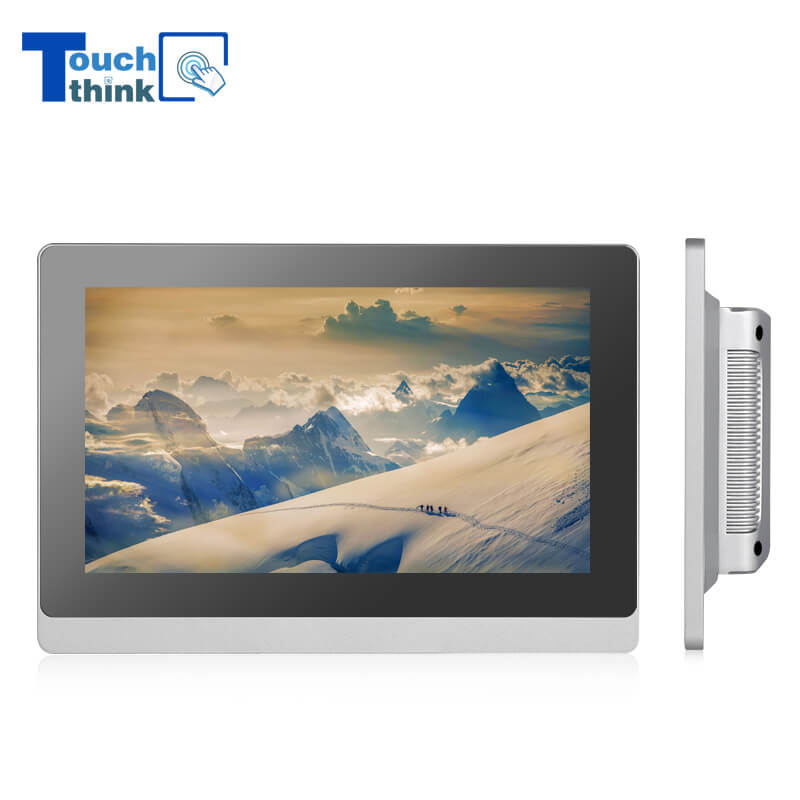

Rugged panel mount industrial monitor with 11.6 inch color LCD display. Housed in aluminum alloy bezel

enclosure, this rugged monitor is suitable for industrial environments, military applications. A variety of other

options are also available in terms of color, size, thickness of front bezel, so you can customize this monitor

to fit all your applications.

Touch Think Industrial Computer Monitor Display

Industrial Touchscreen LCD Monitors 11.6 Inch

Touch Think Industrial Monitor Details:

● Allowing the sound directly produce from computing device with integrated stereo speakers

● USB and HDMI interface used for connecting user's computer device by cable, and support other ports

   expansion customization.

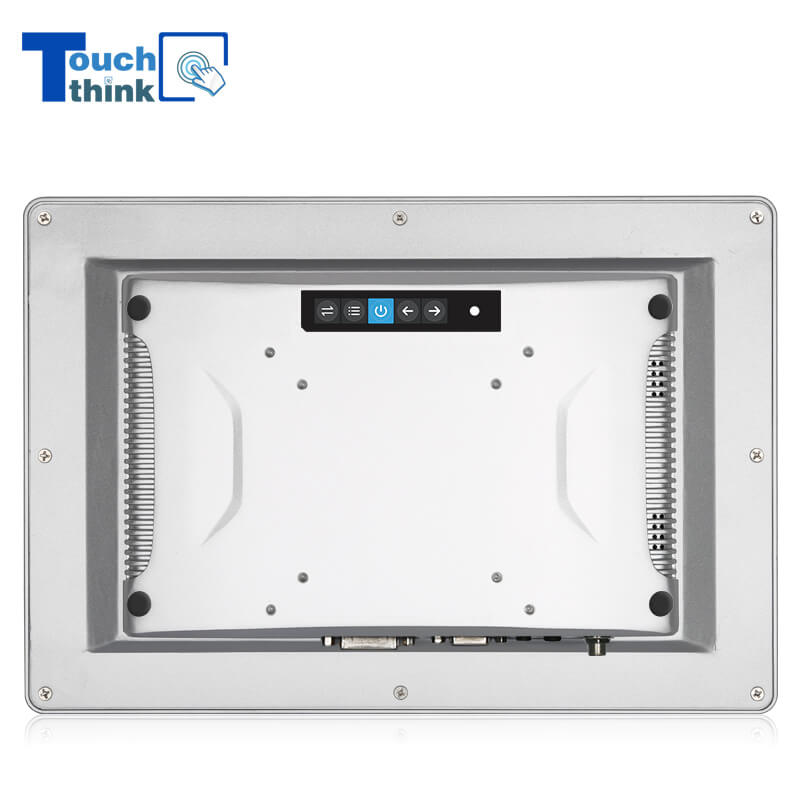

● 11.6-inch industrial LCD display with On Screen Display (OSD) on back panel

● Aluminum alloy air-craft grade bezel enclosure, durable, better heating-dissipation.

● Rugged flat panel fittable for limited-space, perfect-embedded any cabinets, reduces power consumption.

● Designed for harsh industrial applications and commercial terminal devices, outdoor self-service equipments.

● Resolution of 1920×1080, offer high brightness to meet customers' viewing needs.

● Offer anti-scratch resistive touch screen and flexible multi-point capacitive touch, non-touch is available.

● Support multi-version of Windows, Linux and Android OS.

Industrial Touchscreen LCD Monitors 11.6 Inch

Industrial Touchscreen LCD Monitors 11.6 Inch

Screen parametersScreen size11.6 inch
Proportion16:9 wide screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance


Backlight type LED, use length≥50000h
Display color


Visual angle160/160 (Customizable 178° full view angle)
Brightness 400cd/m2 (customizable high brightness)
Touch typeTen-point capacitive / non-touch screen
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (can be customized ≥16KV)
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterprooffront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, panel mount, VESA 75/100, open frame
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian

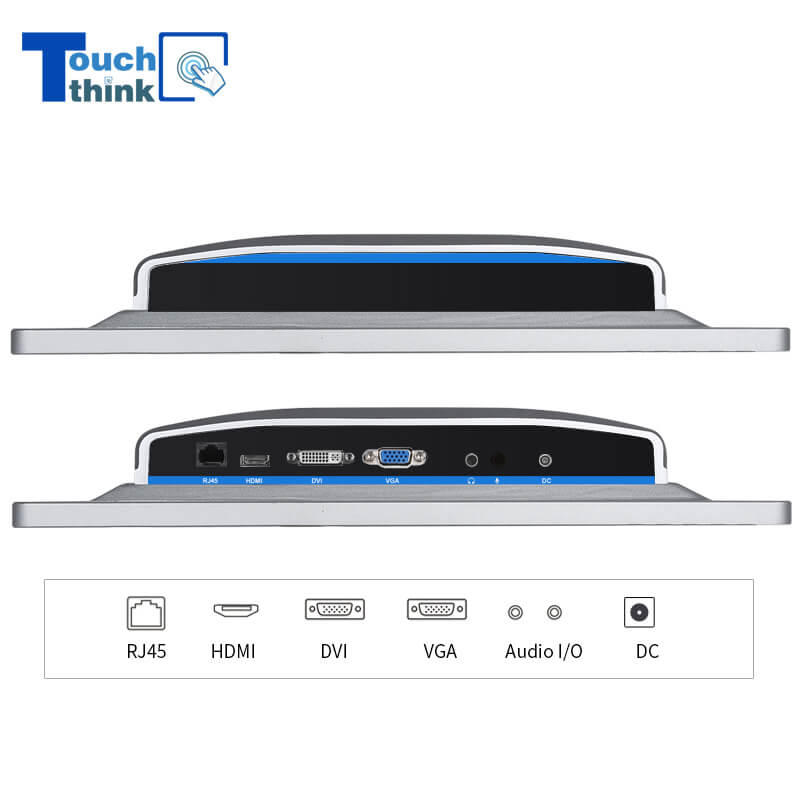

O/I interface parametersSignal Interface DVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output

Touch Think industrial LCD monitors are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.

These industrial displays are suitable for wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.

In addition to the above areas, industrial LCD monitor also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.

Touch Think industrial monitors support customization service such as logo, appearance, color, installation methods, I/O ports, high brightness, viewing angle, touchscreen types, etc.
