Industrial LED Monitors 15 Inch For Industrial And Commercial Applications

Size: 15"

Touch Think offers a full range of LCD TFT displays for professional industrial and applications. They can be used for indoor and outdoor applications also can perform perfectly under bright sunlight or harsh environments.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

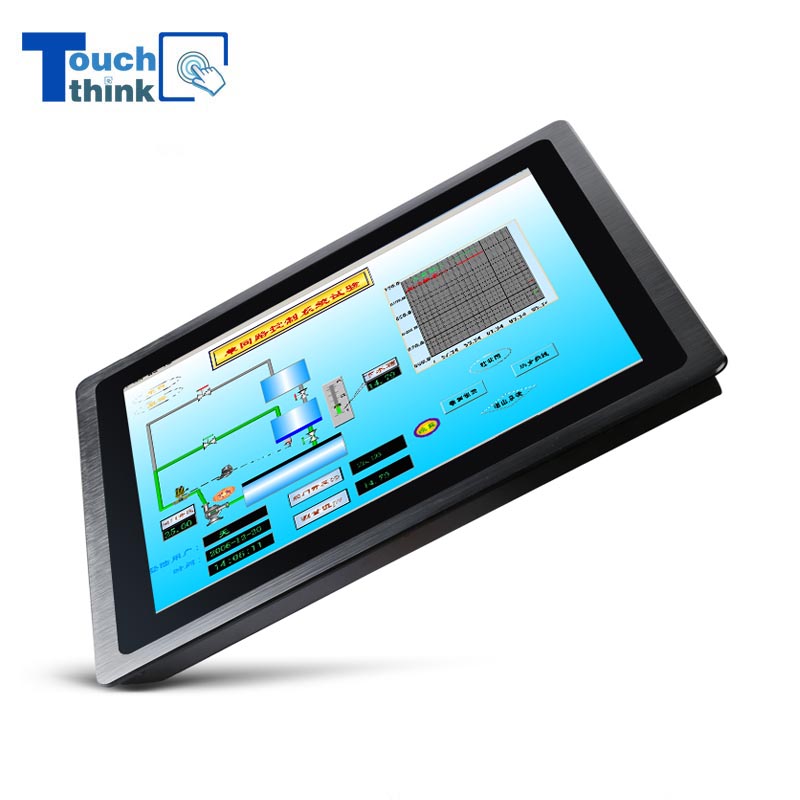

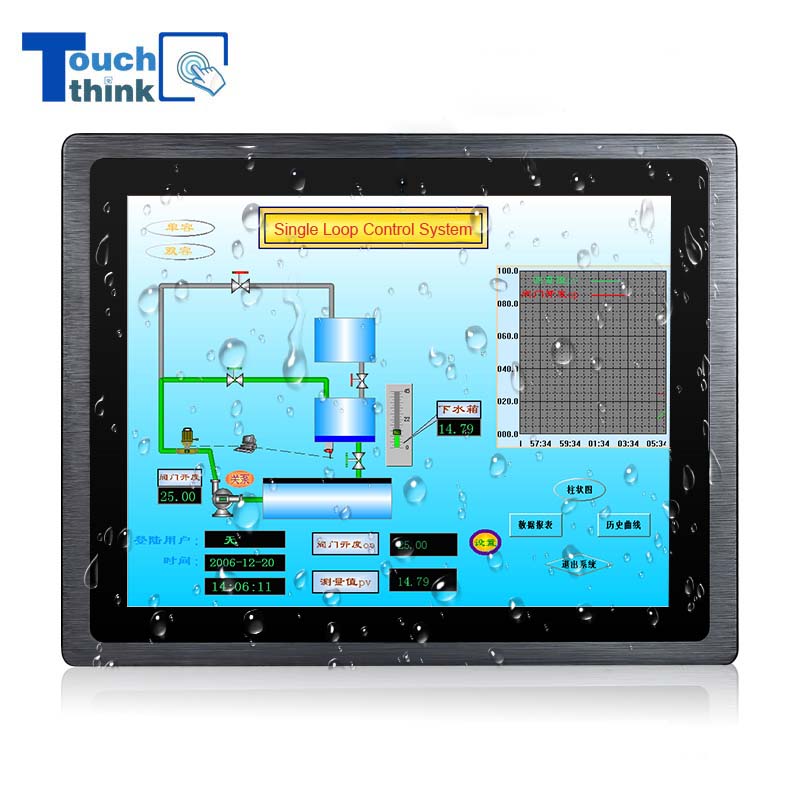

Industrial LED Monitors 15" For Industrial And Commercial Applications


Model: TPC150-M19


Touch Think industrial LCD display monitors series with HMI interface features and the latest TFT-LCD flat panel. Multi-touch capacitive touch screen, resistive touch, non-touch technologies.



Touch Think Industrial Monitors Features


● This monitor is suitable for light industrial applications and moderately rugged conditions.

● Aluminum alloy enclosure, suitable for light or heavy industrial applications and rugged conditions.

● Full flat panel technology, compact design, suitable for limited-space devices, and the fanless cooling system offer good heating-dissipation performance. Reduces power consumption

● Displays functions On-Screen Display (OSD) for contrast ratio, brightness adjustment, and other adjustments.

● Available a variety of touching types to meet different applications, 10-point capacitive touch, resistive touch, and non-touchscreen for optional.

● Viewing cone up to 170°, 1024×768 resolution, 300 nits standard brightness to fit your viewing needs.

● Support plug-and-play, easy-to-use for customers.

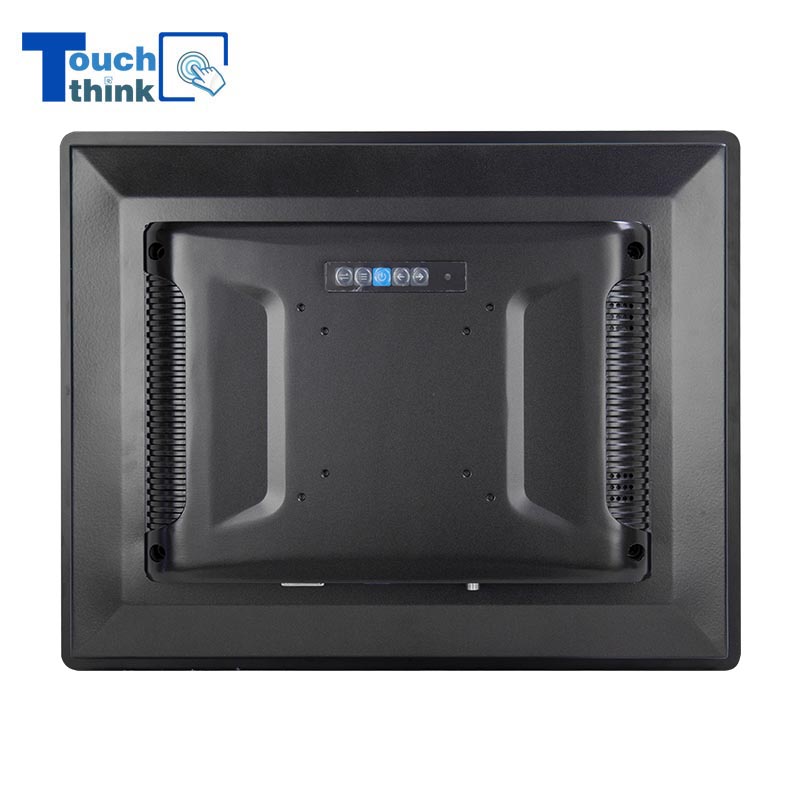

● Standard VESA mount threaded hole pattern for universal mounting.

● Perfect performance at extreme temperature for 24*365 days.

● Industrial grade A level perfect LED backlight high definition screen, support indoor & outdoor devices.

● Adopt REALTEK brand industrial-grade display chipset wide voltage 12-24V input, compliance with the standard of flame-proof, explosion-proof, and moisture-proof.

● Board filter solid-state capacitor voltage value36V/105 degree; Port contact is 6KV, air contact is 16KV EMI, anti-magnetic design.




Industrial LED Monitor - Product Model Quick Guide


Product ModelLCD DisplayResolutionAspect RatioTouch Screen TypeGet A Quote Now!
TPC101-M1910.1"1280*80016:10Capacitive / Resistive / Non-TouchInquiry
TPC104-M1910.4"
1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC116-M1911.6"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC120-M1912"1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC150-M1915"1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC156-M1915.6"1920*108016:9Capacitive / Resistive / Non-Touch
Inquiry
TPC170-M1917"1280*10245:4Capacitive / Resistive / Non-TouchInquiry
TPC173-M1917.3"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC190-M1919"1280*10245:4Capacitive / Resistive / Non-TouchInquiry
TPC191-M1919.1"1440*90016:10Capacitive / Resistive / Non-TouchInquiry
TPC215-M1921.5"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC238-M1923.8"1920*108016:9Capacitive / Resistive / Non-TouchInquiry





Screen parametersScreen size15 inch
ModelTPC150-M19
Resolution1024*768
Proportion4:3 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight type LED, use length≥50000h
Display color

16.7M

Visual angle160/160 (178° full view angle is customizable)
Brightness 300cd/m2 (high brightness is customizable )
Touch typeResistive / capacitive / Non-touch screen
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticcontact 4KV-air 8KV (can be customized ≥16KV)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interference EMC|EMI anti-electromagnetic interference
Dustproof and waterprooffront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, cantilever
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (-30°C~80°C is customizable)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian

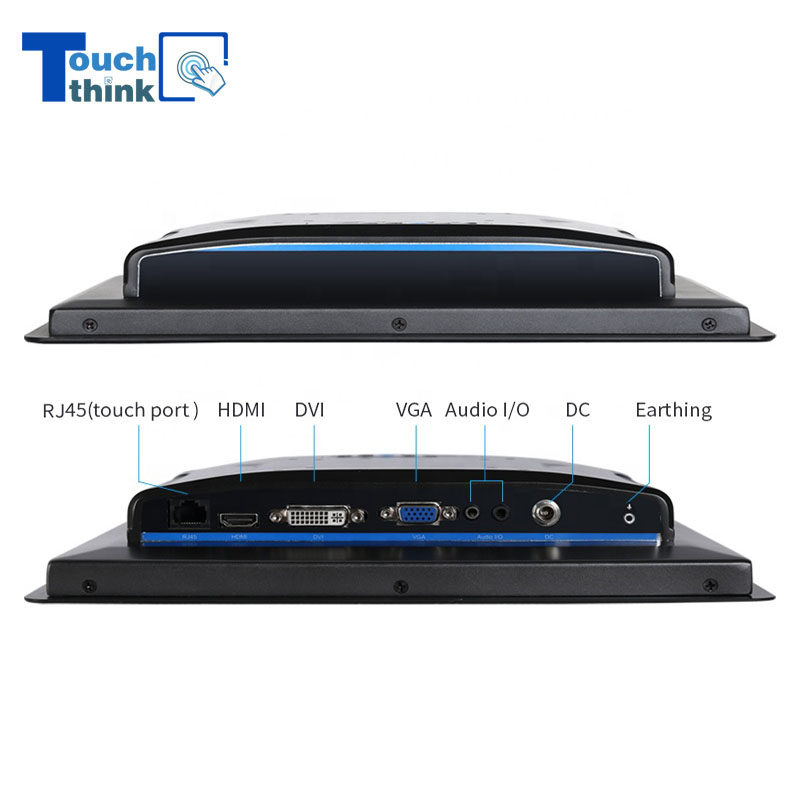

O/I interface parametersSignal Interface DVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial LCD monitors are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.


These industrial displays are suitable for wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.


In addition to the above areas, industrial LCD monitor also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.


Touch Think industrial monitors support customization services such as logo, appearance, color, installation methods, I/O ports, high brightness, viewing angle, touchscreen types, etc.


Screen Customization

1. High-lightness screen: default with 350cd/m2, support customization up to 800cd/m2.

2. Photosensitive head: support screen brightness automatically adjustment based on ambient light.

3. Screen viewing angle: default with 160°, but all perspectives 178° WVA can be customized.

4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen, and non-touch screen.

5. High-resolution screen: higher resolution than a standard LCD screen can be customized.

6. Screen size: standard display size range is 7 inch to 23.8 inch, other size is available.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customization Items

1. Appearance customization: support appearance and product color design, sample customization.

2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.

3. LOGO customization.

4. System software: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.

8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof, and waterproof can be customized.

9. Installation methods: support different installation methods for different applications.
