Embedded All In One PC Industrial Grade IP65 Rated 10.4"

Size: 10.4"

This industrial panel PC features an ultra-thin front panel, has a working temperature range from -10° to 60°C, and supports 7*24 hours of stable operation. IP65 dustproof and waterproof panels. Ideal for industrial site applications and outdoor kiosks.

Product Color

  • product description
  • Product parameters
  • Application

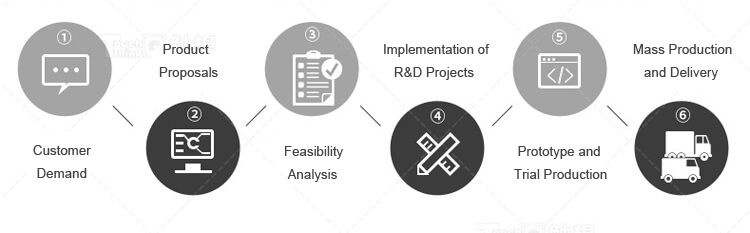

  • OEM/ODM

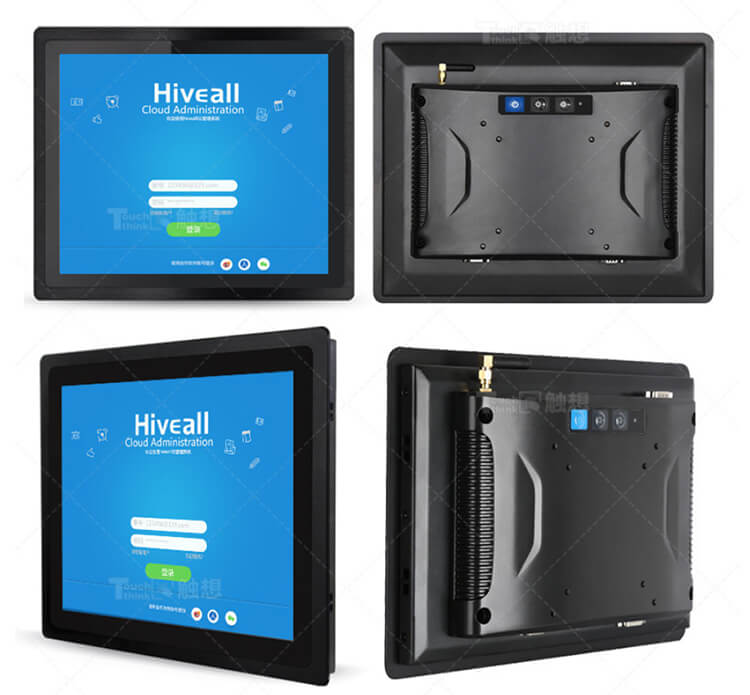

Embedded Mount All-In-One PC Industrial Grade IP65 Rated 10.4"


Model: TPC104-W19


This Touch Think industrial all-in-one PC is a fully enclosed touch screen or non-touch PC, supporting fanless cooling systems. The all-in-one computer can be embedded into a wide variety of environments.



Product Features


● 2.5mm narrow edge panel design, perfect for embedded fit with the surface of machinery.

● High-speed processor, J6412/J4125/1900 high-performance CPU for optional.

● Multi-screen 4K/HD display: supports three screens with simultaneous display/different display.

● Well performed Anti-electromagnetic interference for complex environments.

● High-speed network configuration: Gigabit network port supports dual-band WiFi 2.4G/5G.

● Supports stable operation at a wide temperature range from -10°C to +60°C.

● Supports Windows/Linux/Ubuntu and other operating systems.

● I/O expansion.







ScreenScreen size10.4 inch
ModelTPC104-W19
Resolution1024*768
Proportion 4:3 Square Screen
Color16.7M
Dot Pitch0.264mm
Contrast ratio1000:1
Display luminance400cd/m2 (high brightness customizable)
Backlight typeLED-backlit screen Lifetime ≥ 50000h
Viewing angle80°/80°/80°/80° (L/R/U/D)
TouchscreenCapacitive touch, resistive touch, and Non-touch for optional
Gray-scale Response Time 6.5ms

Motherboard Model SelectionCL-J1900BCX-J4125-ACX-J6412CX-12U01
ConfigCPUIntel Celeron J1900, Quad-core, 2.0GHz Intel Celeron J4125, Quad-core, 2.0GHz Intel Celeron J6412, Quad-core, 2.0GHz i3-1215Ui5-1235Ui7-1255U
Memory 4GB (8GB options)DDR4 4/8GBDDR4 8/16GBDDR4 32GB
Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80Intel Iris Xe Graphics 96
Operating SystemWin 7 / Win 10Win 10  / Win 11Win 10 / Win 11Win 10 / Win 11
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/
BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)
RTCSupportSupportSupportSupport
Wake On LANSupportSupportOptionalSupport
3G/4G moduleSupport
SupportSupportSupport
WIFIDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHz
GPS/MICOptionalOptionalOptionalSupport
Plug-n-PlaySupportSupportSupportSupport

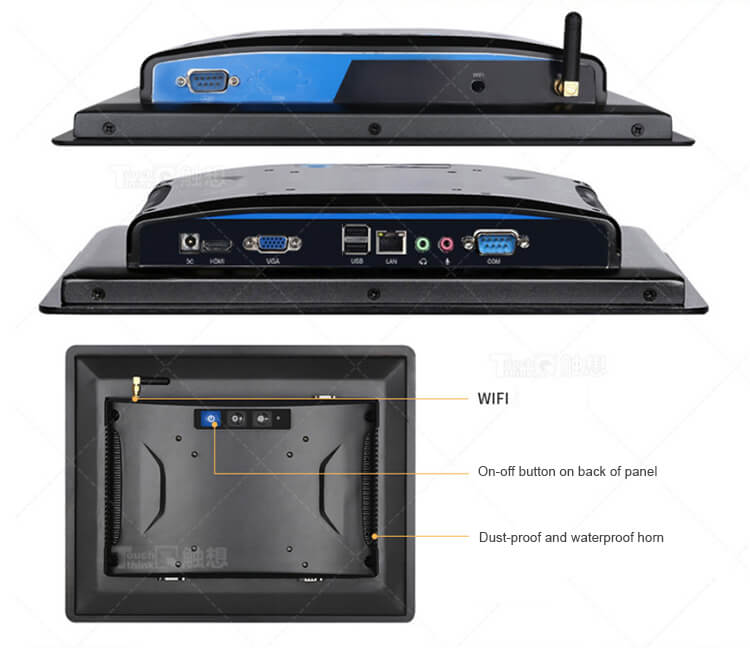

I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
Type-C///2*type-c
USB 3.0USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on boardUSB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
RS4851*RS232/RS422/RS485 mutual conversion
RS4221*RS232/RS422/RS485 mutual conversion
GPIOGPIO*8 (input/output)
WIFI connectorWIFI antenna*2
DC InterfaceDC 2.5*1; Supports 12V-36V wide voltage power supply
SIM Slot1*SIM Slot + 1*SIM Slot on board
MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
HDMI3840*2160 30Hz output4096*2160 30Hz output4096*2160 30Hz output4096*2304 60Hz output
VGA1920*1080 60Hz output
RJ452*10M/100M/1000M adaptive Ethernet
Audio InterfaceAudio I/O
Earphone jack3.5mm standard interface

ReliabilityWorking Temp-10°C~60°C
Storage Temp-20°C~70°C
Relative humidity95% (without condensation)

PowerPower inputDC in 12V ~ 36V
Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

MechanicalDimension261.5*208.9*51.9mm
MaterialAluminum alloy material
Cooling SystemFanless
Color Silver / Black
Installation methodEmbedded mount, panel mount, desktop, wall-mounted, VESA 75/100mm.

PackagingWarranty PolicyThree-year warranty, one year for free.
Packaging materialCarton
Packing list Industrial Panel PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card


Industrial all-in-one PCs are widely used in industrial automation, smart factories, intelligent manufacturing and RFID solutions, transportation and logistics, real-time data, industrial Internet of Things (IIoT), machine-to-machine (M2M), intelligent building automation, HVAC control, access control, check-in system, interactive security systems, and interactive patient room information displays.




Case Study


Take Touch Think 10.4" industrial all-in-one PC embedded mounted as an example.


Embedded All In One PC Industrial Grade IP65 Rated 10.4"


1. Application range: Train stations, gymnasiums, and stadiums, school entrance doors.

Application Equipment: Automatic Fare Gate

Customer demand: Face recognition, RFID, camera

Product Feature: Industrial panel PC with Windows system supports customized face recognition, infrared sensing function, and front camera, these functions can enhance real-time monitoring of the channel status. Also, it supports RFID, fingerprint recognition, and fast identity recognition, which can improve work efficiency and enhance safety and security.


2. Application range: Library, community, city block.

Application Equipment: Self-service book borrowing and returning equipment.

Customer demand: RFID technology, 7*24 hours whole-day working, smart and easy to maintain.

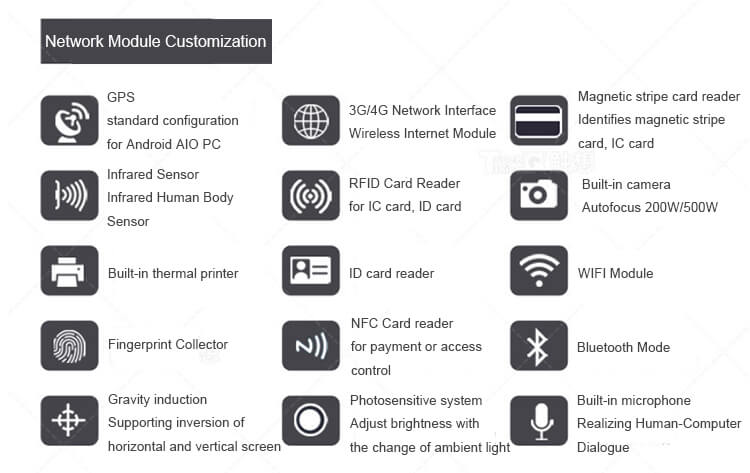

Product Feature: Industrial all-in-one PC applied in this device needs multi-function customization services such as RFID, scanner, infrared technology, printing, camera, and 4G Network Module. And it should adopt industrial-grade components to keep the all-in-one PC running for 24 hours. Such an industrial all-in-one PC becomes a micro and smart self-service library by depending on the rich library resources.


Embedded All In One PC Industrial Grade IP65 Rated 10.4"


3. Application range: Commercial Street, park and square.

Application Equipment: Smart pole

Customer demand: High brightness, waterproof and dust-proof, high definition.

Product Feature: Industrial all-in-one panel PC applied in such environments need high brightness, such as 800cd/m2, and a built-in photosensitive system is fitted to adjust the lightness of the screen automatically according to the ambient light. IP65 is waterproof and dust-proof. Standard interfaces such as DVI, VGA, and HDMI to satisfy kinds of information transmission. Touch Think series industrial all-in-one Windows computer adopts to industrial-grade mainboard to keep the device running for 24 hours without interruption.


4. Application range: Frequency converter control cabinet, industrial control cabinet, electrical control cabinet.

Application Equipment: Control cabinet.

Customer demand: Vibration-proof, anti-interference, electrostatic surge prevention structure, and good heat dissipation.

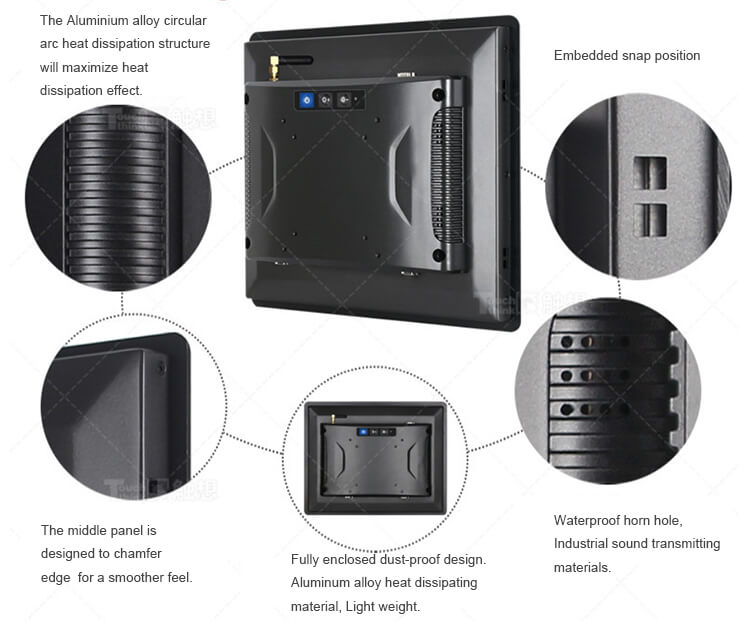

Product Feature: Industrial all-in-one PCs applied in such cases have passed the EMI and EMC anti-interference tests, and also passed the GB2423 anti-vibration test. What’s more, It needs to design an electrostatic surge prevention structure to deal with an unstable voltage environment. All Touch Think updated series industrial all-in-one Windows PC adopt to aluminum alloy fully enclosed shell, circular arc-designed side panel has no holes and more heat-dissipating. A capacitive touch screen is recommended in this case as it’s easier to operate.





Screen Customization for Touch Think Industrial Panel PCs

1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: industrial monitor, resistive touch screen, capacitive touch screen, IR touch screen.

5. High resolution screen: customize higher resolution than standard LCD screen.

6. Screen size: support to customized screen.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.

Other Customization for Touch Think Industrial Panel PCs

1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -20~+70°C, we can customize wider working temp: -30~+80°C.

3. LOGO customization

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: for special occasions.

8. IP grade: The industrial monitors can be customized fully-sealed dust-proof and waterproof.
