Size: 17.3"
Touch Think 17.3" industrial panel PCs are designed with compact size. Offering high performance, Intel's comprehensive embedded processors, industrial motherboards, and fanless design for low power consumption, and long service life.
Product Color
17.3" Industrial Panel PC
Model: TPC173-W19
Touch Think newest fourth-generation industrial all-in-one panel PC with a Windows system, designed with fanless heating dissipation, and low working noise, which prolongs the product's service life. This industrial panel PC supports embedded installation, the true flat panel is designed to be easy to embed into cabinets.
Touch Think Industrial Panel PC Features

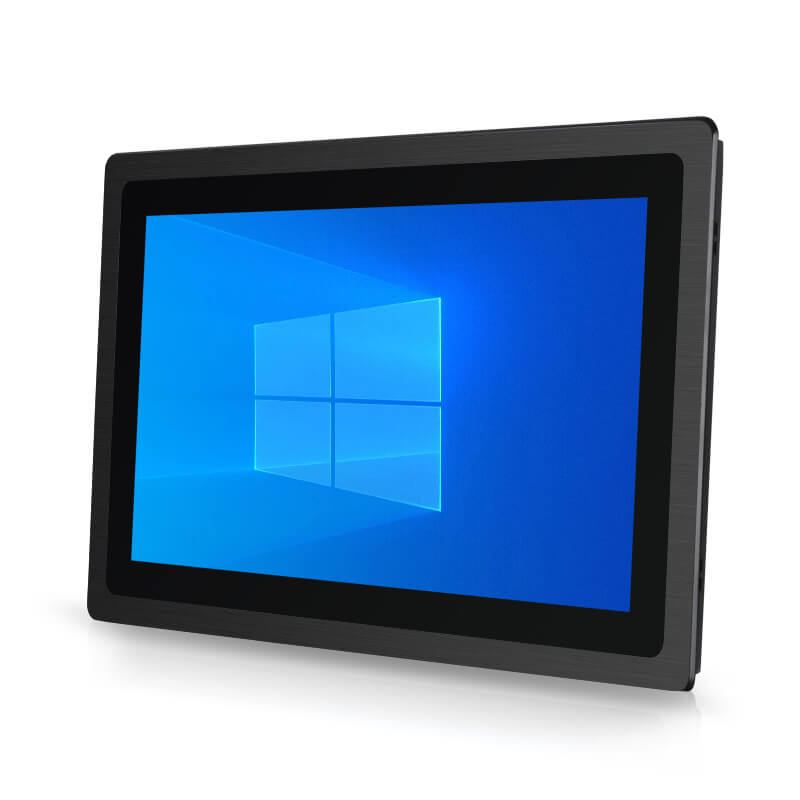

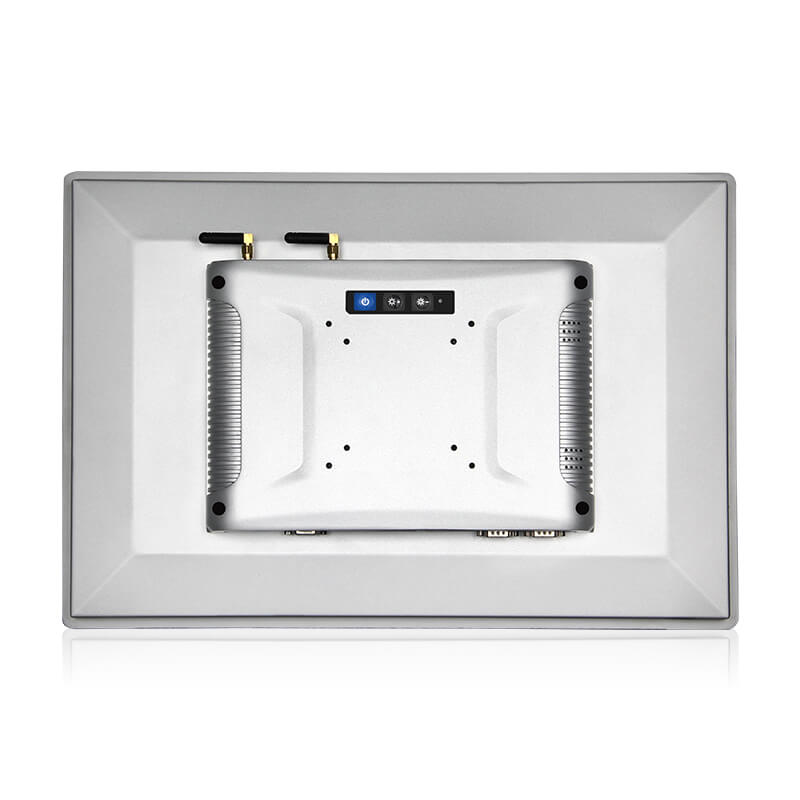

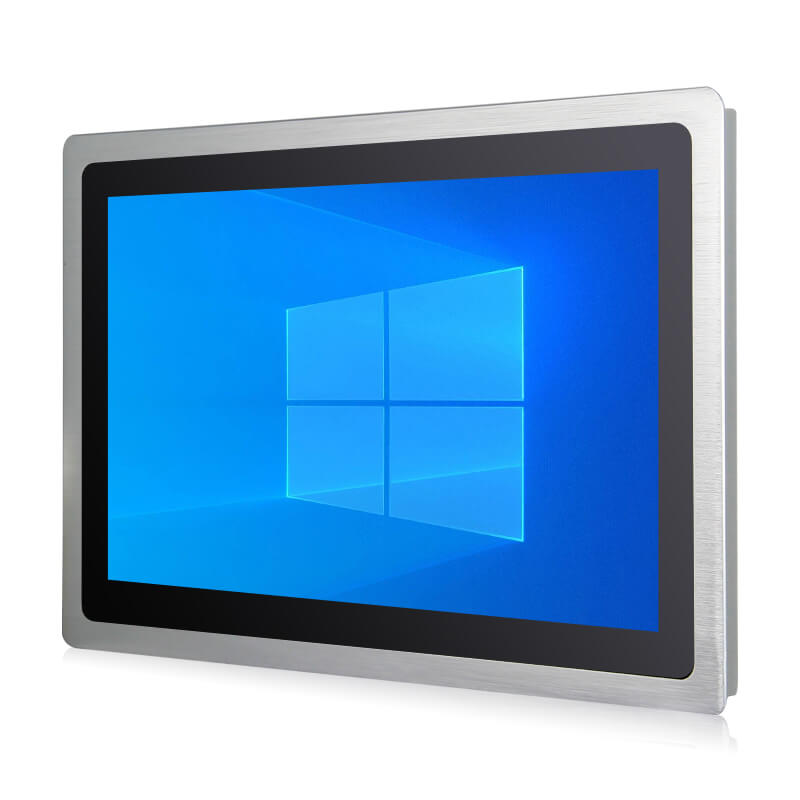

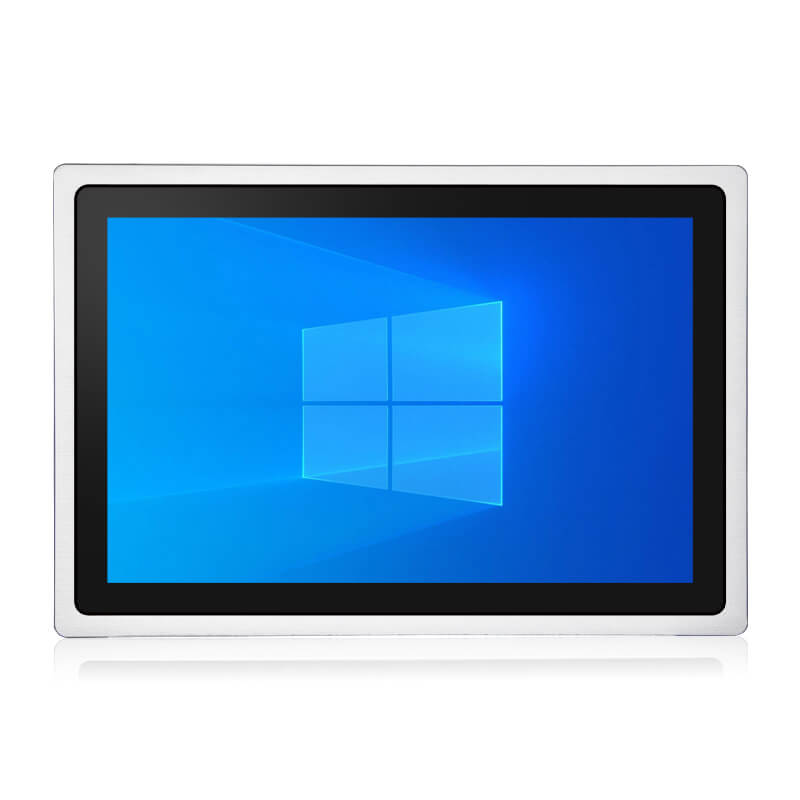

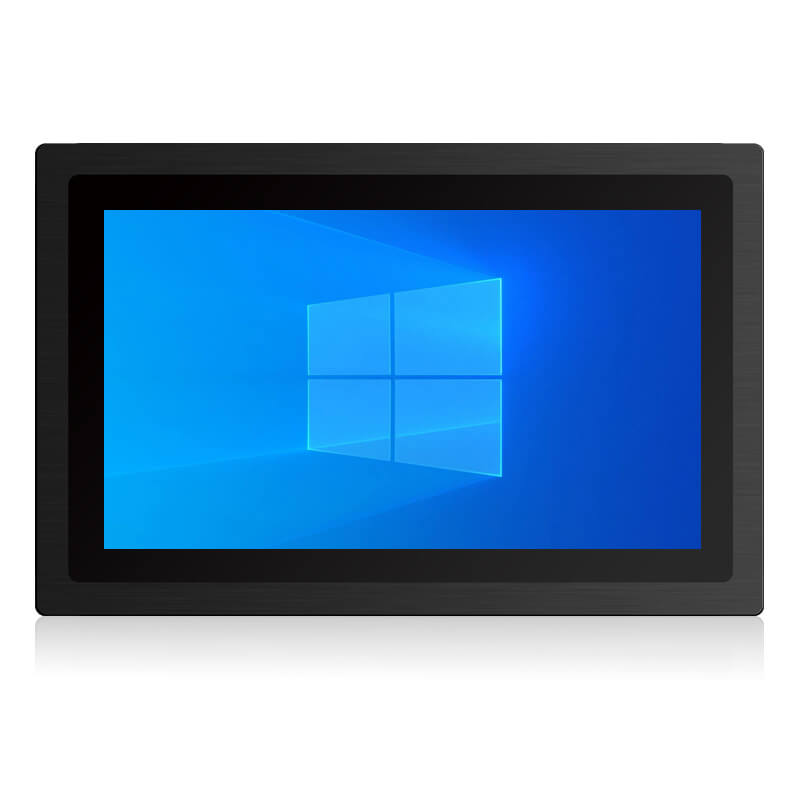

● Two standard colors: black and silver for the panel PC, but we provide appearance color customization service for customers.

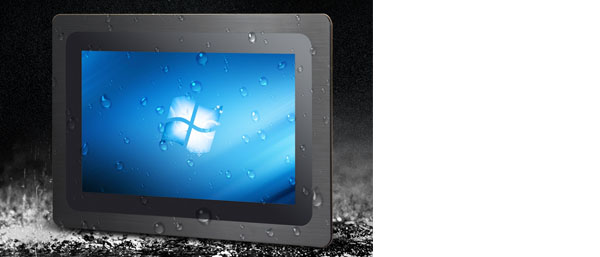

● They are compliant with IP65-rated waterproof and dust-proof standards for the front bezel.
● The working temperature range for industrial panel PC is -10 ~ +60Celsius degrees, humidity range is 10%~90%.
● The industrial tablet PC supports long-time and all-weather running, up to 7/24 hours without interruption.
● The thickness of an all-in-one panel PC’s front panel can be 3mm, 10mm, or a true flat panel.
● Touch Think industrial touch screen panels adopt Aluminium housing, good mechanical properties, and better performance of heat dissipation.
● It adopts industrial control HD LCD screen + LED backlight screen, highlights picture, and perfect color display.
● Ten-point capacitive touch screen, also supports resistive touch screen, IR touch, and non-touchscreen. Suitable for various industrial environments and terminal devices.
● Provide a standard I/O interface: VGA, HDMI, DVI, automatic identification signal channel.
● We choose very trustworthy express companies to ship industrial panel PCs to our clients.

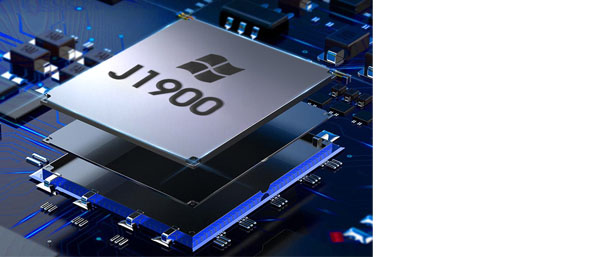

Power-Saving Processors
● Support Intel Celeron J6412, J4125, and J1900, Quad-Core 2.0GHz processor
● Low-cost, while high quality assured, high compatibility
● Standard configuration: 4+64GB (Support upgrade)

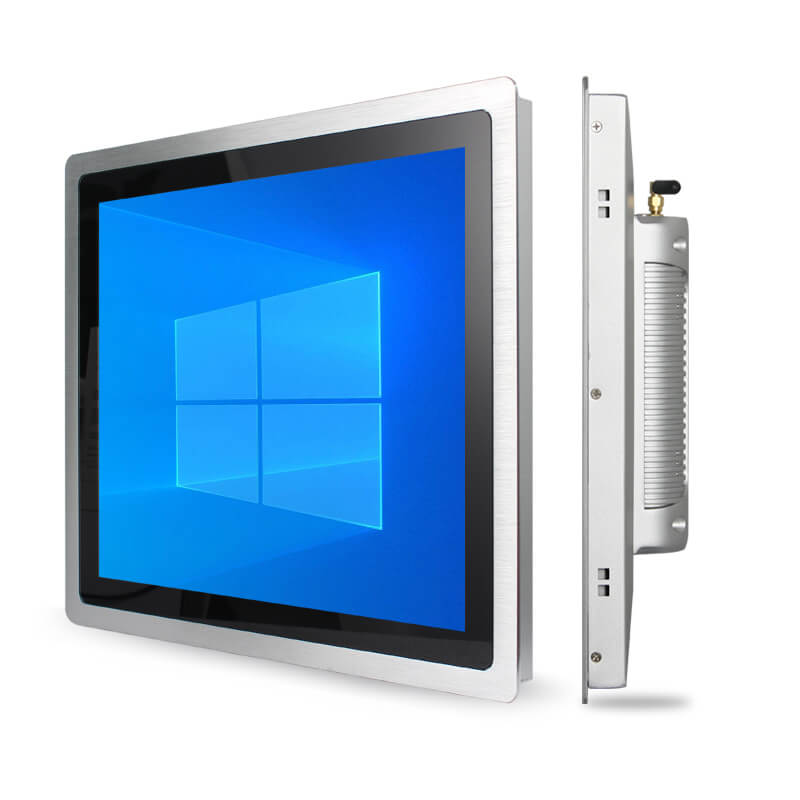

Specially Built For Embedded Installation

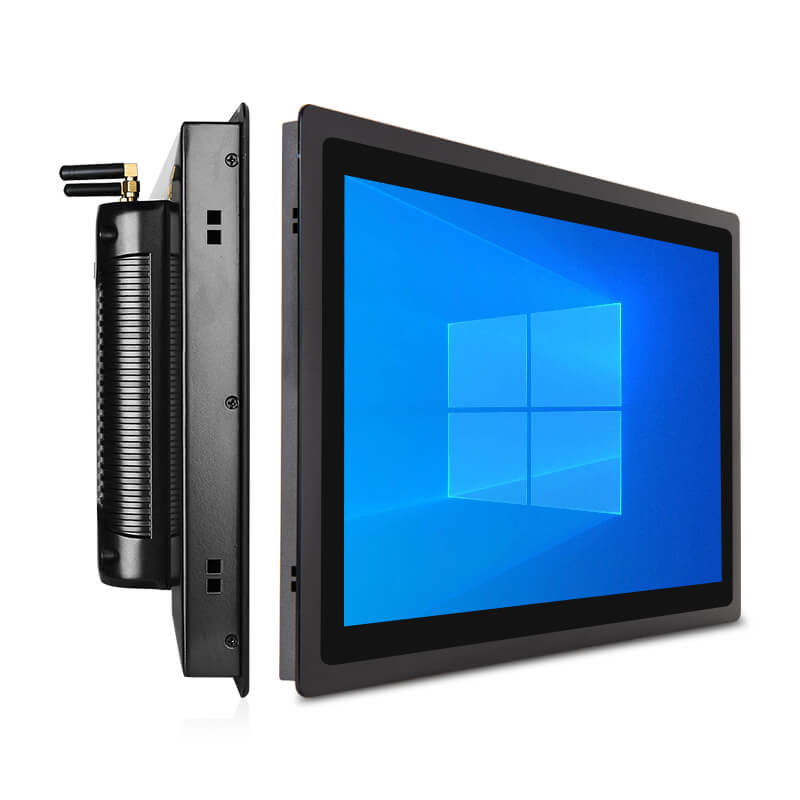

● This industrial panel PC is designed with an ultra-thin front frame, best for embedded mount
● Seamless design, presenting a perfect fit with any cabinets
● Embedded into the cabinets, presenting an elegant, pure flat appearance
High System Compatibility
● Supports Win 7 / Win 10 /Win 11, and Ubuntu / Centos / Redhat / Debian
● High flexibility for different applications
High Environmental Adaptability
● Wide temperature operation: -10°C ~ +60°C

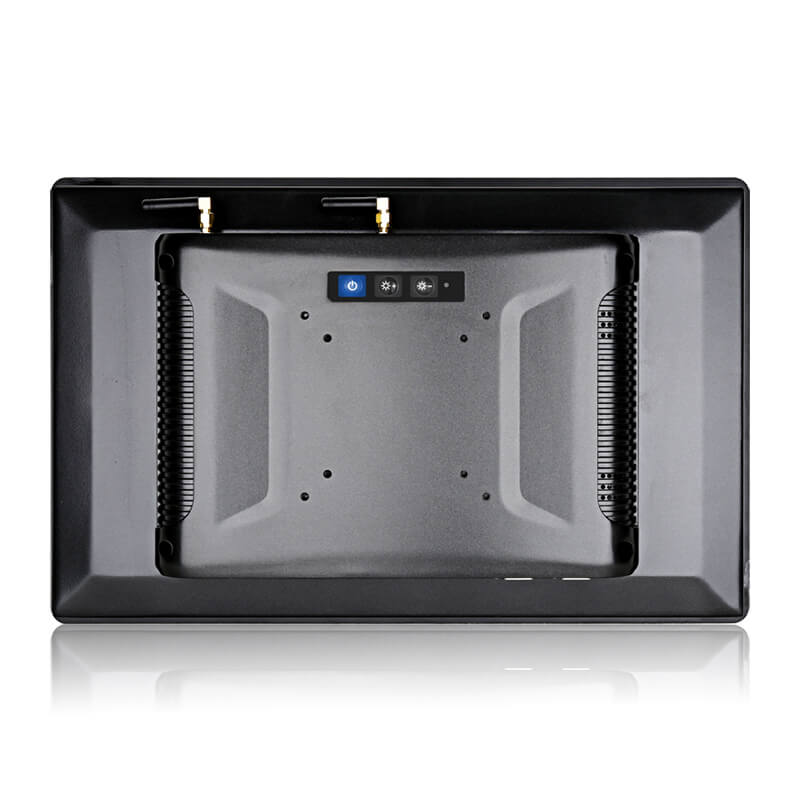

● Aluminum alloy die-cast rear panel with good high thermal conductivity
● 24/7 long-time stable operation
Panel Mount Panel PC - Product Model Quick Guide
| Model | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote Now |
| TPC101-W19 | 10.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC104-W19 | 10.4" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC116-W19 | 11.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC120-W19 | 12" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC121-W19 | 12.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC133-W19 | 13.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC150-W19 | 15" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC156-W19 | 15.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC170-W19 | 17" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC173-W19 | 17.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC185-W19 | 18.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC190-W19 | 19" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC191-W19 | 19.1" | 1440*900 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC215-W19 | 21.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC238-W19 | 23.8" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| Screen | Screen size | 17.3 inch | |||||
| Model | TPC173-W19 | ||||||
| Resolution | 1920*1080 | ||||||
| Proportion | 16:9 Wide Screen | ||||||
| Color | 16.7M | ||||||
| Dot Pitch | 0.264mm | ||||||
| Contrast ratio | 600:1 | ||||||
| Display luminance | 400cd/m2 (Optional high brightness) | ||||||
| Backlight type | LED-backlit screen Lifetime ≥ 50000h | ||||||
| Viewing angle | 85°/85°/60°/80° (L/R/U/D) | ||||||
| Touchscreen | Capacitive touch, resistive touch, and Non-touch for optional | ||||||
| Gray-scale Response Time | 6.5ms | ||||||
| Motherboard Model Selection | CL-J1900B | CX-J4125-A | CX-J6412 | CX-12U01 | |||
| Config | CPU | Intel Celeron J1900, Quad-core, 2.0GHz | Intel Celeron J4125, Quad-core, 2.0GHz | Intel Celeron J6412, Quad-core, 2.0GHz | i3-1215U | i5-1235U | i7-1255U |
| Memory | 4GB (8GB options) | DDR4 4/8GB | DDR4 8/16GB | DDR4 32GB | |||
| Storage | 16GB (optional: 32/64/128/256/512GB) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD) | |||
| GPU | Intel HD Graphics | Intel UHD Graphics 600 | Intel UHD Graphics 16 EUs | Intel Iris Xe Graphics 64 | Intel Iris Xe Graphics 80 | Intel Iris Xe Graphics 96 | |
| Operating System | Win 7 / Win 10 | Win 10 / Win 11 | Win 10 / Win 11 | Win 10 / Win 11 | |||
| Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | / | ||||||
| Centos7.4/7.8/7.9; Redhat7.4; Debian11.6 | Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6 | / | |||||
| Bluetooth | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | |||
| RTC | Support | Support | Support | Support | |||
| Wake On LAN | Support | Support | Optional | Support | |||
| 3G/4G module | Support | Support | Support | Support | |||
| WIFI | Dual-band 2.4/5GHz | Dual-band 2.4/5GHz | Dual-band 2.4/5GHz | Dual-band 2.4/5GHz | |||
| GPS/MIC | Optional | Optional | Optional | Support | |||
| Plug-n-Play | Support | Support | Support | Support | |||
| I/O Ports | USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*2 on board | USB2.0*2 + USB2.0*4 on board | ||
| Type-C | / | / | / | 2*type-c | |||
| USB 3.0 | USB3.0*2 | USB3.0*2 | USB3.0*2 + USB3.0*2 on board | USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C) | |||
| RS232 | 6*RS232 (one of which is for RS232/RS422/RS485 mutual conversion) | ||||||
| RS485 | 1*RS232/RS422/RS485 mutual conversion | ||||||
| RS422 | 1*RS232/RS422/RS485 mutual conversion | ||||||
| GPIO | GPIO*8 (input/output) | ||||||
| WIFI connector | WIFI antenna*2 | ||||||
| DC Interface | DC 2.5*1; Supports 12V-36V wide voltage power supply | ||||||
| SIM Slot | 1*SIM Slot + 1*SIM Slot on board | ||||||
| MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | / | |||
| HDMI | 3840*2160 30Hz output | 4096*2160 30Hz output | 4096*2160 30Hz output | 4096*2304 60Hz output | |||
| VGA | 1920*1080 60Hz output | ||||||
| RJ45 | 2*10M/100M/1000M adaptive Ethernet | ||||||
| Audio Interface | Audio I/O | ||||||
| Earphone jack | 3.5mm standard interface | ||||||
| Reliability | Working Temp | -10°C～60°C | |||||
| Storage Temp | -20°C～70°C | ||||||
| Relative humidity | 95% (without condensation) | ||||||
| Power | Power input | DC in 12V ~ 36V | |||||
| Adapter | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 4A | |||
| Mechanical | Dimension | 429.68*262.61*65.5mm | |||||
| Material | Aluminum alloy material | ||||||
| Cooling System | Fanless | ||||||
| Color | Silver / Black | ||||||
| Installation method | Embedded mount, panel mount, desktop, wall-mounted, VESA 75/100mm. | ||||||
| Packaging | Warranty Policy | Three-year warranty, one year for free. | |||||
| Packaging material | Carton | ||||||
| Packing list | Industrial Panel PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card | ||||||

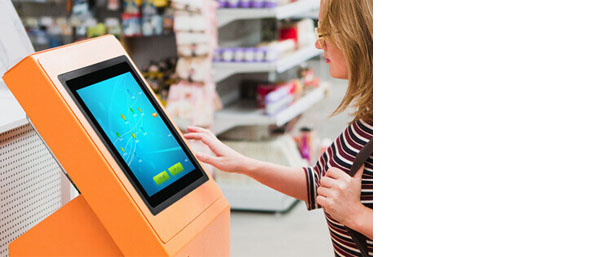

Touch Think industrial computers, industrial panel PCs with Windows operating system are widely used in industry 4.0, intelligent factory, industrial automation, intelligent manufacturing.
OEM/ODM Services for Touch Think Industrial Touch Computers
Screen Customization for Touch Think Industrial PCs
1. High brightness screen: default 400cd/m2, support customization to 1500cd/m2.
2. Photosensitive head: customize the screen brightness automatically based on ambient light.
3. All perspectives: standard 160°, 178° wide viewing angle customized.
4. Touch screen: capacitive touch screen PC, resistive touch screen panel PC, IR touch screen industrial PC.
5. High-resolution screen: customize higher resolution than the standard LCD screen.
6. Screen size: support the customized screen.
7. Others: dust-proof, water-proof, explosion-proof, anti-glare, electromagnetic screen.
Other Customizations for Touch Think Industrial Touch Computers
1. Appearance customization: support appearance design, sample customization.
2. Working temperature: standard temp is -10~60°C, we can customize wide temp: -20~70°C.
3. LOGO customization
4. System software customization: compatible with all software requirements.
5. I/O ports customization: support adding more ports according to your demands.
6. Special materials: for special occasions.
7. IP grade: The industrial PCs can be customized fully sealed dust-proof and waterproof.
