All-In-One Industrial PC For Industrial Fields Display 17 Inch

Size: 17"

The 17-inch industrial-grade square screen touch panel PC engineered to provide anti-reflective, PCAP multi-touch screen, (resistive for optional), and Full-HD display in 5:4 format. Truly durable and cost-effective all-in-one panel PC protected by a front IP65-rated, cast-aluminum alloy enclosure can withstand wet, dusty and abrasive environments.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

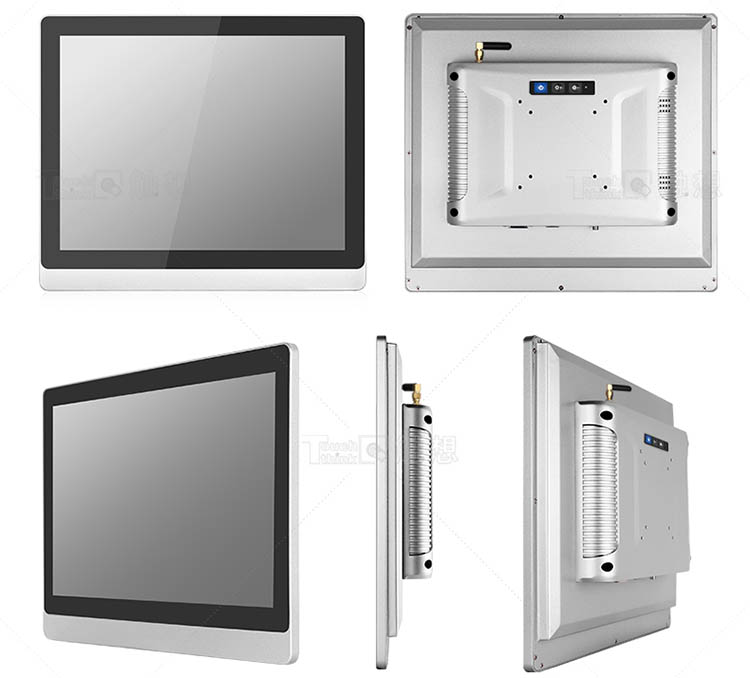

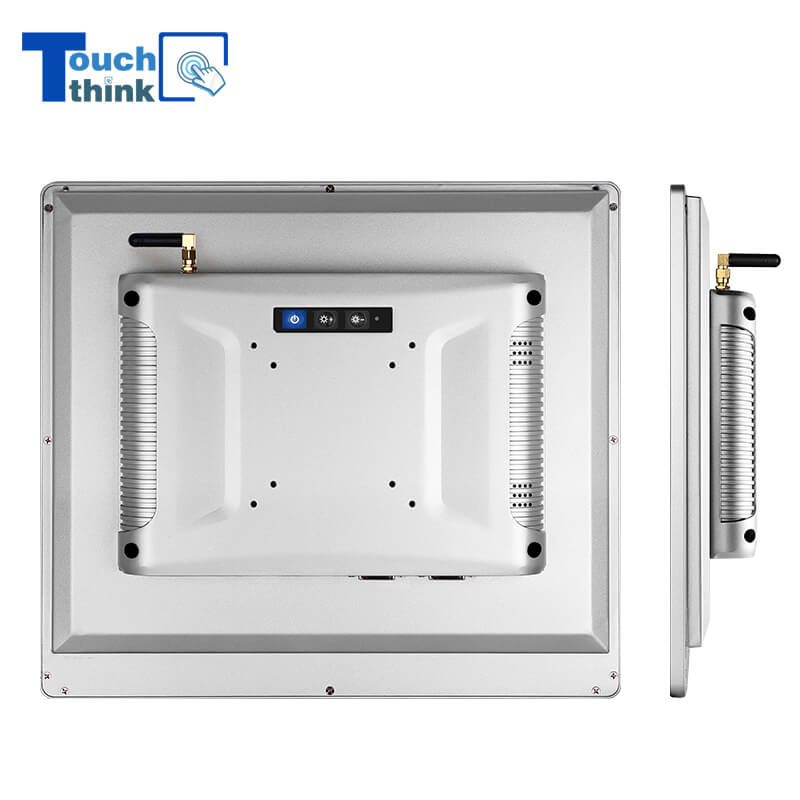

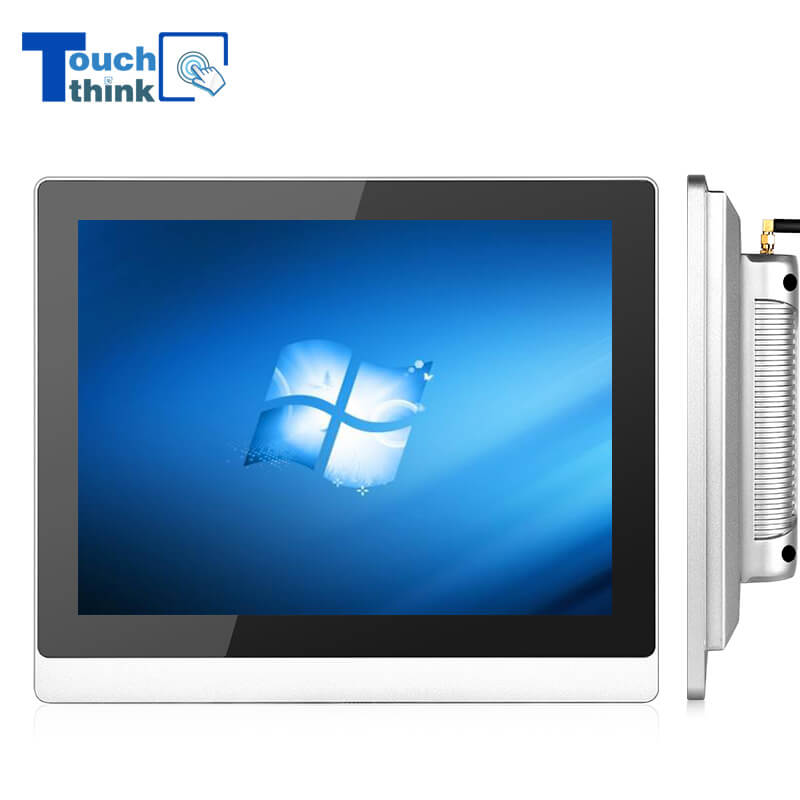

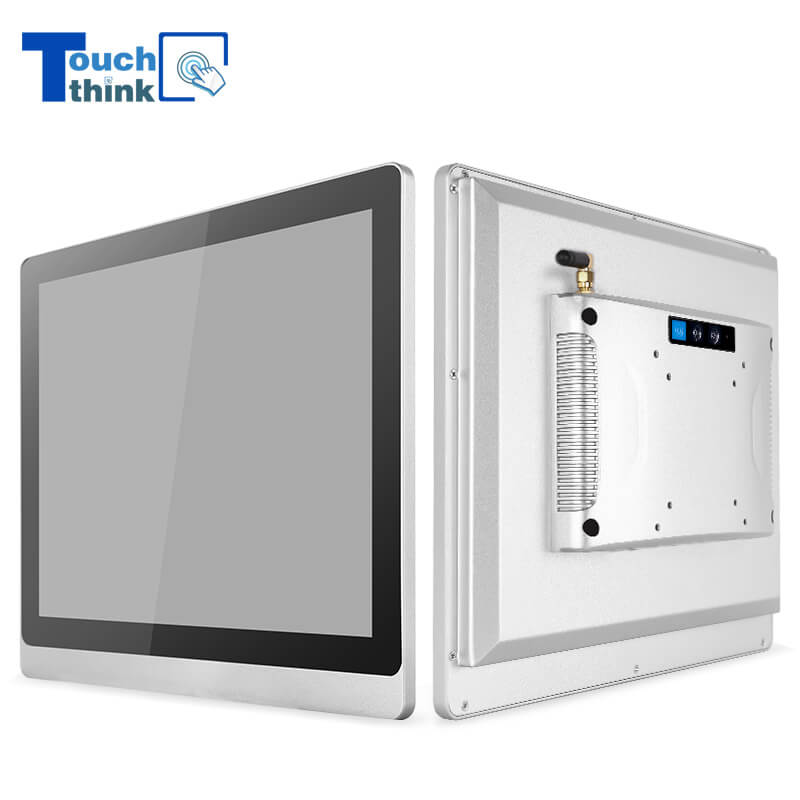

17-inch Industrial All-In-One PC with Touch Screen For Industrial Fields


Model: TPC170-W19


This 17-inch Touch Think industrial all-in-one computer has an IP65 rating front bezel for dust-proof and waterproof, high brightness support sunlight readable under direct sunlight, making it suitable for harsh industrial environments and outdoor devices. It has a fanless design making a mute running and perfect for heating-dissipation. This panel PC has a powerful Intel Celeron J1900/J4125/J6412 optional CPU and is built with high-quality industrial-grade components to ensure the highest reliability for 24*7 hours of use in industrial and commercial applications. This industrial AIO panel PC is designed with a compact structure, saves space, and is perfect for embedding into the cabinet, also enables our customers to fully maximize their business output by making the processes more efficient.



Touch Think Industrial All-in-one Panel PC Features


● 17" LCD square screen full flat ten-point capacitive touchscreen.

● High-performance Intel Celeron J1900/J4125/J6412 CPU options.

● IP65-rated dust-proof and waterproof for its front panel.

● Fanless heating-dissipation for a cooling system.

● Well-performed for shock resistance and anti-vibration

● Default with USB/HDMI/VGA/RJ45/RS232, and RS422/RS485 options.

● Support desktop, embedded, panel mount, and VESA mounting.

● Support lockable OSD (On-Screen Display) controls.

● Plug-and-play function.




ScreenScreen size17 inch
ModelTPC170-W19
Resolution1280*1024
Proportion 5:4 Square Screen
Color16.7M
Dot Pitch0.264mm
Contrast ratio1000:1
Display luminance250~300cd/m2 (high brightness above 300cd/m2 is customizable)
Backlight typeLED-backlit screen Lifetime ≥ 50000h
Viewing angle85°/85°/80°/70° (L/R/U/D)
TouchscreenCapacitive touch, resistive touch, and Non-touch for optional
Gray-scale Response Time 6.5ms

Motherboard Model SelectionCL-J1900BCX-J4125-ACX-J6412CX-12U01
ConfigCPUIntel Celeron J1900, Quad-core, 2.0GHz Intel Celeron J4125, Quad-core, 2.0GHz Intel Celeron J6412, Quad-core, 2.0GHz i3-1215Ui5-1235Ui7-1255U
Memory 4GB (8GB options)DDR4 4/8GBDDR4 8/16GBDDR4 32GB
Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80Intel Iris Xe Graphics 96
Operating SystemWin 7 / Win 10Win 10  / Win 11Win 10 / Win 11Win 10 / Win 11
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/
BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)
RTCSupportSupportSupportSupport
Wake On LANSupportSupportOptionalSupport
3G/4G moduleSupport
SupportSupportSupport
WIFIDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHz
GPS/MICOptionalOptionalOptionalSupport
Plug-n-PlaySupportSupportSupportSupport

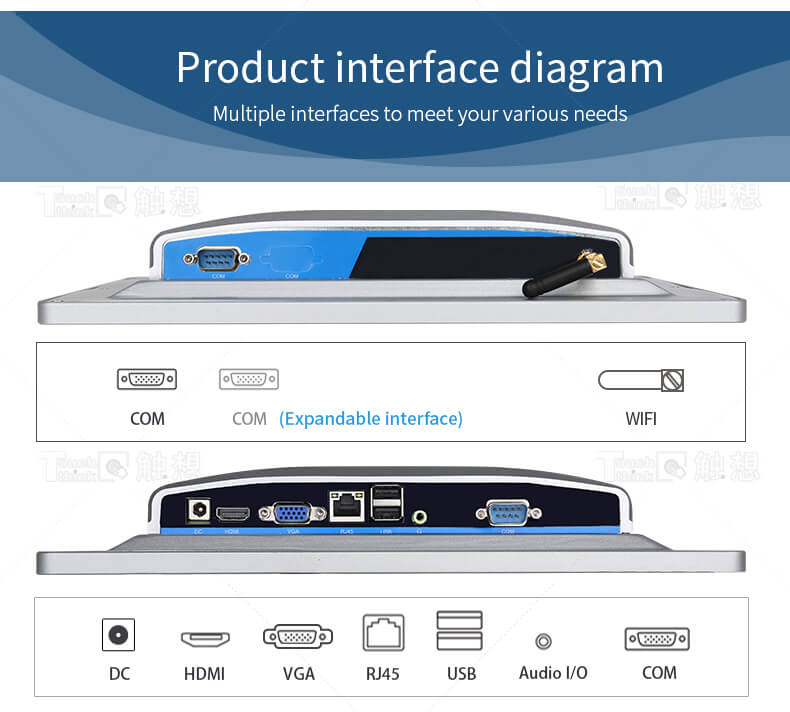

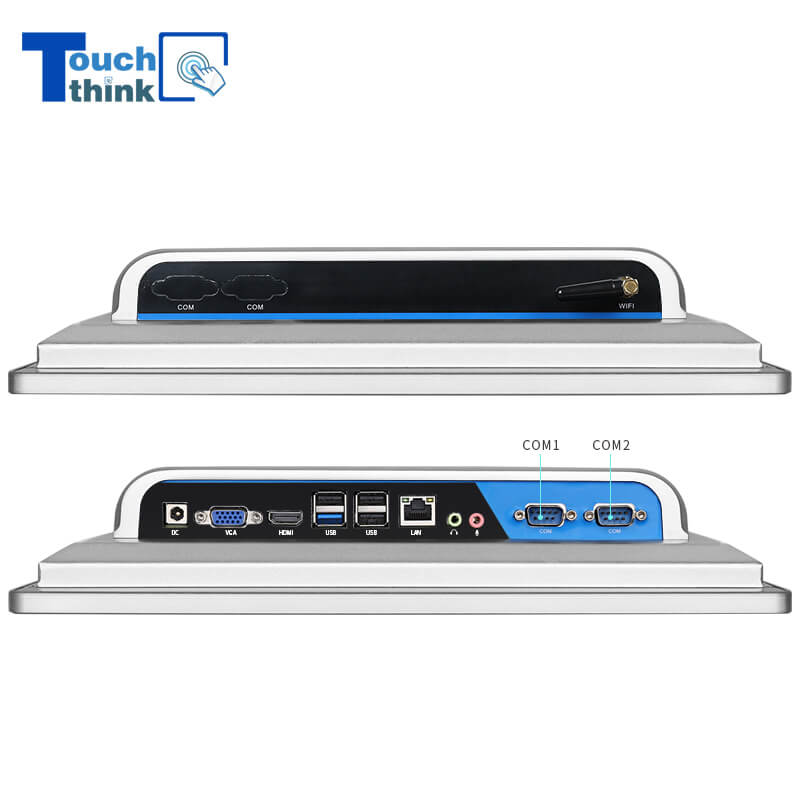

I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
Type-C///2*type-c
USB 3.0USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on boardUSB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
RS4851*RS232/RS422/RS485 mutual conversion
RS4221*RS232/RS422/RS485 mutual conversion
GPIOGPIO*8 (input/output)
WIFI connectorWIFI antenna*2
DC InterfaceDC 2.5*1; Supports 12V-36V wide voltage power supply
SIM Slot1*SIM Slot + 1*SIM Slot on board
MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
HDMI3840*2160 30Hz output4096*2160 30Hz output4096*2160 30Hz output4096*2304 60Hz output
VGA1920*1080 60Hz output
RJ452*10M/100M/1000M adaptive Ethernet
Audio InterfaceAudio I/O
Earphone jack3.5mm standard interface

ReliabilityWorking Temp-10°C~60°C
Storage Temp-20°C~70°C
Relative humidity95% (without condensation)

PowerPower inputDC in 12V ~ 36V
Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

MechanicalDimension385.32*317.74*65.5mm
MaterialAluminum alloy material
Cooling SystemFanless

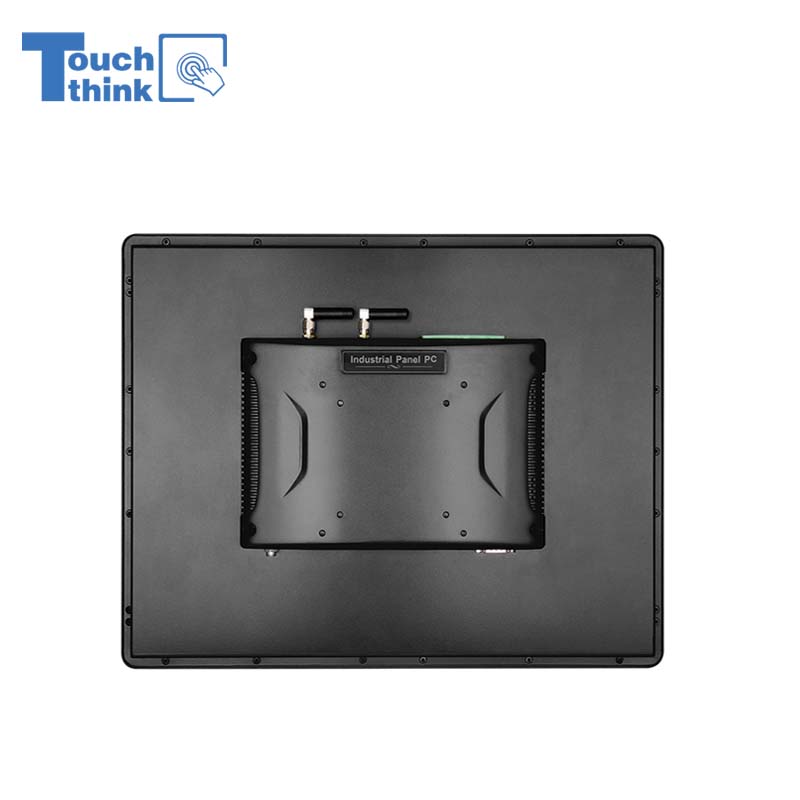

Color Silver / Black

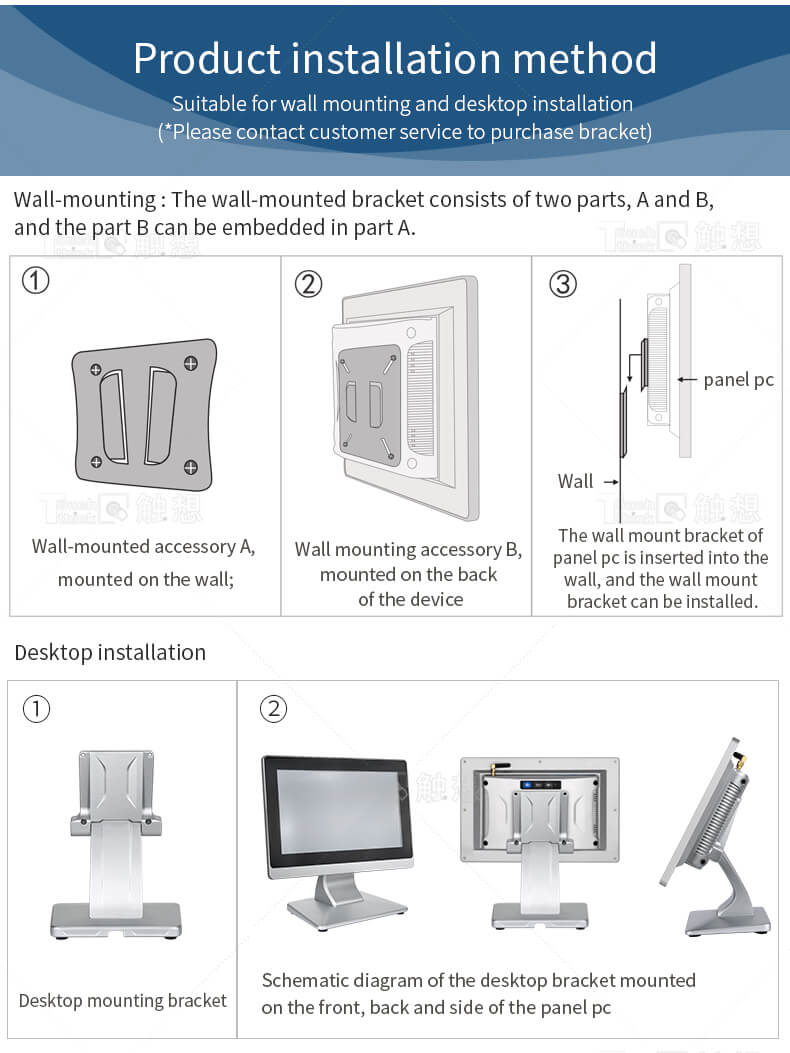

Installation methodEmbedded mount, panel mount, desktop, wall-mounted, VESA 75/100mm.

PackagingWarranty PolicyThree-year warranty, one year for free.
Packaging materialCarton
Packing list Industrial Panel PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card


Industrial all-in-one PCs are widely used in industrial automation, smart factory, intelligent manufacturing, and RFID solutions, transportation and logistics, real-time data, industrial Internet of Things (IIoT), machine-to-machine (M2M), intelligent building automation, HVAC control, access control, check-in system, interactive security systems, and interactive patient room information displays.

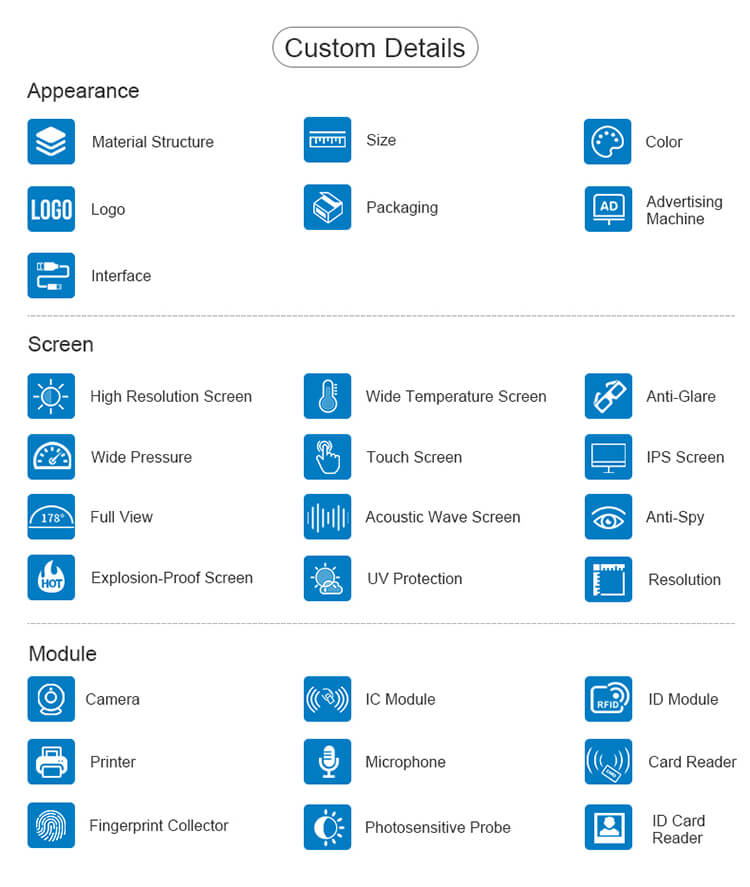

Screen Customization for Touch Think Industrial PCs


1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: resistive touch screen, capacitive touch screen, IR touch screen.

5. High-resolution screen: customize higher resolution than a standard LCD screen.

6. Screen size: support the customized screen.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customizations for Touch Think Industrial PCs


1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -10~+60°C, we can customize a wider working temp: -30~+80°C.

3. LOGO customization

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: for special occasions.

8. IP grade: the industrial PCs can be customized fully-sealed dust-proof and waterproof.
