10mm front panel, working temperature range：-10°～60°, 365*24 hours whole days operation, IP65 dustproof and waterproof.
Flat Panel Industrial LCD Monitor Square Screen HD 17"
The Touch Think 17-inch 4th new generaton of industrial touch screen monitor delivers high quality picture
for users no matter for indoor or outdoor devices. The monitors are designed for multi applications, and
withstands wide operating temperature range.

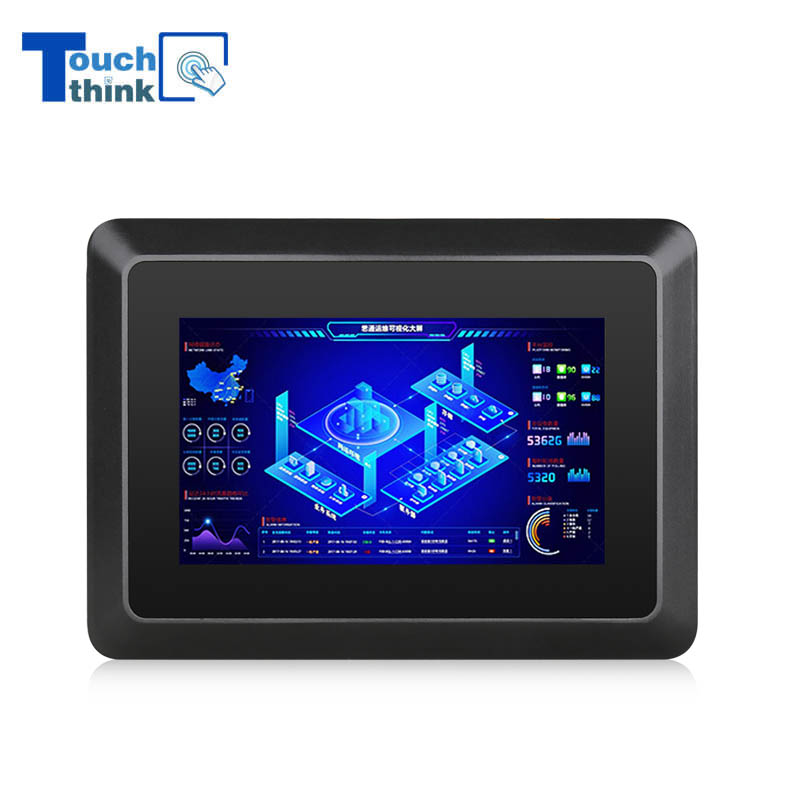

Touch Think 17-inch Industrial Monitor Display
Industrial Monitors Features
1. Touch Think 4th generation industrial monitors offer multiple interfaces for customers to meet various
needs, support interfaces expansion.
2. Aluminum alloy wiring drawing process technology, presenting professional quality, polishing for layer
up layer, showing natural texture and luster metal.
3. Strong surface, good mechanical properties, modular forming of aluminum alloy, one-piece die casting
whole monitor body, showing a delicate appearance.
4. Widely used in industrial automation, kiosk, factory production line, self-service vending machines, me-
dical self-service devices, public self-help service devices, etc.
5. IP65 rated water-proof and dust-proof for the front panel.
Screen Customization for Touch Think Industrial Monitors
1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.
2. Photosensitive head: customize the screen brightness automatically based on ambient light.
3. All perspective: standard 160°, 178° WVA customized.
4. Touch screen: industrial monitor, resistive touch screen, capacitive touch screen, IR touch screen.
5. High-resolution screen: customize higher resolution than a standard LCD screen.
6. Screen size: support to the customized screen.
7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.
Other Customizations for Touch Think Industrial Monitors
1. Appearance customization: support appearance design, sample customization.
2. Working temperature: standard temp is -20~+70°C, we can customize a wider working temp:
3. LOGO customization
4. System software customization: compatible with all software requirements.
5. I/O ports customization: support adding more ports according to your demands.
6. Wide voltage: 12V-24V.
7. Special materials: for special occasions.
8. IP grade: The industrial monitors can be customized fully-sealed dust-proof and waterproof.
|Screen parameters||Screen size||17 inch|
|Proportion||5:4 square screen|
|Gray-scale response time||5ms|
|Panel Type Industrial||Control A style TFT|
|Backlight type||LED, use length≥50000h|
|Visual angle||160/160 (Customizable 178° full view angle)|
|Brightness||400cd/m2 (customizable high brightness)|
|Touch type||Resistive / capacitive / mouse control|
|Number of touches||≥ 50 million times|
|Other parameters||Power Supply||4A External Power Adapter|
|Power Performance||100-240V, 50-60HZ|
|Anti-static||Contact 4KV-air 8KV (can be customized ≥16KV)|
|Anti-interference||EMC|EMI anti-electromagnetic interference|
|Dustproof and waterproof||Front panel IP65 dustproof and waterproof|
|Housing Material||Black/Silver, Aluminum Alloy|
|Installation method||Embedded, desktop, wall-mounted, VESA75/100, panel mount, open frame.|
|Ambient temperature||<80%, non-condensable|
|Working temperature||-10°C～60°C (customizable -30°C～80°C)|
|Language menu||Chinese, English, German, French, Korean, Spanish, Italian, Russian|
|O/I interface parameters||Signal Interface||DVI, HDMI, VGA|
|Power connector||DC with ring attachment (optional DC terminal block)|
|Other interfaces||Audio input and output|
