Professional Industrial Grade Display TFT LCD Monitor Hot Sale 13.3"

Size: 13.3"

This Touch Think's 13.3" industrial touchscreen monitor, features the front IP65 and brightness-adjustable screen to provide reliable work for demanding outdoor, commercial, and industrial applications.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Professional Industrial Grade Display TFT LCD Monitor Hot Sale 13.3"


TPC133-M2


Touch Think industrial touch screen LCD monitors provide professional OEM/ODM for production line equipment or commercial terminal device manufacturers. Our wide range of selections for touchscreen display size and mounting methods offer many one-stop solutions for our customers domestically and abroad.


Touch Think Monitors Features


1. Industrial-grade materials and electronic components, elegant appearance, offering multi-function ports.

2. Support capacitive multi-touch screens, resistive touch screens, and non-touch screens for various indoor and outdoor environments.

3. Offer multiple mounting types: panel, embedded, VESA, wall-mounted, desktop, and open frame.

4. Comprehensive before-after sales service team to assist industrial monitors with model selection, size selection, etc.

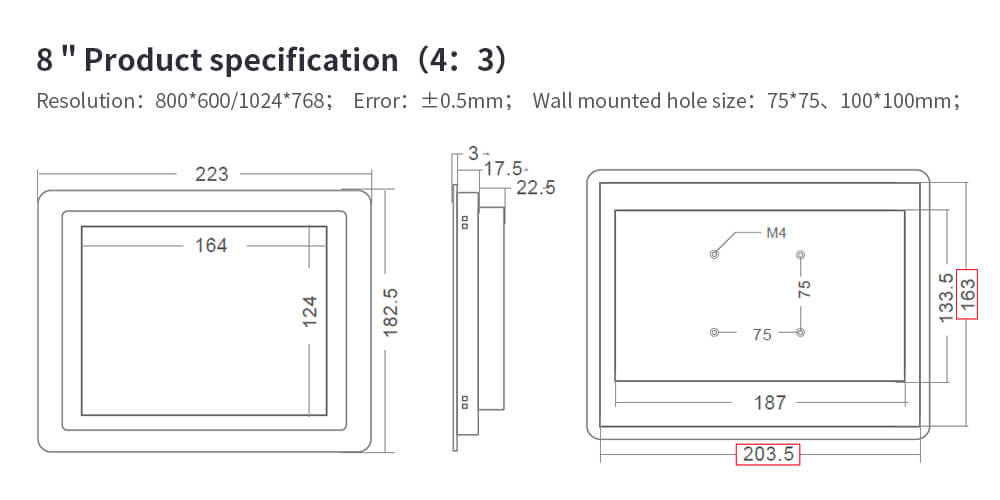

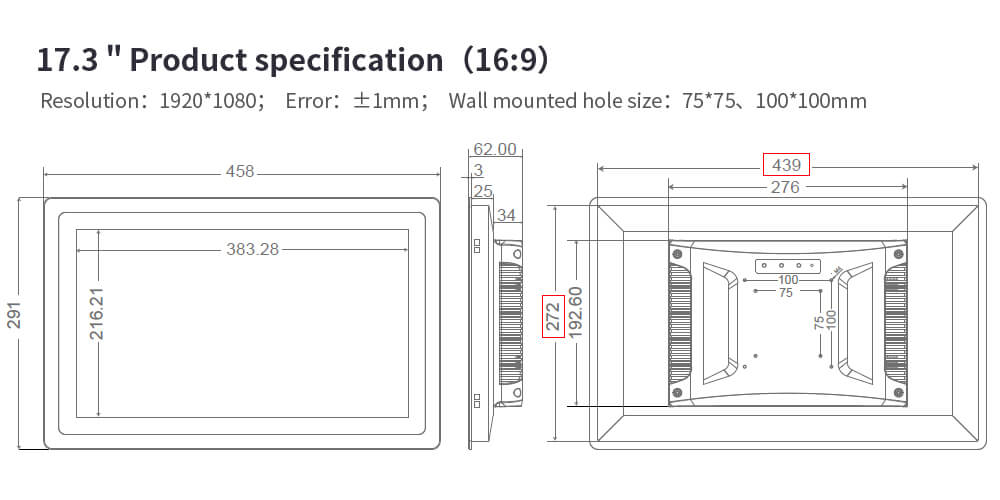

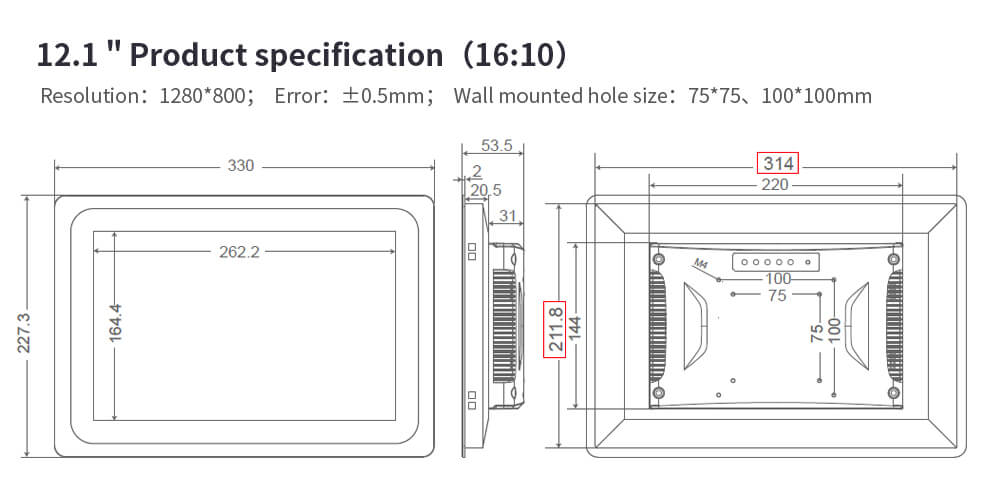

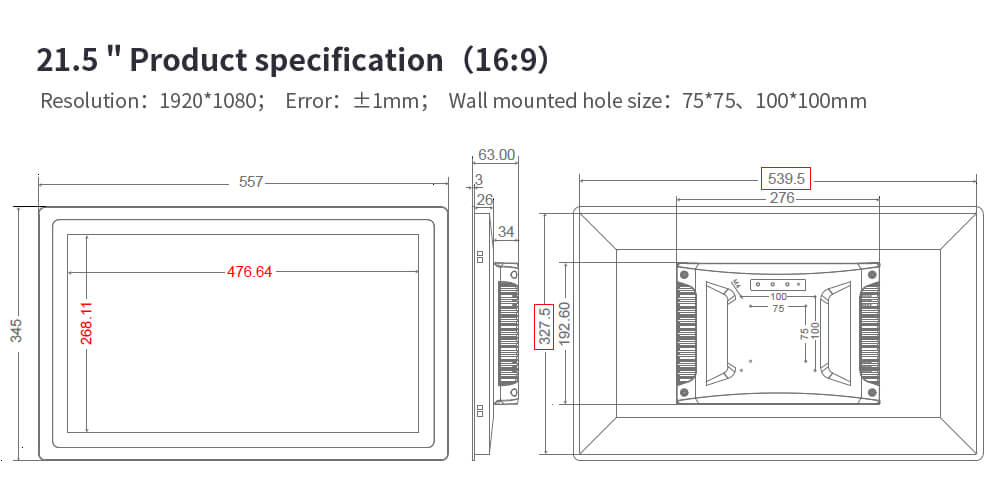

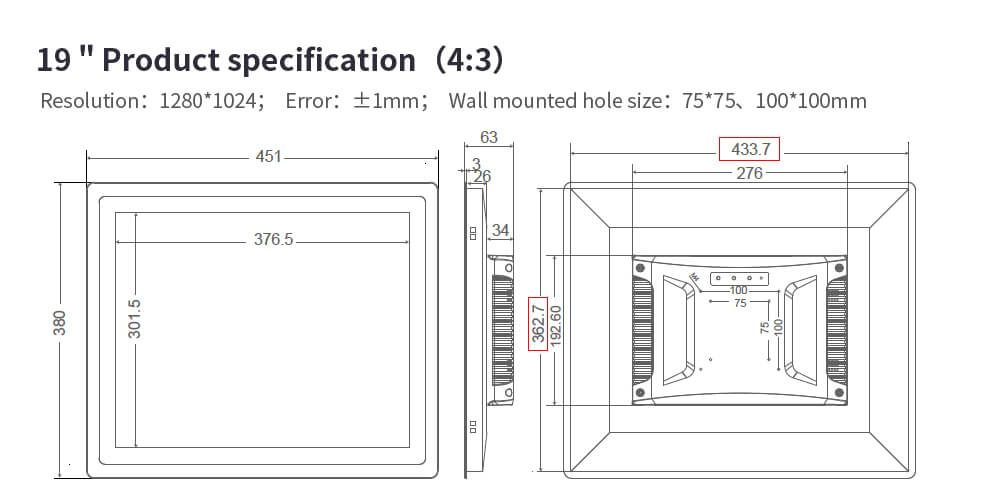

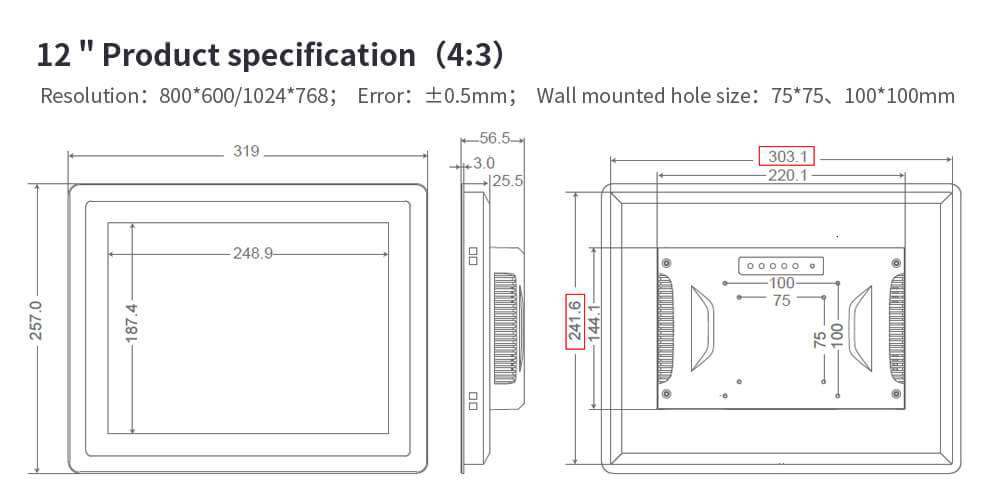

Touch Think Industrial Monitors Display

Professional Industrial Grade Display TFT LCD Monitor Hot Sale 13.3"

Professional Industrial Grade Display TFT LCD Monitor Hot Sale 13.3"

Professional Industrial Grade Display TFT LCD Monitor Hot Sale 13.3"

Professional Industrial Grade Display TFT LCD Monitor Hot Sale 13.3"

Professional Industrial Grade Display TFT LCD Monitor Hot Sale 13.3"

Professional Industrial Grade Display TFT LCD Monitor Hot Sale 13.3"



FAQ of Industrial Monitors


No response of the industrial touch display: when touching the screen, the mouse arrow does not move, and the position of the mouse arrow does not change. The reasons for this phenomenon are as follows:


1. Failure of the industrial touch screen;

2. Serial port failure of industrial mainframe;

3. Failure of industrial touch screen control card;

4. Malfunction of industrial touch screen signal line;

5. Installation error of industrial touch screen driver;

6. Malfunction of the operating system of industrial tablet computer;

7. The dust or scale accumulated on the acoustic reflection fringes around the surface acoustic touch

screen is very serious, which makes the industrial touch screen unable to work.



Solution


1. Observe the industrial touchscreen signal indicator lamp, which flickers regularly under normal conditions, about once every second. When touching the screen, the signal lamp is always on. After stopping touching, the signal lamp will resume flickering.

2. If the signal lamp is still on when it is not touched, firstly, check whether the touch screen needs to be cleaned; secondly,  check whether the serial number connected by the hardware matches the serial number set by the software and whether the serial port of the industrial host works properly.

3. When the driver is installed for the first correction, pay attention to the details of the system error. "No control card found", "touch screen not connected" and so on, check the corresponding parts according to the prompt. For instance, whether the signal line of the industrial touch screen is well connected with the control card; Whether all the keyboard wires are connected well with the industrial mainframe, etc.

4. If the problem still can't be resolved,s please contact the professional industrial monitor manufacturer to repair it. Flexible and fast handling of common problems of monitors can effectively improve the service life.




Screen parametersScreen size13.3 inch
ModelTPC133-M2
Resolution1920*1080
Proportion16:9 widescreen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160 (Customizable 178° full view angle)
Brightness 400cd/m2 (high brightness is customizable)
Touch typeResistive/capacitive/mouse control options
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (can be customized ≥16KV)
Power≤48W
Anti-vibrationGB2423 standard
Anti-interference EMC|EMI anti-electromagnetic interference
Dustproof and waterprooffront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, cantilever
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (-30°C~80°C is customizable )
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian
O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output
