19 inch Industrial Rugged LCD Monitors Explosion-Proof Dual WiFi 12V

Size: 19"

19" industrial rugged LCD monitors are suited for industrial and commercial applications. Support panel mount, wall-mounted, VESA mount. Support high lightness sunlight-readable screen.

Product Color



19" Industrial LCD Monitor For Heavy-duty Applications


Model: TPC190-M5


Touch Think 5th-GEN industrial monitors are designed for heavy-duty environments to use, Options include sunlight readable displays, LED backlights, Windows/Android/Linux/Raspberry Pi/Ubuntu compatibility, capacitive or resistive touch screens, multiple interface inputs & outputs, and more.


原文

Product Features


• 1280x1024 high resolution, 5:4 aspect ratio

• IP65 rated dust and water resistance

• Standard 400cd/m2, support 1000cd/m2 with long-life LED backlight

• Wide viewing angle IPS (In-Plane Switching) LCD panel

• Automatic backlight adjustment through a built-in ambient light sensor

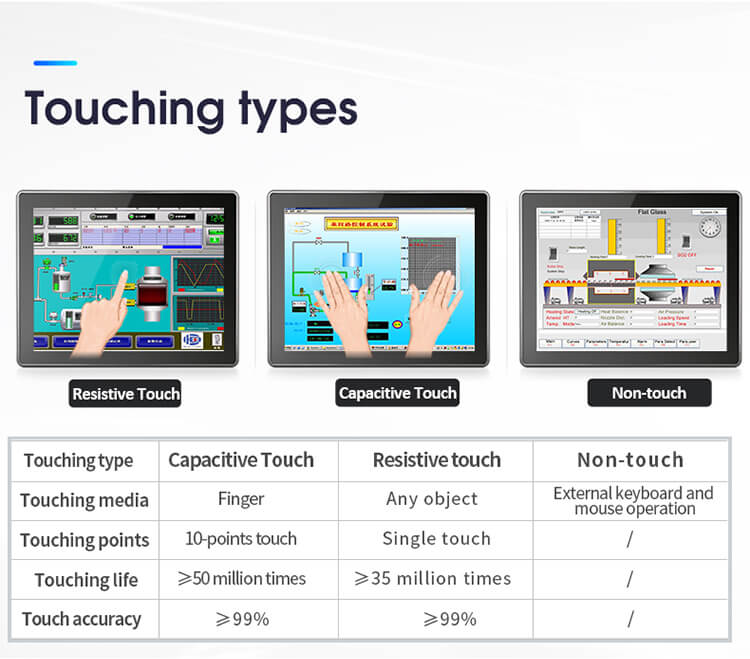

• Single-point resistive & projected capacitive Multi-point touch screen

• Optical bonding, anti-fingerprint, and anti-reflective coating

• Supports 12 ~ 24V DC, anti-falling off design for DC ports

• High-Performance Image and Video Signal Processor

• Last input and power setting memory

• Built-in waterproof speaker

• Plug-and-Play function

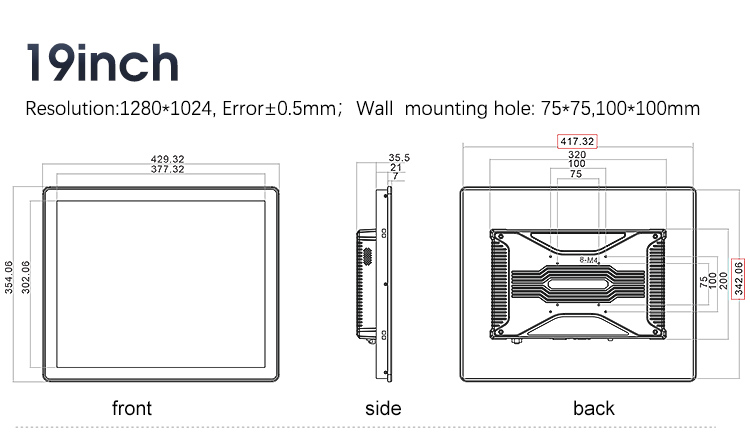

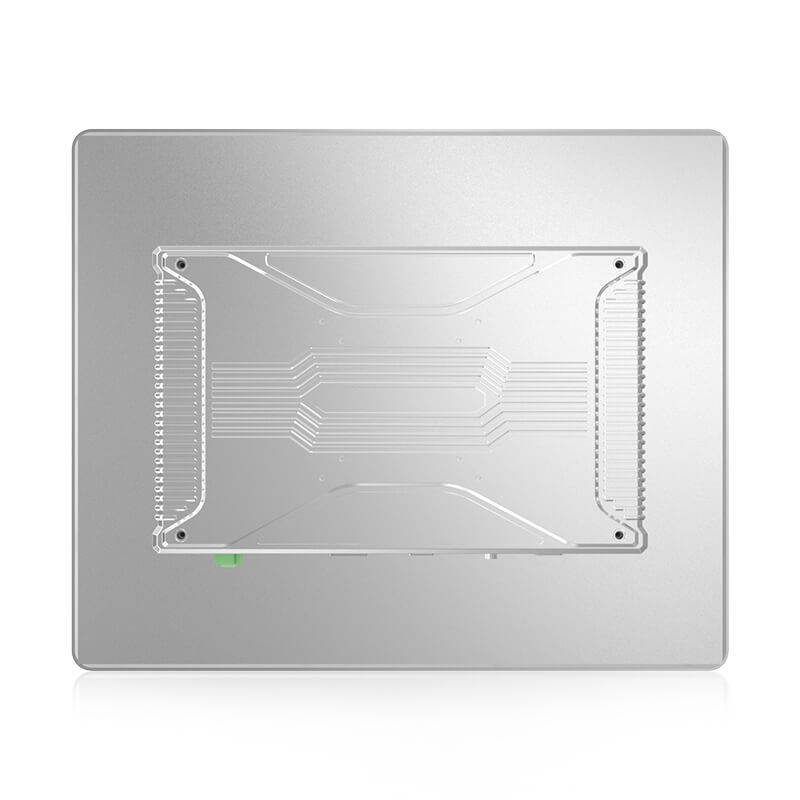

• VESA 75/100mm mounting holes on rear cover

• Heavy-duty connector with connector locking

• Ruggedized Aluminum alloy casing

• OSD function

• FCC, CE, ROHS compliant

• 3 Year/36-month warranty

  • product description
  • Product parameters
  • Application
  • OEM/ODM

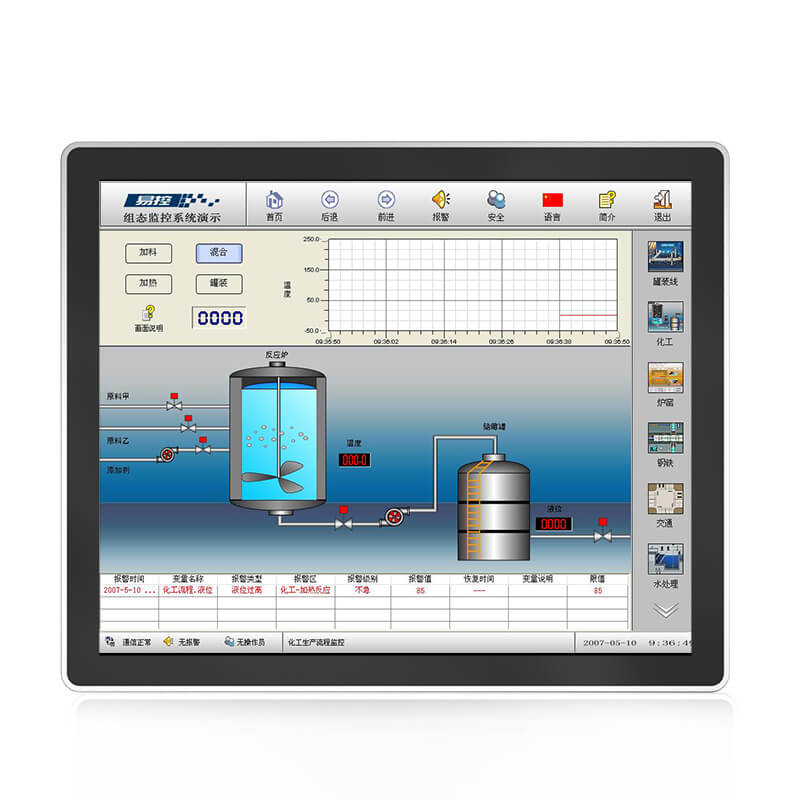

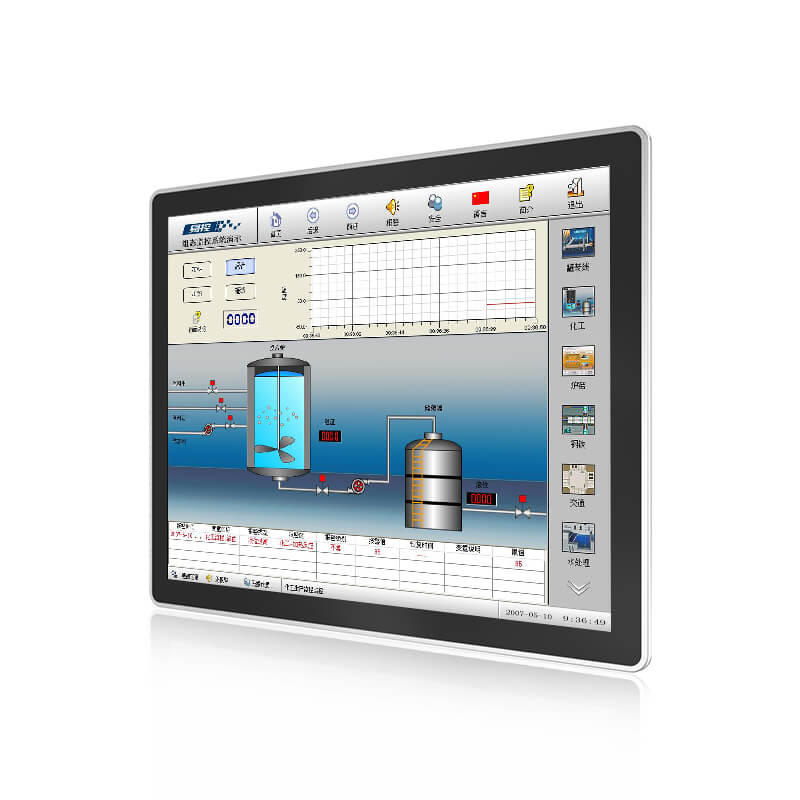

19-inch Industrial Touch Screen LCD Monitor


19 inch Industrial Rugged LCD Monitors Explosion-Proof Dual WiFi 12V

19 inch Industrial Rugged LCD Monitors Explosion-Proof Dual WiFi 12V

19 inch Industrial Rugged LCD Monitors Explosion-Proof Dual WiFi 12V

19 inch Industrial Rugged LCD Monitors Explosion-Proof Dual WiFi 12V

19 inch Industrial Rugged LCD Monitors Explosion-Proof Dual WiFi 12V





Screen parametersScreen size19 inch
ModelTPC190-M5
Resolution1280*1024
Proportion5:4 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160° (178° full view angle customizable)
Brightness 350cd/m2 (high brightness customizable)
Touch-typeResistive / capacitive / mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (≥16KV can be customized)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront IP65 dustproof and waterproof

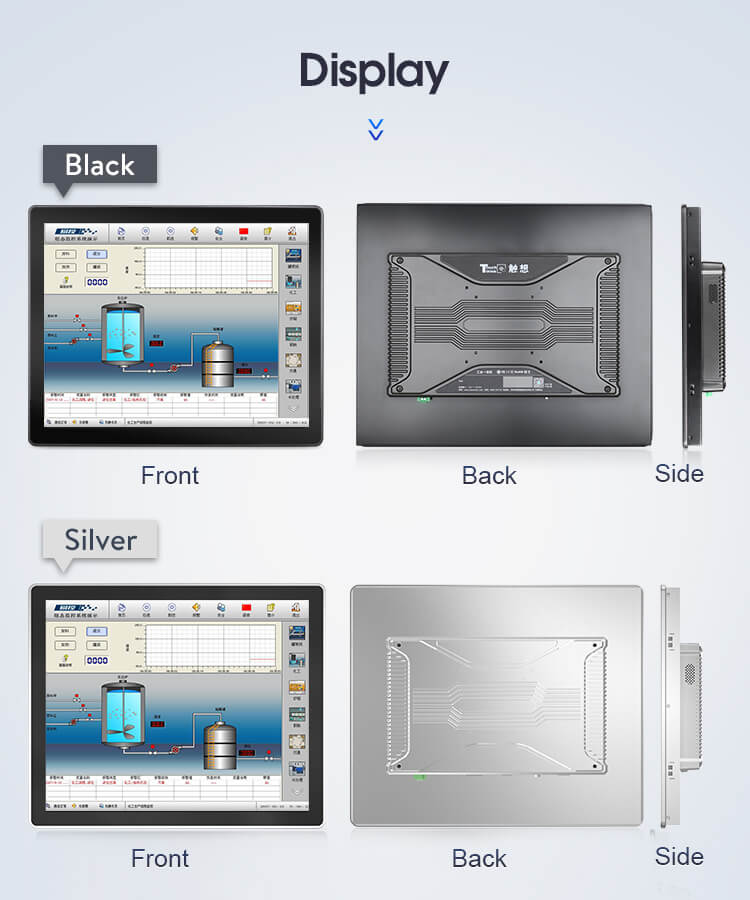

Housing MaterialBlack/Silver, Aluminum Alloy

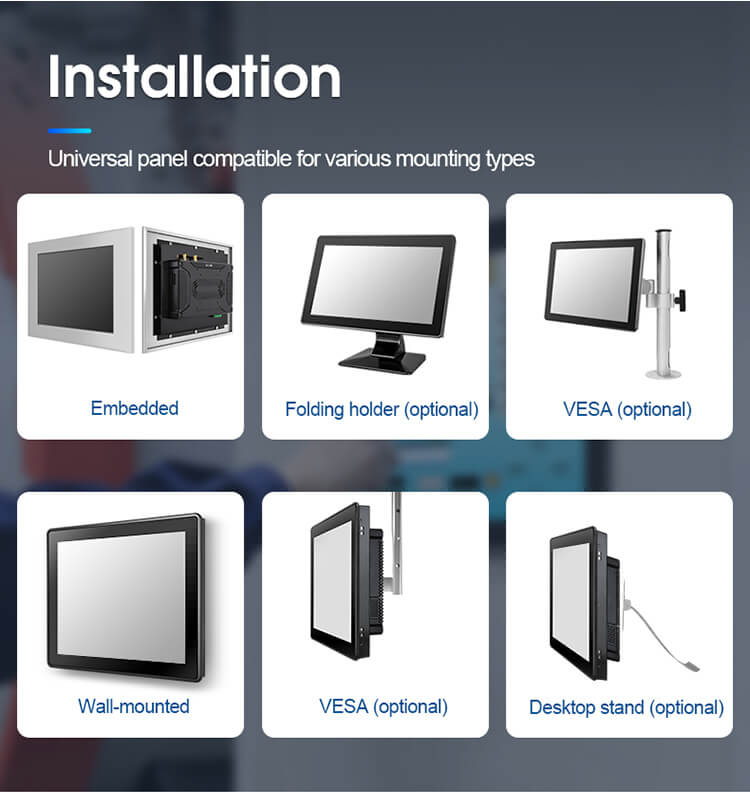

Installation methodEmbedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame.
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian, etc.

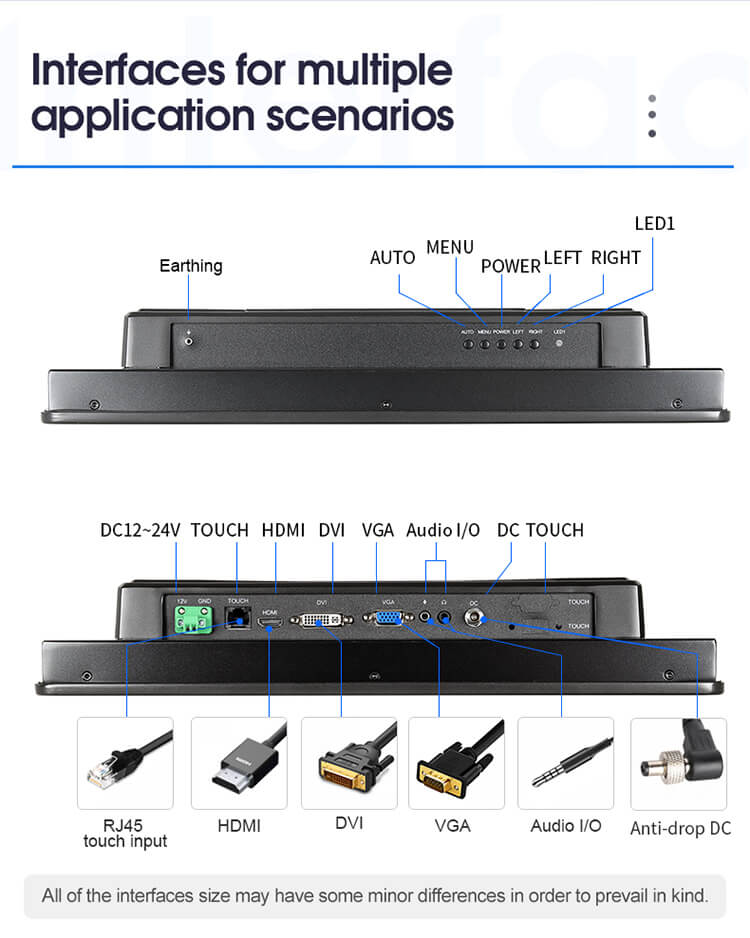

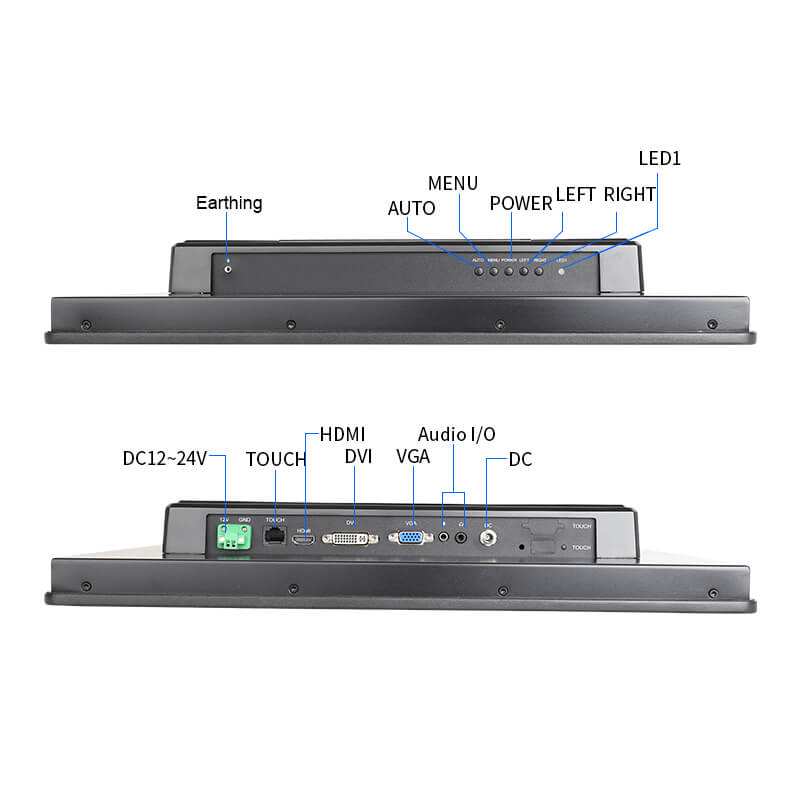

O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output



Touch Think 19-inch industrial Monitors are widely used in the following fields:


1. Industrial field control display;

2. Embedded in various devices as display devices;

3. As a display device in the host of telecommunications and network rooms;

4. Monitors for trains, subway stations, and ports;

5. Vehicle-mounted displays on train, subway, car;

6. Rugged or military standard displays are generally used in harsh outdoor environments, military vehicles, and warships;

7. Embedded into the advertising machine, which is widely applied to elevators, public places, and commercial office buildings of living quarters.




Touch Think industrial monitors support OEM/ODM customization service.


Screen Customization


1. High-light screen: default with 350cd/m2, support customization up to 1500cd/m2.

2. Photosensitive head: support screen brightness automatically adjusts based on ambient light.

3. Screen viewing angle: default with 160°, but all perspectives 178° WVA can be customized.

4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen, and non-touchscreen.

5. High-resolution screen: higher resolution than standard LCD screen can be customized.

6. Screen size: standard display size range is 7 inch to 21.5 inch, other size is available.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customization Items


1. Appearance customization: support appearance and product color design, sample customization.

2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.

3. LOGO customization.

4. System software: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.

8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof, and waterproof can be customized.

9. Installation methods: support different installation methods for different applications.
