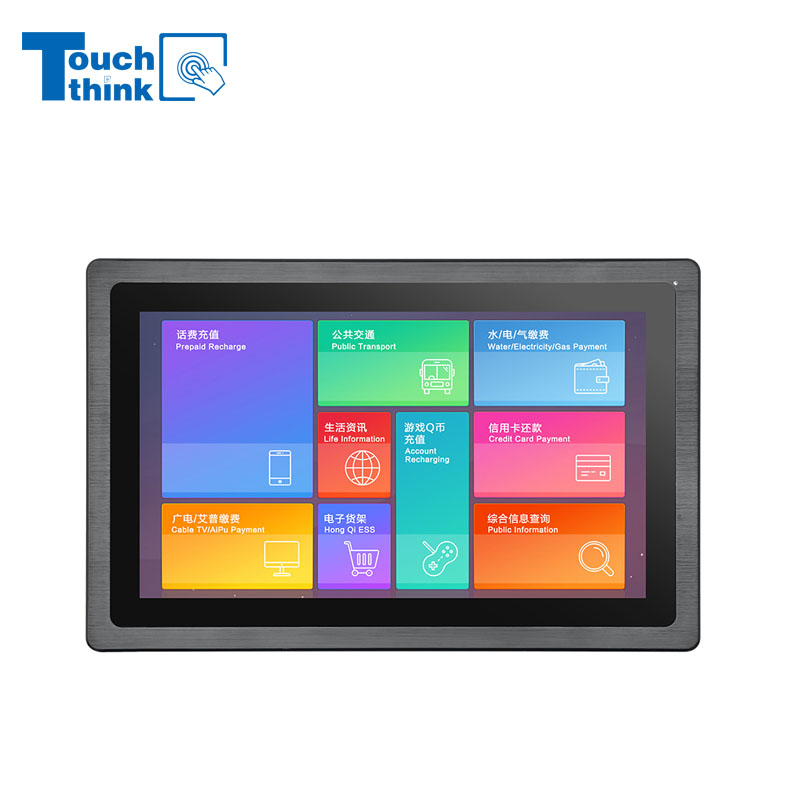

17.3" Panel Mount Industrial LCD Monitor With IP65

Size: 17.3"

Touch Think vehicle-mounted touch screen monitors provide industrial-grade touch control & display solutions in heavy-duty vehicles, construction, and manufacturing.

Product Color

17.3" Industrial LCD Monitor With NEMA 4X IP65 For Heavy-duty Applications


Touch Think 5th-GEN industrial monitors are designed for heavy-duty environments to use, Options include sunlight readable displays, LED backlights, Windows/Android/Linux/Raspberry Pi/Ubuntu compatibility, capacitive or resistive touch screens, multiple interface inputs & outputs, and more.


原文

Product Features


• 1920x1080 high resolution, 16 : 9 aspect ratio

• IP65 / NEMA4X rated dust and water resistance

• Standard 400cd/m2, support 1000cd/m2 with long-life LED backlight

• Wide viewing angle IPS (In-Plane Switching) LCD panel

• Automatic backlight adjustment through a built-in ambient light sensor

• Single-point resistive & projected capacitive Multi-point touch screen

• Optical bonding, anti-fingerprint, and anti-reflective coating

• Supports 12 ~ 24V DC, anti-falling off design for DC ports

• High-Performance Image and Video Signal Processor

• Last input and power setting memory

• Built-in waterproof speaker

• Plug-and-Play function

• VESA 75/100mm mounting holes on rear cover

• Heavy-duty connector with connector locking

• Ruggedized Aluminum alloy casing

• OSD function

• FCC, CE, ROHS compliant

• 3 Year/36-month warranty


  • product description
  • Product parameters
  • Application
  • OEM/ODM


17.3-inch Industrial Touch Screen Monitor Suitable For Vehicle-Mounted


17.3" Panel Mount Industrial LCD Monitor With NEMA 4X IP65


12" Industrial Durable Touch Screen Monitor Wide Viewing Angle

12" Industrial Durable Touch Screen Monitor Wide Viewing Angle

17.3" Panel Mount Industrial LCD Monitor With NEMA 4X IP65

12" Industrial Durable Touch Screen Monitor Wide Viewing Angle








Screen parametersScreen size17.3 inch
ModelTPC173-M5
Resolution1920*1080
Proportion16:9 widescreen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160° (178° full view angle customizable)
Brightness 350cd/m2 (high brightness customizable)
Touch-typeResistive / capacitive / mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (≥16KV can be customized)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame.
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian, etc.
O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial Monitors are widely used in the following fields:


1. Industrial field control display;

2. Embedded in various devices as display devices;

3. As a display device in the host of telecommunications and network rooms;

4. Monitors for trains, subway stations, and ports;

5. Vehicle-mounted displays on train, subway, car;

6. Rugged or military standard displays are generally used in harsh outdoor environments, military vehicles, and warships;

7. Embedded into the advertising machine, which is widely applied to elevators, public places, and commercial office buildings of living quarters.



Touch Think industrial monitors support OEM/ODM customization service.


Screen Customization


1. High-light screen: default with 350cd/m2, support customization up to 1500cd/m2.

2. Photosensitive head: support screen brightness automatically adjusts based on ambient light.

3. Screen viewing angle: default with 160°, but all perspectives 178° WVA can be customized.

4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen, and non-touchscreen.

5. High-resolution screen: higher resolution than standard LCD screen can be customized.

6. Screen size: standard display size range is 7 inch to 21.5 inch, other size is available.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customization Items


1. Appearance customization: support appearance and product color design, sample customization.

2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.

3. LOGO customization.

4. System software: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.

8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof, and waterproof can be customized.

9. Installation methods: support different installation methods for different applications.
