Size: 10.4"

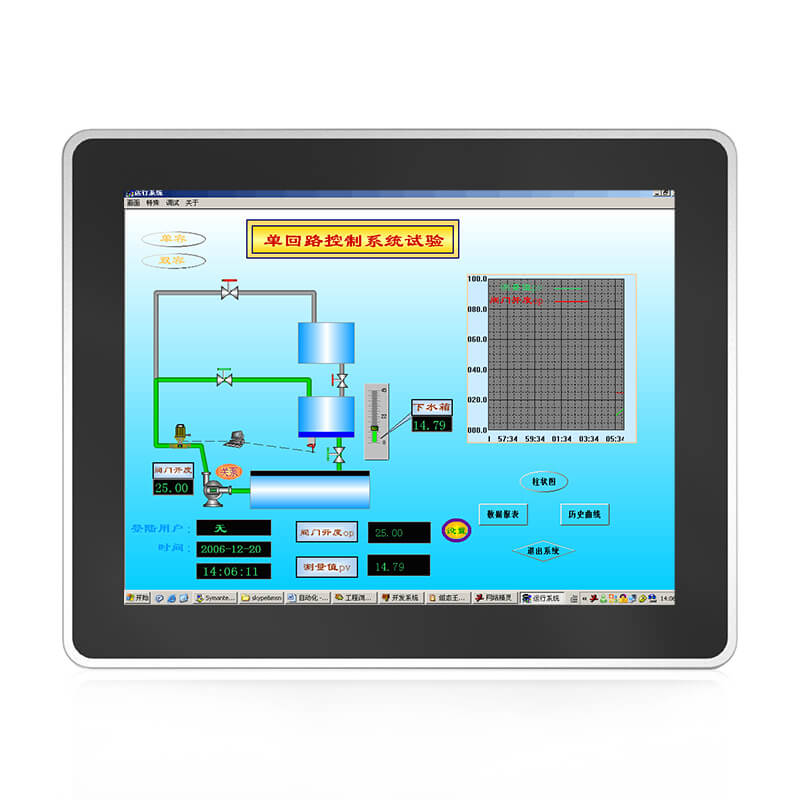

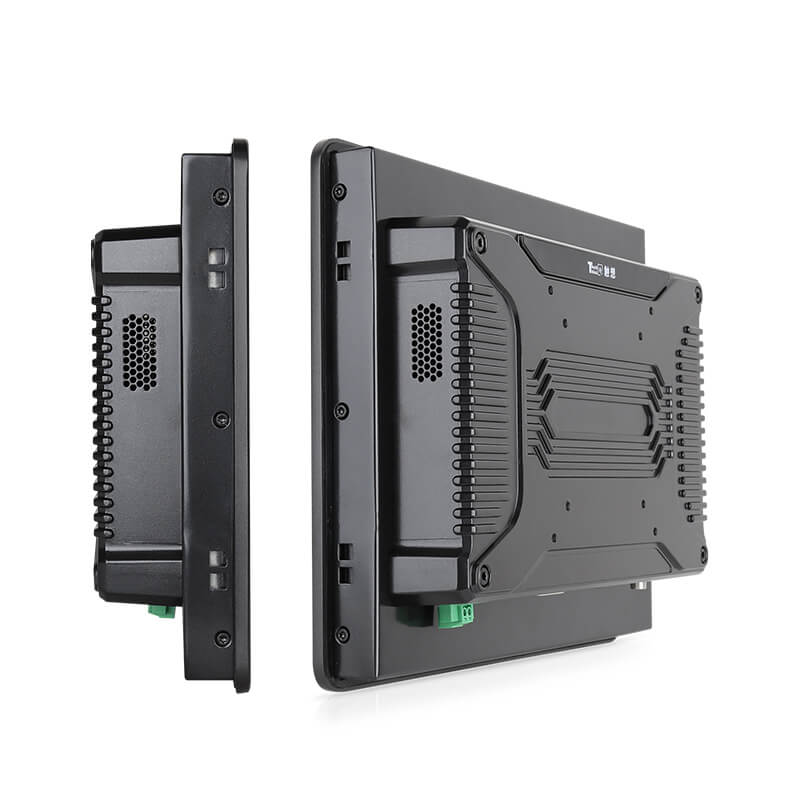

This new 5th-GEN 10.4" industrial touch screen monitor built with a 7mm front bezel, perfect for heavy-duty industrial automation application, and its IP65 dust/water-proof protection, wide temperature operation, anti-shock offering a high-reliability.

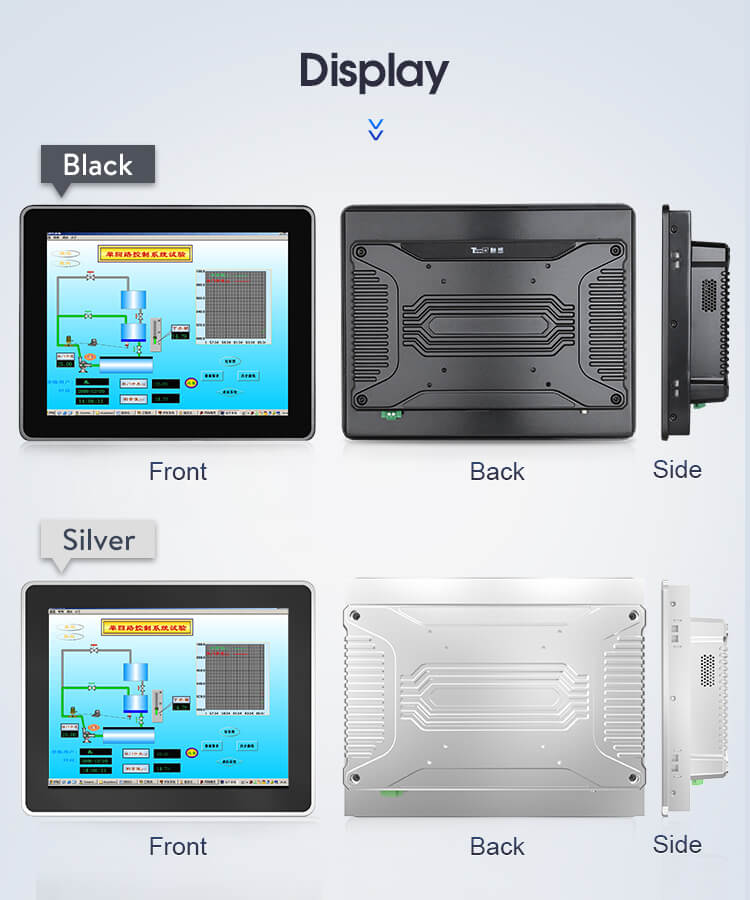

Product Color
Product Features
Model: TPC104-M5
• 1024 x 768 (XGA) resolution
• True industrial-grade LCD panel monitor
• Long-life advanced LED backlighting, over 50,000 hours
• 350 nits (cd/m2) brightness
• Wide operational temperature range -10°C to 60°C
• A multitude of Peripherals inputs available
• Capacitive, resistive touch screen technologies option
• Comprehensive 3-year warranty
• High environmental adaptability
• Support 24/7Hr long time operation
Industrial Touch Screen LCD Displays
| Screen parameters | Screen size | 10.4 inch |
| Model | TPC104-M5 | |
| Resolution | 1024*768 | |
| Proportion | 4:3 square screen | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance | 0.264mm | |
| Contrast | 800:1 | |
| Backlight type | LED, use length≥50000h | |
| Display color | 16.7M | |
| Visual angle | 160/160° (178° full viewing angle is customizable) | |
| Brightness | 350cd/m2 (high brightness customizable) | |
| Touch type | Resistive / capacitive / mouse control | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | Contact 4KV-air 8KV (can be customized ≥16KV) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Dustproof and waterproof | Front panel IP65 dustproof and waterproof | |

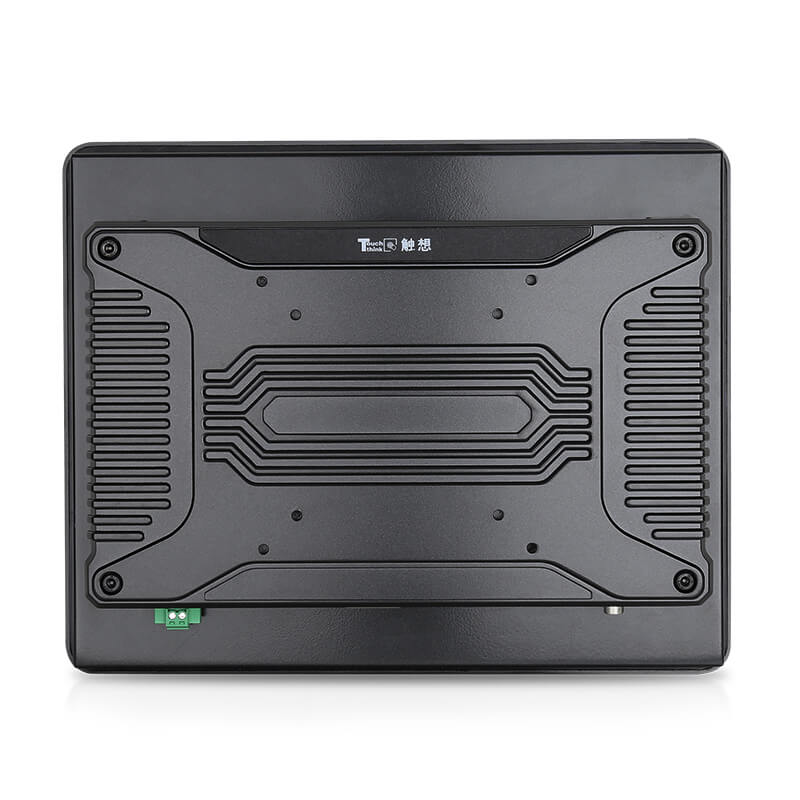

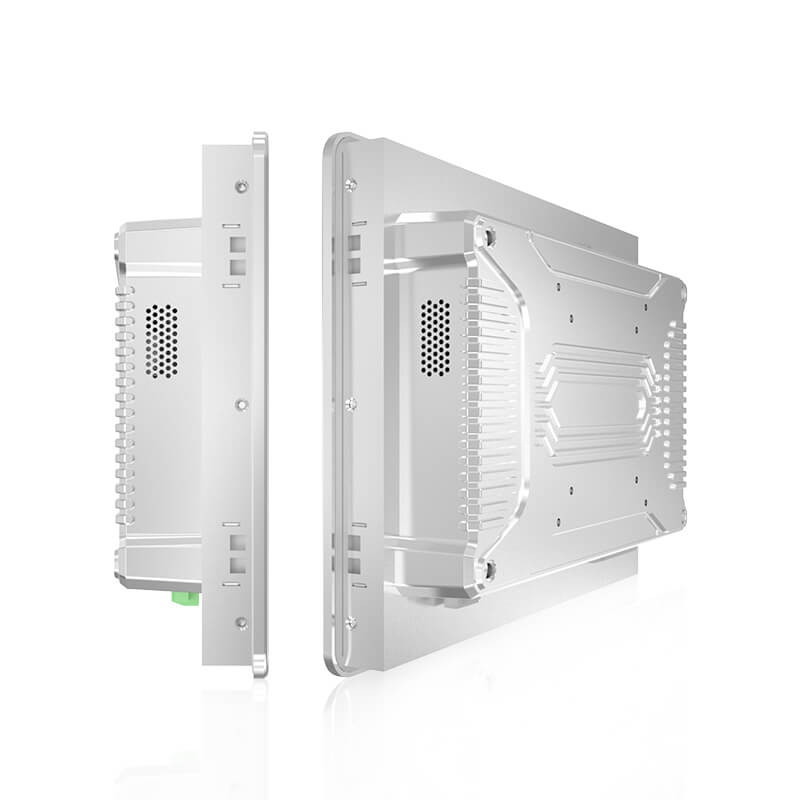

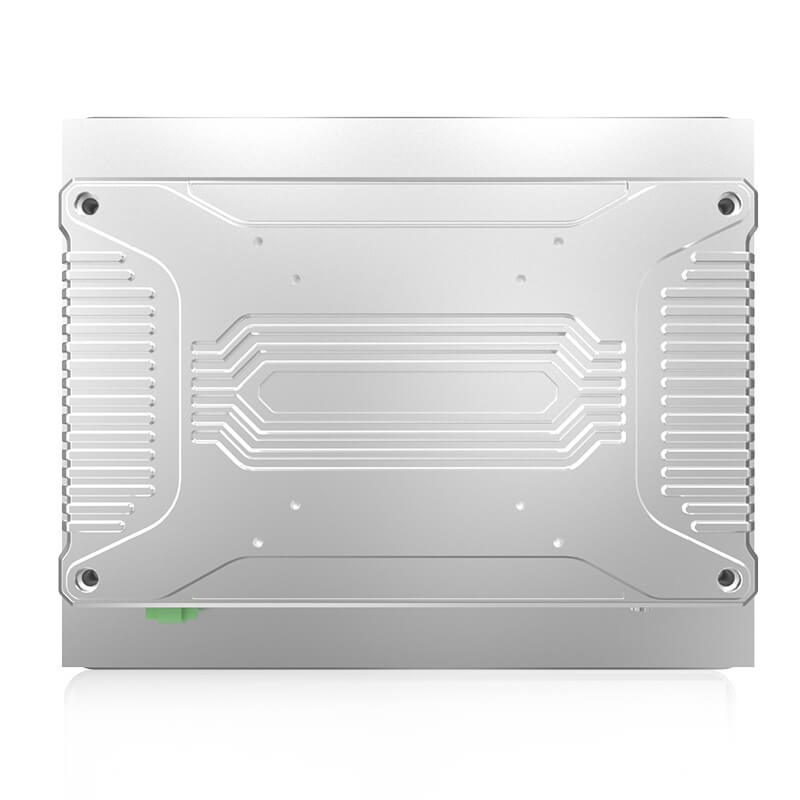

| Housing Material | Black/Silver, Aluminum Alloy | |

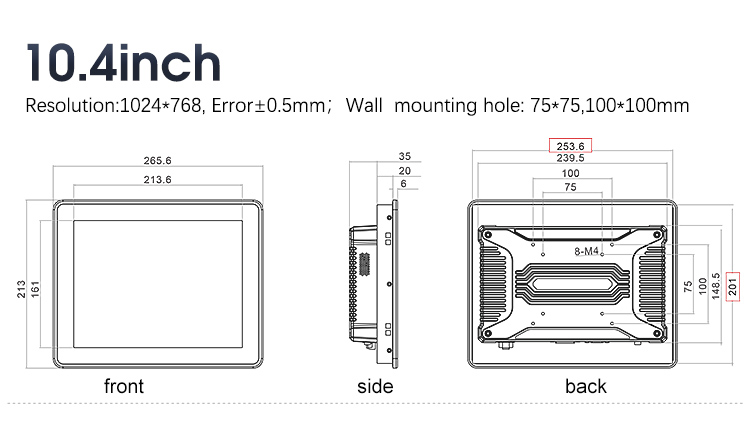

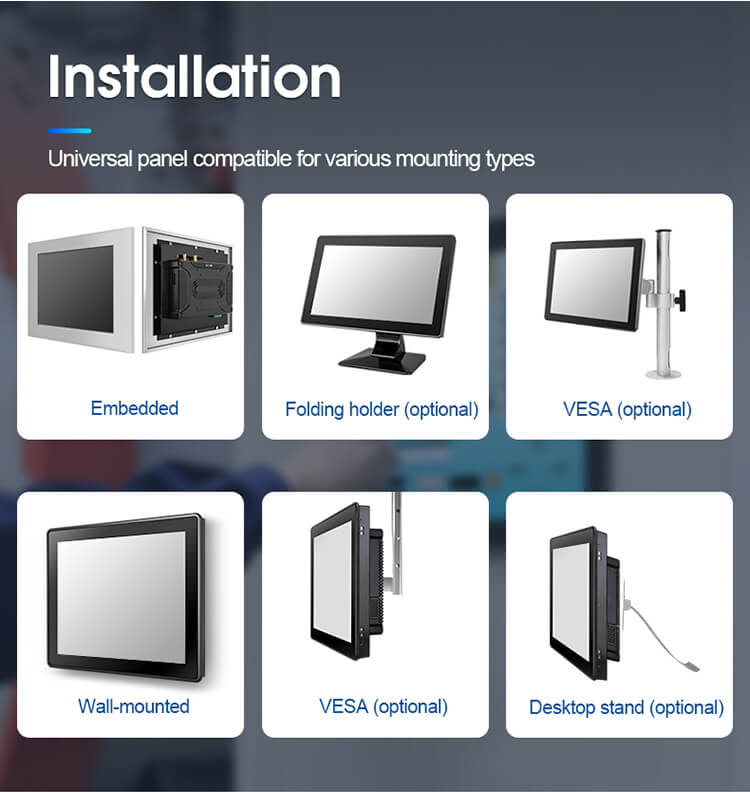

| Installation method | Embedded, desktop, wall-mounted, cantilever, VESA | |
| Ambient temperature | <80%, non-condensable | |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian | |

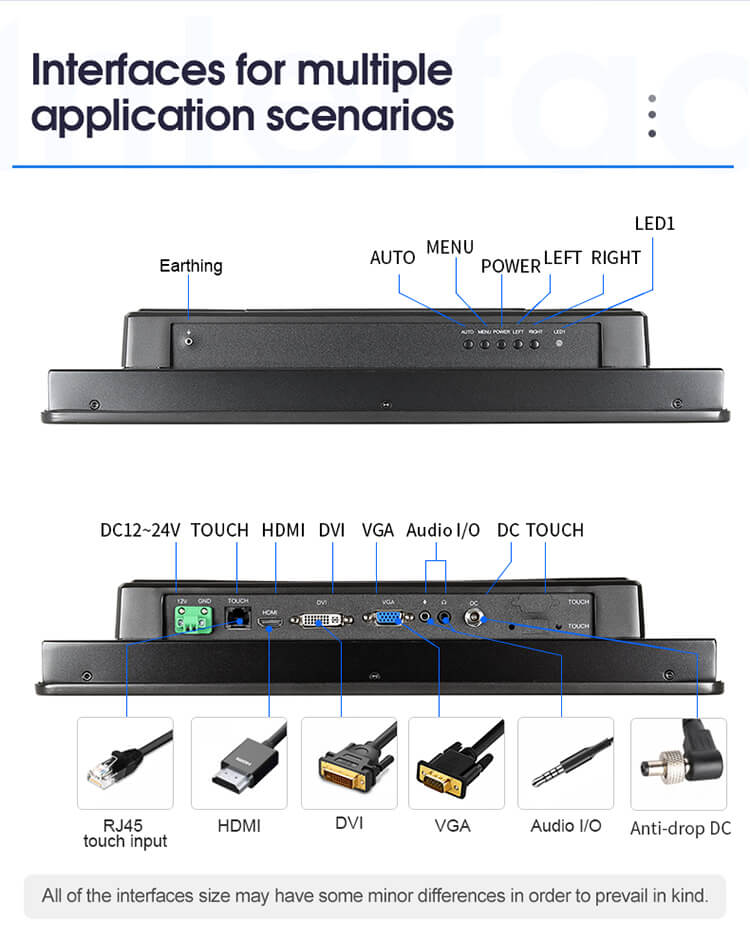

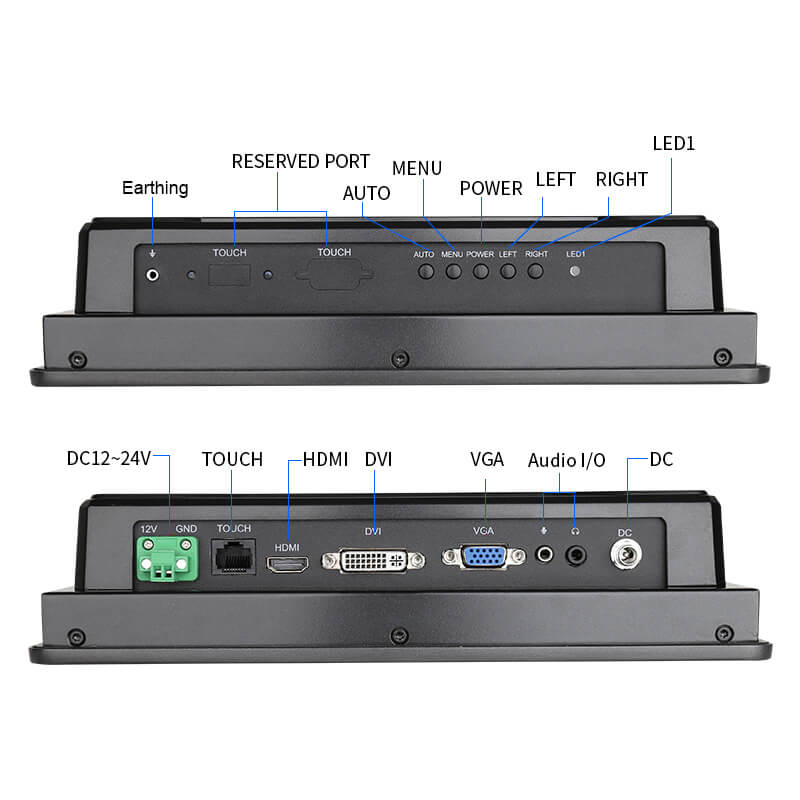

| O/I interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output |

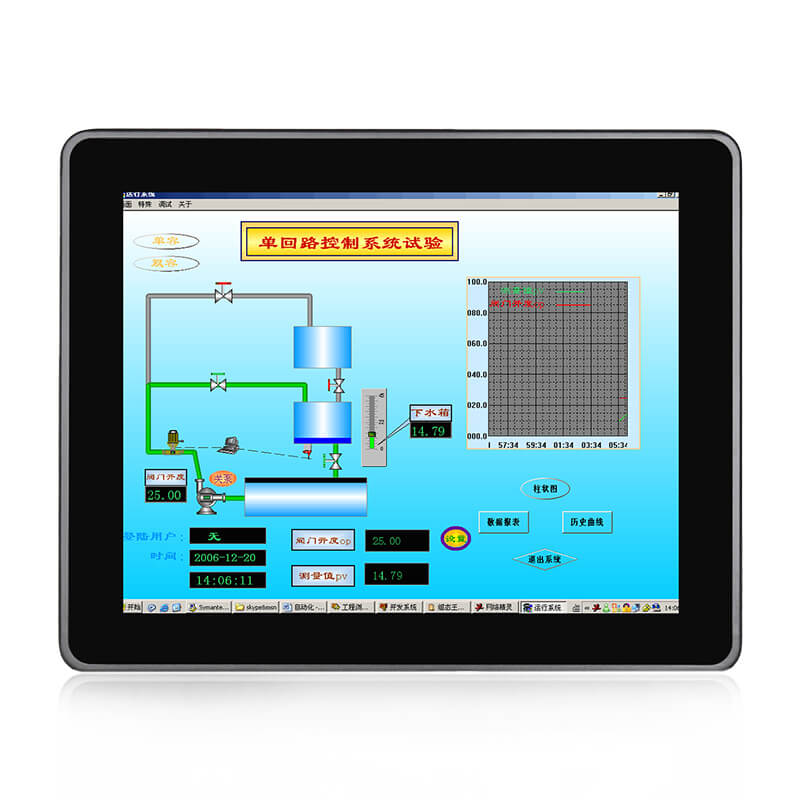

This 10.4-inch industrial LCD monitor suited used in projects such as industrial equipment automation display panels, indoor or outdoor touch screen kiosks, instrumentation panel displays, self-service booths, and ATM machines. The sturdy aluminum alloy housing is milled from a CNC machine and maintains high quality throughout the whole process.
We offer OEM/ODM customization service for global customers, please contact us for details.
