15.6 inch IP65 Waterproof Touch Screen Industrial All in One PC

Size: 15.6

15.6 inch industrial computer with all-in-one design, front IP65 true flat panel with dust-proof and water-proof performance in harsh industrial sites.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial panel pc


10.1 inch industrial panel pc


10.4 inch industrial panel pc


11.6 inch industrial panel pc


12 inch industrial panel pc


15 inch industrial panel pc


15.6 inch industrial panel pc


17 inch industrial panel pc


17.3 inch industrial panel pc


19 inch industrial panel pc


19.1 inch industrial panel pc


21.5 inch industrial panel pc

  • product description
  • Product parameters
  • Application
  • OEM/ODM

15.6 inch IP65 Waterproof Touch Screen Industrial All in One PC

This Touch Think 15.6-inch industrial panel PC unlike consumer computers that require much care to

protect it get damage from extreme environmental conditions. IP65 rated water proof and dust-proof

industrial panel PCs are suitable for indoor and outdoor devices with perfect performance. Offer ca-

pacitive or resistive touchscreen, and intel J1900 CPU.

Touch Think Industrial Panel PC Display

15.6 inch IP65 Waterproof Touch Screen Industrial All in One PC


The characteristics of the integrated industrial computer

A huge demand for intelligent equipment in automotive, communications, information and electrical

appliances, medical, military and other industries has driven the development of embedded industrial

all-in-one panel PC and system.


Unlike traditional industrial computer, fanless industrial computer is oriented to specific application

areas, customized according to application requirements, and with the general demand of intelligent

products, it penetrates into all aspects of life.


With the continuous innovation of hardware technology, the processing capacity of hardware platform

is increasing, and the cost of hardware is decreasing. Industrial all-in-one panel PC with touch screen

has become the key and driving technology of digital transformation and intellectualized value-added

of products.

Features of Touch Think 15.6-inch industrial Panel Pc

1. 10mm front panel thickness, strong impact resistance, easy to maintain and more suitable for harsh

     environments and applications.

2. IP65 water proof and dust-proof for front panel; dust-proof for the whole PC.

3. EMC anti-electromagnetic interference. The industrial panel PC suitable for multi-signal complex en-

   vironments.

4. Working temperature for industrial all-in-one panel PC: -10~60°C, Touch Think support wide tempe-

    rature customization service.

5. Celeron Quad-core J1900 CPU, fast and smooth running in industrial applications.

6. Aluminum alloy heat-dissipating material, low power consumption and energy saving.

7. Support 365 days* 24 hours long-time running under all-weather condition.

8. Display Interface: support synchronized dual display / asynchronous double display (VGA+HDMI).

9. The industrial PCs support multi customization service on terms of functional module.

Capacitive Touch Panel PC

customize Panel PC

customize Panel PC














Screen parametersScreen size15.6 inch
ModelTPC156-W4
Resolution1920*1080
Proportion 16:9 widescreen
Motherboard parameters CPUintel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual core, optional Intel H81 equipped with Core i3/i5/i7)
Hard Disk32G SSD (Optional 64G SSD/500G HDD)
Memory 2G DDR3 (supports 8G DDR3)
Audio Integrated Audio Chip
NetworkIntegrated Gigabit LAN
Wireless network built-in wifi antenna, support wireless connection
Graphics Cards Integrated Graphics
System Pre-installed windows7, support other version
Speakers available

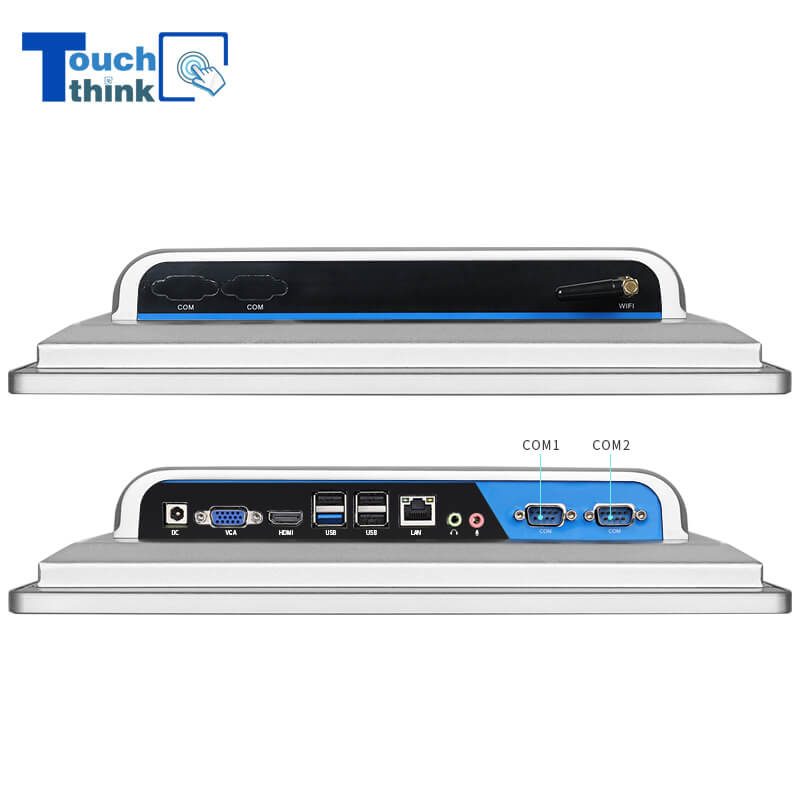

Interface parametersUSB interface8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1
Serial Interface8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol
WIFI connectorWIFI antenna*1
Power InterfaceDC 12V*1
High-definition interfaceHDMI*1
Extended displayVGA*1, support for synchronous dual display and differential display
Network interfaceRJ-45*1
Audio InterfaceAudio I/O
Support extensionsMultiple industry interface support customization
Display parametersColor16.7M
Point distance 0.264mm
Screen Panel

 Industrial control panel

Contrast1000:1
Display brightness400cd/m2 (customizable high brightness above 400cd/m2)
View angle(H160 (V) 160, customizable wide viewing angle 178°
Backlight type LED backlit screen Lifetime ≥ 50000h
Gray-scale response time 5ms
Touch OptionalResistive/Capacitive/Infrared Touch Screen/Mouse Control
Installation methodEmbedded, desktop, wall-mounted, cantilever
Other parametersPower12V-5A Professional External Power Adapter
Power consumption ≤60W
Working temperature-10°C~60°C
Storage temperature-20°C~60°C
Relative humidity0%-65% (without condensation)
MaterialFull body made of aluminum alloy material
Color Silver/Black (other color customizable)
Warranty PolicyOne year free warranty
Degree of protection Front panel IP65 dustproof and waterproof
Packing list Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card


Touch Think industrial computers are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.

These industrial computers are suitable for desktop, wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.

In addition to the above areas, they are used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.






Screen Customization for Touch Think Industrial All-in-one Panel PCs

1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: resistive touch screen, capacitive touch screen, IR touch screen or mouse control.

5. High resolution screen: customize higher resolution than standard LCD screen.

6. Screen size: support to customized screen.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.

Other Customization for Touch Think Industrial All-in-one Panel PCs

1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -20~+70°C, we can customize wider working temp: -30~+80°C.

3. LOGO customization.

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: for special occasions.

8. IP grade: The industrial PCs can be customized fully-sealed dust-proof and waterproof.
