Industrial Android Tablet PC 17 Inch Capacitive Touch Screen

Size: 17"

Touch Think 17-inch industrial Android panel PCs with multi-touch capacitive touch screen technology are designed to withstand harsh conditions and to be placed into extreme environments.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

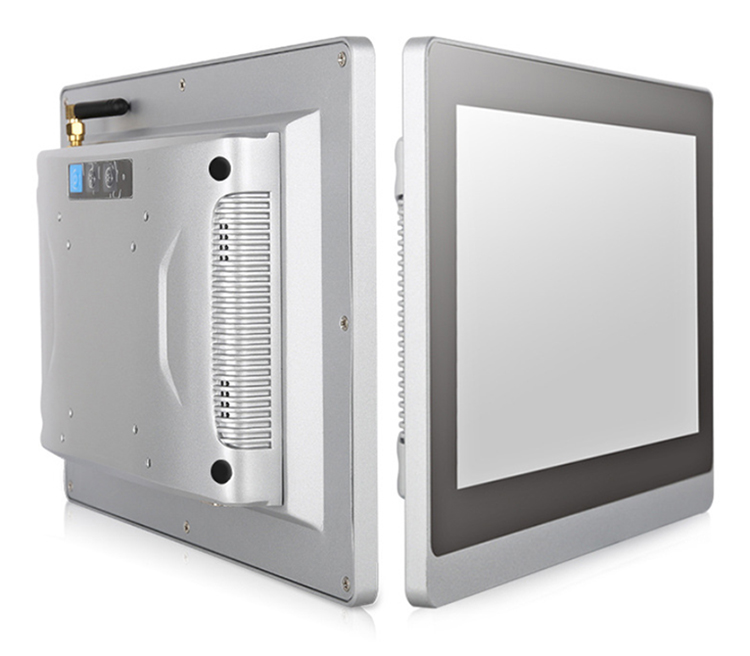

Industrial Android Tablet PC 17 Inch Capacitive Touch Screen


Model: TPC170-A4


Touch Think 4th-GEN 17-inch HD industrial Android all-in-one table PC, equipped with a capacitive touch screen, and supports Android 6.0/7.1/9.0/11, Linux, Ubuntu, and Debian OS. Offering various customization services for these all-in-one panel PCs in terms of appearance, screen size, brightness, wide temperature, functional module, interfaces, etc.



Touch Think Android Industrial Computers Features


● Industrial aesthetic design for appearance, more elegant, offer black and silver colors for the shell.

● The all-in-one tablet PC is pre-installed Android 6.0, and support more Android version.

● We have an independent R&D department for designing and producing motherboards, and drive boards.

● Provide SDK development kits for global customers, and offer more functional module service.

● The whole all-in-one panel PC adopts Aluminum alloy material for anti-oxidation and high heat-dissipation, all the inner electronic components are well-protected during working and storage in harsh industrial environments and other outdoor commercial self-service terminal devices.




Touch Think 17-inch Industrial Android Panel PC Display

Industrial Tablet PC Android OS

Industrial Tablet PC

Elegant appearance, full sense of science and technology, aluminum alloy material, high heat dissipation,

low power consumption, It is specially designed for a variety of complex environments.

Thin narrow corner design, aluminum alloy material frame, 10mm thickness arc front panel design, exquisite

and safe, high screen hardness, not easy to scratch. The panel has strong impact resistance.

Industrial Tablet PC Android system

Rich interfaces can satisfy the control of the electronic lock, and the tablet PC supports the secondary

development and use for customers, easily meeting the needs of different industries.

Pure flat seamless front panel, up to IP65 dust-proof and waterproof, they are compliant with industrial needs.

Industrial Tablet PC Android

A64 Cortex-A53 quad-core 64-bit CPU, plus Android 6.0 main board, 1.5GHz, high performance.

For the use of the material of the whole all-in-one PC, we pay more attention to its reliability, adaptability to the

environment, real-time, expansion for ports, EMC compatibility, and so on.



Wall-mounted and desktop mounting

Industrial Tablet PC Android






Display ParametersSize17"
Resolution1280x1024
Screen Ratio5:4
Brightness250`300 nits (Optional high brightness)
Contrast Ratio1000:1
Viewing Angle89/89/89/89 (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options








Motherboard Model SelectionJWS64
JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-A
System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHz
Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4
Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)
Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)
SATA////Support/
Operating SystemAndroid 6.0Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0

Android 7.1 / 9.0 / 11 / Ubuntu18.04 /

 Debian10.0 / Linux4.4

Android 7.1/9.0/11,

Linux 4.4 / Ubuntu 18.04 / Debian 10

Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11Android 13.0








NetworkingEthernet1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet
4GOptional. Based on the 4G module selection
5G

/

/////
WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5G
BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0








Display FunctionLVDSSupport 1920*1080 60Hz output
EDP/1920*1080 60Hz output
MIPISupport 1920*1080 60Hz output
Mipi Camera30pin FPC interface, support 1300W Camera
HDMI OutputHDMI 2.0, support 4K 3840*2160 60Hz outputHDMI 2.1, support 8K 7680*4320 60Hz output
HDMI Input/HDMI Input, 24-pin FPC custom interface/HDMI Input, 24-pin FPC custom interface//
Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC
I/O PortsMICRO USB1*MICRO USB (OTG)/////
USB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 (including OTG*1) + USB2.0*6 on boardUSB2.0*5 on boardUSB2.0*1 + USB2.0*5 on boardUSB2.0*4 on boardUSB2.0*1 + USB2.0*4 on board
USB 3.0//USB3.0*2 (including OTG*1)USB3.0*1(OTG)USB3.0*2 (including OTG*1)
USB3.0*1(OTG)
RS2323*RS232/TTL mutual conversion1*RS232, 2*TTL/RS232 optionalRS232*2RS232*2RS232*2RS232*2
RS485 / (Unless install RS232 to RS485 converter)RS485*1RS485*1RS485*1RS485*1
TTL3*RS232/TTL mutual conversion1*RS232, 2*TTL/RS232 optionalTTL*2TTL*2TTL*2TTL*2
GPIO3*GPIO output, 1*GPIO input, and 1*ADC portGPIO*7 (input/output)GPIO*8 (input/output)GPIO*8 (input/output)GPIO*12 (input/output)GPIO*6 (input/output)
SIM SlotSupportSupportSupportSupportSupportSupport
TF SlotSupportSupportSupportSupportSupportSupport
CAN////SupportSupport
Speaker3.5mm standard Jack
MICSupportSupportSupportSupportSupportSupport
Audio Port3.5mm earphone jack, support input/output
I/O Expansion Available








PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC
Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A

MechanicalDimension383.3*340.7*61.9mm
EnclosureAluminum alloy housing
Cooling SystemFanless
MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product

Reliability

Working Temp -20°C ~ 70°C
Storage Temp -30°C ~ 80°C
Ambient Humidity 5% - 95% (relative humidity non-condensing)
IP ratingFront IP65












17-inch industrial Android panel PC from Touch Think are suitable for industrial automation solutions, such as production line automation, industrial process control,  heavy industry, touch kiosk, medical equipment, marine touch display, etc.

We offer OEM/ODM customization service for global clients, please contact us for details.
