Size: 7~21.5 inch
Touch Think industrial all-in-one panel PC with IP65 rated dust-proof and water proof for front panel.
Product Color
8”
10.1”
10.4”
11.6”
12”
15”
15.6”
17”
17.3”
19”
19.1”
21.5”
Industrial-Grade Touch Panel Computer for Food, Chemical and Outdoor Devices
Touch Think 10.4 inch Android system industrial touch PC is perfect for fields like food, chemical,
and outdoor workstation. Supporting VESA mount in these applications. They're designed to meet
durability standards in harsh industrial conditions, IP65 rated dust-proof and water-proof, also, anti
-vibration, anti-interference. Support interfaces, appearance and functional modules customizable.
Features of Touch Think Industrial Panel PC
1. Industrial technology appearance, thin frame design, small size, wide picture display.
2. 10mm thickness for the front panel, stronger impact-resistant in harsh environments. Arc edge
angle design, good touching experience for operator.
3. IP65 rated dust-proof and water proof, light and thin for whole panel PC, which meet the deve-
lopment trend for industrial panel PC.
4. Self-developed motherboard, more stable performance, lower power consumption.
5. Professional independent R&D team to provide comprehensive technical support.
6. The industrial panel PC is pre-installed Windows system, support other system customization.
7. Wide operating temperature range: -10°C to +60°C.
8. Fanless design for dissipating heat.
9. Optional Wi-Fi/3G/4G kit for wireless network connectivity.
10. Supports VESA and suspension mount.
11. Industrial-grade connectors for harsh environments.
Customization Service for Touch Think Industrial All-in-one PC
All Touch Think industrial all in one panel PCs have passed international quality certificates as below.
| Screen parameters | Screen size | 12 inch |
| Model | TPC120-A4 | |
| Resolution | 1024*768 | |
| Proportion | 4:3 square screen | |
| Motherboard parameters | CPU | Default with JWS-A64 Quad-core Cortex-A53 1.5GHz, Android 6.0 Upgrade Option: 1. JWS-RK3288, Quad-core Cortex-A17 1.8GHz, Android 5.1 2. JWS-RK3399, Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.4GHz, Android 7.1 |
| Hard Disk | 32G SSD (Optional 64G SSD/500G HDD) | |
| Memory | 2G DDR3 (supports 8G DDR3) | |
| Audio | Integrated Audio Chip | |
| Network | Integrated Gigabit LAN | |
| Wireless network | built-in wifi antenna, support wireless connection | |
| Graphics Cards | Integrated Graphics | |
| System | Android 6.0 / 5.1 / 7.1 | |
| Speakers | Available | |
| Interface parameters | USB interface | 8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1 |
| Serial Interface | 8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol | |
| WIFI connector | WIFI antenna*1 | |
| Power Interface | DC 12V*1 | |
| High-definition interface | HDMI*1 | |
| Extended display | VGA*1, support for synchronous dual display and differential display | |
| Network interface | RJ-45*1 | |
| Audio Interface | Audio I/O | |
| Support extensions | Multiple industry interface support customization | |
| Display parameters | Color | 16.7M |
| Point distance | 0.264mm | |
| Screen Panel | Industrial control panel | |
| Contrast | 1000:1 | |
| Display brightness | 400cd/m2 (high brightness above 400cd/m2 customizable) | |
| View angle | (H160 (V) 160, wide viewing angle 178° customizable | |
| Backlight type | LED backlit screen Lifetime ≥ 50000h | |
| Gray-scale response time | 5ms | |
| Touch Optional | Capacitive/ mouse control | |
| Installation method | Embedded, desktop, wall-mounted, VESA, panel mount | |
| Other parameters | Power | 12V-5A Professional External Power Adapter |
| Power consumption | ≤60W | |
| Working temperature | -10°C～60°C | |
| Storage temperature | -20°C～60°C | |
| Relative humidity | 0%-65% (without condensation) | |
| Material | Aluminum alloy material | |
| Color | Silver / Black | |
| Warranty Policy | One year free warranty | |
| Degree of protection | Front panel IP65 dustproof and waterproof | |
| Packing list | Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card |

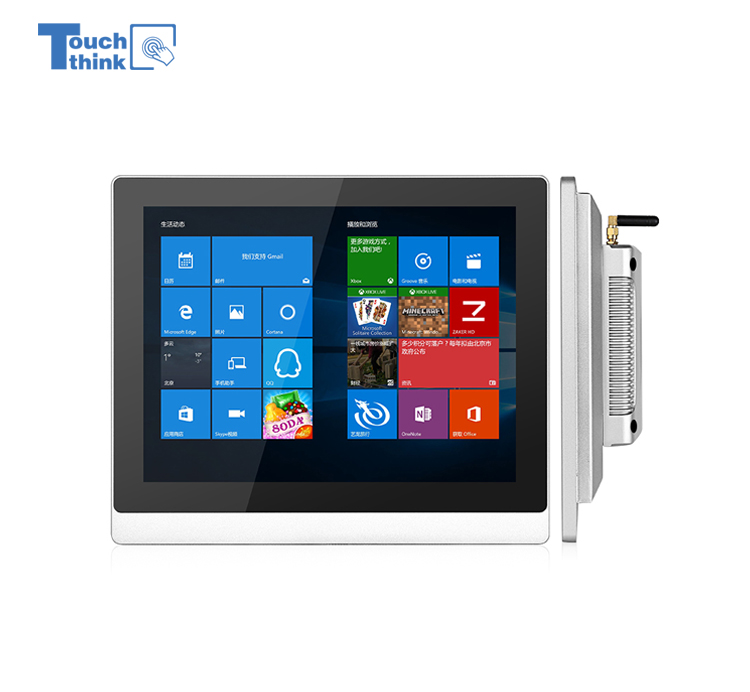

12 inch industrial touch screen AIO Panel PC
We support OEM/ODM orders for global customers, please feel free to contact us for details.
